GrabMax Silage Grabs

Tough, versatile silage grabs, with unique clamping radius making clean up easier, helping you to get the max from your operation.

LM160  |  LM200  |  LM240  |  LX200  |  LX250

Loader-mounted silage grab for handling and loading loose feeds, silage or muck.

Hustler’s range of GrabMax silage grabs helps you get the max out of your operation, ensuring safe and efficient handling of bulk/loose feed such as grass or maize/corn silage, or even manure. From the LM Series of everyday farmer grabs to the heavy-duty LX Series, GrabMax has you covered for loaders, skid steers, telehandlers and shovel loaders.

4 Reasons to Choose GrabMax

1. Versatile

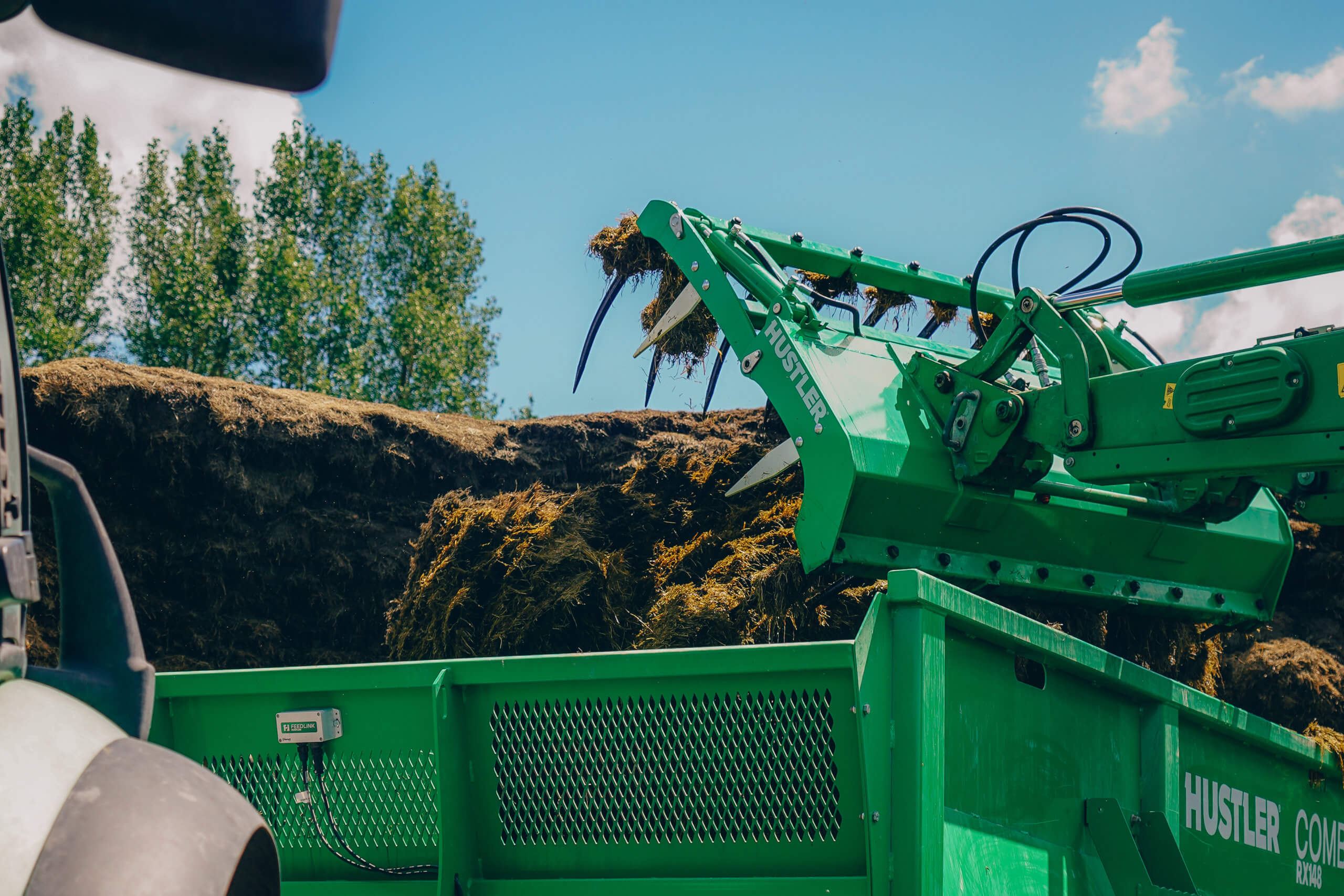

GrabMax is an extremely versatile attachment for loading feed wagons with bales, grass, maize/corn silage. It can also be used to load manure/muck spreaders. Two side containment tines on each side of the grab help secure the load and keep the work/loading area clean.

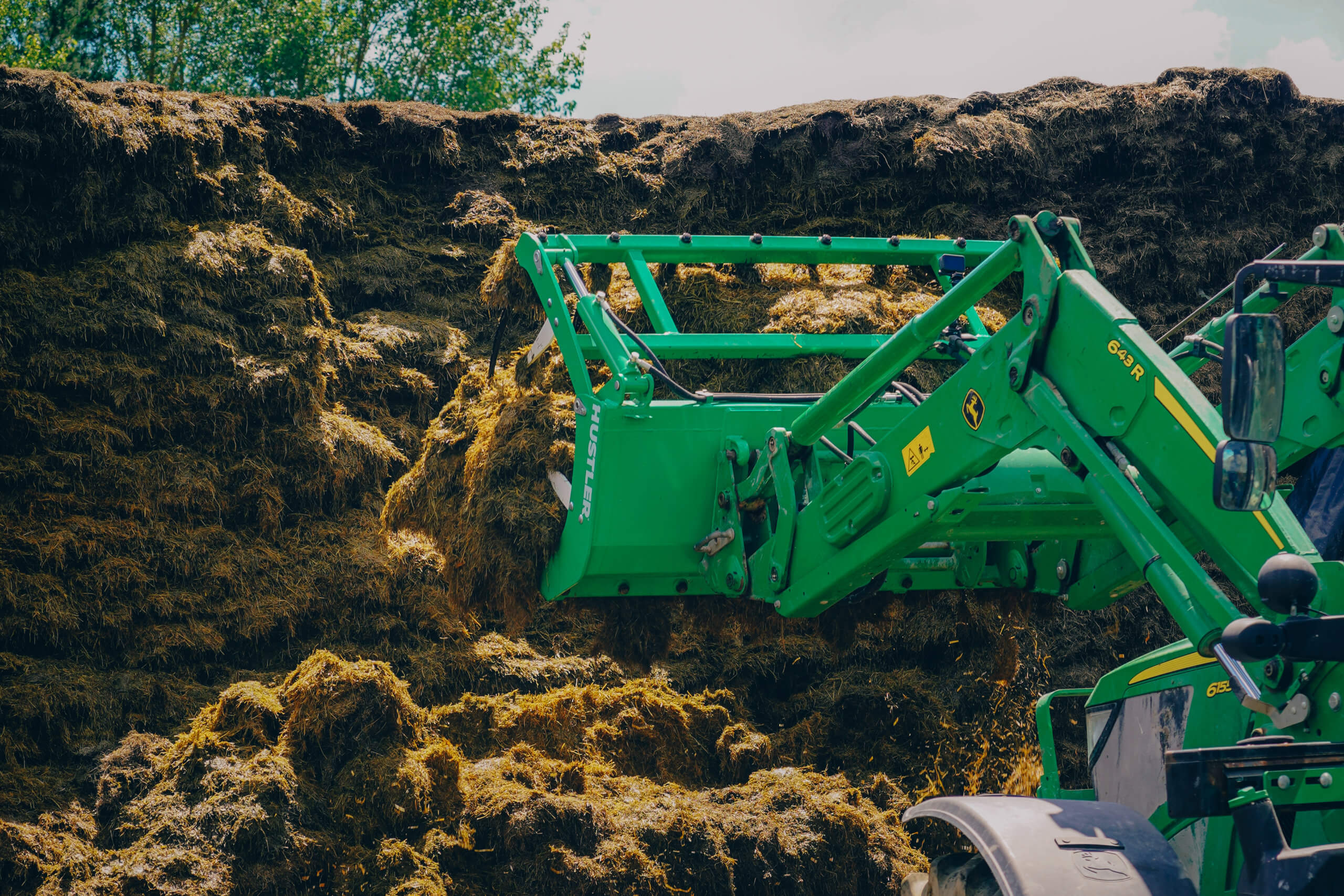

GrabMax Edited 5

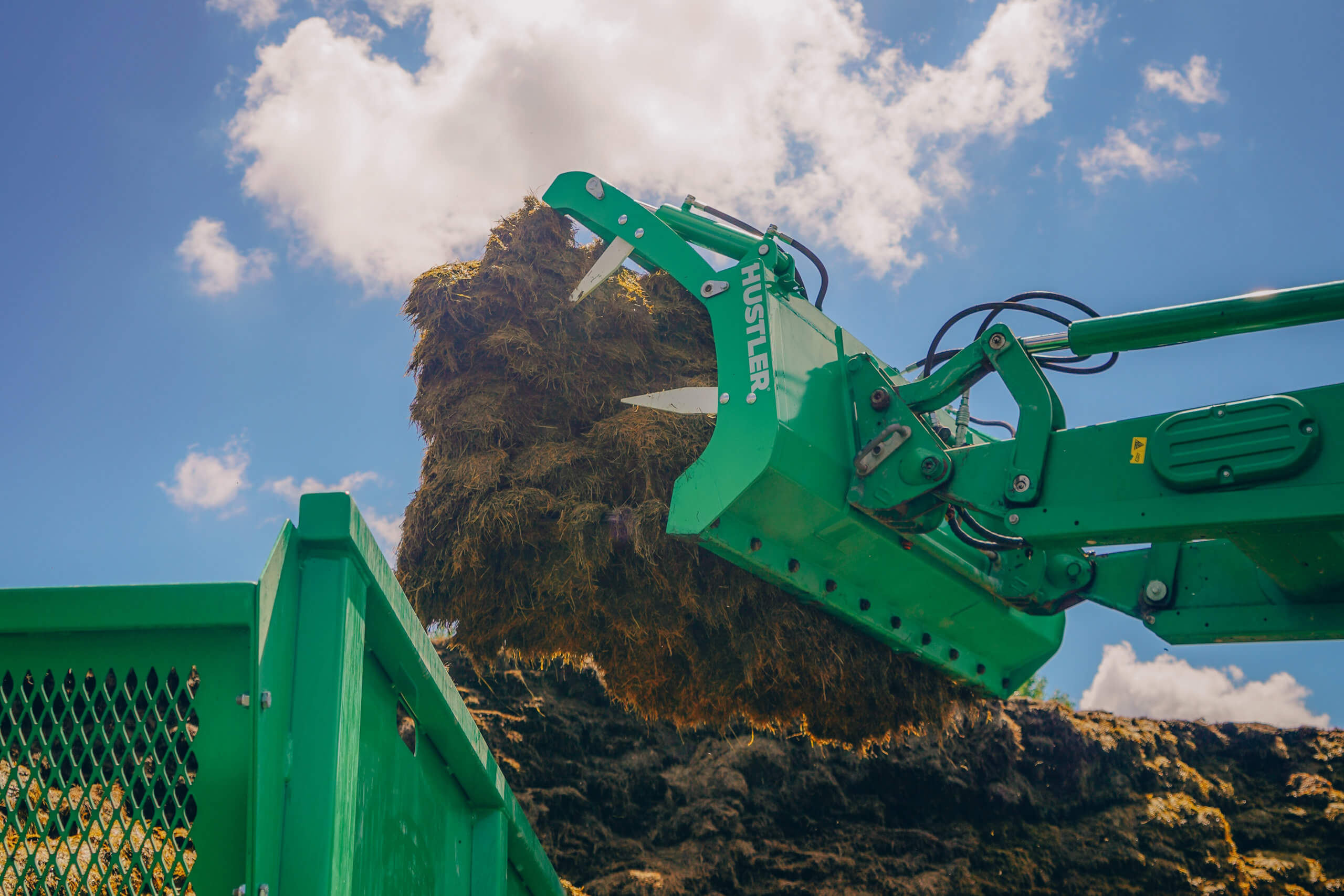

GrabMax Edited 8

2. Compact Design

GrabMax’s compact design provides great visibility and a short load centre, allowing you to load more with each scoop. By keeping the load close to the tractor, GrabMax reduces the constraints on the tractor’s front axle and allows you to lift and load more with less.

3. Unique clamp radius

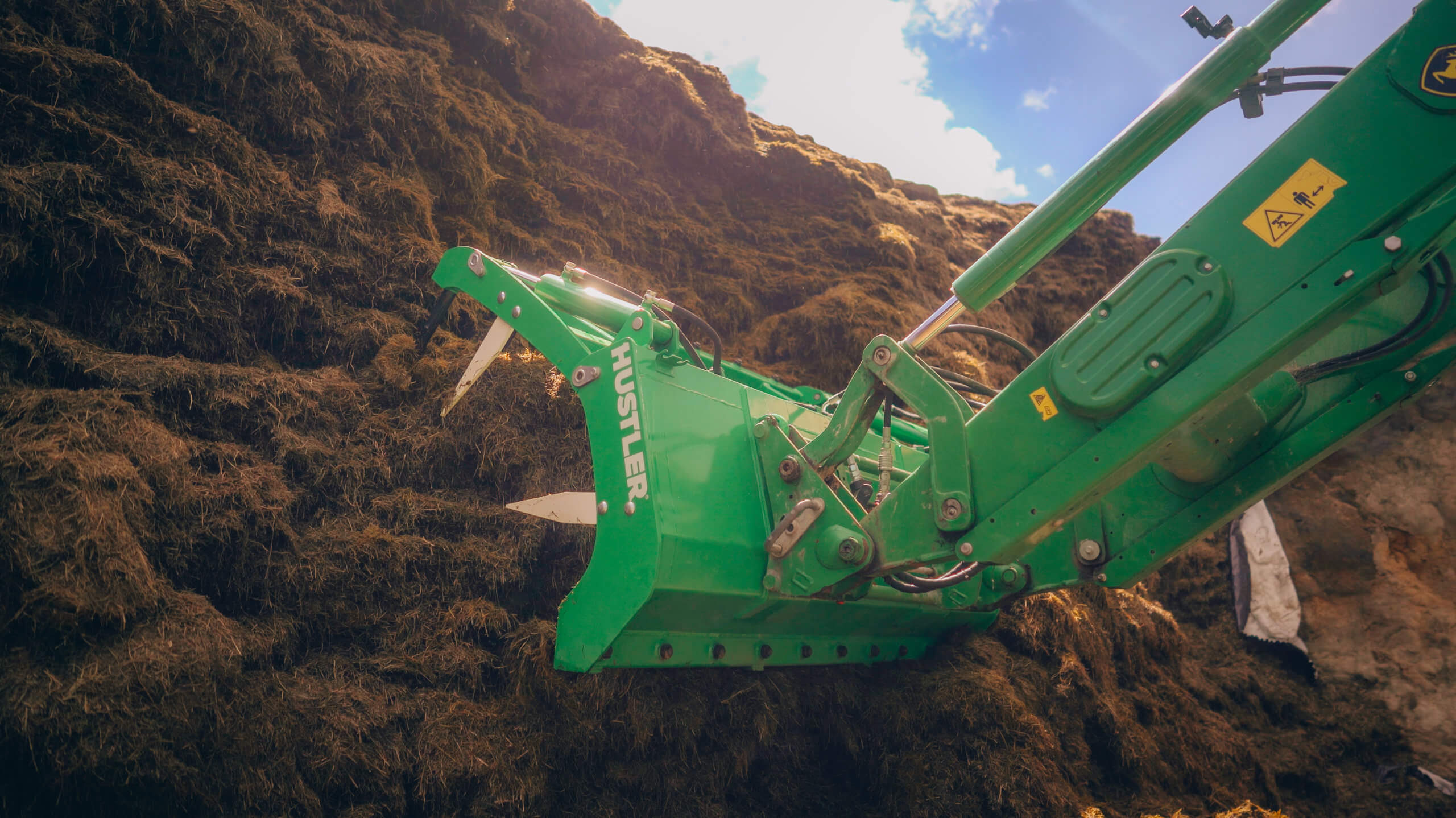

GrabMax’s unique clamping radius provides a near-perfect clamping curve, keeping a very clean face on your silage pit. It also allows you to load and handle a wider variety of materials efficiently, including pit silage, round bales and manure!

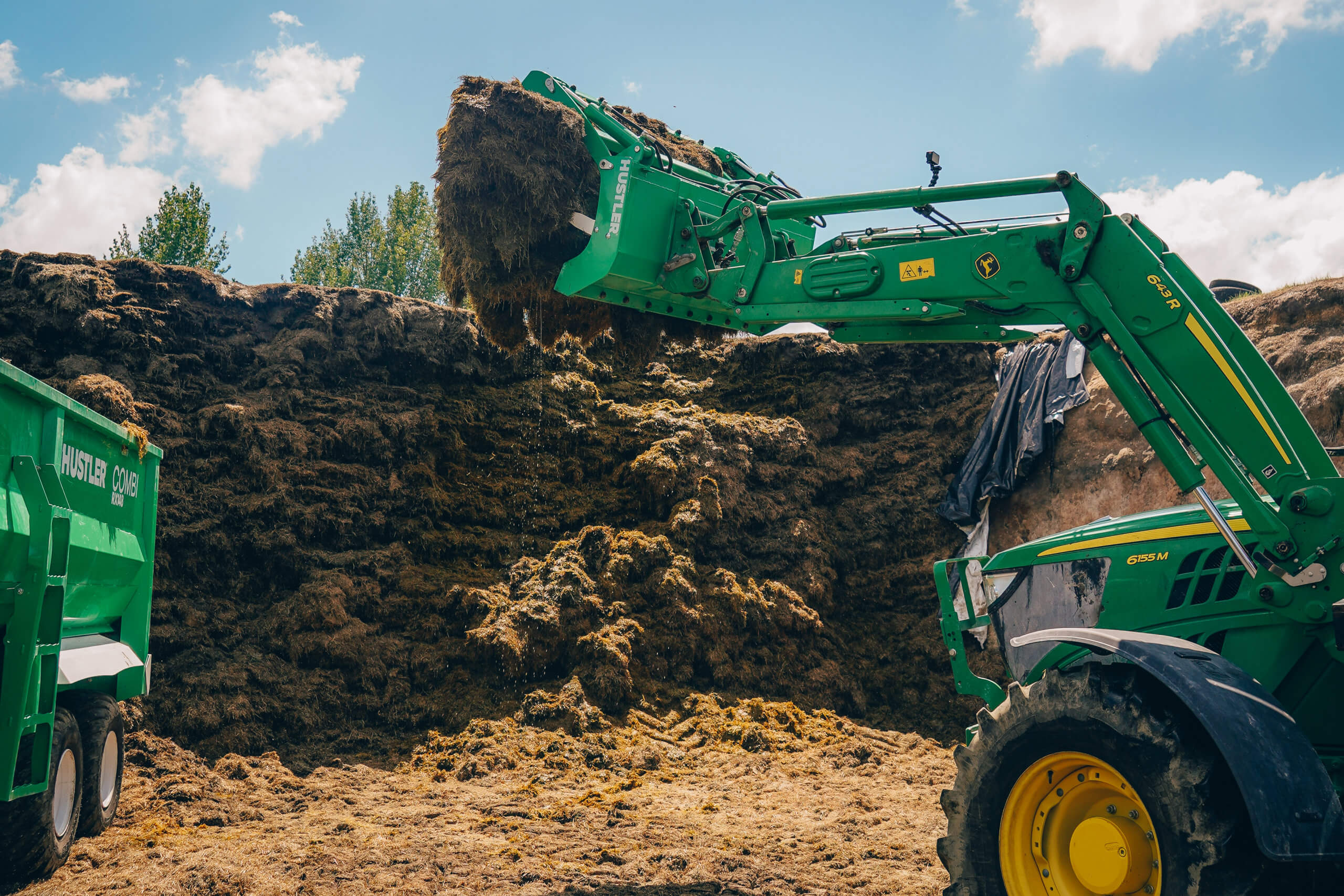

GrabMax Edited 4

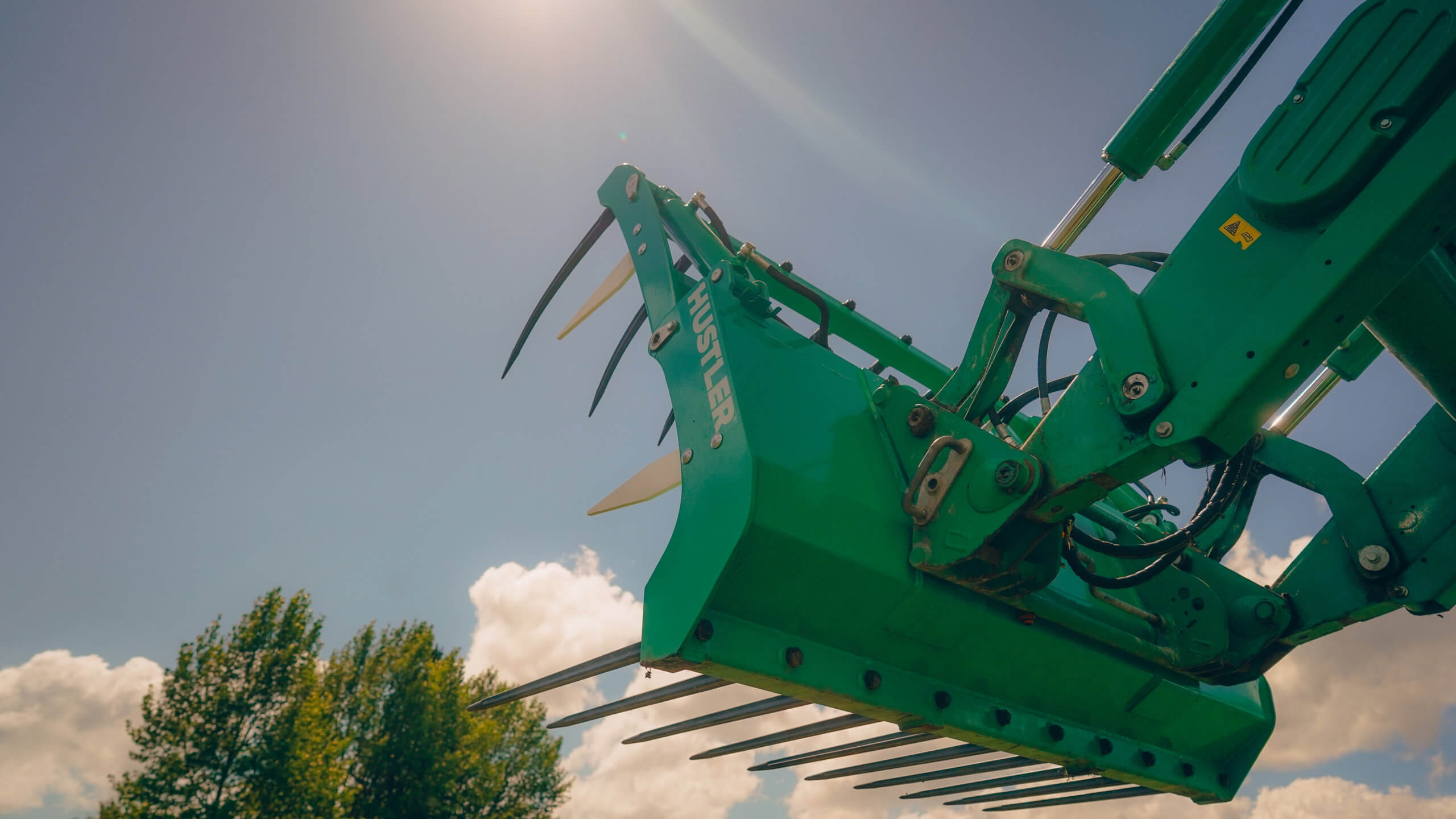

GrabMax Edited 7

4. Tough design

From the thick-walled tube, fully enclosed back and reinforced cone collars, to the forged tines and tapered frame bushings, the GrabMax is built for years of hassle-free service. We are so confident in its strength that we can offer a 4-year warranty, the best in the business!



Product Customiser

Select the product, then options and accessories to create your enquiry.

Euro Hitch Brackets

Euro Hitch Brackets

Skidsteer Brackets - 3ptl

Skidsteer Brackets - 3ptl

Euro Hitch Brackets

Euro Hitch Brackets

Skidsteer Brackets - 3ptl

Skidsteer Brackets - 3ptl

Euro Hitch Brackets

Euro Hitch Brackets

Skidsteer Brackets - 3ptl

Skidsteer Brackets - 3ptl

Euro Hitch Brackets

Euro Hitch Brackets

Skidsteer Brackets - 3ptl

Skidsteer Brackets - 3ptl

Euro Hitch Brackets

Euro Hitch Brackets

Skidsteer Brackets - 3ptl

Skidsteer Brackets - 3ptl

JCB 530 Q-Fit Brackets

JCB 530 Q-Fit Brackets

Kramer Hitch

Kramer Hitch

Features & Benefits

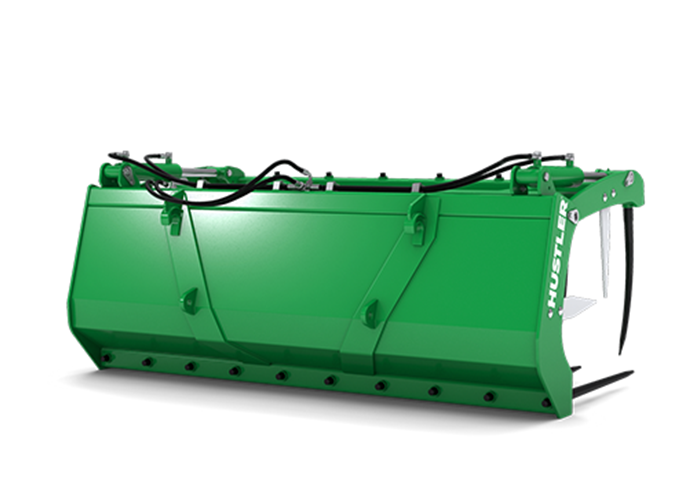

Fully enclosed back

A fully enclosed back reduces spillage and minimises waste. This also increases the structural strength of the grab.

GrabMax LM200 06 wshadows v2 700 500 v2

Reinforced tines

GrabMax embarks high-quality tines made from forged steel and reinforced with tapered bushings in the frame.

Reinforced Tines 700x500 1

Side containment tines

GrabMax is equipped with two side containment tines on each side as standard, reducing spillage and minimising waste. Keep the face of your pit clean and reduce loading movements created by spillage. The containment tines are easily removable for added versatility.

GrabMax LM200 tines

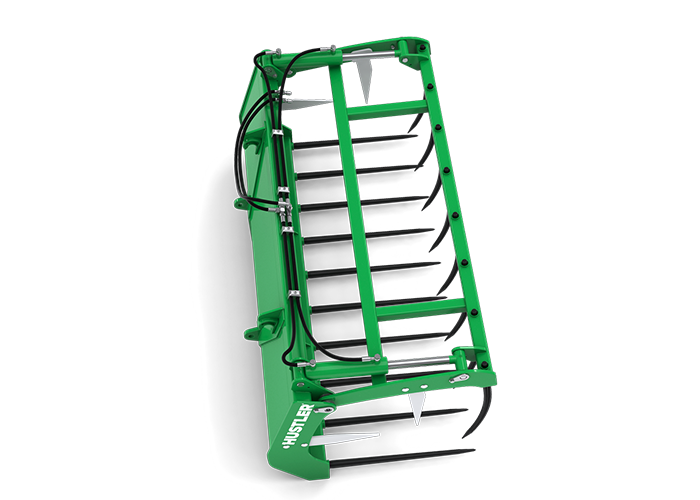

Efficient space utilisation

Thanks to the intelligent design of the opening and the length of the tines, GrabMax makes efficient use of the volume from 0.88 m³ to 2.25 m³ (1.1 yd³ – 2.9 yd³).

GrabMax LM200 08 wshadows v2 700 500 1

Hose Exit

A central hose exit removes the risk of snagging the hydraulic hoses.

hose exit 700 500 3

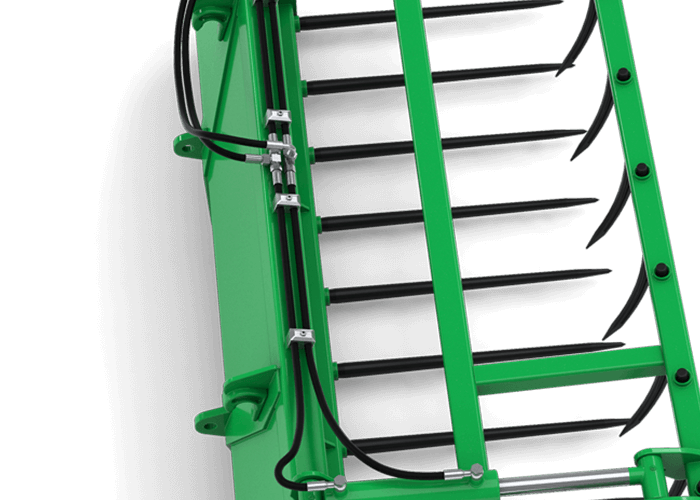

Hydraulic hose holders

A smart hydraulic hose holder keeps your couplings/fittings protected from the elements for longer.

Hydraulic Hose Holders 700x500 1

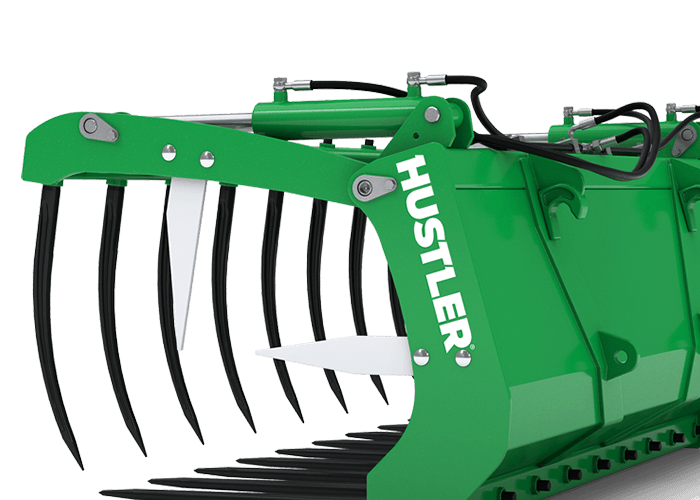

Protected rams

The hydraulic rams have been designed to be slightly offset for greater protection and clamping power.

Protected Rams 700x500 1

Split clamp

Models over 2 metres (6.5 feet) wide are equipped with a split clamp that prevents the steel from twisting for longer lifespan.

Split Clamp Grabmax scoopmax

Specifications

This model is available in Australia, United Kingdom & Ireland
Unit Weight 300 kg | 661.3 lbs
Dimensions (L x W x H) 1600 mm x 1000 mm x 880 mm | 62.9 in x 39.3 in x 34.6 in
Capacity 0.88 m³ | 10.3 yd
Tines (top) 8/7 forged tines
Clamp Twin ram clamp
This model is available in Australia, United Kingdom & Ireland
Unit Weight 320 kg | 705.4 lbs
Dimensions (L x W x H) 1800 mm x 1000 mm x 880 mm | 70.8 in x 39.3 in x 34.6 in
Capacity 0.99 m³ | 34.9³
Tines (bottom/top) 9/8 forged tines
Clamp Twin ram clamp
This model is available in Australia, United Kingdom & Ireland
Unit Weight 410 kg | 903 lbs
Dimensions (L x W x H) 2400 mm x 1000 mm x 880 mm | 94.4 in x 39.3 in x 34.6 in
Capacity 1.32 m³ | 11.7yd
Tines (bottom/top) 12/11 forged tines
Clamp Twin ram, split clamp
This model (heavy duty) is exclusive to the United States and Canada
Unit Weight 530 kg | 1102.3 lbs
Dimensions (L x W x H) 2000 mm x 1210 mm x 1020 mm | 773/4 in wide x 472/3 in deep x 40.15 in – 58.18” high
Capacity 1.80 m³ | 21.2 yd
Tines (bottom/top) 10/9 forged tines
Clamp Twin ram, split clamp
This model (heavy duty) is exclusive to the United States and Canada
Unit Weight 580 kg | 1278.7 lbs
Dimensions (L x W x H) 2500 mm x 1210 mm x 1020 mm | 98.4 in x 47.6 in x 40.1 in
Capacity 2.25 m³ | 26.5yd
Tines (bottom/top) 13/12 forged tines
Clamp Twin ram, split clamp
