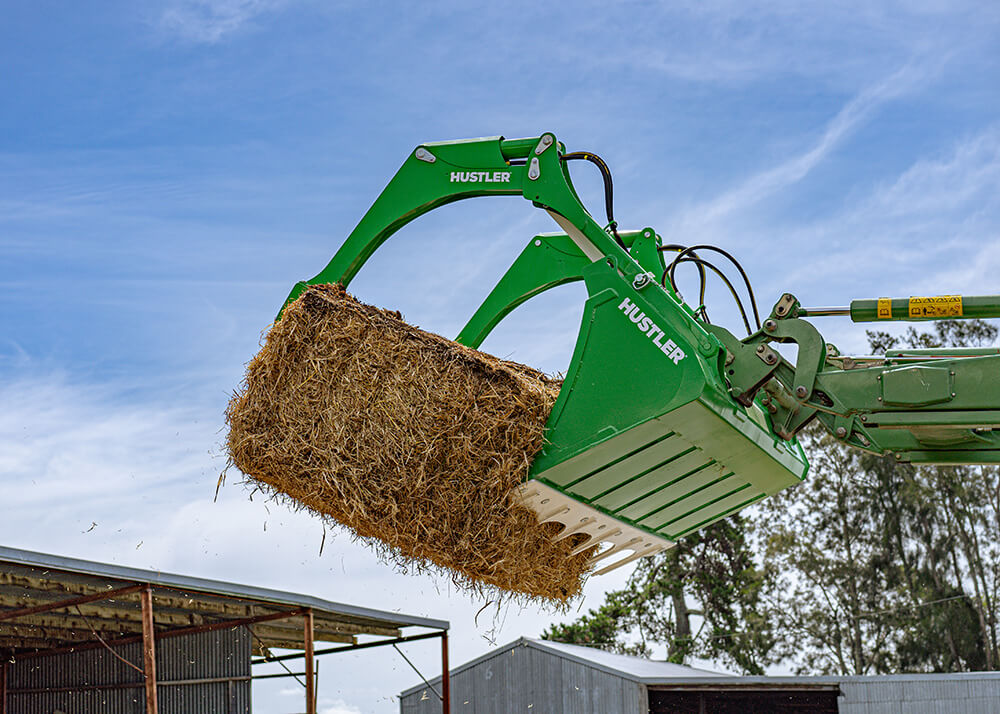

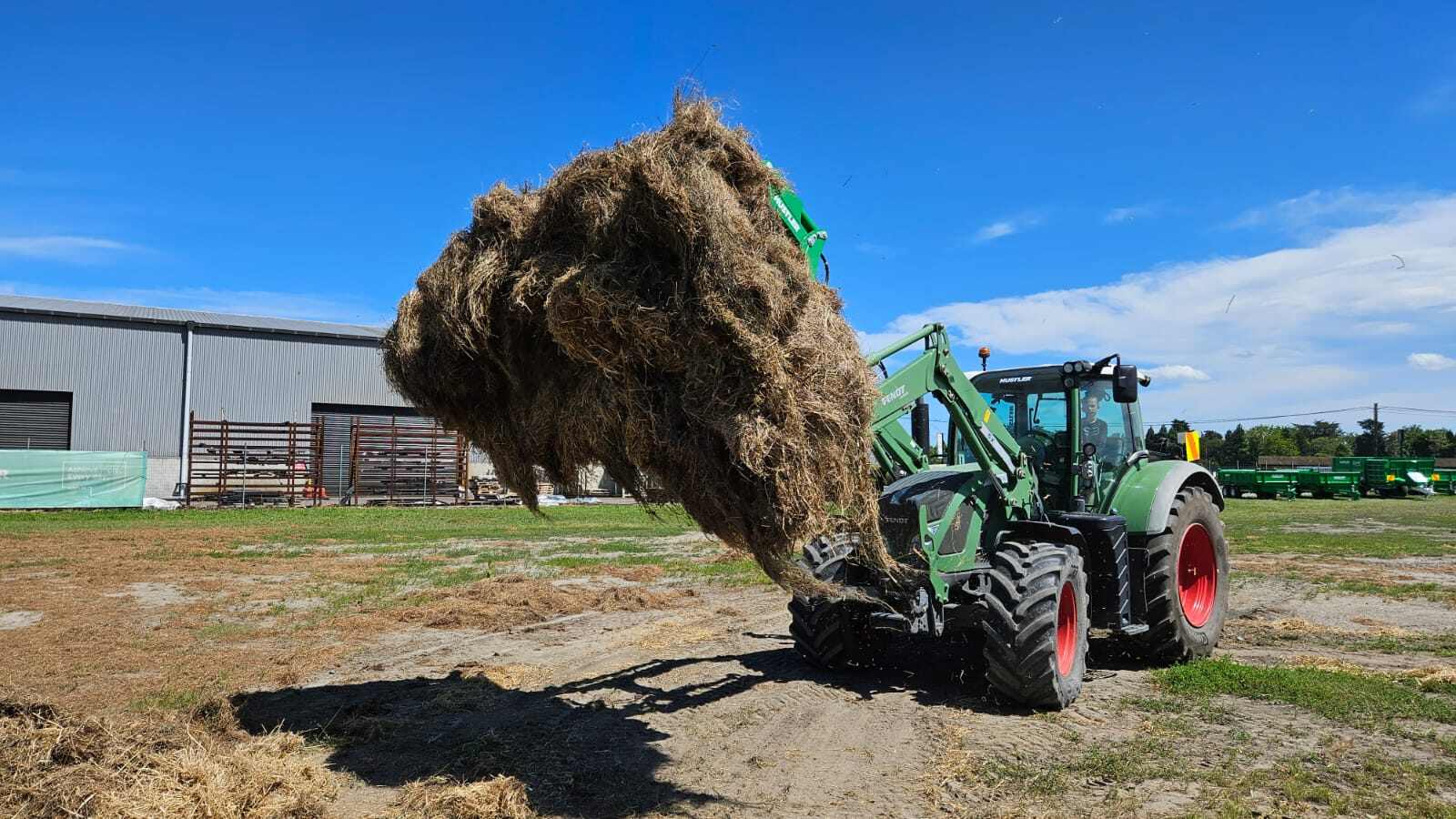

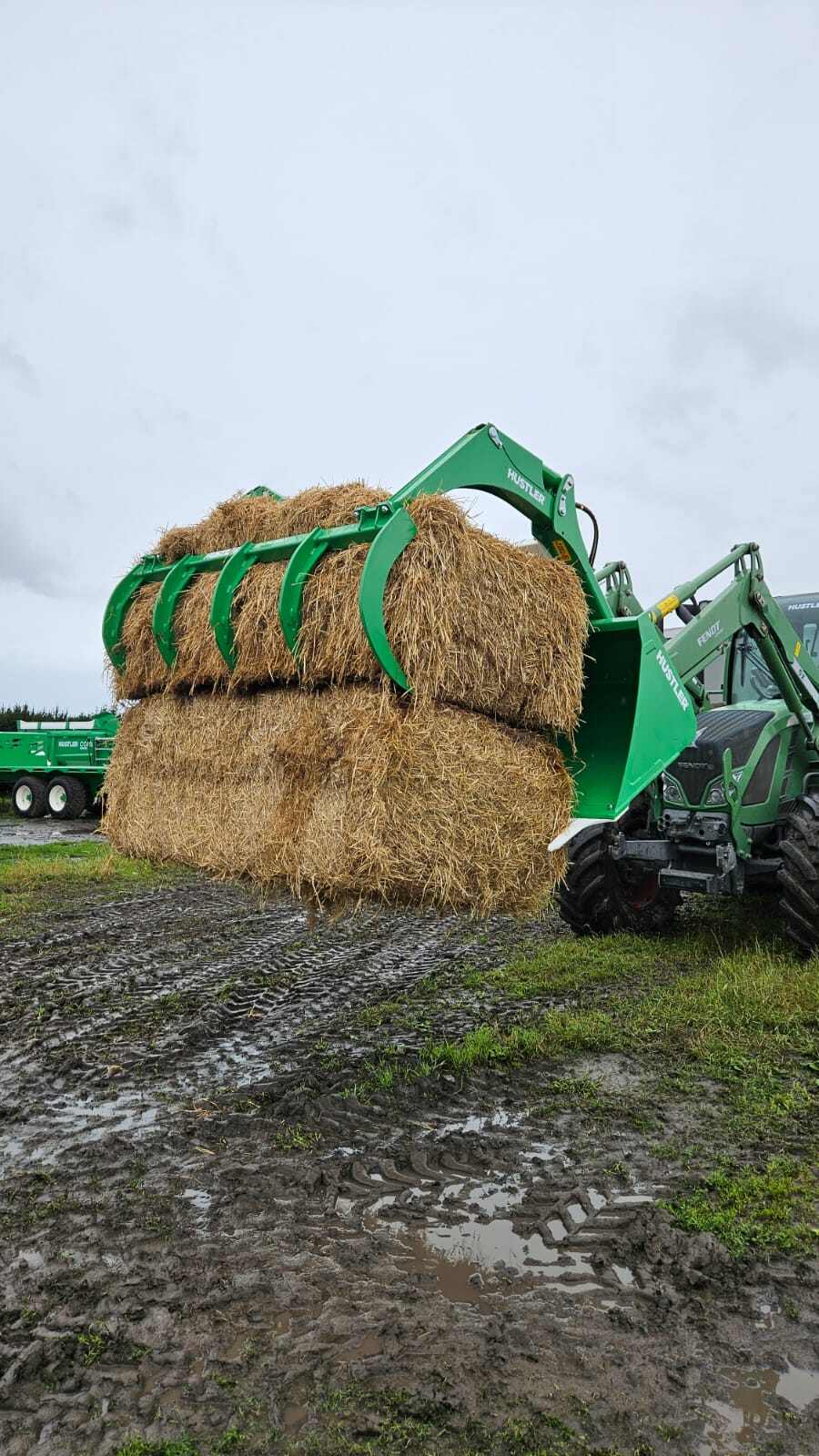

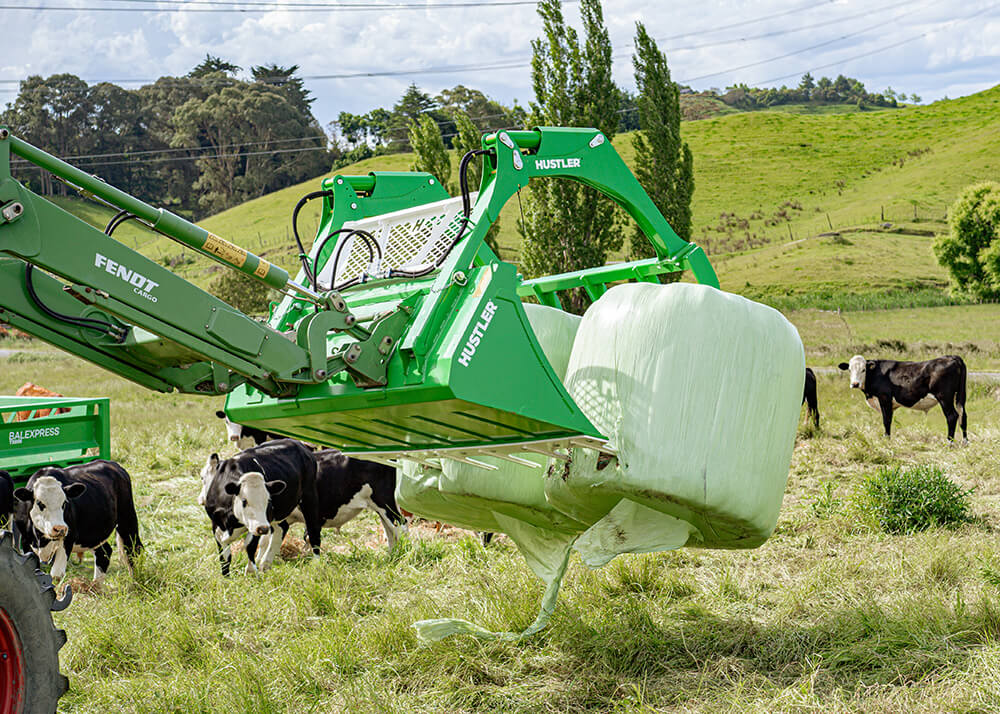

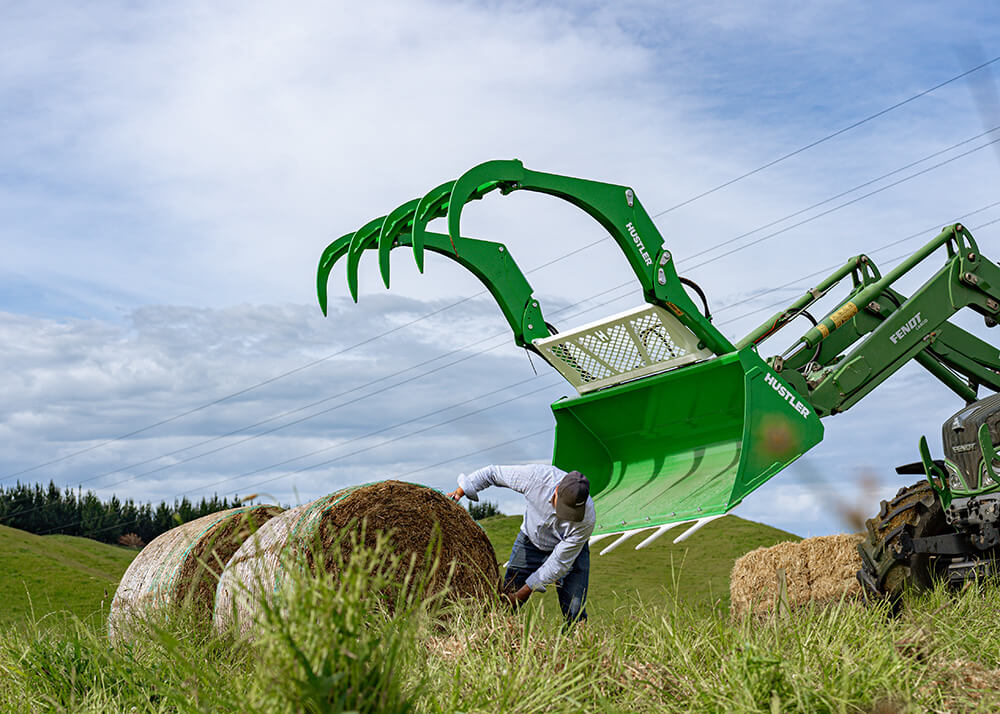

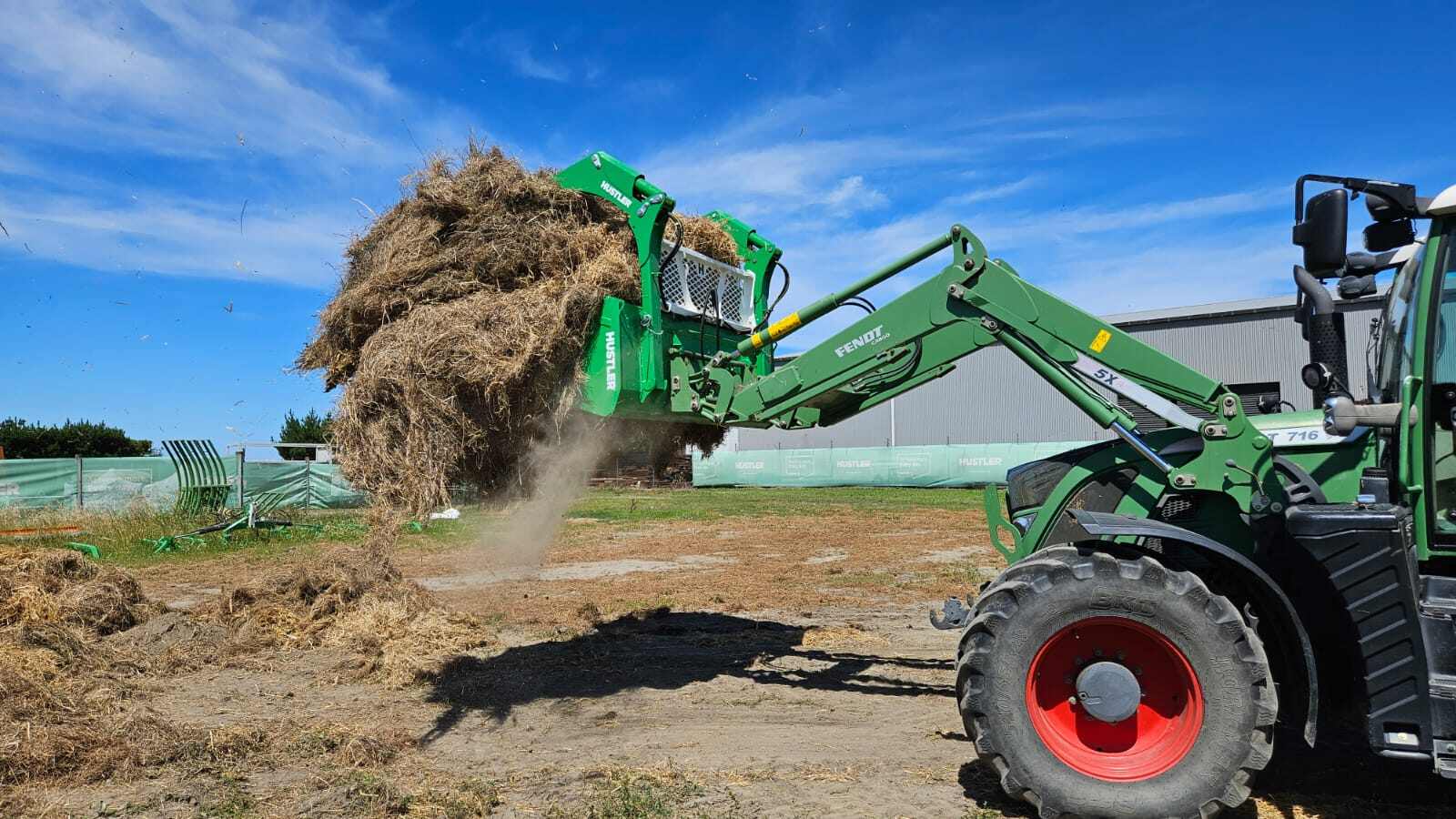

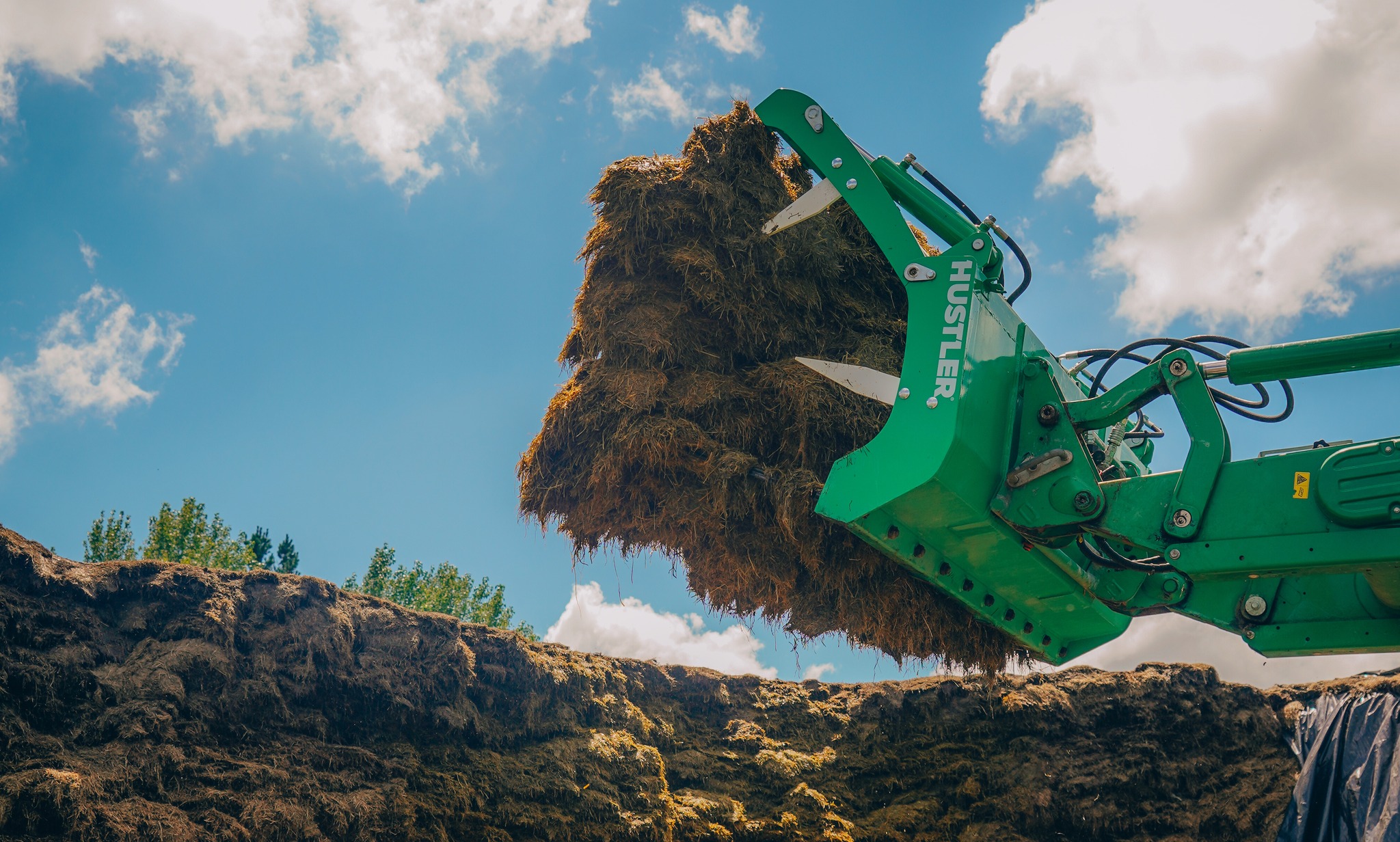

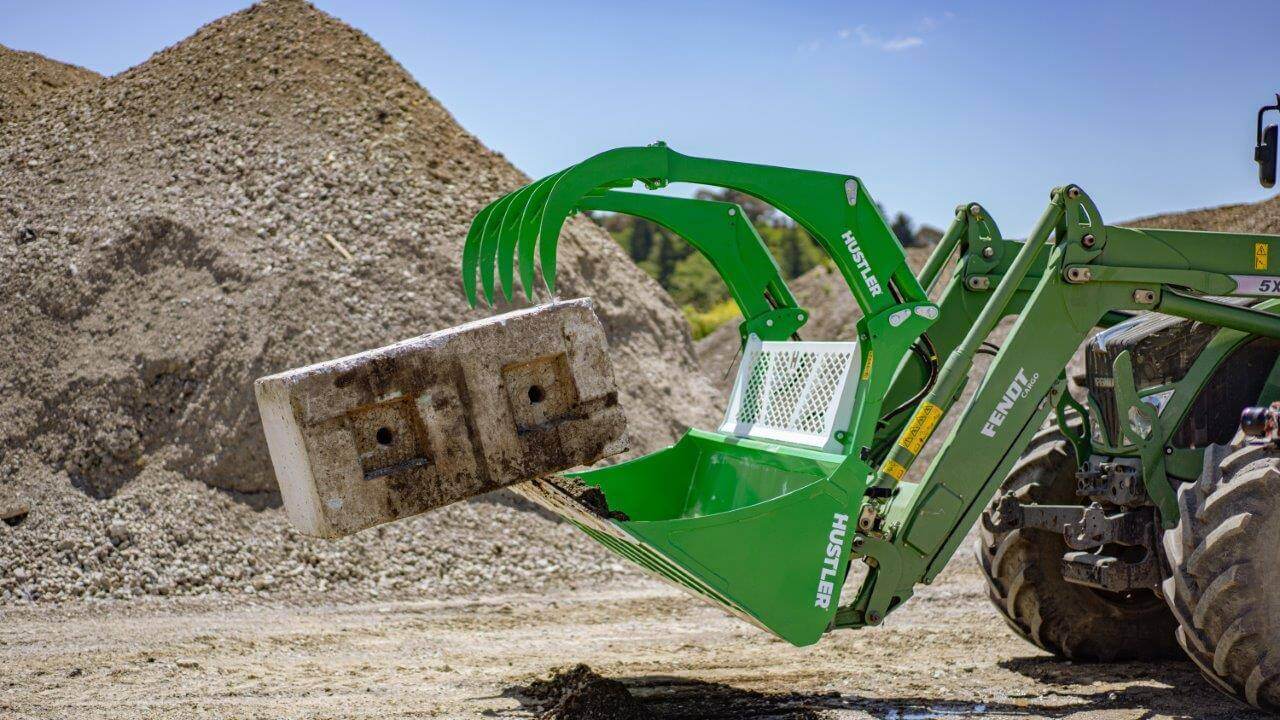

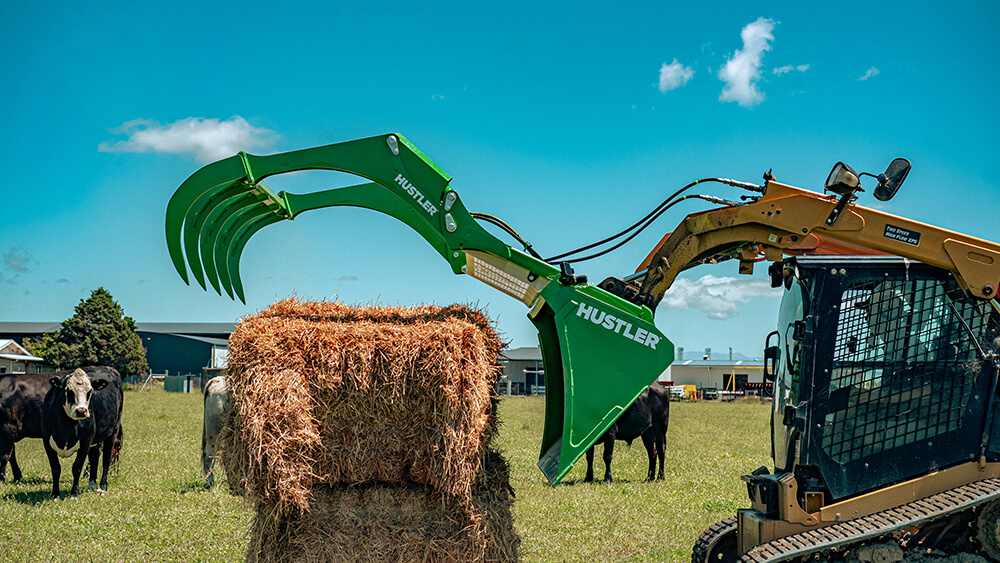

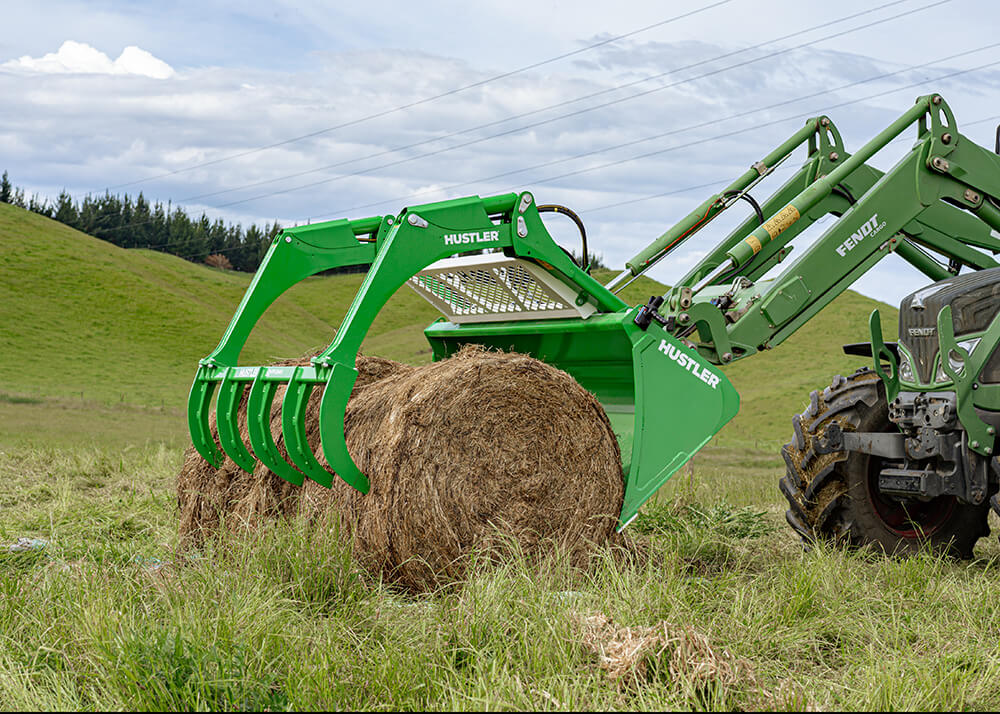

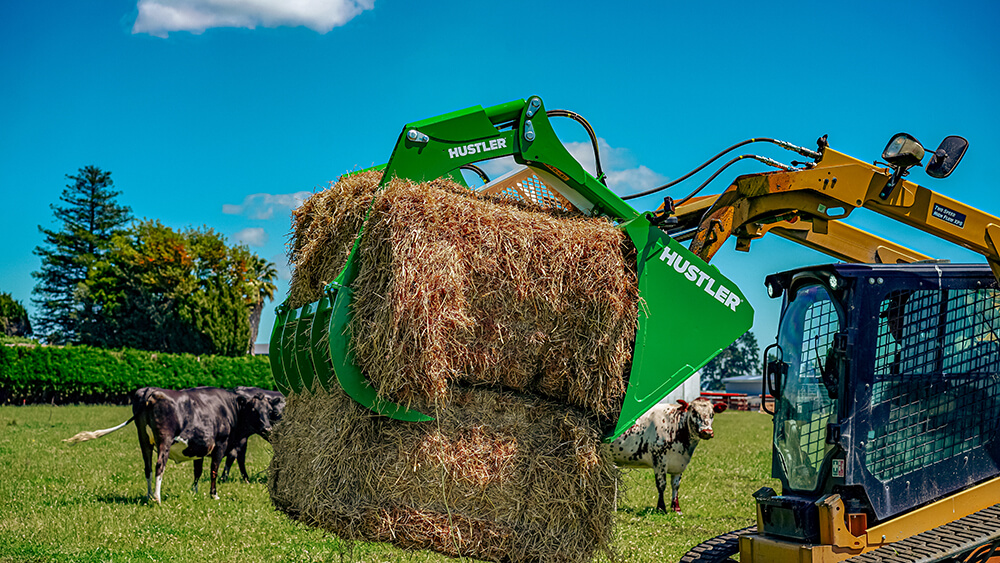

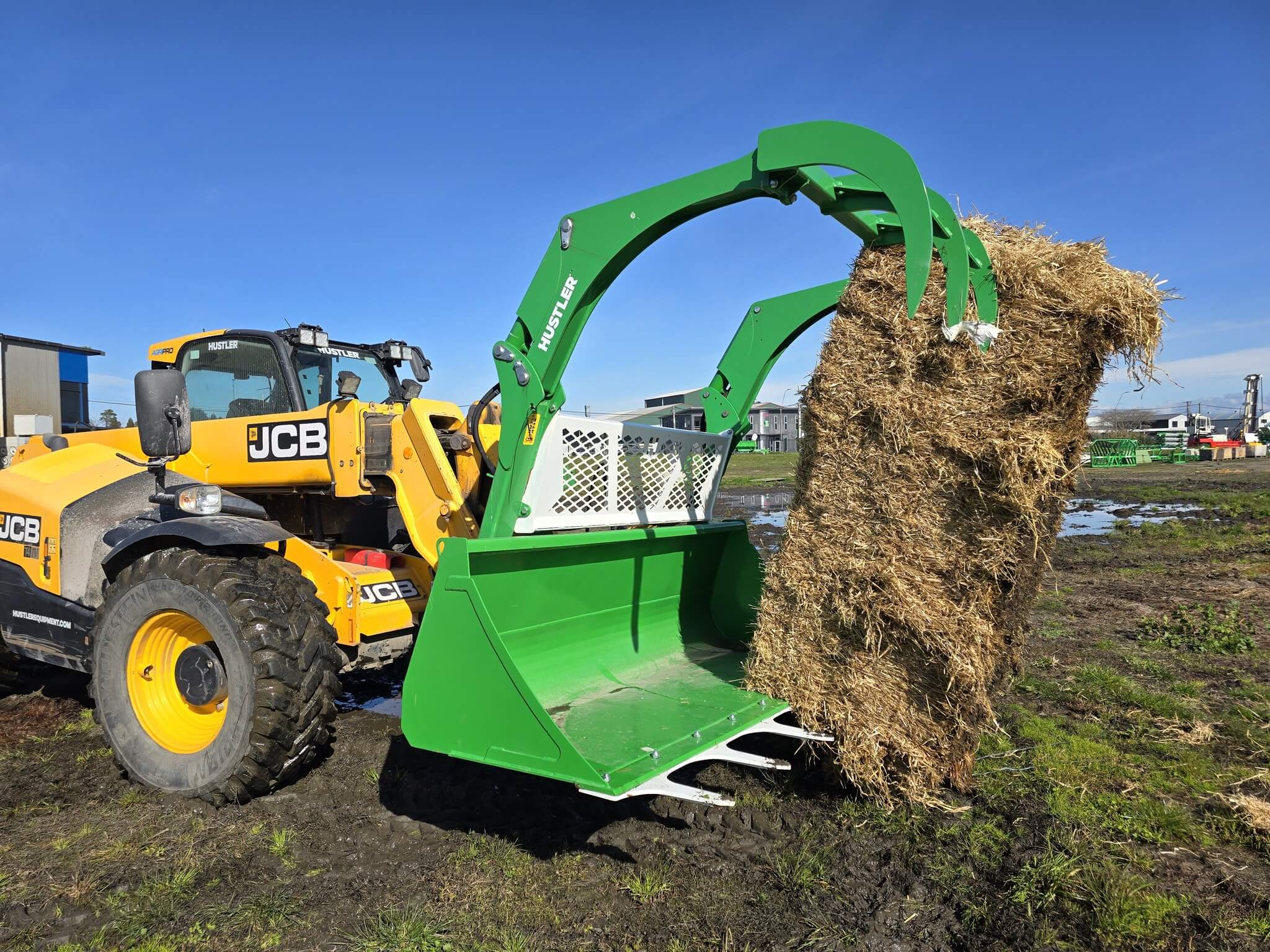

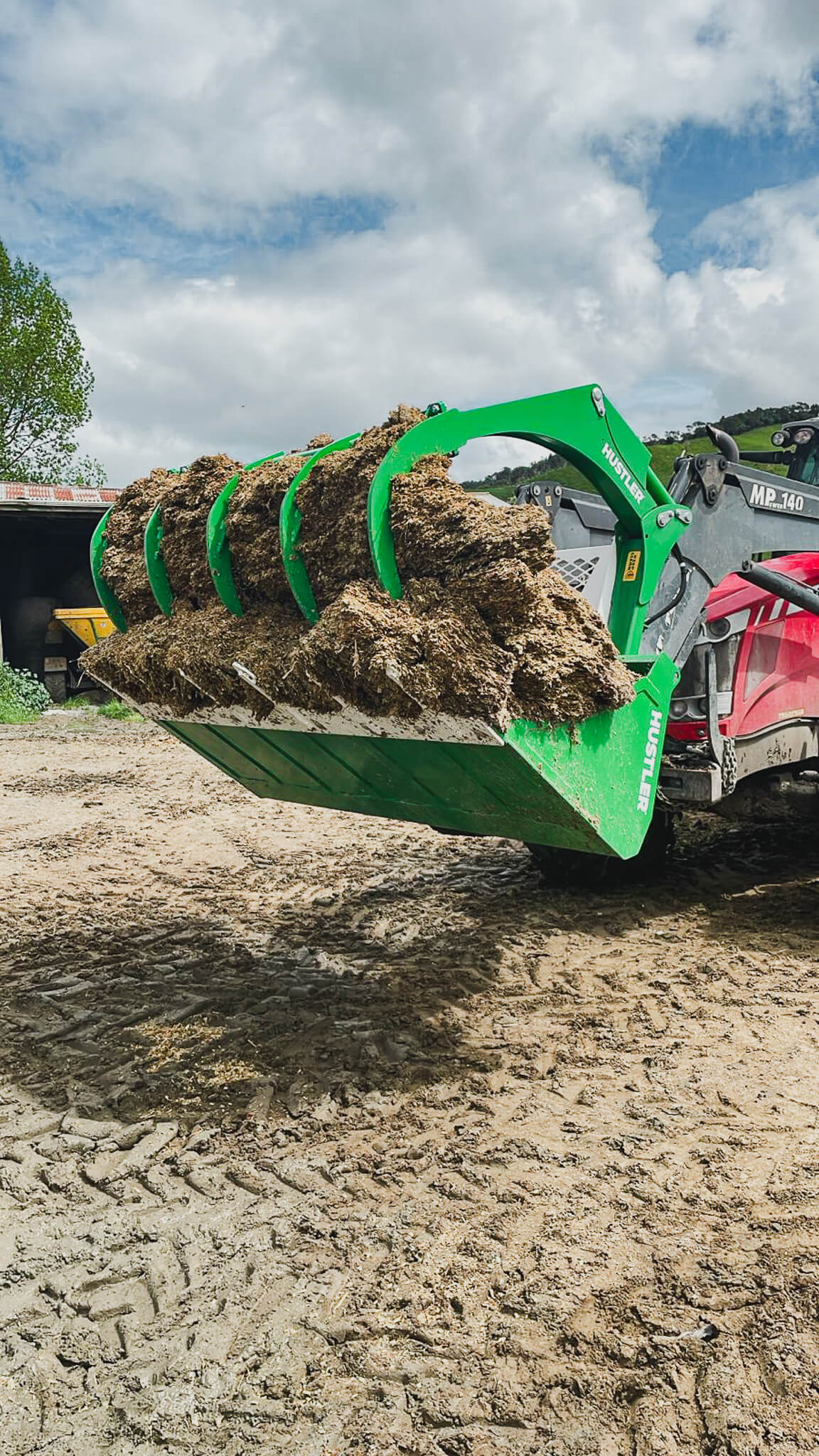

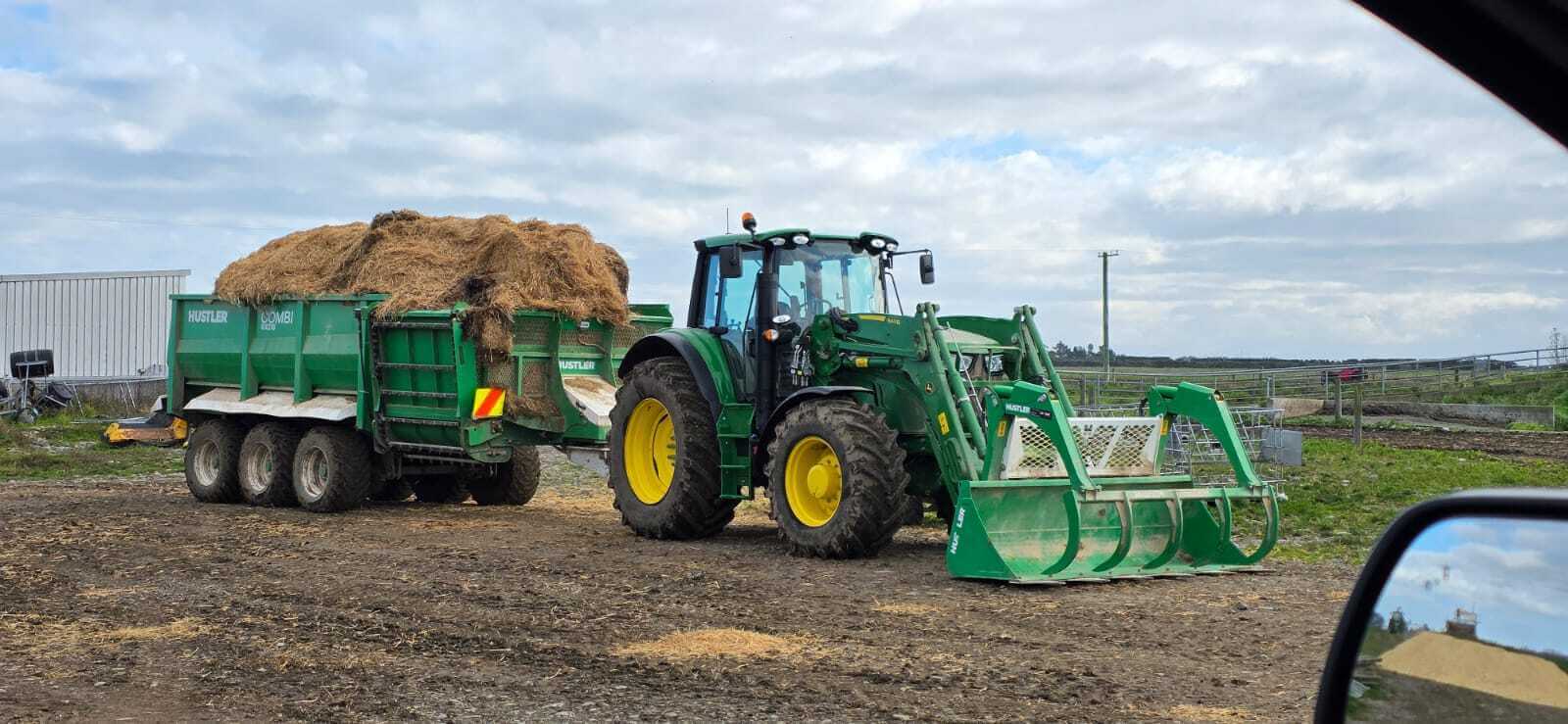

The ultimate grapple bucket for livestock farmers who demand nothing but the very best and want a versatile attachment for handling, loading and feeding round or square bales and other commodities.

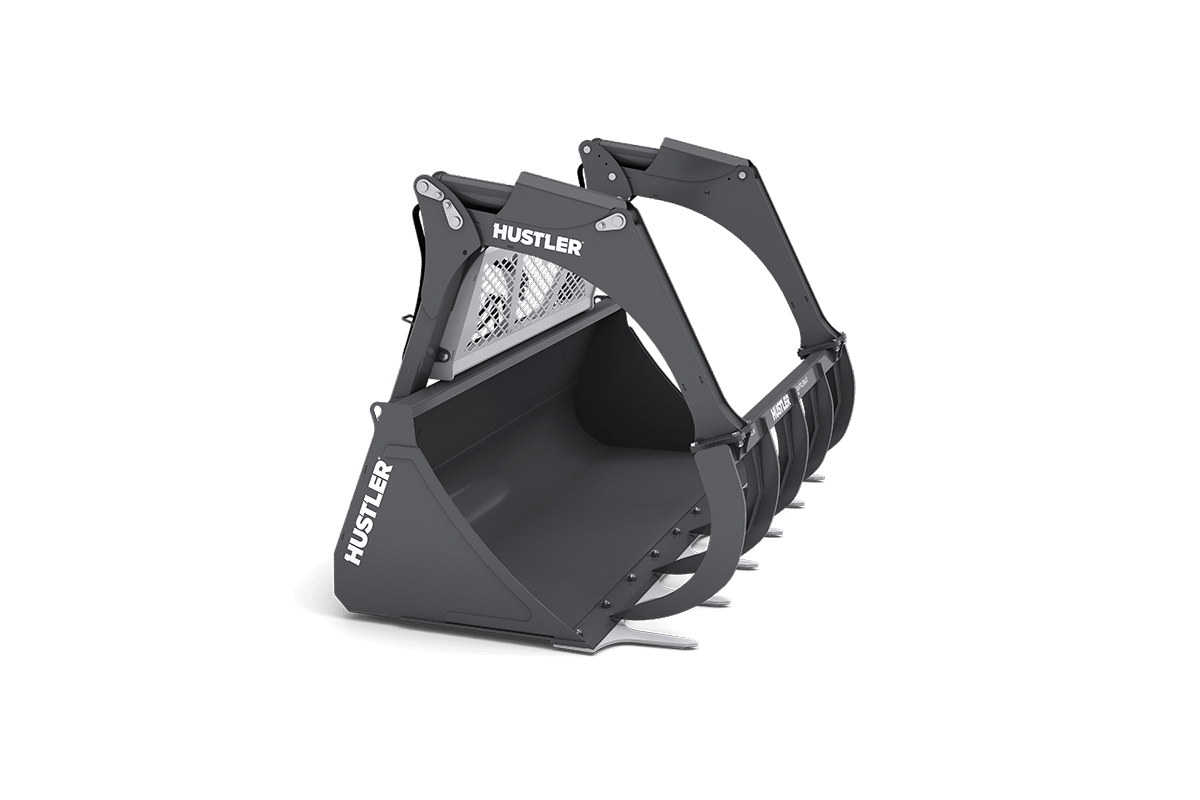

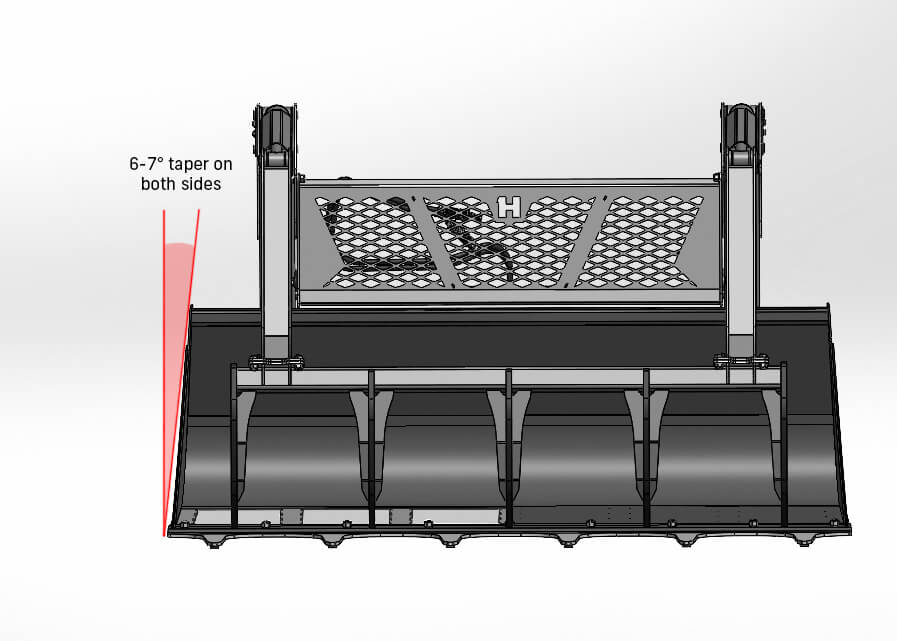

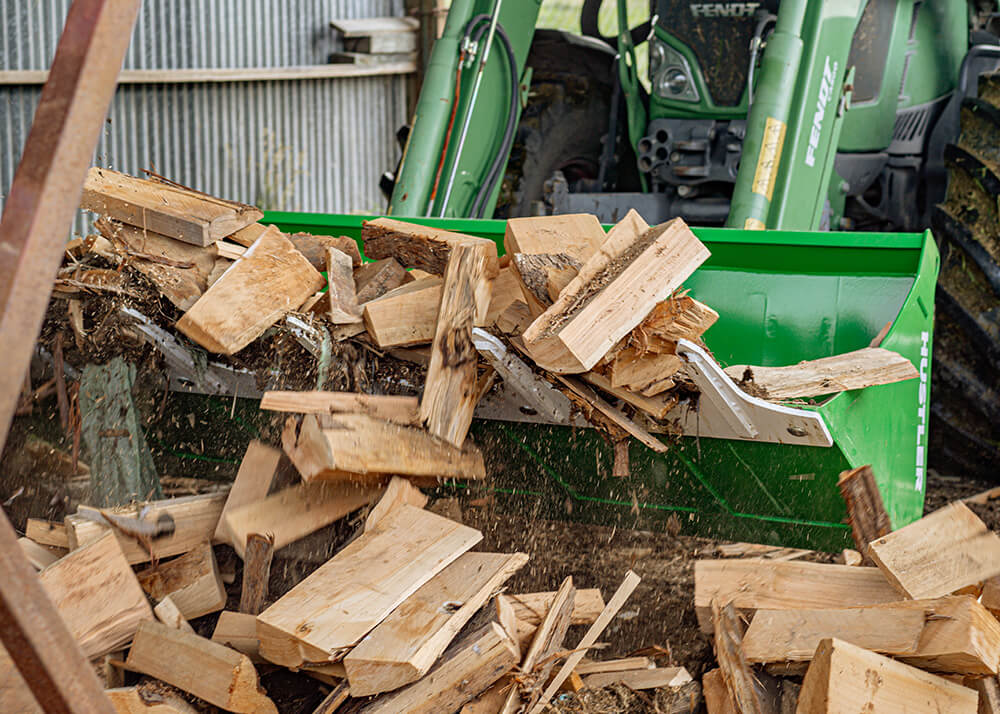

The top of the bucket is narrower than the bottom floor, and the back of the bucket is narrower than the bucket opening. This design enables easier material emptying and reduces corner clogging when handling sticky materials.

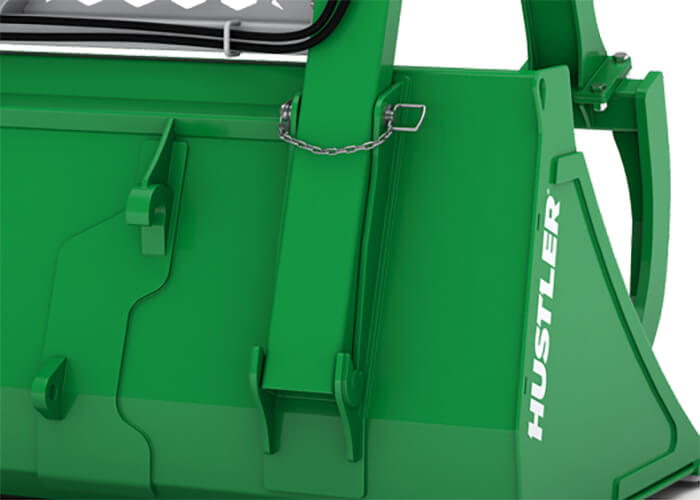

Just two loose-fitting pins remove the complete grapple, including the grill and hoses. No need to detach hoses, allowing the bucket for other tasks.

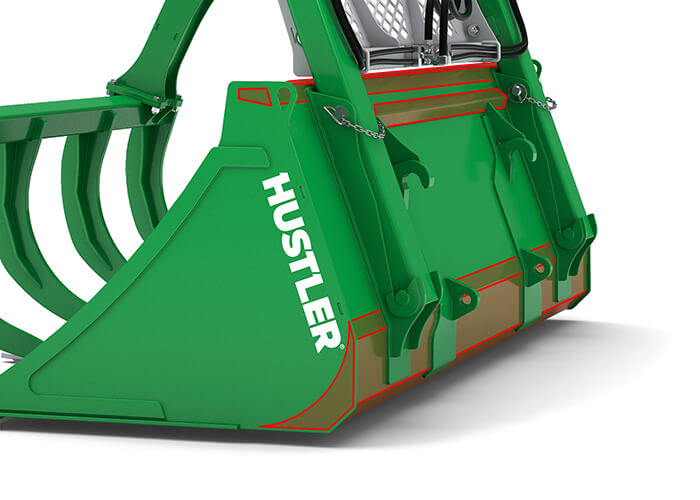

Unlike other buckets, GrappleMax has three hollow sections, providing unparalleled torsional strength, unbeatable durability, and a long life.

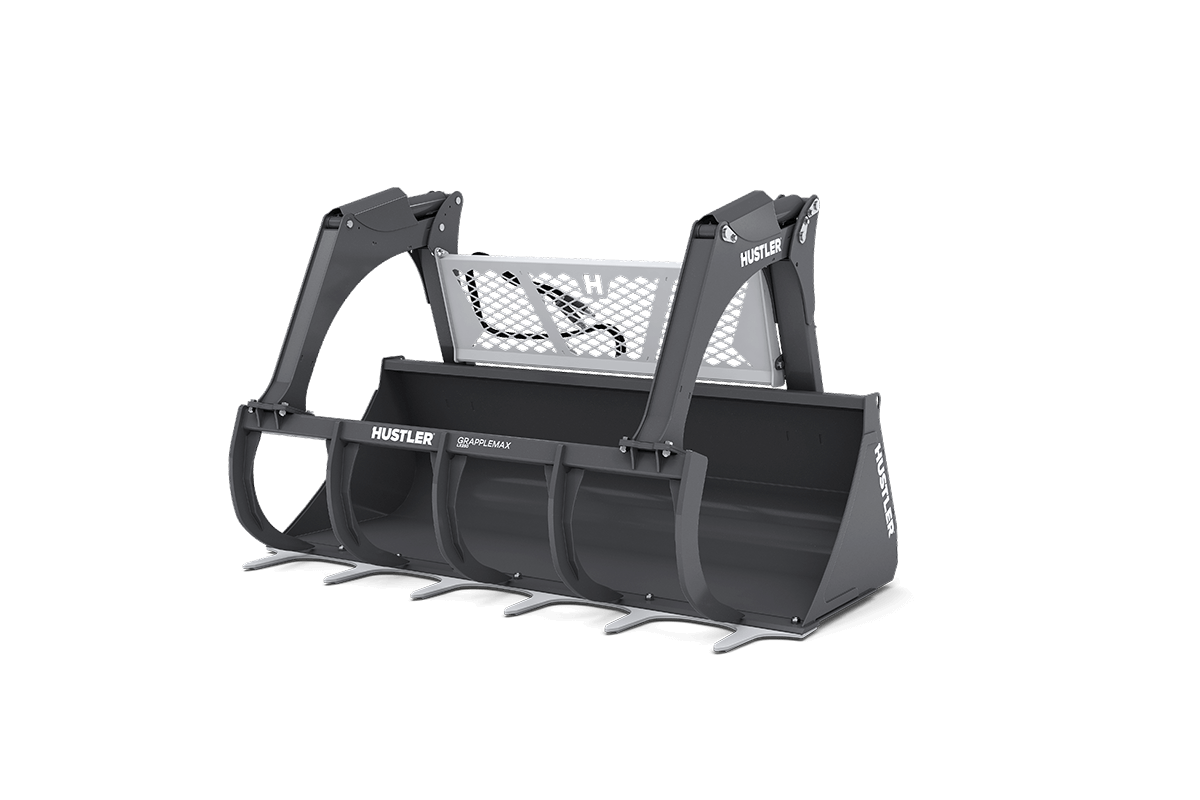

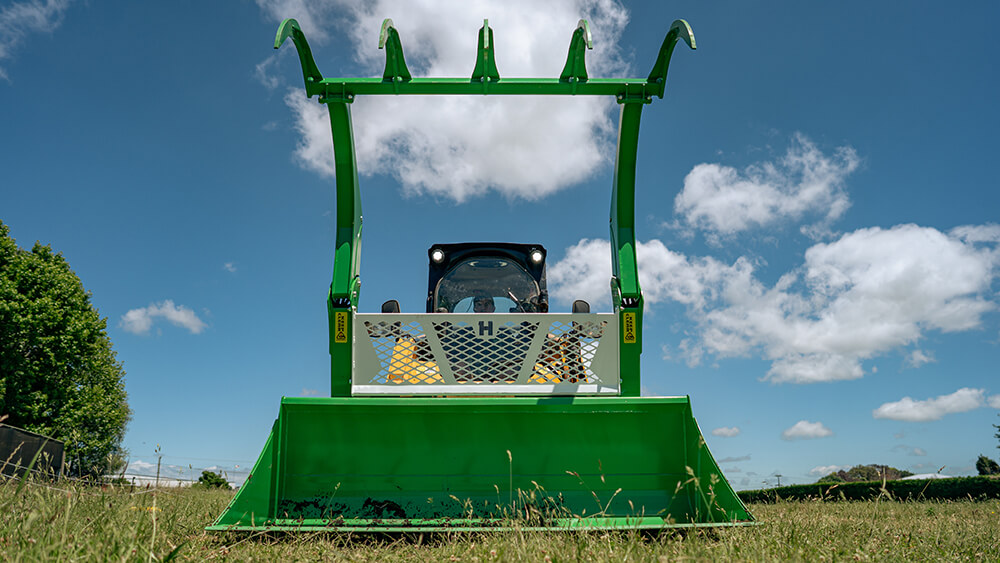

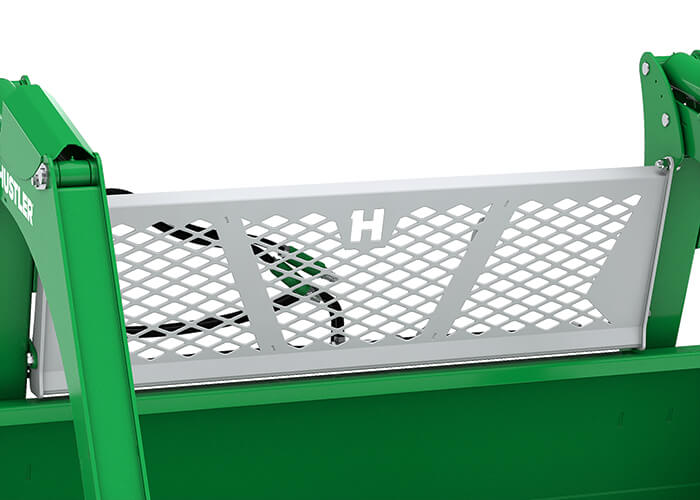

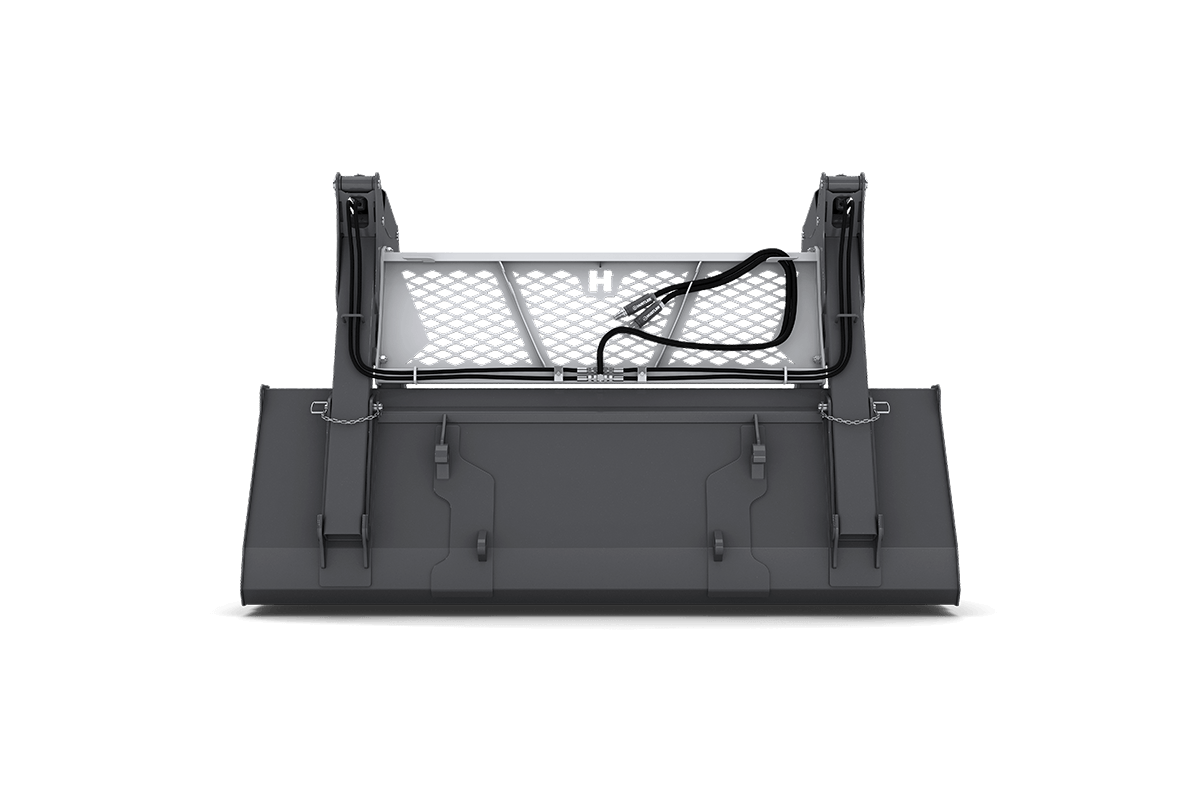

We addressed a common failure in other grapple buckets with a tough RHS-reinforced grill featuring a large mesh design for excellent visibility.

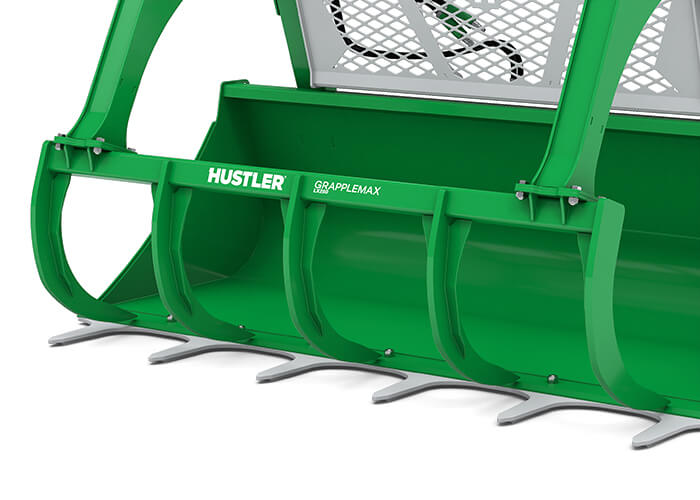

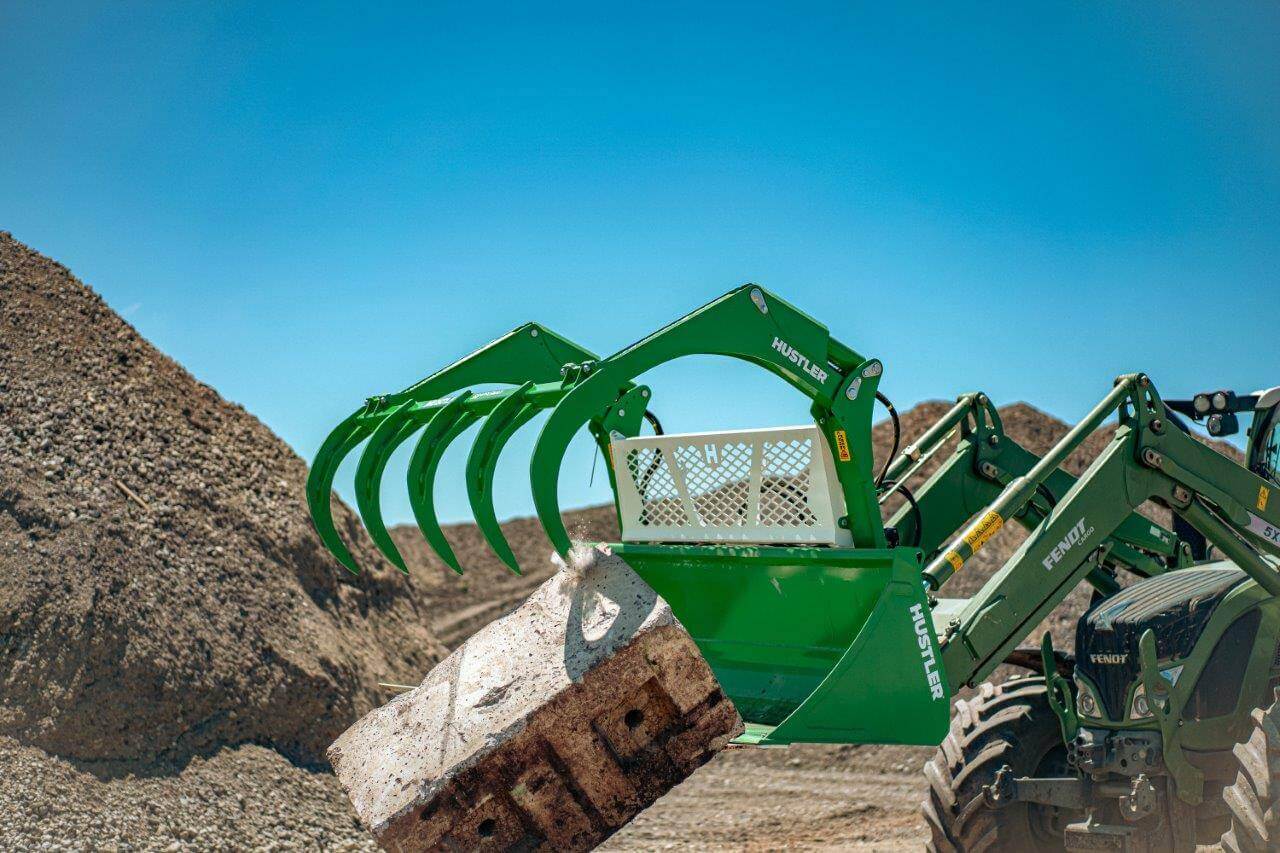

GrappleMax has five large tines made from RockGuard™ 400 (AR400) wear plate, reinforced and welded to prevent loosening or bending.

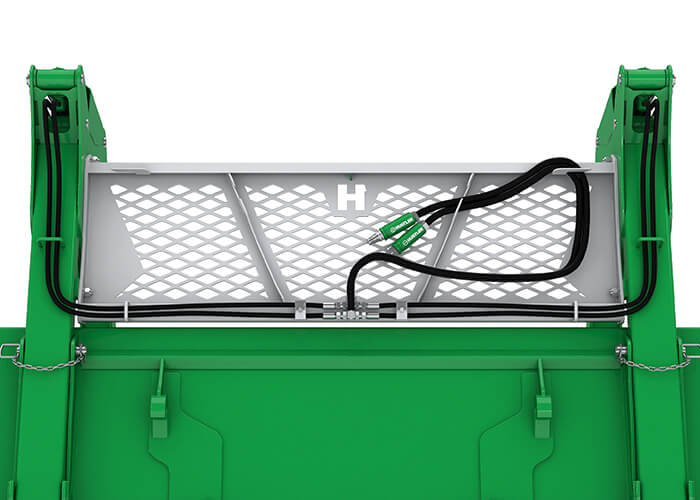

Hoses are kept out of harm’s way on the loader carrier frame, preventing damage during hookup. Hose-holding hooks are also available for storage when not in use.

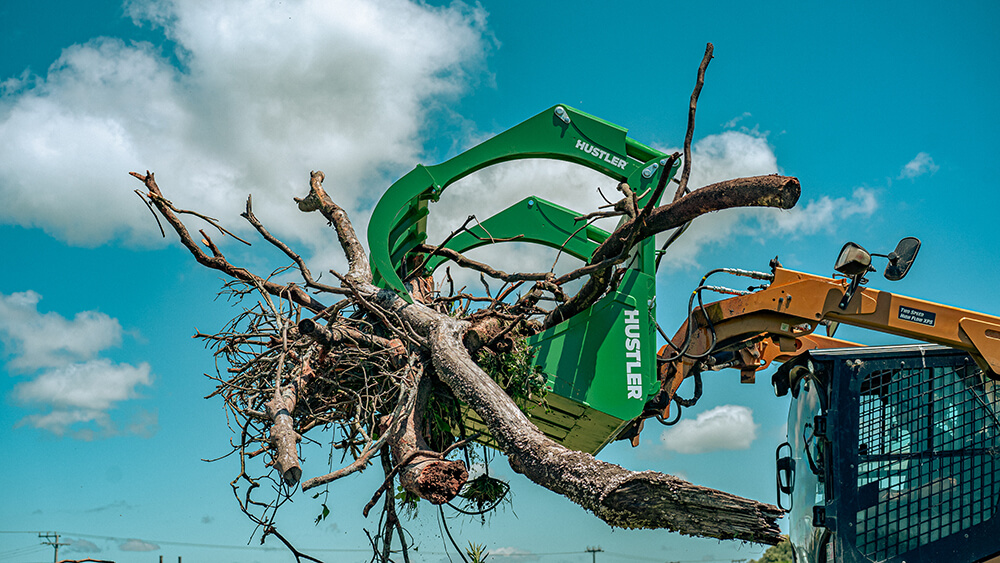

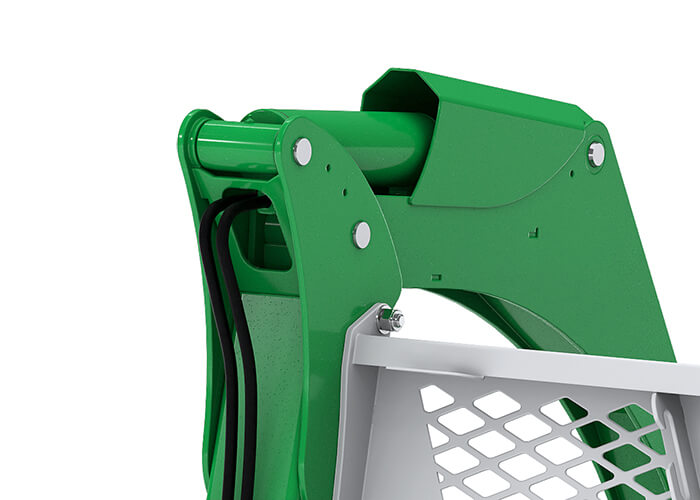

Routed inside the arm to shield against snags or damage from materials when grabbing brush or other items.

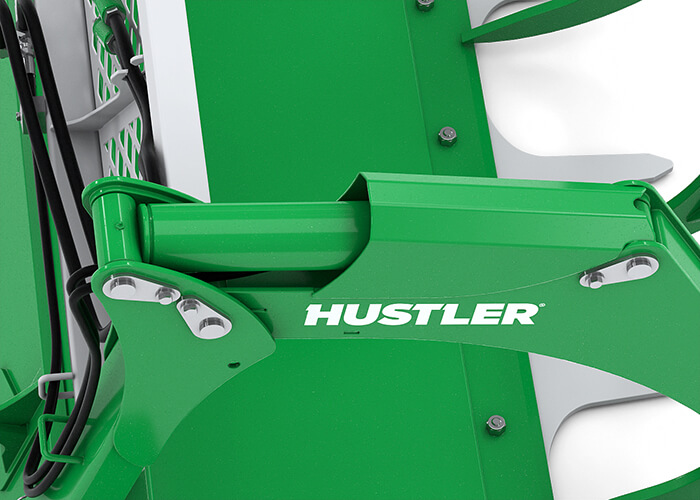

Large steel shields protect the ram’s spears to prevent damage from falling materials.

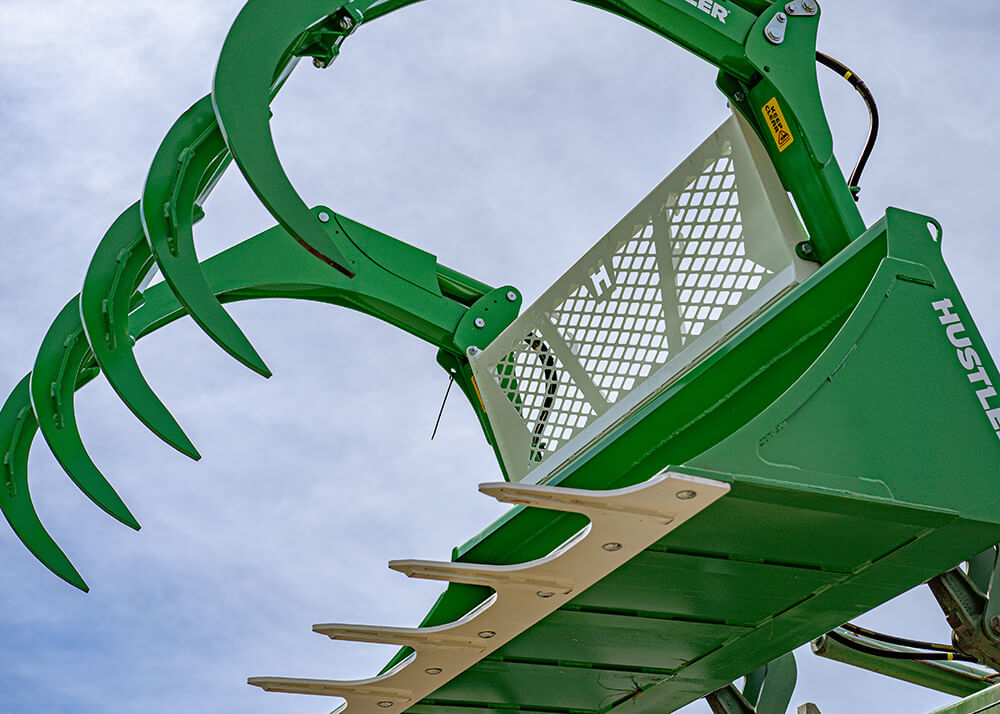

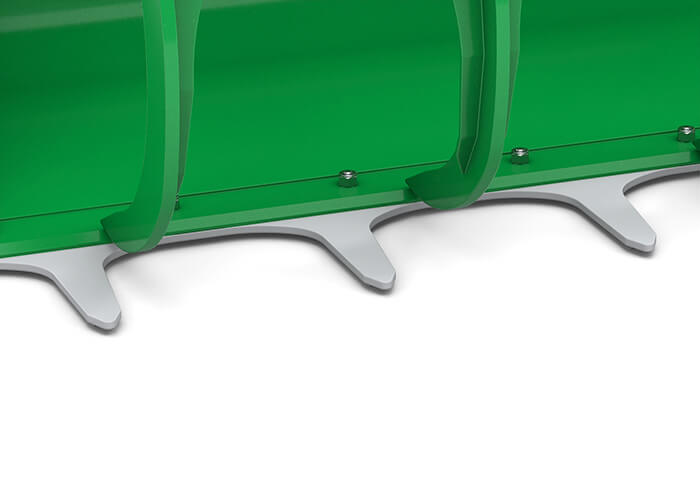

Crafted from RockGuard™ 500 (AR500) wear plate and reinforced for strength and durability with RockGuard™ 500 stiffeners, these optional teeth* are excellent for spearing bales or breaking up ice or other hard surfaces.
*Bolt-on, removable teeth are a product option

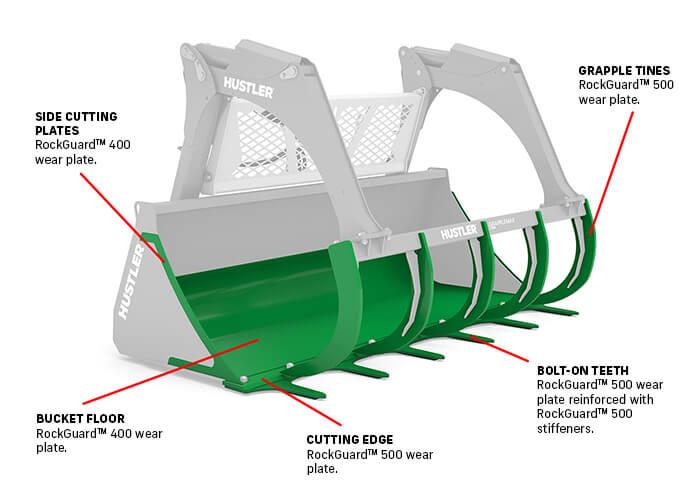

Cutting edge made from RockGuard™ 500 (AR500) wear plate, and bucket floor and side wear plates built from RockGuard™ 400 wear plate ensure GrappleMax is the longest-lasting grapple bucket in the game.
Nothing but the best comes with Hustler’s legendary 5-year warranty.
Select the product, then options and accessories to create your enquiry.
|640 kg | 1278 lb
|Dimensions (Depth x Width x Height):
|1454 x 2440 x 1431 mm (720 mm bucket only) | 57.2 x 96 x 56 in (28.3 in bucket only)
|1.2 m³ | 1.56 yd³
|Full grapple capacity:
|2.47 m³ | 3.23 yd³
|Replaceable 5x RockGuard™ 400 (AR400) reinforced tines
|2.13 m | 84 in
|45L/min | 11 gal./min
