BaleXpress Multi-Bale Feeders

Streamline your bale feeding operations with the new BaleXpress Multi-Bale Feeder.

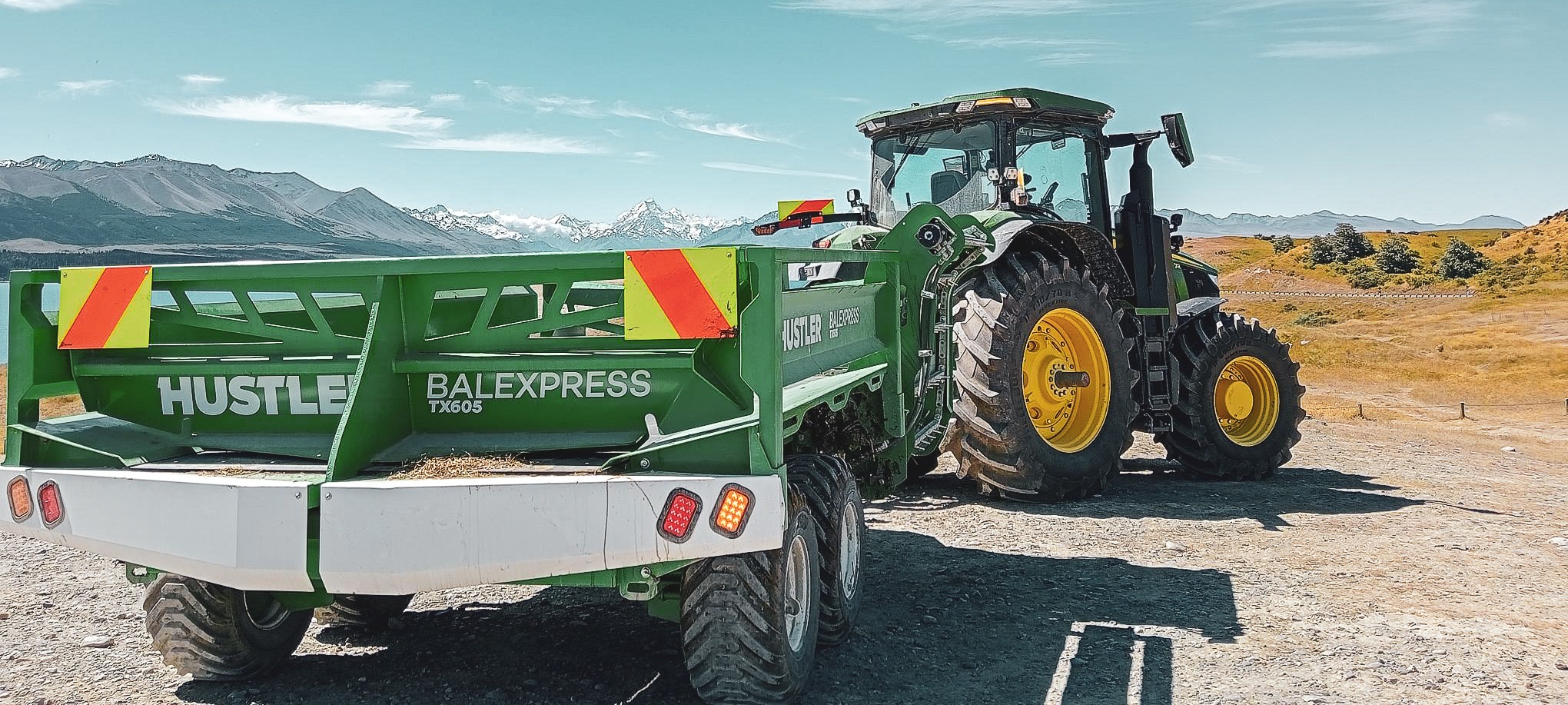

BaleXpress TX605 / TX805 / TX1005

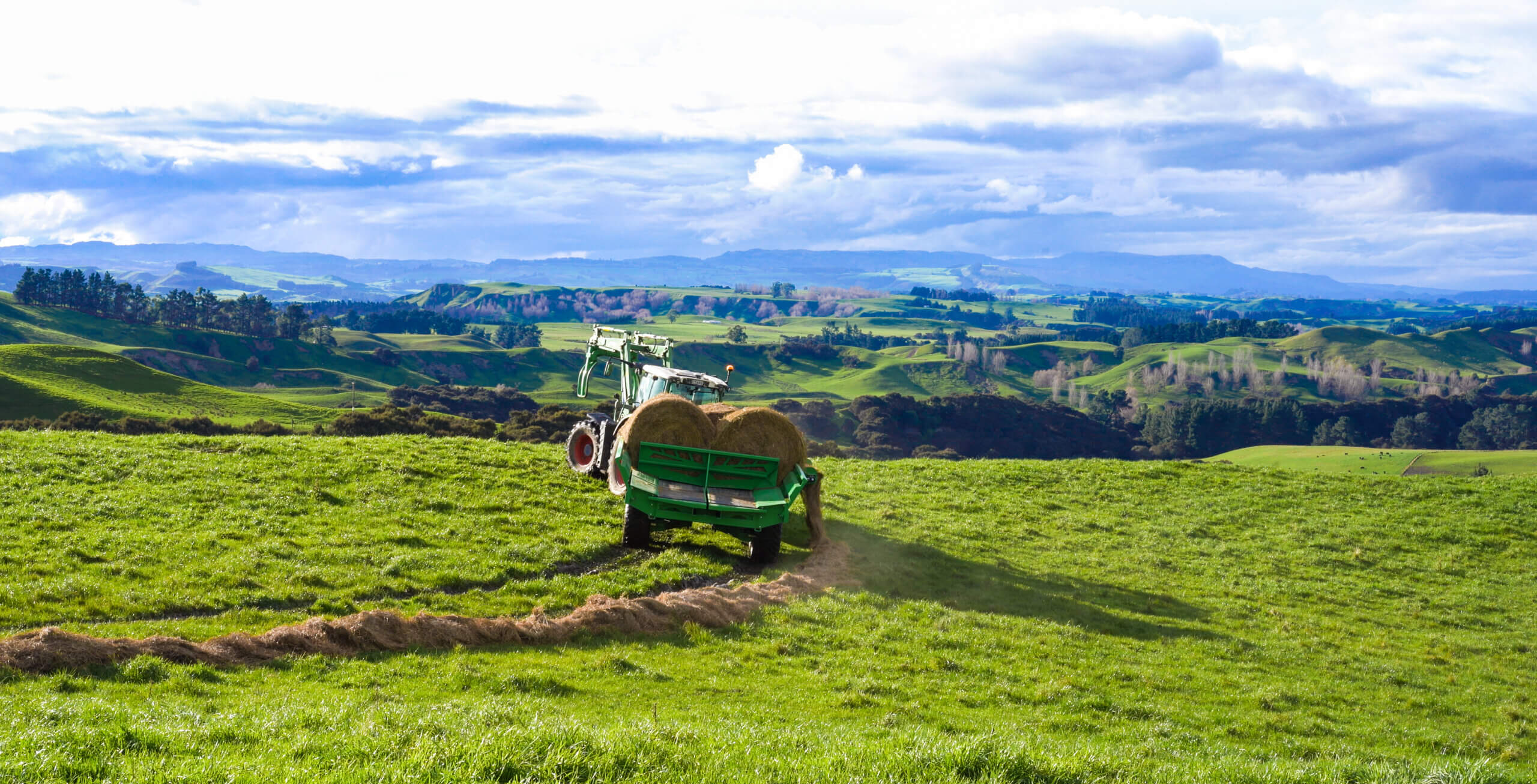

A bale feeding routine revolution

Feeding a large number of bales per day can be a time-consuming and labour-intensive task for operators. That’s why we developed the BaleXpress Multi-Bale Feeder, designed specifically to increase efficiency and convenience – for those who are feeding more than half a dozen bales a day. With its impressive features and exceptional performance, BaleXpress is set to transform the way operators handle bales.

4 Reasons to choose BaleXpress

1. Next-Level Versatility

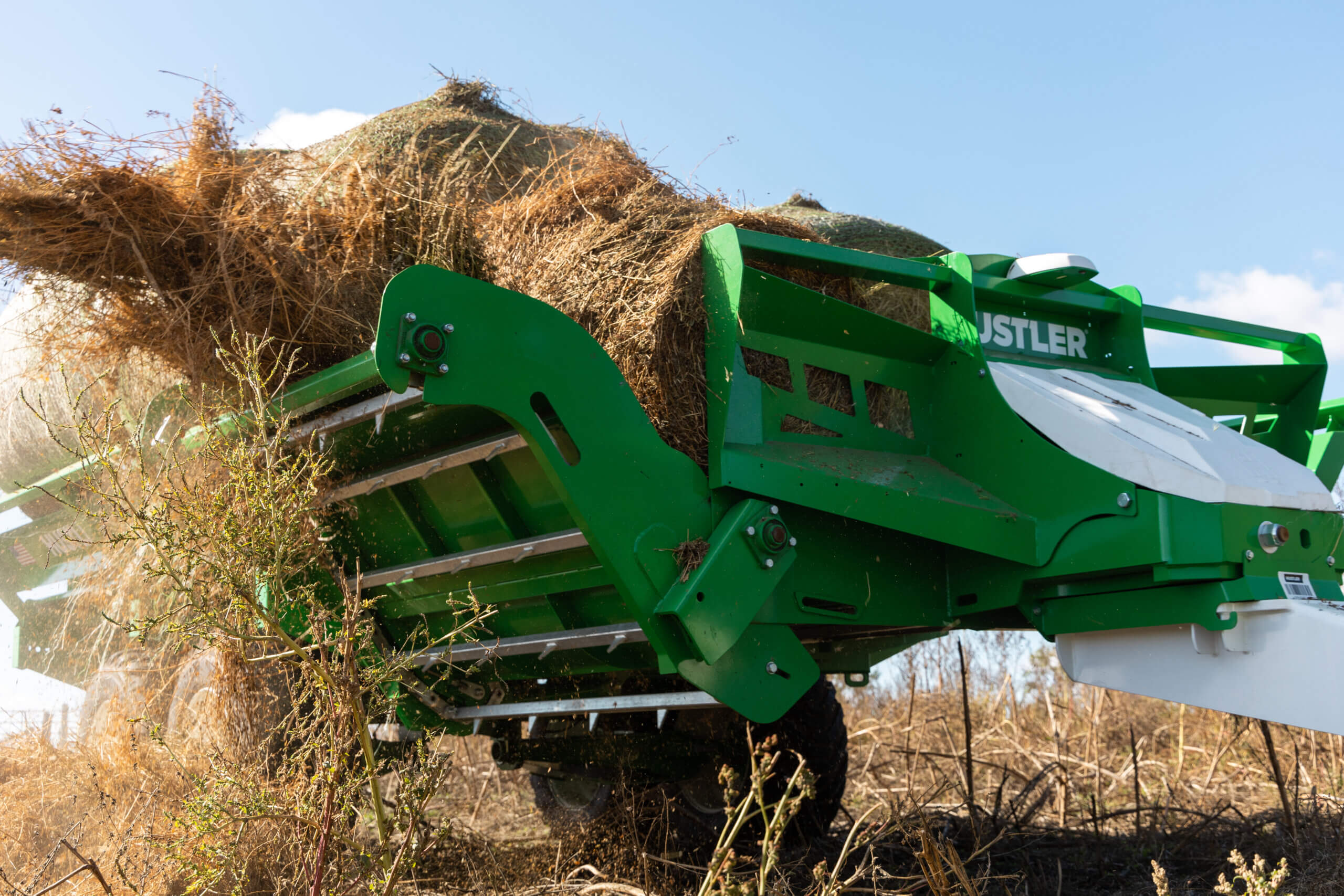

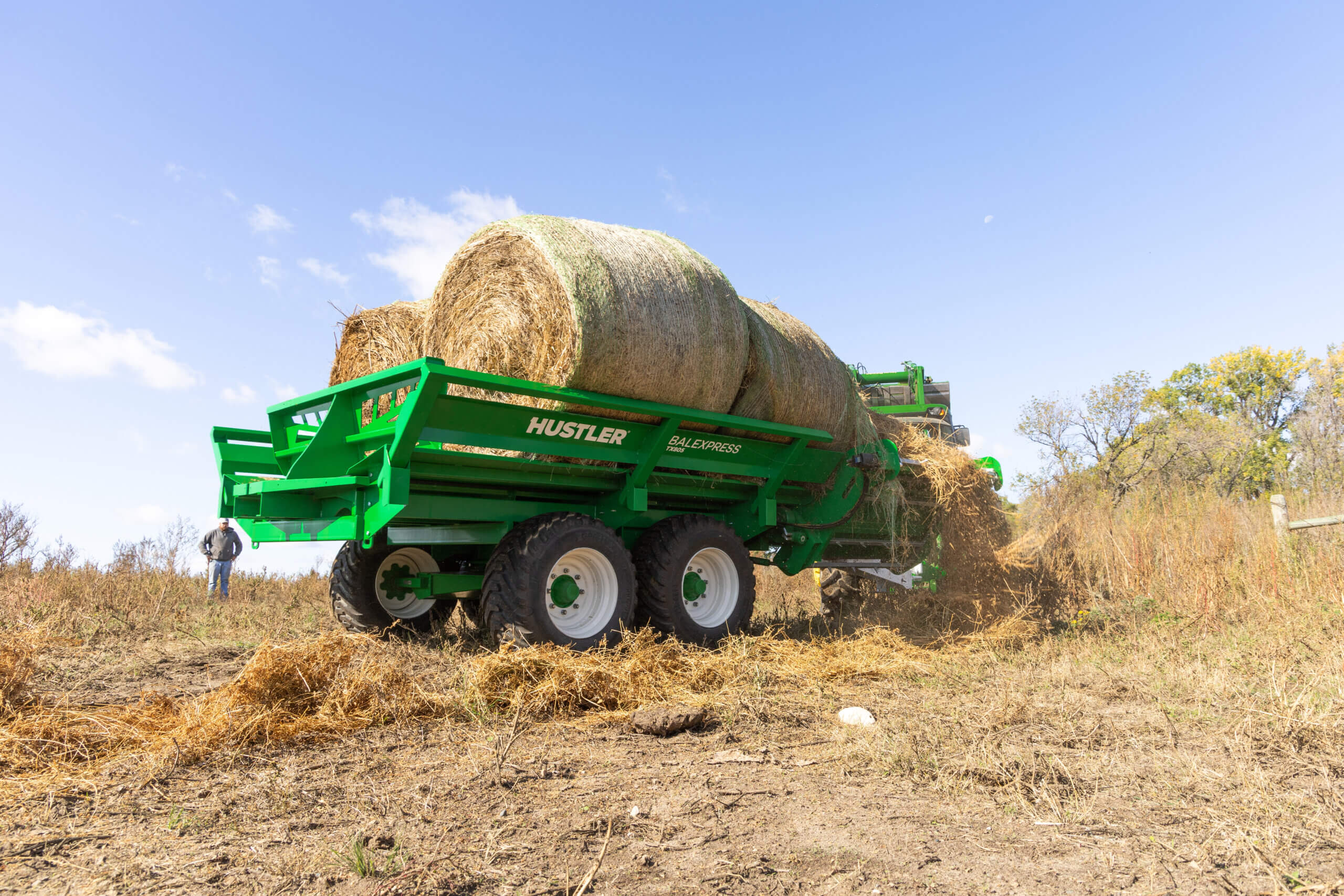

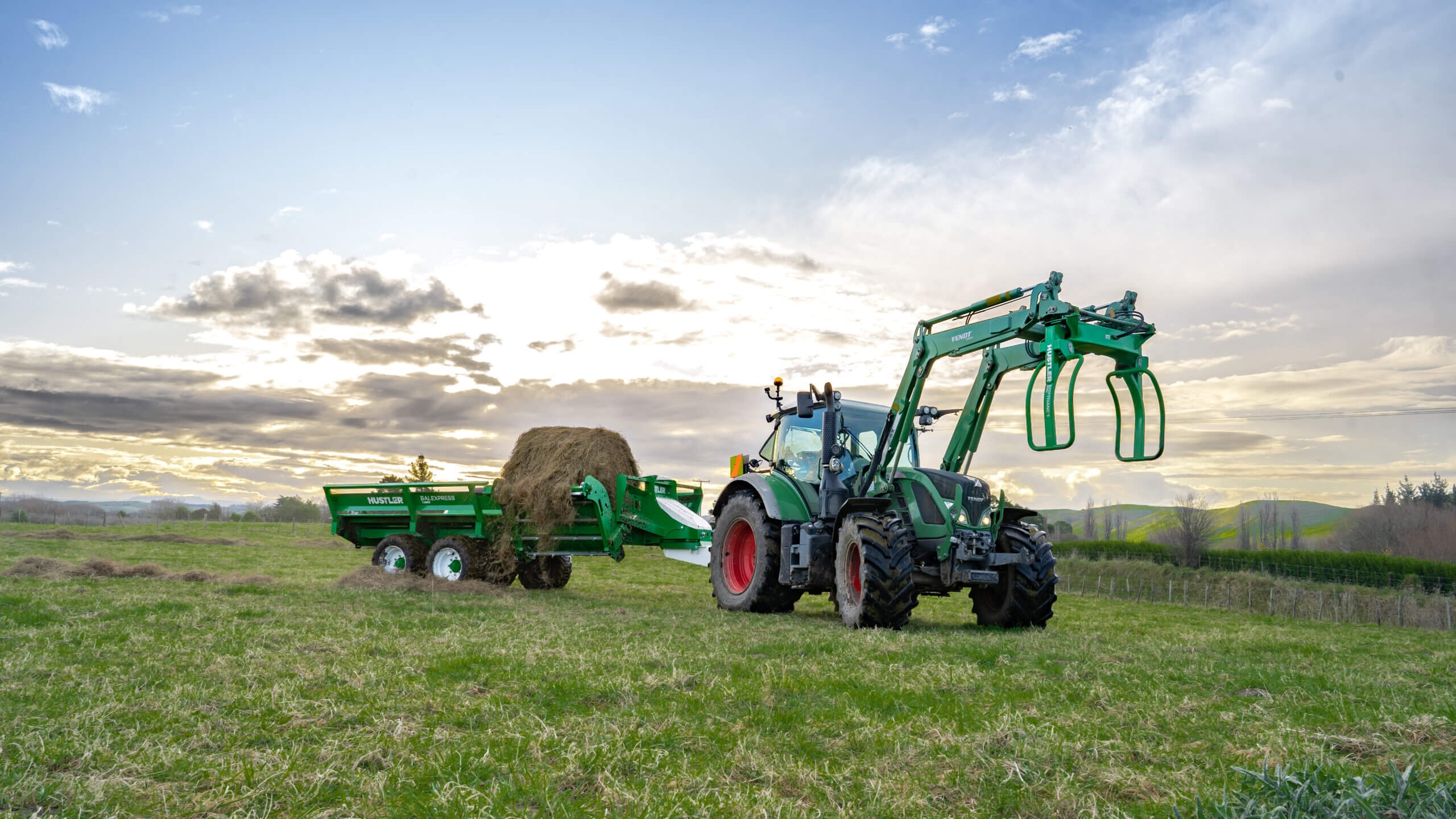

BaleXpress is capable of feeding round or square bales of any size and any feed type. Whether you’re working with tight dry hay bales, straw, or loose fine chopped baleage, this feeder handles it all efficiently without blocking or waste. The adjustable sides allow for accommodating current and future bale sizes, ensuring maximum flexibility.

BaleXpress Alternate 1
BaleXpress 700 x 500

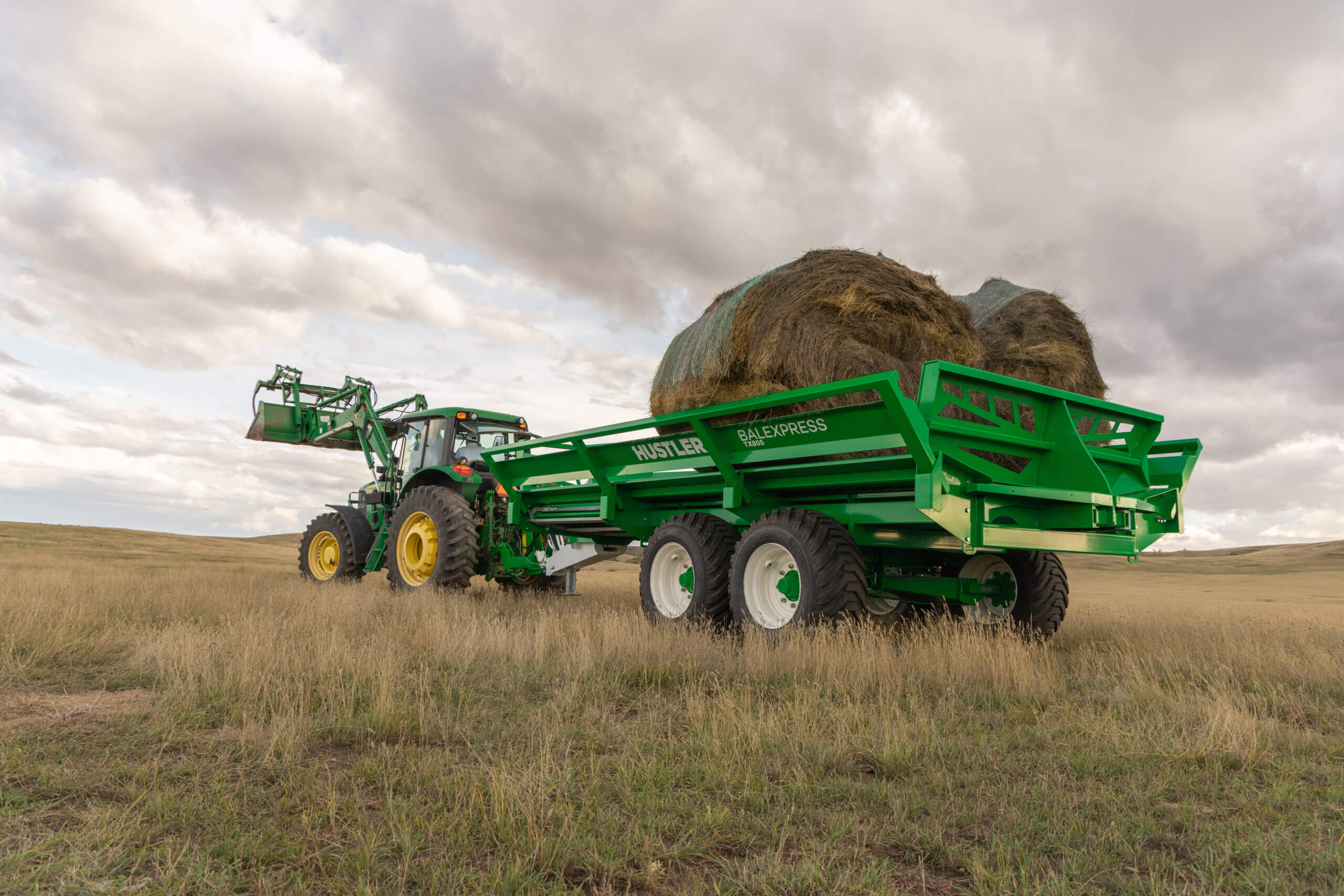

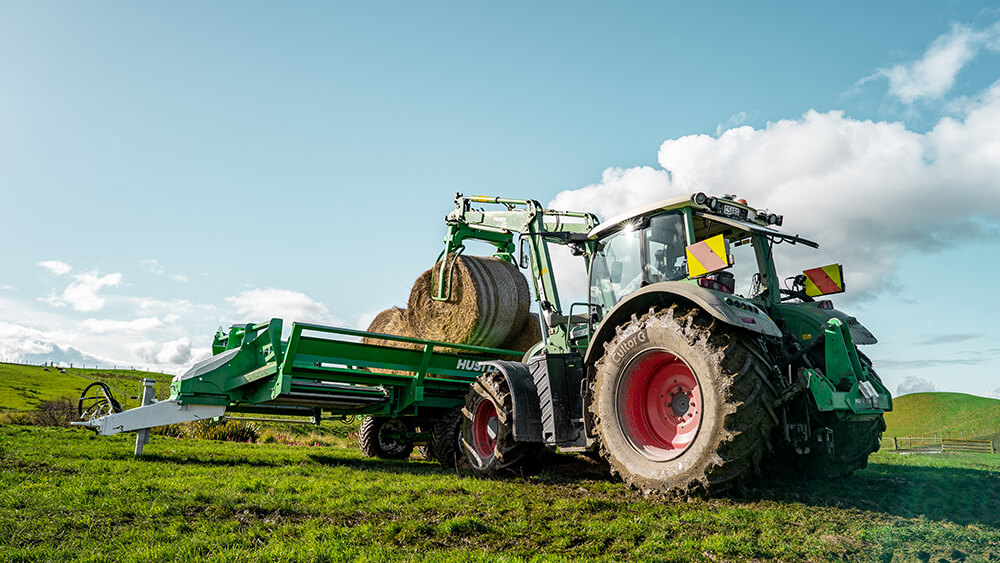

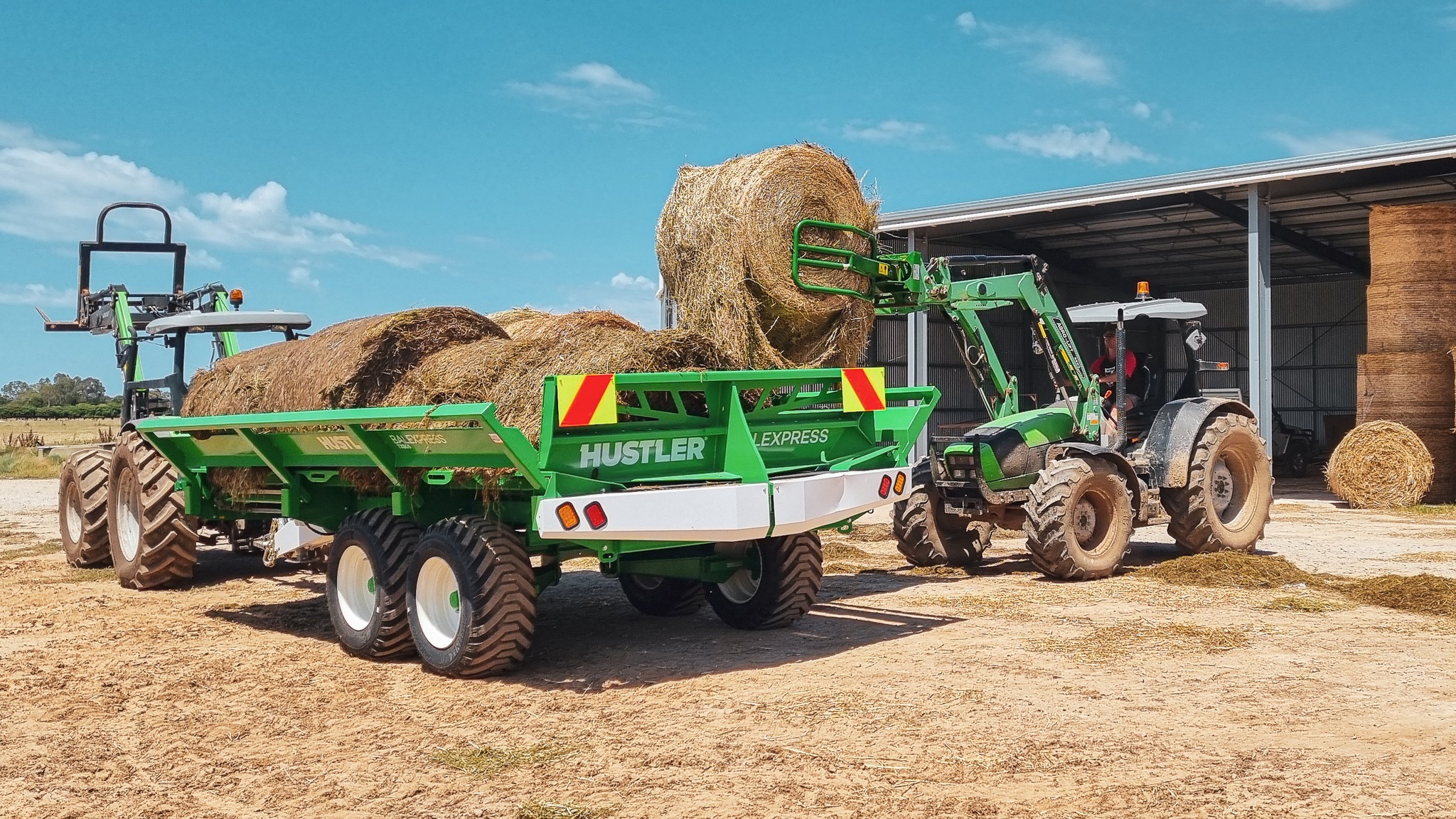

2. Easier, Faster & More Convenient Loading

We understand the frustrations associated with multiple tractor and operator movements when loading bales using other multi-bale machines. With BaleXpress, we’ve minimized these inconveniences. You only need to leave the cab once to undress the bales, and there are fewer tractor movements required per load. Say goodbye to unnecessary trips in and out of the cab, saving you time and effort.

3. Compact Design

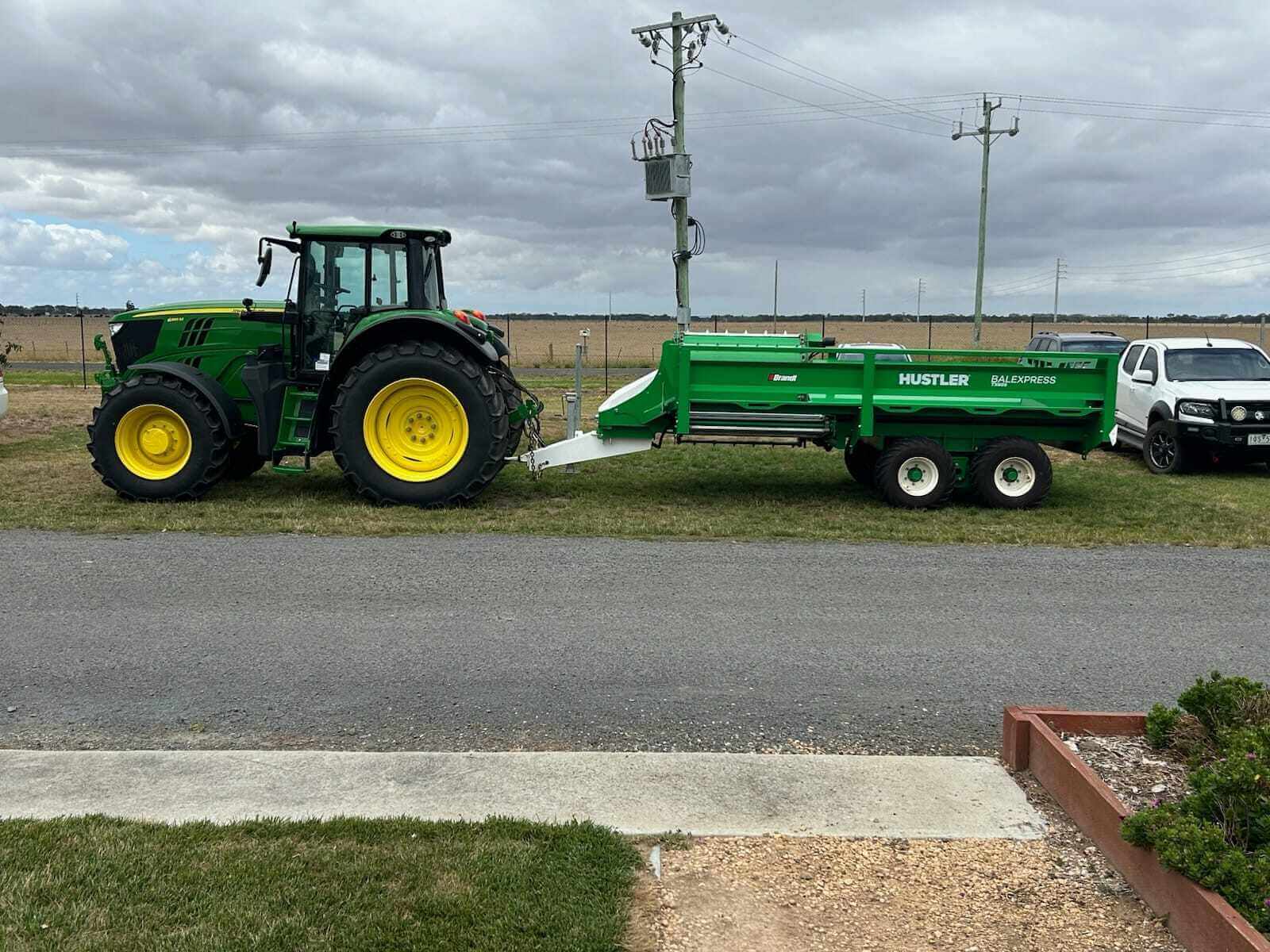

 The BaleXpress boasts the most compact multi-bale feeder design on the market per bale count. This compactness allows for easier negotiation of gateways and maneuvering, making your job a breeze compared to other machines. No more worrying about cutting corners or damaging gate posts. Additionally, the design of the sides enables effortless loading from either the side or the rear, while providing impressive visibility over the feeder.

BaleXpress Compactdesign 700x500

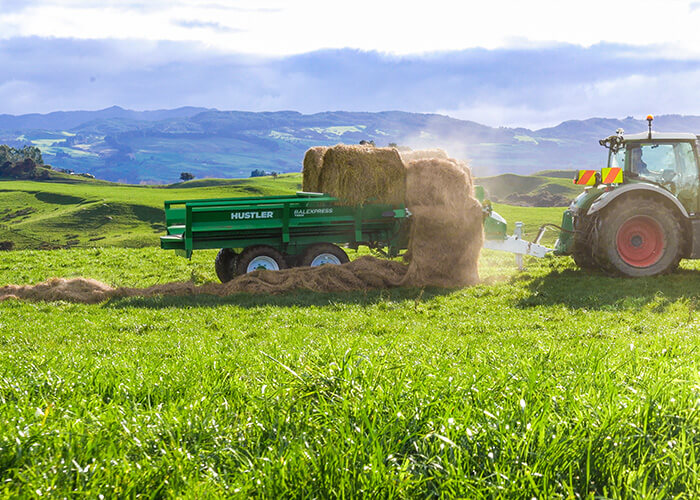

Simplicity & Reliability

4. Simplicity & Reliability

We believe in keeping things simple without compromising on reliability. BaleXpress features a hydraulic cylinder design for the rear floor, eliminating the need for rear floor chains. This not only simplifies maintenance but also reduces the chances of breakdowns. Our simple control system gives you maximum control over the feeding windrow, while the tilting elevator ensures accurate feed placement, preventing unnecessary waste.

Product Customiser

Select the product, then options and accessories to create your enquiry.

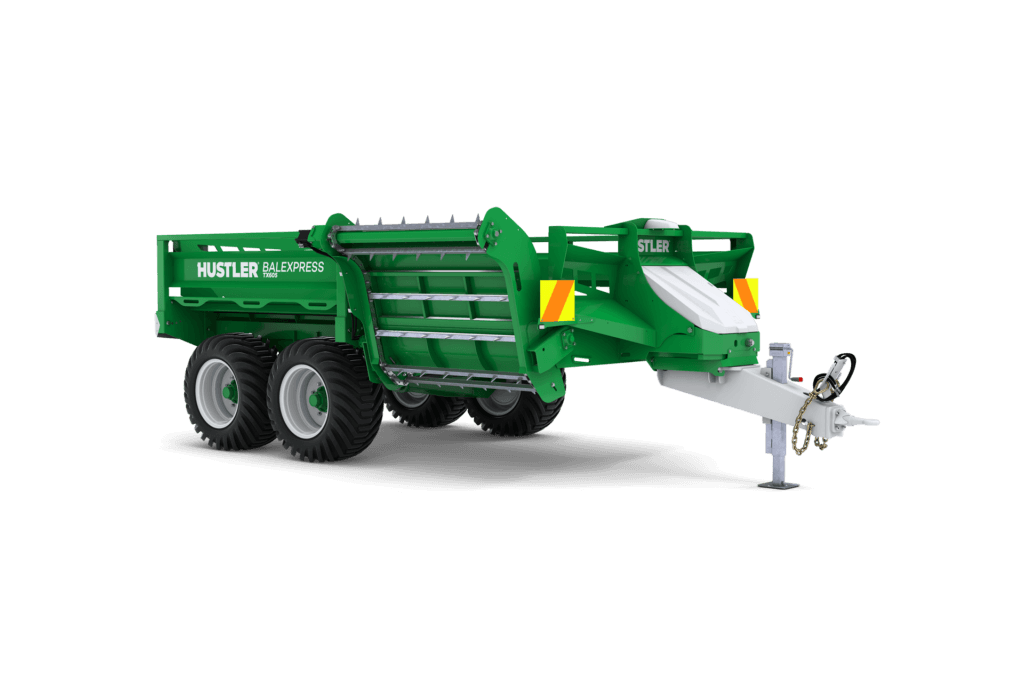

BaleXpress TX605

Includes as standard equipment:

    • Central greasing
    • Scale Ready
    • Adjustable sides
    • Chain tensioners

BaleXpress TX805

Includes as standard equipment:

  • Central greasing
  • Scale Ready
  • Adjustable sides
  • Chain tensioners

BaleXpress TX1005

Includes as standard equipment:

  • Central greasing
  • Scale Ready
  • Adjustable sides
  • Chain tensioners
Road Visibility Kit - RX

Road Visibility Kit - RX

Road Visibility Kit – Includes front & rear hazard panels, safety chains & LED road lights

2 Wheel Hydraulic brakes

2 Wheel Hydraulic brakes

Hydraulically operated on two wheels.

4 Wheel Hydraulic brakes

4 Wheel Hydraulic brakes

Hydraulically activated on four wheels.

Feedlink Wireless Scales & Feed Tracking System

Feedlink Wireless Scales & Feed Tracking System

Road Visibility Kit - RX

Road Visibility Kit - RX

Road Visibility Kit – Includes front & rear hazard panels, safety chains & LED road lights

2 Wheel Hydraulic brakes

2 Wheel Hydraulic brakes

Hydraulically operated on two wheels.

4 Wheel Hydraulic brakes

4 Wheel Hydraulic brakes

Hydraulically activated on four wheels.

Feedlink Wireless Scales & Feed Tracking System

Feedlink Wireless Scales & Feed Tracking System

Road Visibility Kit - RX

Road Visibility Kit - RX

Road Visibility Kit – Includes front & rear hazard panels, safety chains & LED road lights

2 Wheel Hydraulic brakes

2 Wheel Hydraulic brakes

Hydraulically operated on two wheels.

4 Wheel Hydraulic brakes

4 Wheel Hydraulic brakes

Hydraulically activated on four wheels.

Feedlink Wireless Scales & Feed Tracking System

Feedlink Wireless Scales & Feed Tracking System

Specifications

Round Bales (single layer 5'/4' long): 4-6
Squares Bales up to 8' long (single layer 4x4/3x4): 3-4
Maximum Load: 8,000 kg | 17,636 lb
Width (excluding curved elevator extension): 2980 mm | 117.3 in
Overall Width (sides in narrow position / sides in widest position / max. width): 3270 mm / 3710 mm / 4115 mm | 128 in / 146 in / 162 in
Floor width: 2720 mm | 107 in
Overall Length: 6385 mm | 251 in
Floor length: 4125 mm | 162.4 in
Overall Height / Loading Height: 1770 mm | 69.6 in (on std wheels 400/60 x 15.5)
Tare weight (est.): 3700 kg | 8157 lb
Standard Tyres: 400/60 x 15.5
Axle: Tandem Walking Beam
Brakes: Optional 2 or 4-wheel braking
Weigh Scales: Optional Feedlink weighing and feed management system
Floors (Bed floor / Cross Floor): 15 mm (0.6 in) HD Puck Board / 12 mm (0.47 in) HD Puck Board
Chains (Bed / X floor / Elevator): Chainless / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains
Feed Bars (Bed / X Floor / Elevator): Hydraulic Ram / 65 x 35 RHS / 40 x 40 RHS
Joystick: In-cab Electric Control
Hydraulics Required: 2 x double-acting
Hydraulic Flow: 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum)
Hydraulic Pressure: 2050-2500 psi | 140-170 bar
Elevator Width 1645 mm | 64.7 in wide chain/slat
Jack: 80 mm | 3.1 in 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand
Towing Eye: 50 mm | 3.1 in swiveling forged eye
Round Bales (single layer 5'/4' long): 6-8
Squares Bales up to 8' long (single layer 4x4/3x4): 4-5
Maximum Load: 12,000 kg | 26,455 lb
Width (excluding curved elevator extension): 2980 mm | 117.3 in
Overall Width (sides in narrow position / sides in widest position / max. width): 3270 mm / 3710 mm / 4115 mm | 128 in / 146 in / 162 in
Floor width: 2720 mm | 107 in
Overall Length: 7820 mm | 307.8 in
Floor length: 5200 mm | 204.7 in
Overall Height/Loading Height: 1950 mm | 76.7 in (on std wheel 500/50 x 22.5)
Tare weight (est.): 4500 kg | 9920 lb
Standard Tyres: 500/50 x 22.5
Axle: Tandem Walking Beam
Brakes: Optional 2 or 4 wheel braking
Weigh Scales: Optional Feedlink weighing and feed management system
Floors (Bed Floor / Cross Floor): 15 mm (0.6 in) HD Puck Board / 12 mm (0.47 in) HD Puck Board
Chains (Bed / X floor / Elevator): Chainless / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains
Feed bars (Bed / X Floor / Elevator): Twin Hydraulic Rams / 65 x 35 RHS / 40 x 40 RHS
Joystick: In-cab Electric Control
Hydraulics required: 2 x double-acting
Hydraulic Flow: 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum)
Hydraulic Pressure: 2050-2500 psi | 140-170 bar
Elevator width: 1645 mm | 64.7 in wide chain/slat
Jack: 80 mm | 3.1 in 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand
Towing eye: 50 mm | 2 in in swiveling forged eye

Key Features

Adjustable sides

The BaleXpress sets itself apart with its unique adjustable sides, allowing it to accommodate bales of all sizes and shapes. From round to square and even out-of-shape bales, including those up to 6′ in diameter or 5′ long, the BaleXpress handles them with ease.

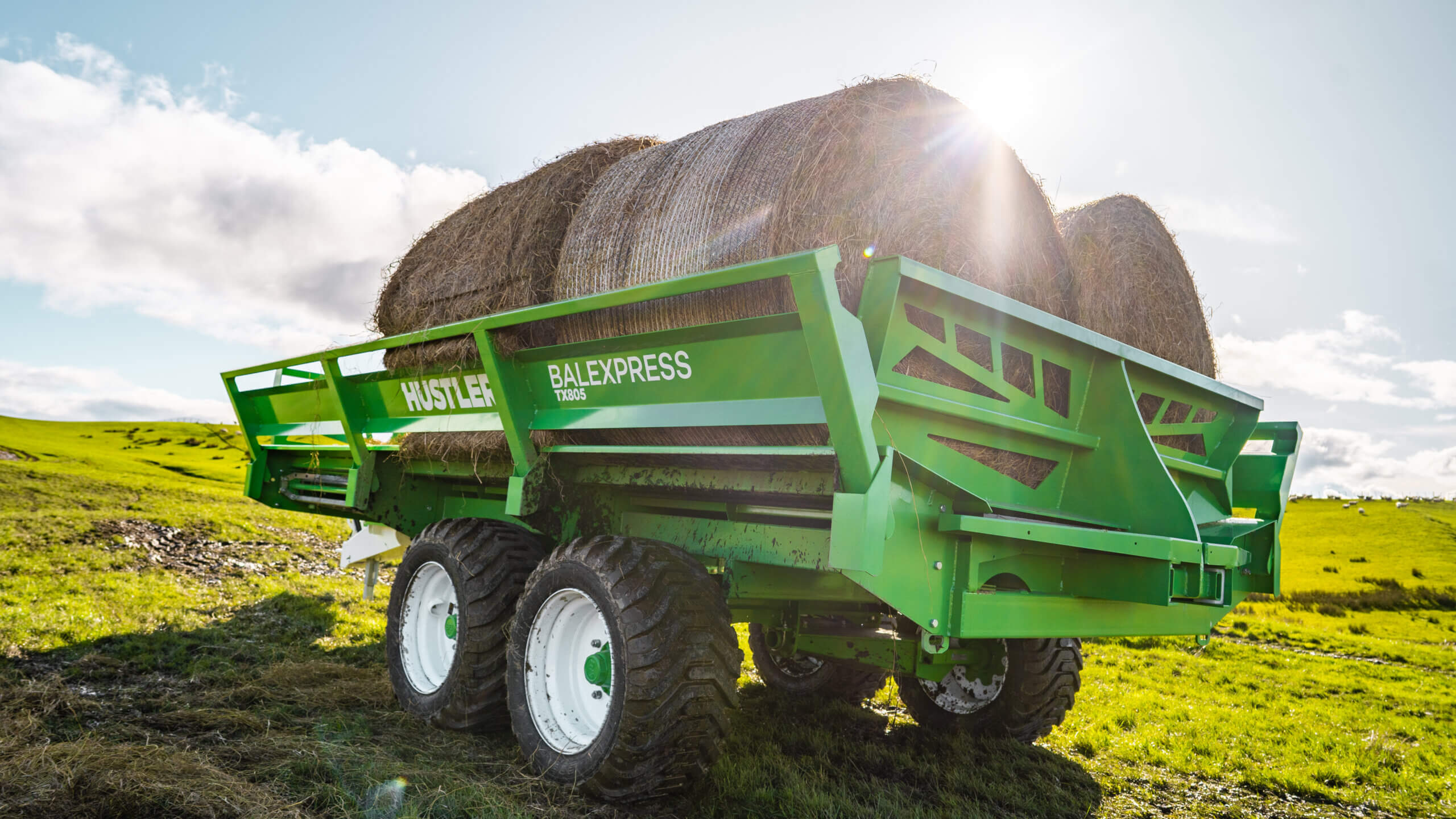

balexpress 4bales

Chainless rear floor

Say goodbye to chain-related issues. The Hustler pusher design, powered by a hydraulic cylinder, eliminates the need for chains, sprockets, bearings, or shafts that can break or require constant maintenance. The bales are always efficiently pushed forward into the feeding chamber, regardless of how they are loaded.

balexpress backangle

Extra Tough Floors

Experience the durability of our puckboard floors, designed to be both slippery for easy bale movement and exceptionally tough for long-lasting use. We are so confident in their durability that we offer a 10-year warranty on floors.

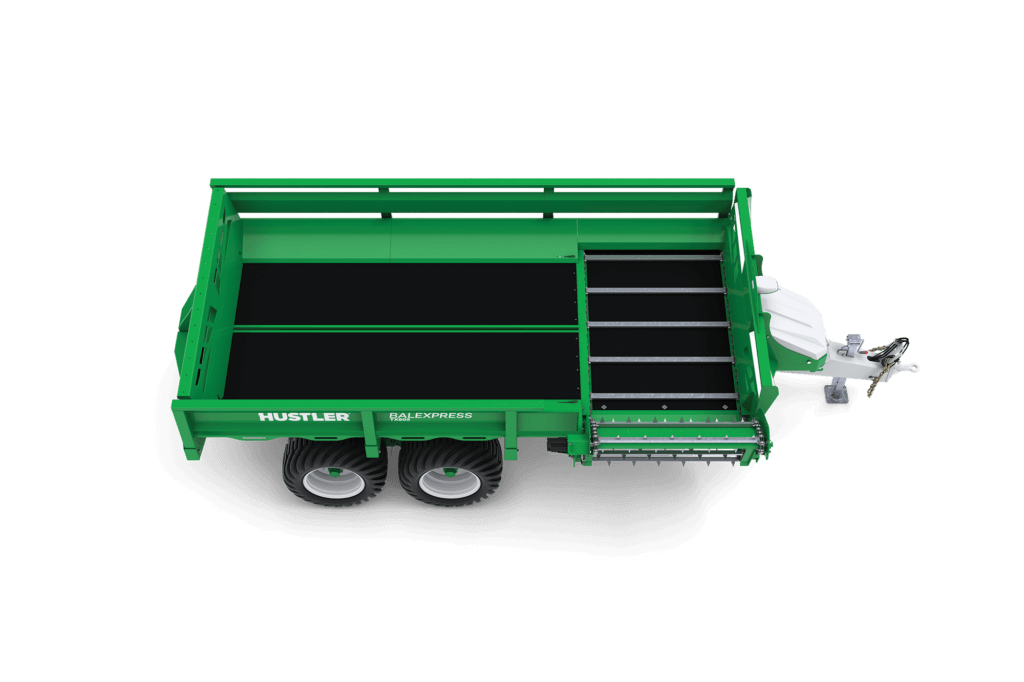

BaleXpressTX805 top right web

Visibility

Safety and ease of operation are paramount, which is why we focused on improving visibility during both feeding and loading operations. With BaleXpress, you can enjoy excellent visibility, reducing the risk of accidents and making your job easier.

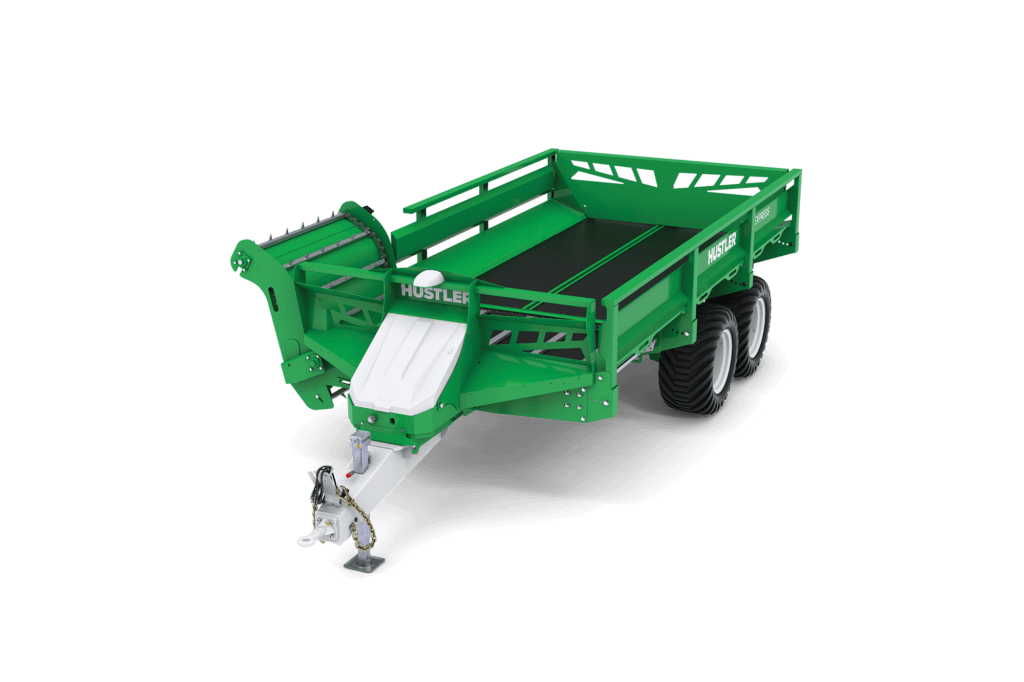

BaleXpressTX805 front left high web

Toughest axles

Our BaleXpress boasts the toughest axle design on the market, featuring large pins and ample pin surface area. This design ensures longevity and prevents premature tire wear, even when dealing with the toughest bales.

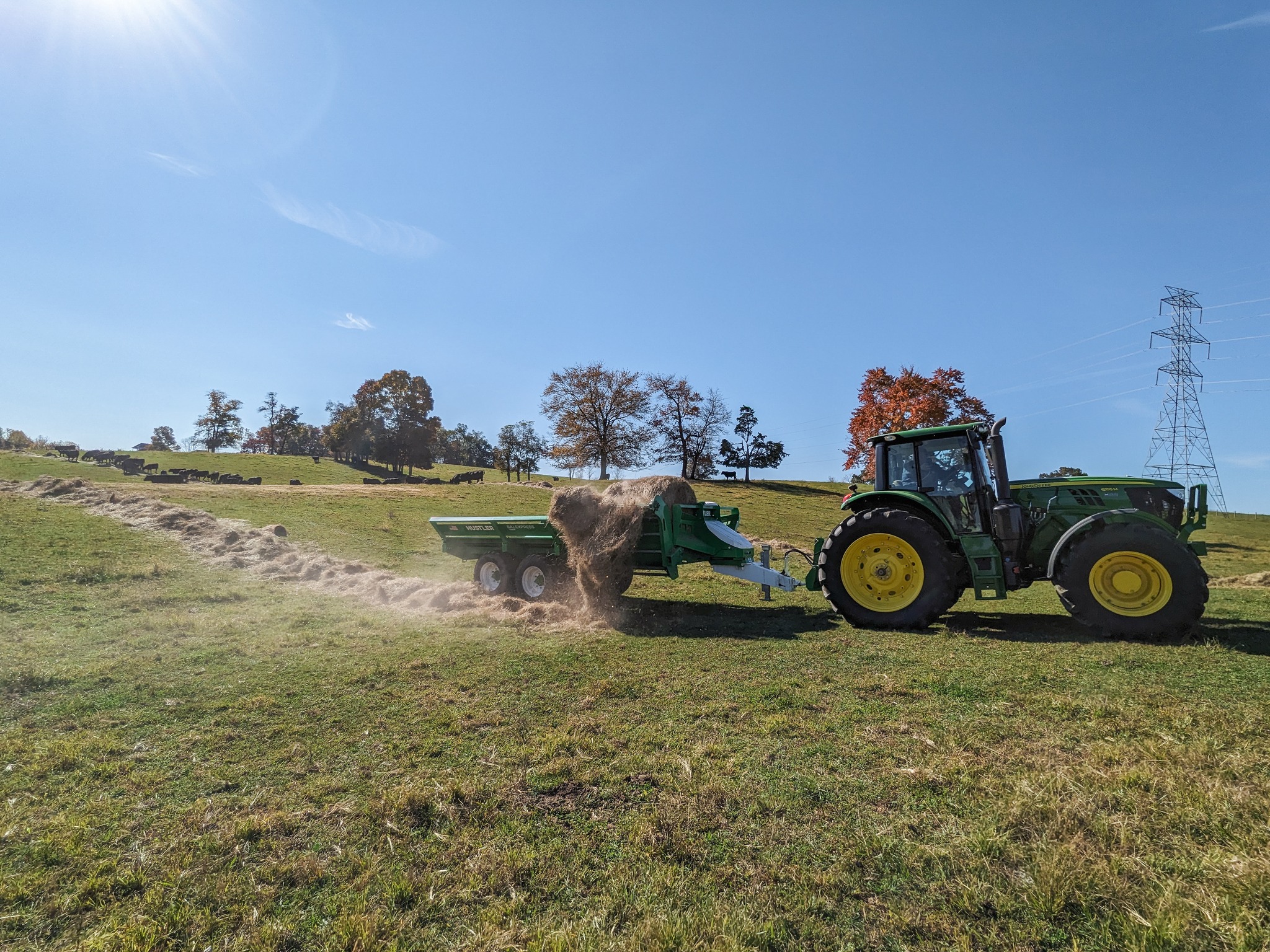

balexpress feeding 1bale

Self-aligning bearings

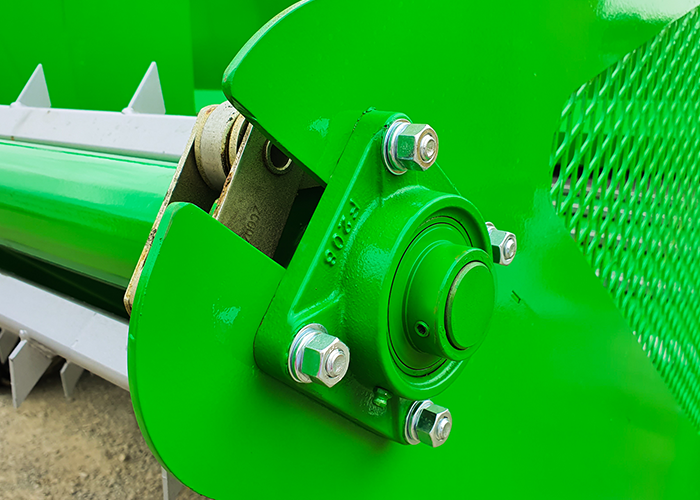

We prioritise reliability and reduced maintenance, which is why our double-sealed heavy-duty 4-bolt bearings with trash shields are preferred by farmers over bushes. By mounting them outboard of the feeding chamber, we prevent silage from wrapping or damaging the seals.

Hustler Combi CM bearings 700 500

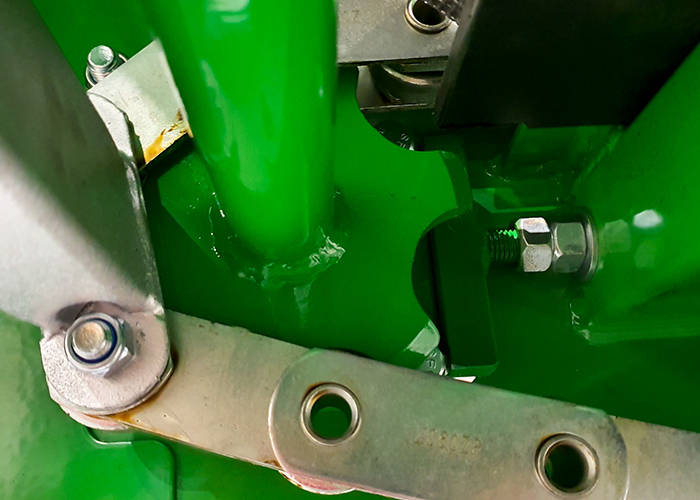

Bisalloy® sprockets

Our 6-tooth sprockets, made from Bisalloy® (the same robust material used in bulldozer blades), deliver unmatched durability for demanding conditions. With exceptional strength and longevity, they provide reliable performance. Featuring smaller diameters, these sprockets reduce torque, oil flow, revs, and heat in your hydraulic system, ensuring efficient and powerful operation. Experience smooth and reliable operations with our durable sprockets.

Bisalloy sprockets 700 500

Covered shafts

Enhance the efficiency and reliability of your bale handling with the BaleXpress and its innovative covered shaft design. No more feed wrapping around the shafts or jamming, as the covered shaft design minimizes such issues. This smart feature ensures smooth operation, reduces downtime, and optimizes the overall performance of the machine.

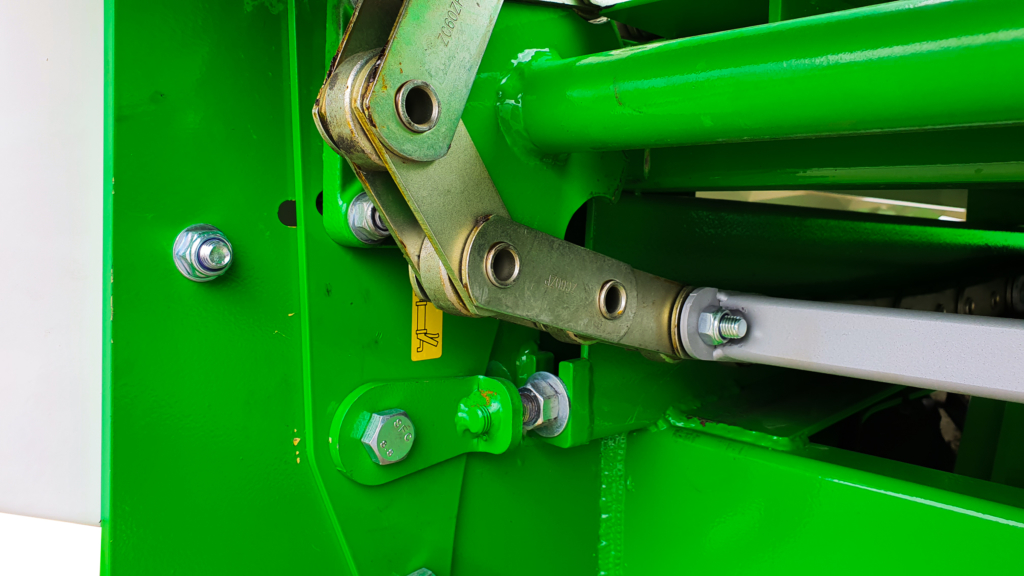

Chain tensioners

BaleXpress embarks built-in chain tensioners. These convenient features enable easy adjustment of the pre-set chain tension, ensuring that your machine operates at its best and maintains reliable performance. With hassle-free chain tension adjustment, you can have peace of mind and focus on maximizing productivity.

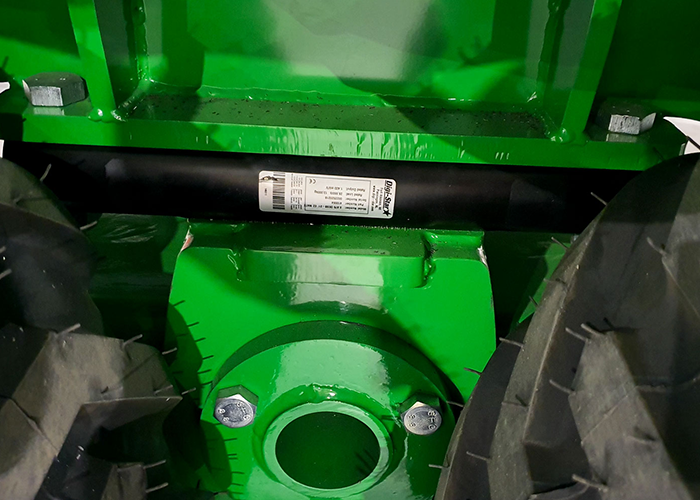

Scale ready

Elevate your feed management with the BaleXpress and its compatibility with our innovative FeedLink™ feed weighing and management system. Whether you opt for factory-fitted scales or choose to have them installed by our authorised dealers later on, the BaleXpress empowers you to optimise feed management, unlock valuable insights, and realise cost savings.

Scale ready 700 500

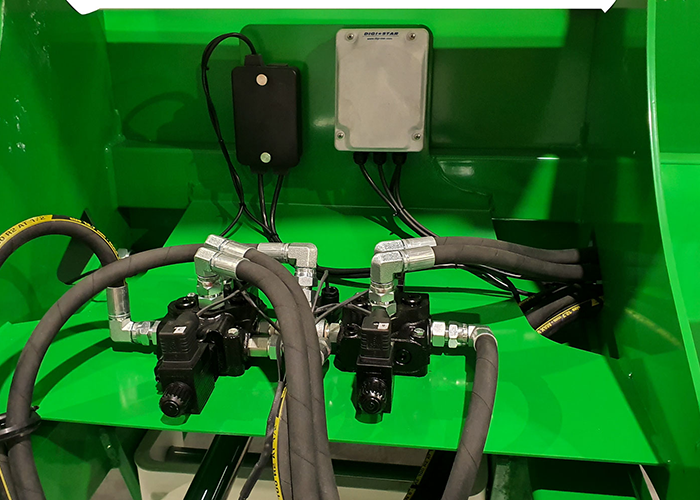

Protected hydraulics & electrics

The hydraulic and electric components of the BaleXpress feature a simple and reliable design. The valves are securely protected from the elements under an easily accessible cover, ensuring their longevity and uninterrupted performance.

protected hydrolics and electrics 700 500

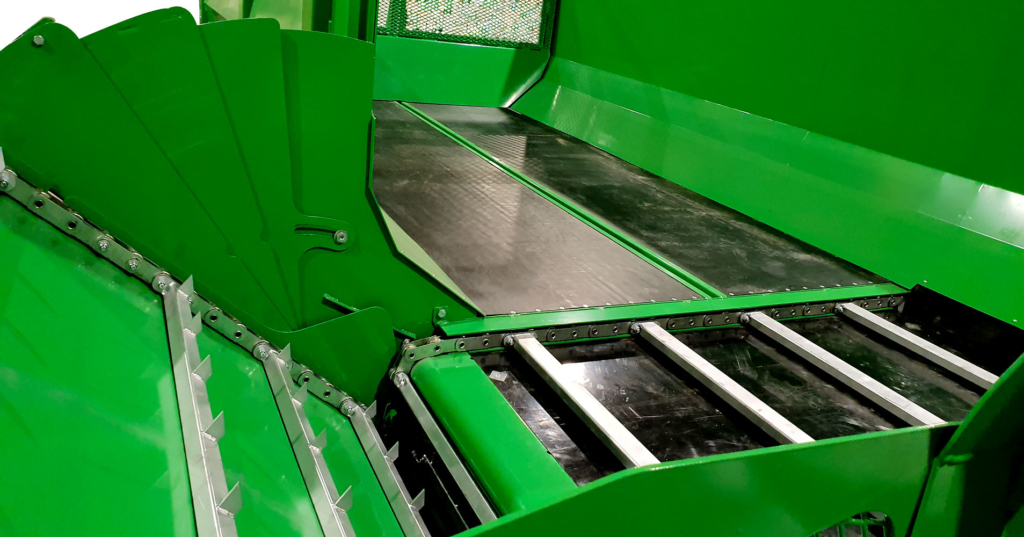

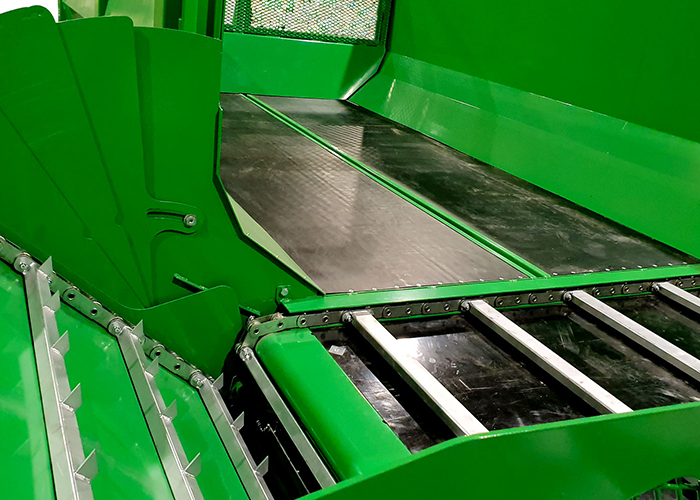

Load Dividing Design

BaleXpress’ load-dividing design reduces the strain on all drives, resulting in a longer-lasting machine. Additionally, the reduced travel distance of the floors per load prevents wear and tear, distinguishing it from other wagons.

Load dividing design 700 500

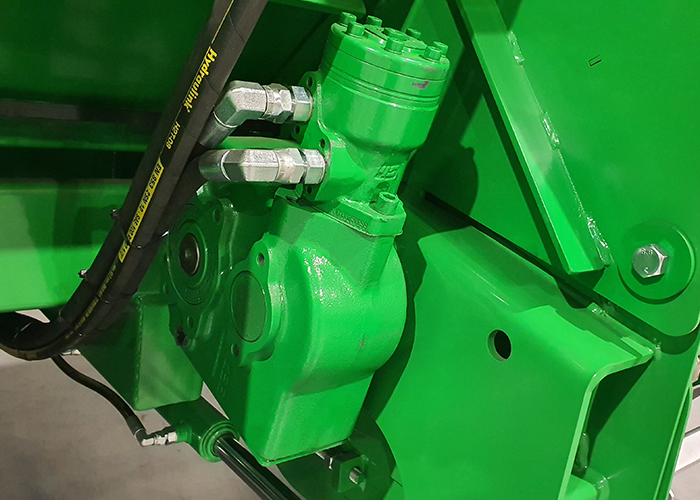

Gearbox drives

Hydraulic gearbox drives are coming as standard equipment, eliminating moving parts, improving reliability, and increasing drive power for enhanced performance.

Gearbox drives on cross floor 700 500

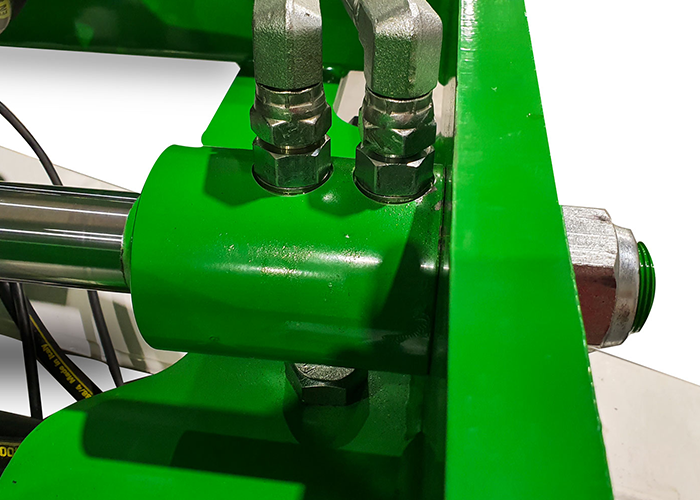

Internally ported rams

Hustler uses another clever innovation with internally ported rams, eliminating hose failures and reducing downtime.

Internally ported rams eliminate hose failures 700 500

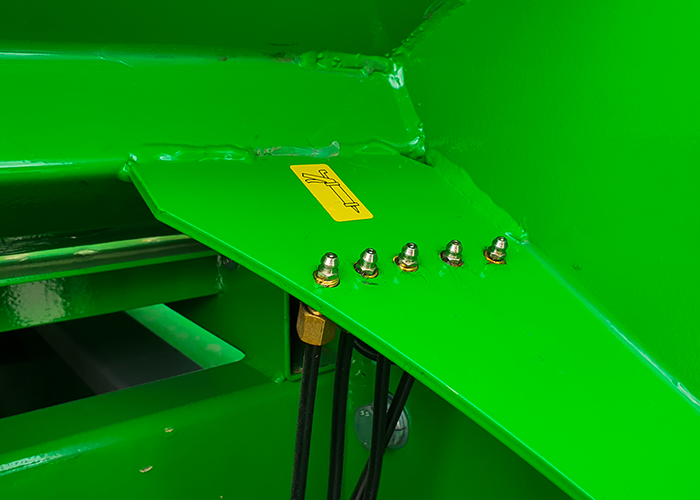

Central Greasing

The BaleXpress models come equipped with a standard central greasing station for the axle, making it convenient to lubricate even the difficult-to-access grease points.

Hustler Combi CM central greasing 700 500

Ground clearance

With the largest ground clearance on the market, the BaleXpress elevator ensures optimal safety by keeping the working parts of the machine out of harm’s way, even in undulating terrain, eliminating the risk of damage.

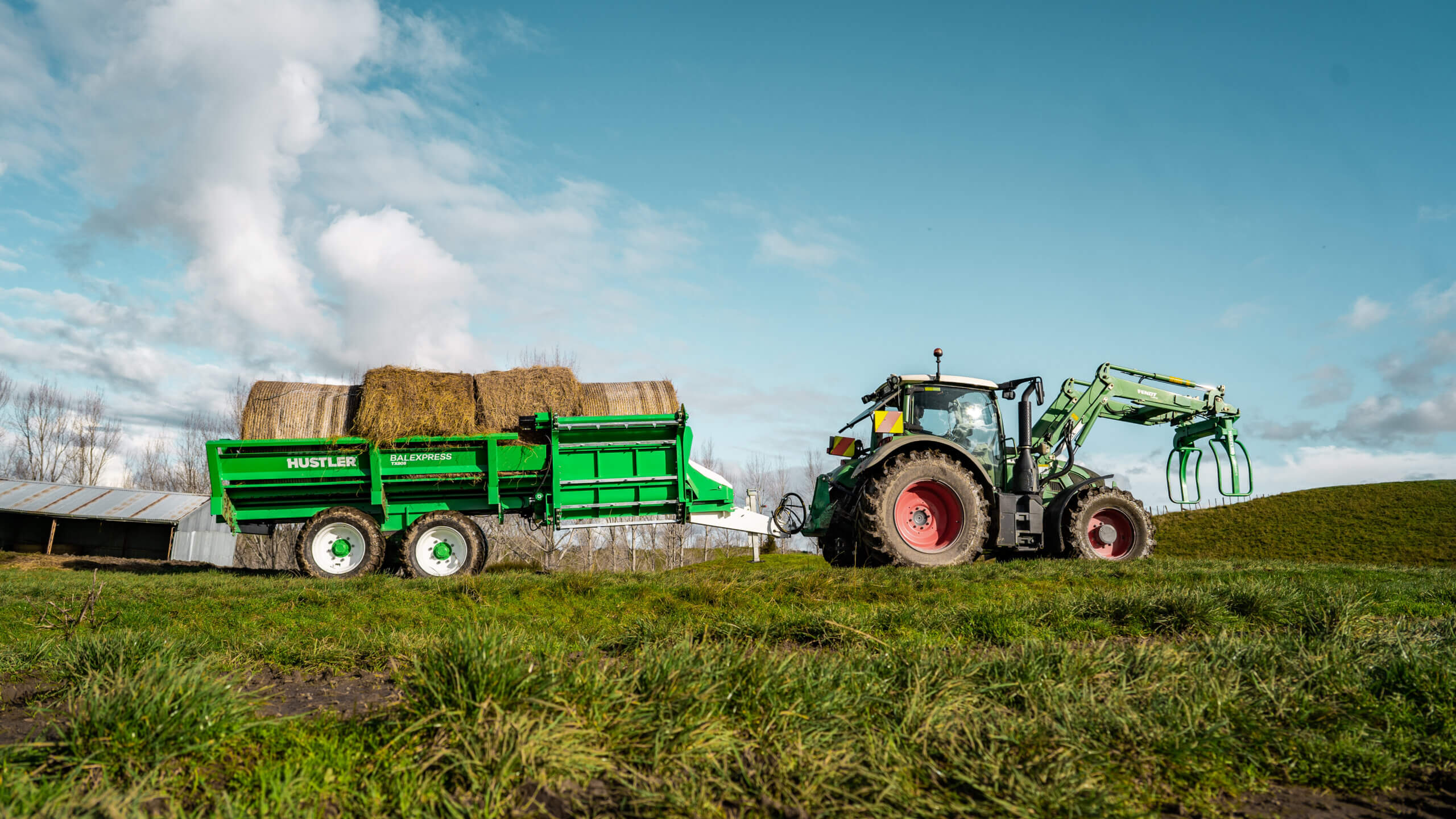

balexpress sideangle 6bales

Protected motor drives

Protected for enhanced safety and reliability, the hydraulic motors are securely shielded.

protected motor drives 700 500
