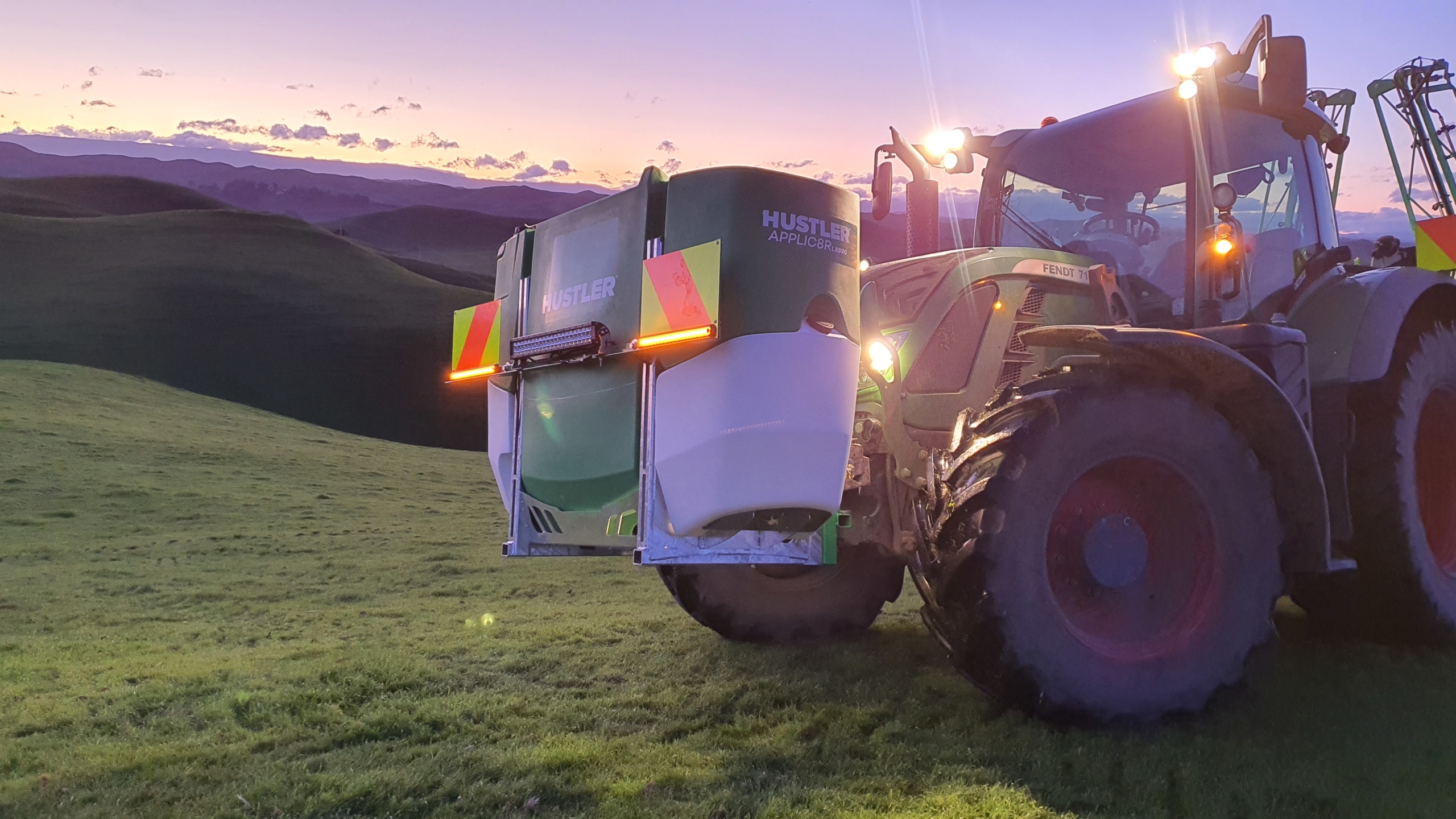

Applic8r Mounted Front Tanks

We’ve simplified the front tank, with standardised front tank kits to double your tank capacity and add balance to your spray rig.

Compact, Simple, and Efficient.

Compact, Simple, and Efficient. The All-NEW Applic8r Front Tank Range

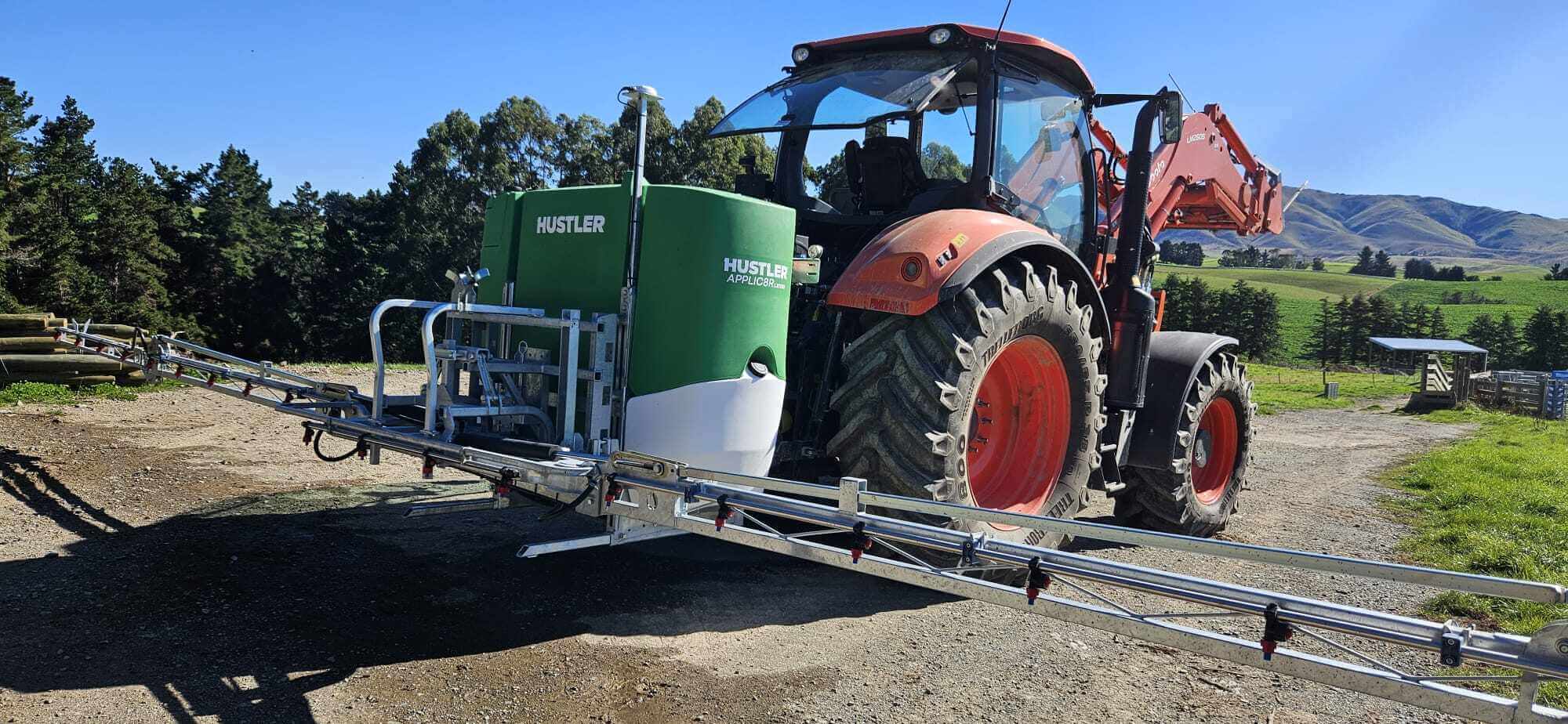

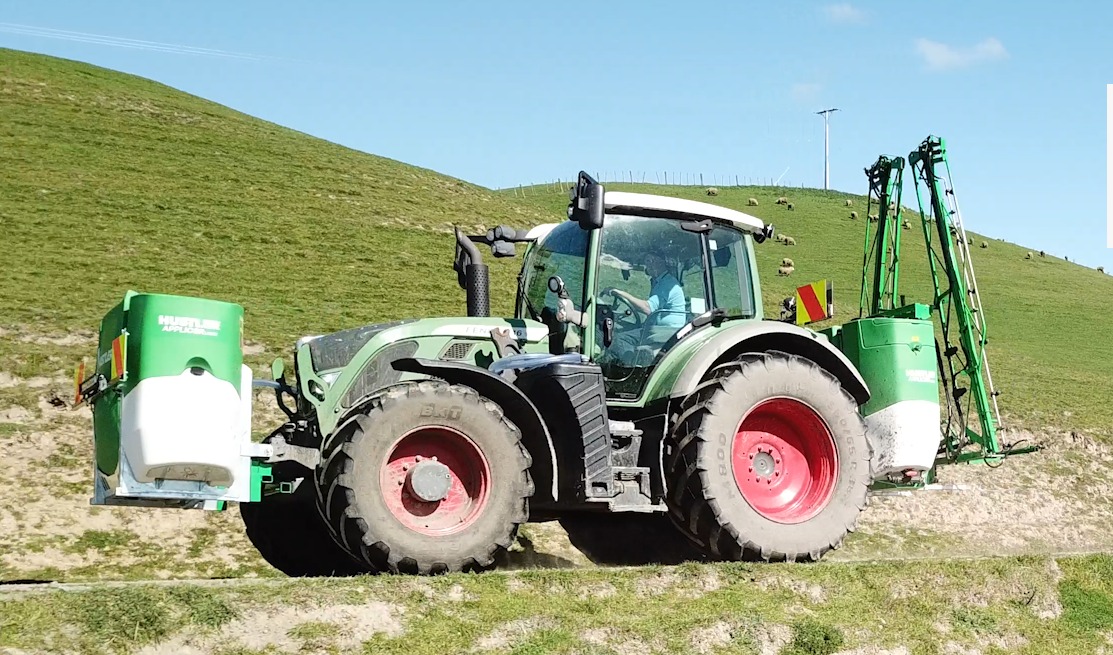

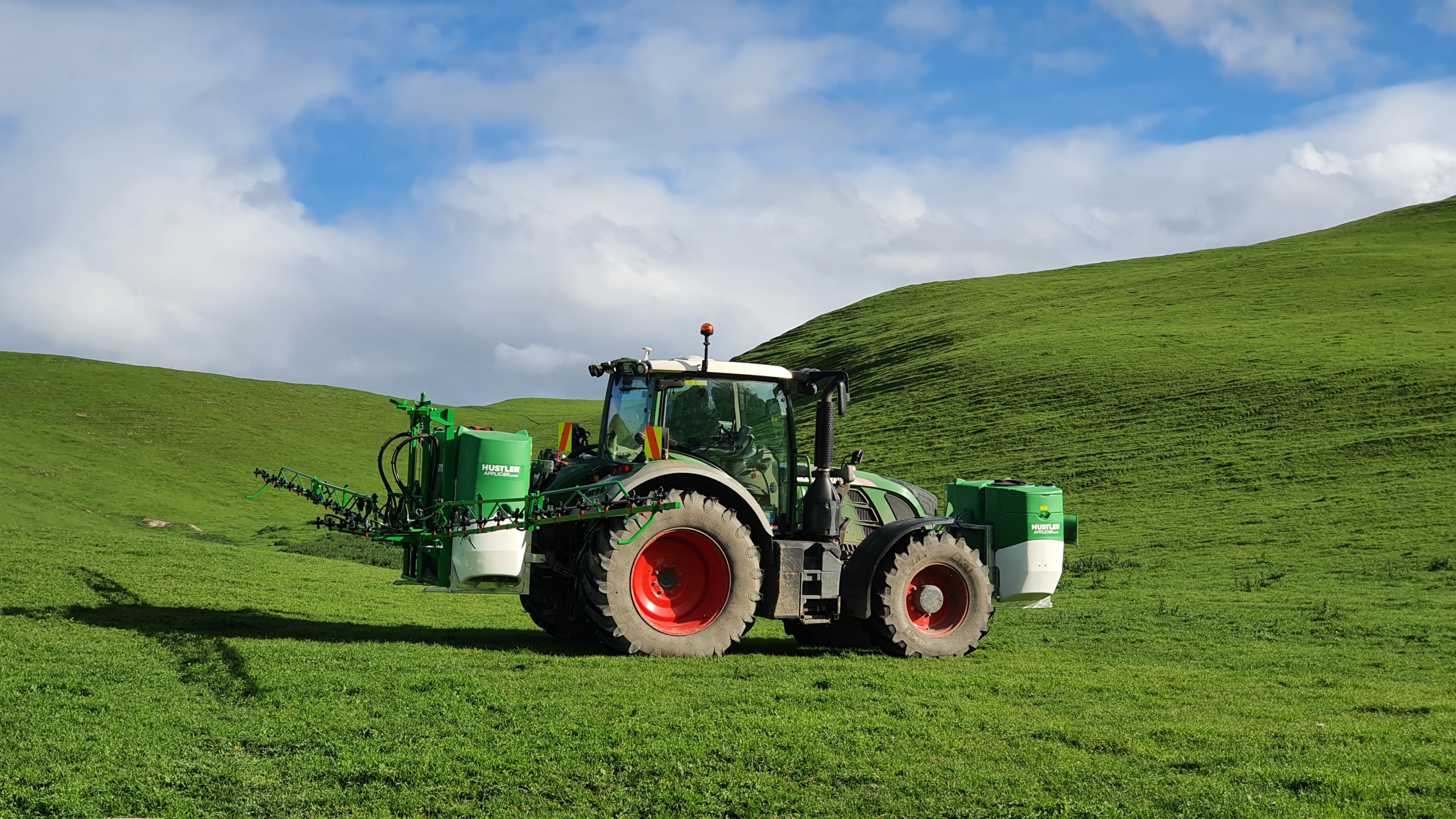

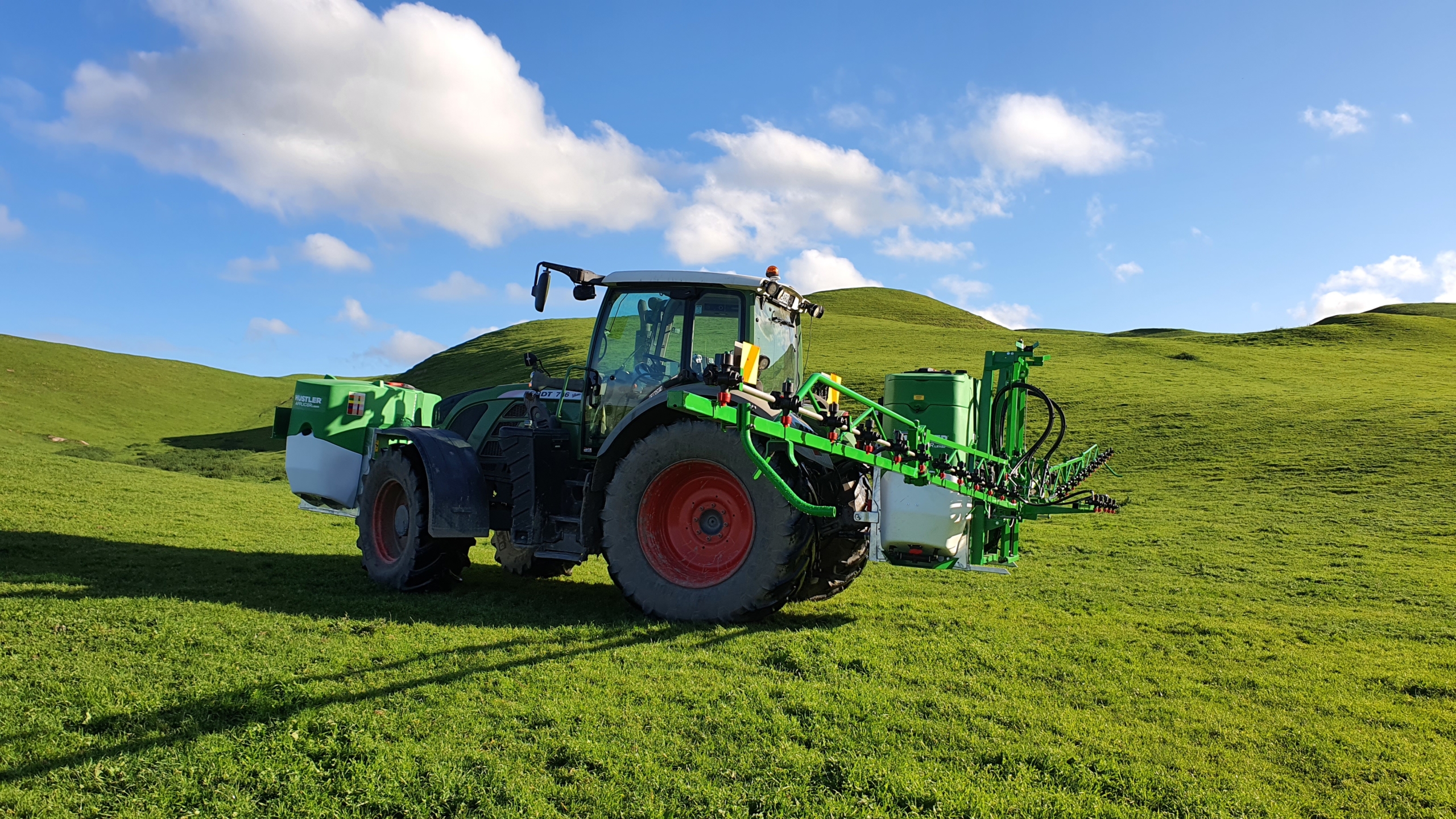

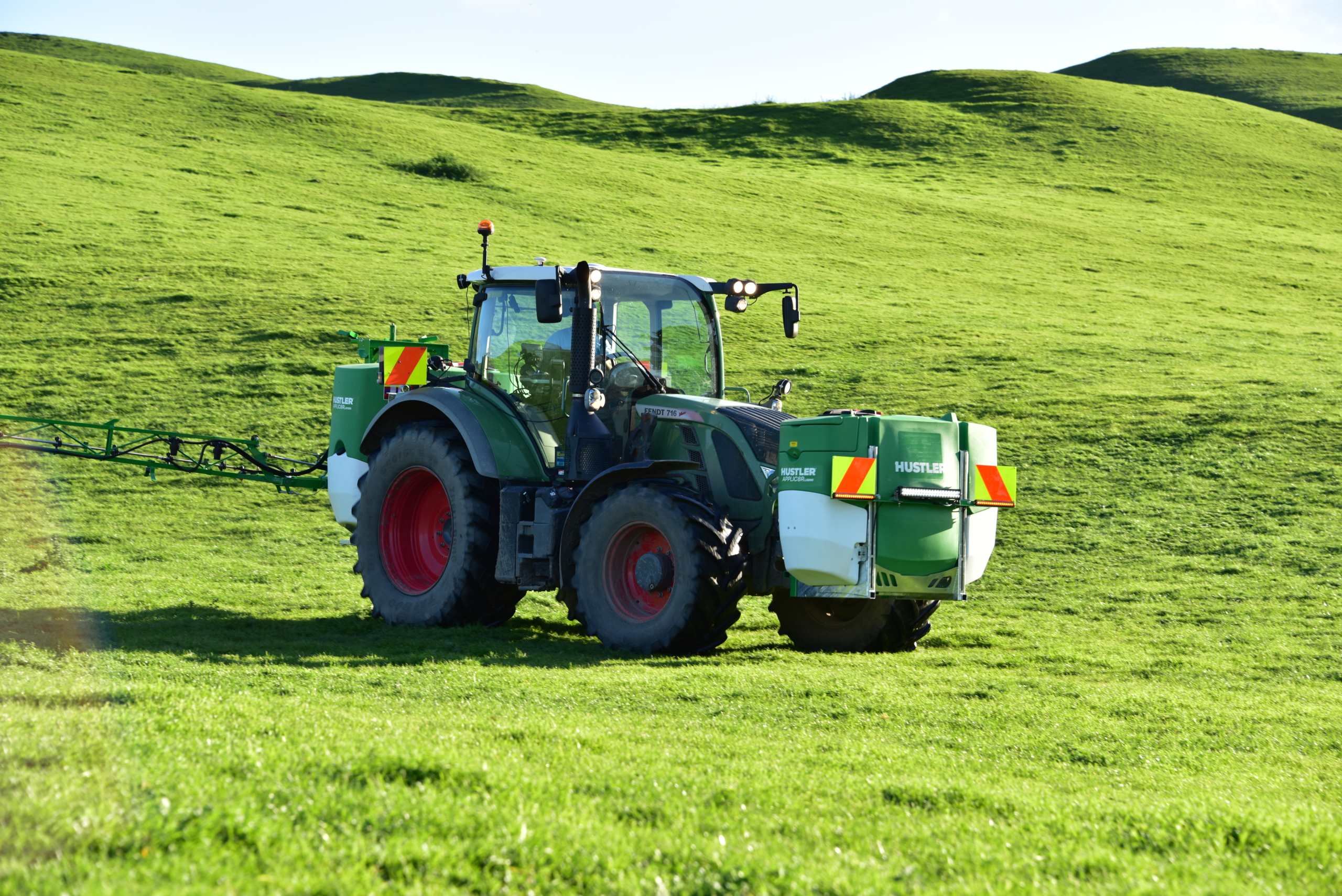

Compliment a rear-mounted three-point linkage Hustler’s Applic8r sprayer by increasing your capacity with the fitment of an 890L or a 1150L front mount spray module.

The short length of an Applic8r front tank gives them game-changing maneuverability compared to other front tank designs especially important in tight gateways, they look great and it reduces the load on the front axle of the tractor

The kit comes complete with 8 metres of hose, ball value, and coupling to connect to the rear tank. When ordered with an Applic8r Spray unit, front tank valving is factory fitted to sprayer.

Product Customiser

Select the product, then options and accessories to create your enquiry.

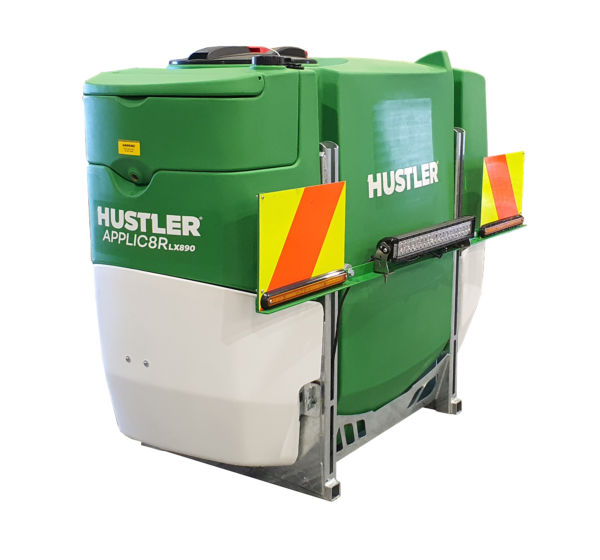

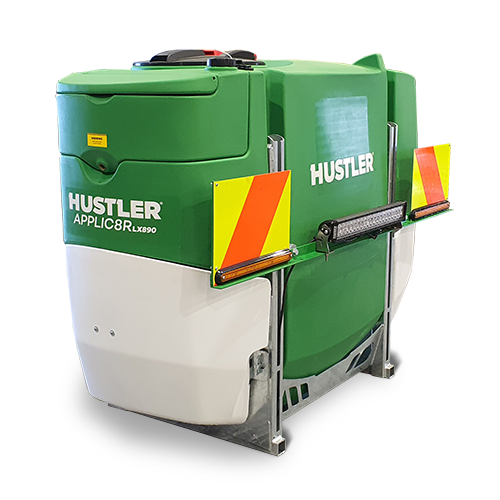

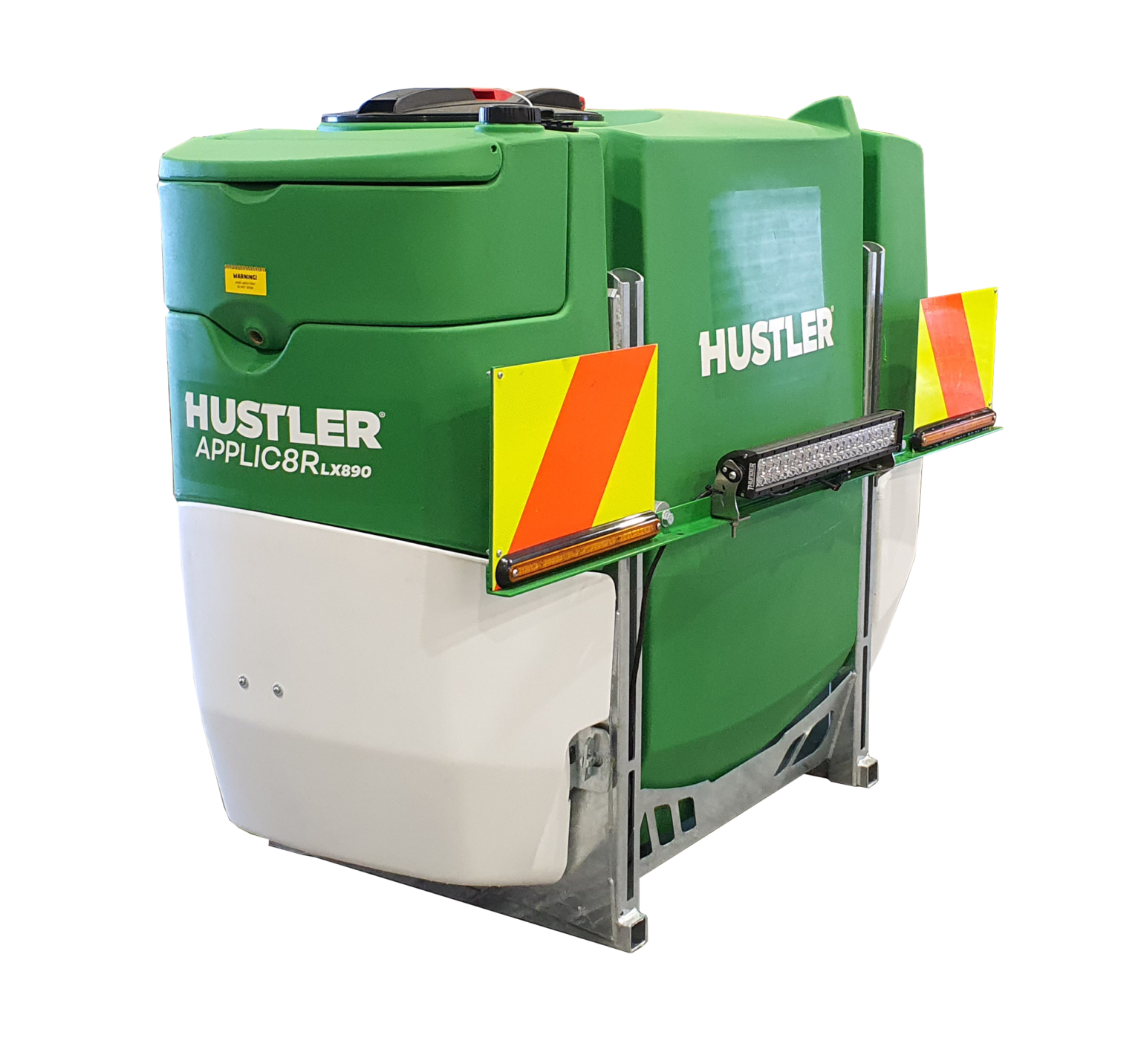

Applic8r FM890

Compliment a rear-mounted three-point linkage Hustler’s Applic8r sprayer by increasing your capacity with the fitment of a 890L front mount Applic8r spray module allowing you to cover up to 5.9 additional Ha per load.

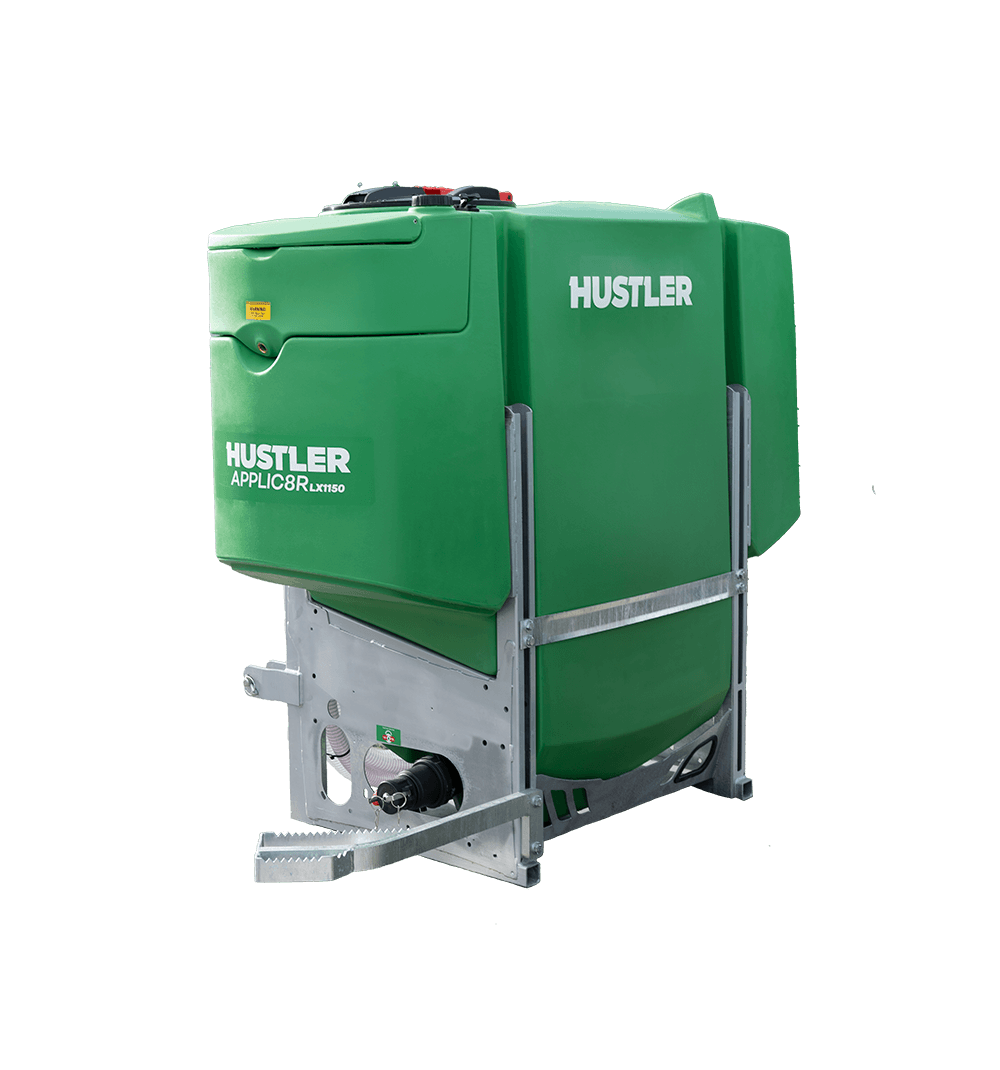

Applic8r FM1150

Compliment a rear-mounted three-point linkage Hustler’s Applic8r sprayer by increasing your capacity with the fitment of a 1150L front mount Applic8r spray module allowing you to cover up to 7.7 additional Ha per load.

QuickFlush Flushing System (Standard with 1150 Litre models) - 100 Litre Flushing Tank

QuickFlush Flushing System (Standard with 1150 Litre models) - 100 Litre Flushing Tank

Make clean up quicker and easier at the end of your sprayer job and when you swap between products. (Standard on Applic8r LX1150)

StorageBox - Chemical Storage Compartment

StorageBox - Chemical Storage Compartment

Built-in bottom storage box to take chemicals with you on the job. Enough room for measuring jugs and filling equipment

Road Visibility Kit - Front Tanks

Road Visibility Kit - Front Tanks

Road Visibility Kit – Includes front hazard panels, LED indicators, and & LED Lightbar

Inspection Step

Inspection Step

For shorter operator add an inspection step for easy tank inspections.

QuickFlush Flushing System (Standard with 1150 Litre models) - 100 Litre Flushing Tank

QuickFlush Flushing System (Standard with 1150 Litre models) - 100 Litre Flushing Tank

Make clean up quicker and easier at the end of your sprayer job and when you swap between products. (Standard on Applic8r LX1150)

StorageBox - Chemical Storage Compartment

StorageBox - Chemical Storage Compartment

Built-in bottom storage box to take chemicals with you on the job. Enough room for measuring jugs and filling equipment

Road Visibility Kit - Front Tanks

Road Visibility Kit - Front Tanks

Road Visibility Kit – Includes front hazard panels, LED indicators, and & LED Lightbar

Inspection Step

Inspection Step

For shorter operator add an inspection step for easy tank inspections.

Specifications

Tank Size: 890L
Flushing Tank: Optional 100L
Hand Washing Tank: 18L capacity
Storage: Built in toolbox
Gauge: ViziGauge view
Lid: Hingend 455mm lid with basket strainer
Features: UtilityBar, CoupleUp tank filling system
Tank Size: 1150L
Flushing tank: Optional 100L
Hand washing tank: 18L capacity
Storage: Built in toolbox
Gauge: ViziGauge view
Lid: Hingend 455mm lid with basket strainer
Features: UtilityBar, CoupleUp tank filling system

Features

Ultra-Low Tank Profile

We understood the dangers of climbing onto sprayers with chemicals or to see inside the tank. So with careful tank/chassis integration, we’ve kept it compact and ultra-low to ensure great visibility and with a small overhang makes for great maneuverability

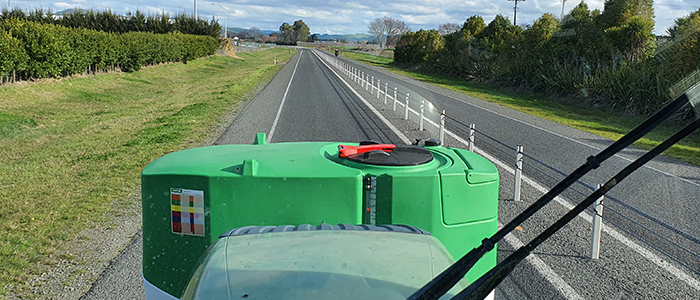

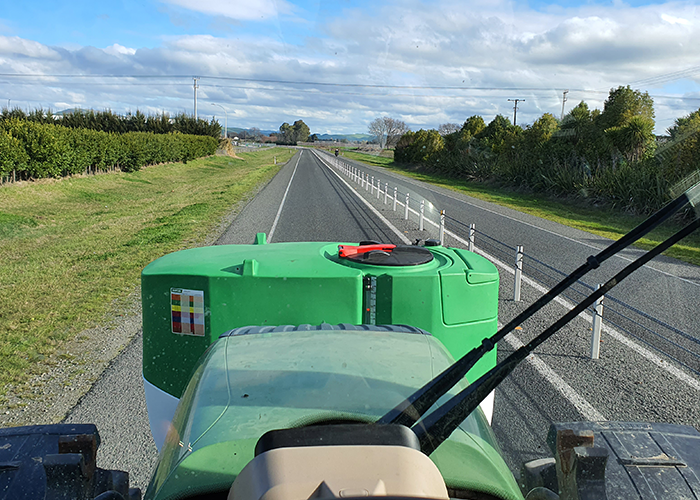

Front Tank Visibility 2 700 500

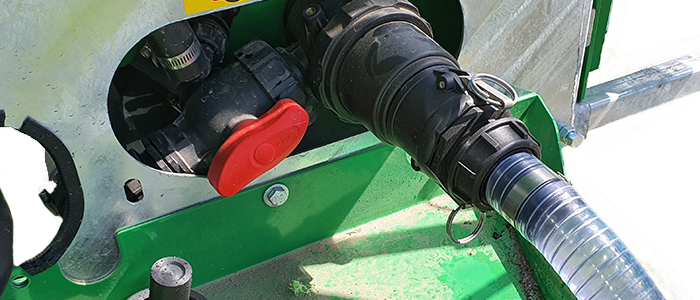

CoupleUp™ filling system

Filling’s a snap, fill as you normally would through the lid or with our unique CoupleUp™ 2” tank filling system, if you have a mixing station or trash pump you can fill directly using that pump, or you can also utilise the Applic8r’s own pump to fill out of a trough or stream with an optional 5 or 10 metre filling hose.

CoupleUp Tank Filling 3 clearcut 700 500

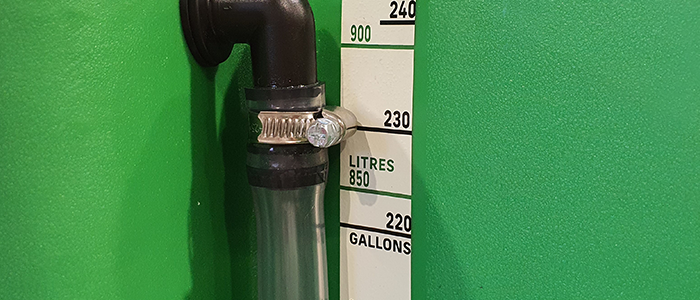

ViziGauge™

Our unique ViziGauge is visible from 120 degrees, so you can easily see your tank level from the tractor seat and the ground how much fluid you have left. A floating ball tube gauge makes it easy to read the calibrated ViziGauge™ which now features both Gallons and Litres and provides more tank filling accuracy with our unique mould-in permanent graphics

VisiGauge 1 clearcut 700 500

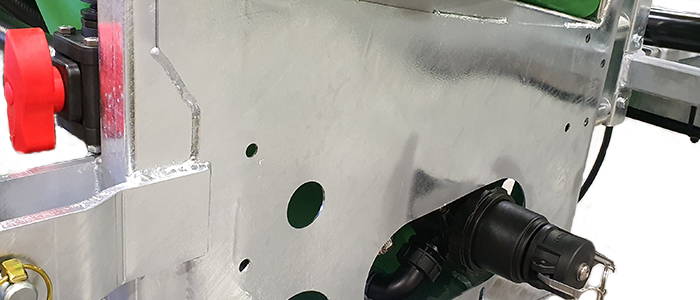

Unique Chassis Design

Compact and built to last, it has the biggest section in its class! The unique straight-through chassis design and careful attention chassis/tank/pump integration has allowed Hustler to produce the toughest and most compact sprayer available today. The Applic8r’s chassis has been CAD tested for stress and real-life tested for fatigue on our destroyer. It lasted in excess of 4 times the required benchmark.

Massive Chassis Strength Design clearcut 700 500

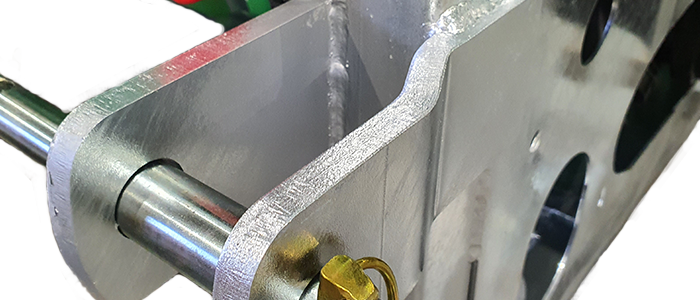

ISO Linkage plates

The Applic8r’s 3 point mounts are built to ISO standard unlike most other sprayers. This means you no longer need to park your sprayer on a stack of pallets so the 3 point linkage can reach it and it fits both fixed and floating 3 point linkage arms making it quicker and safer to hook up.

ISO Clevis 3 Point Linkage Mounts clearcut 700 500

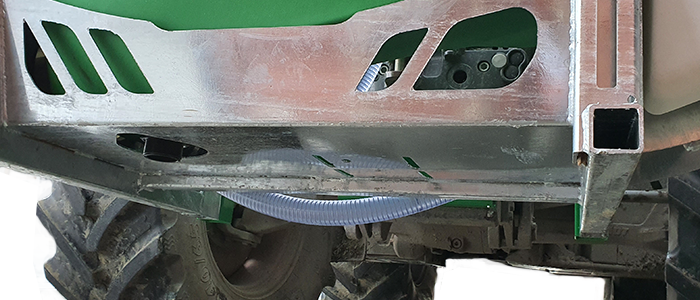

Built-in SkidPlate™

A tough built-in SkidPlate™ protects the vital parts including the pump, tank, filters, drain, from damage should you misjudge a hump or hollow.

SkidPlate clearcut 700 500

Quick Tank Drain

A high flow tank dump operated from the top of the tank saves you from climbing underneath to empty the tank and reduces clean up time and saves the operator from getting covered in chemical during clean up.

Tank Drain clearcut 700 500

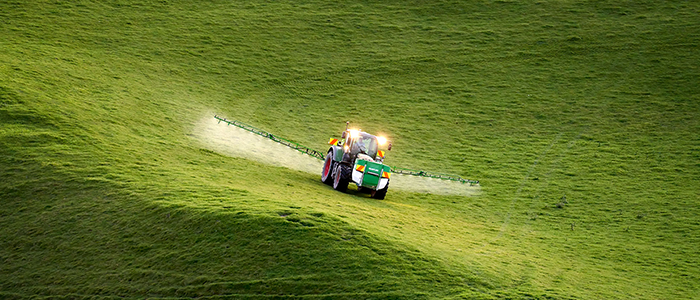

Deep sump

A generous sump size is all part of the design so that you can spray on steep terrain without sucking air and leaving missed patches and empty’s the entire tank even when operating on the steepest of terrain

working 2 700 500

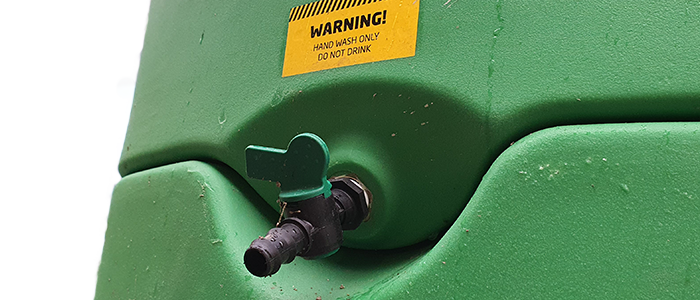

Handwash Tank

Built-in 18-litre tank for clean water so that you can wash your hands once finished filling makes sprayer with an Applic8r enjoyable.

Hand wash Tank clearcut 700 500

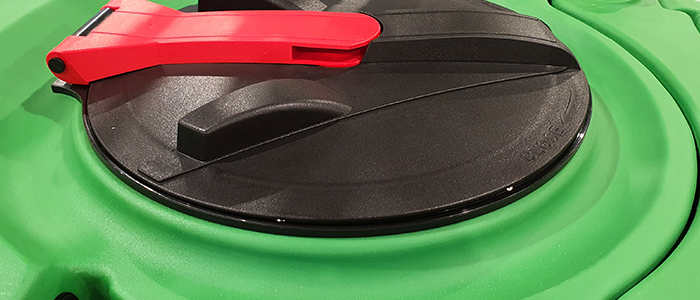

Largest opening with Spill Catcher

The largest 455 mm lid to the tank with larger sieve, has a built-in hinge so that you can’t lose the lid during transport and filling. We’ve also added a spill ring around the lid to catch any accidental spillages to save them getting on the operator.

Spill Catcher 1 clearcut 700 500

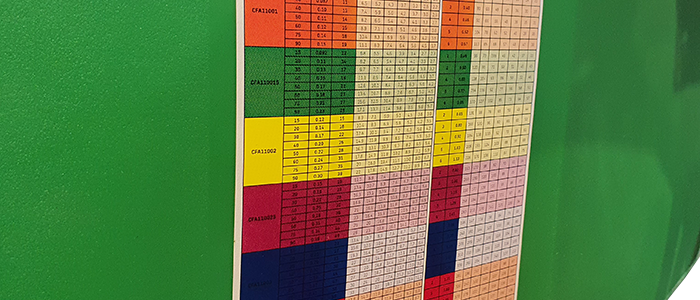

Mould-In Nozzle Chart

Now showing L/Ha and G/Ac our unique nozzle chart is permanently moulded into the polymer of the tank, so you’ll never need to go searching for a nozzle chart again and helps the operator get set up and spraying quicker every time.

Nozzle Chart 700 500clearcut

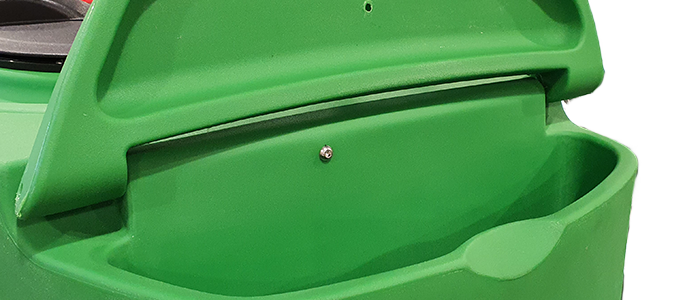

Integrated Toolbox

Integrated into the design is a handy toolbox that is quick and easy to open and has plenty of space for spare nozzles, filters and is also handy for storing controllers when the sprayer is not in use.

Integrated ToolBox clearcut 700 500

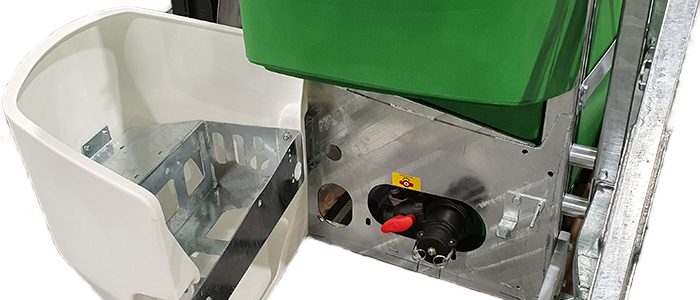

Large storage box

The optional StorageBox is big enough to take chemicals, filling hos and measuring jugs with you on the job to save you having to carry them in the cab. Not available with the optional ErgoMax™ induction hopper or the foam marker.

StorageBox 2 clearcut 700 500
