Combi RX² Multi-Feeder Range

Feeds out literally every supplementary type of feed, including whole round and square bale of all types, shapes and sizes as well as loose feed such as fine chop grass silage, corn/maize silage, root crops, vegetables, by-products and much more.

COMBI RX148² / RX178² / RX218²

THE LEGEND REBUILT

Introducing the all-new Combi RX² multi-feeder range. With unique features delivering unprecedented feeding versatility, standing as the lowest maintenance wagon on the market, offering unrivaled maneuverability and enhanced feed control. Built upon the success of its predecessor, the Combi RX² incorporates valuable user feedback for an even better feeding out experience.

With more than a decade of extensive product development and testing, working on large-scale farms and ranches around the world, the Combi RX² range is ready for whatever you throw its way.

What sets the Hustler Combi RX² range apart?

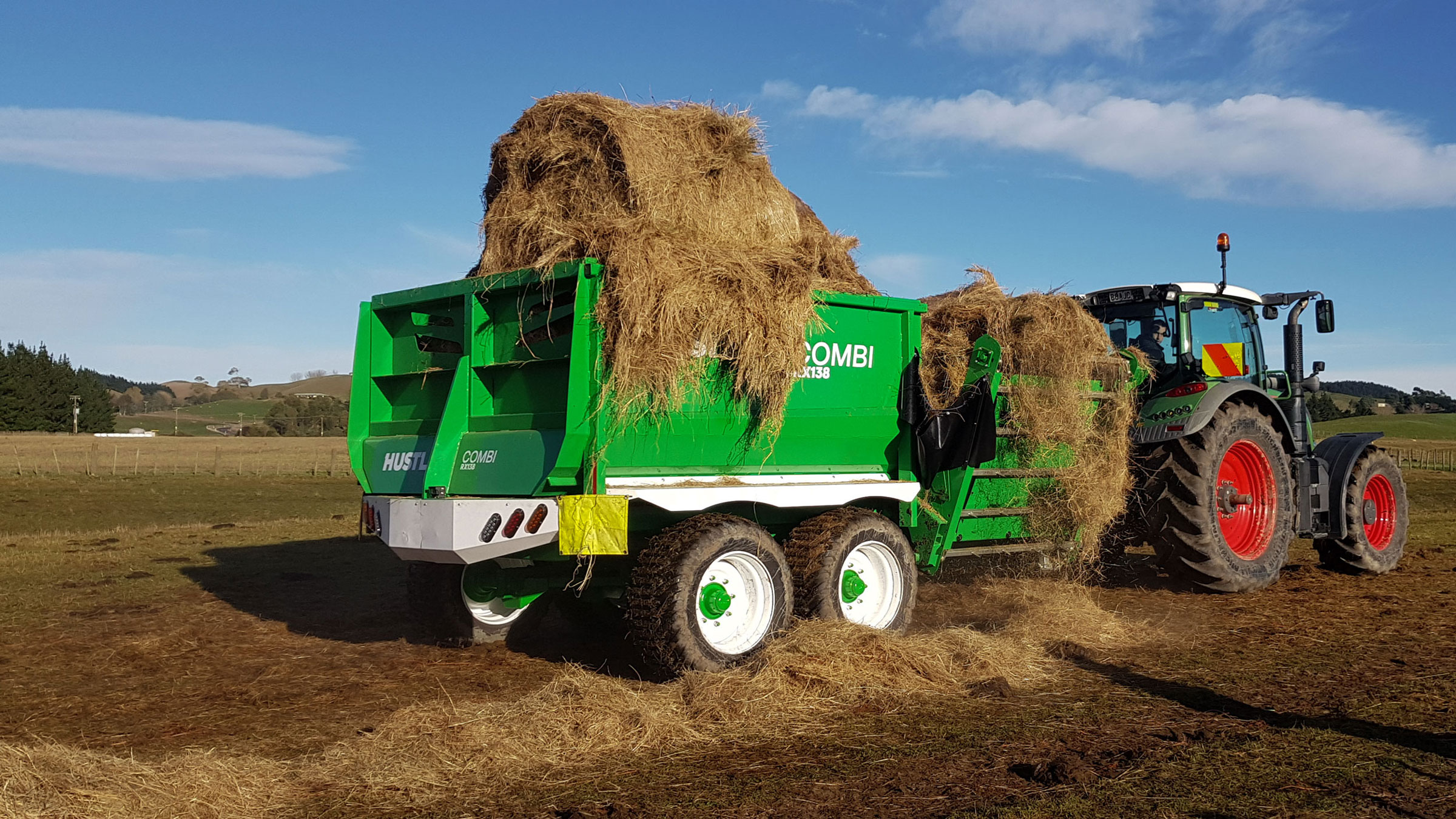

1. Unbeatable Versatility - One Machine, Any Feed

If you’re feeding a combination of bales, silage, root crops, or any other supplementary feed, then the Combi RX² is the only feeder you’ll need.

The Hustler Combi multi-feeder range is designed to accommodate all types, shapes, and sizes of bales, including straw, hay, baled silage, fine chop silage, maize silage, root crops, and virtually any type of feed you have. Its unique elevator design enables feed delivery from the side of the machine, allowing you to easily feed into troughs, feed pads, bunks, or open pastures without any spillage.

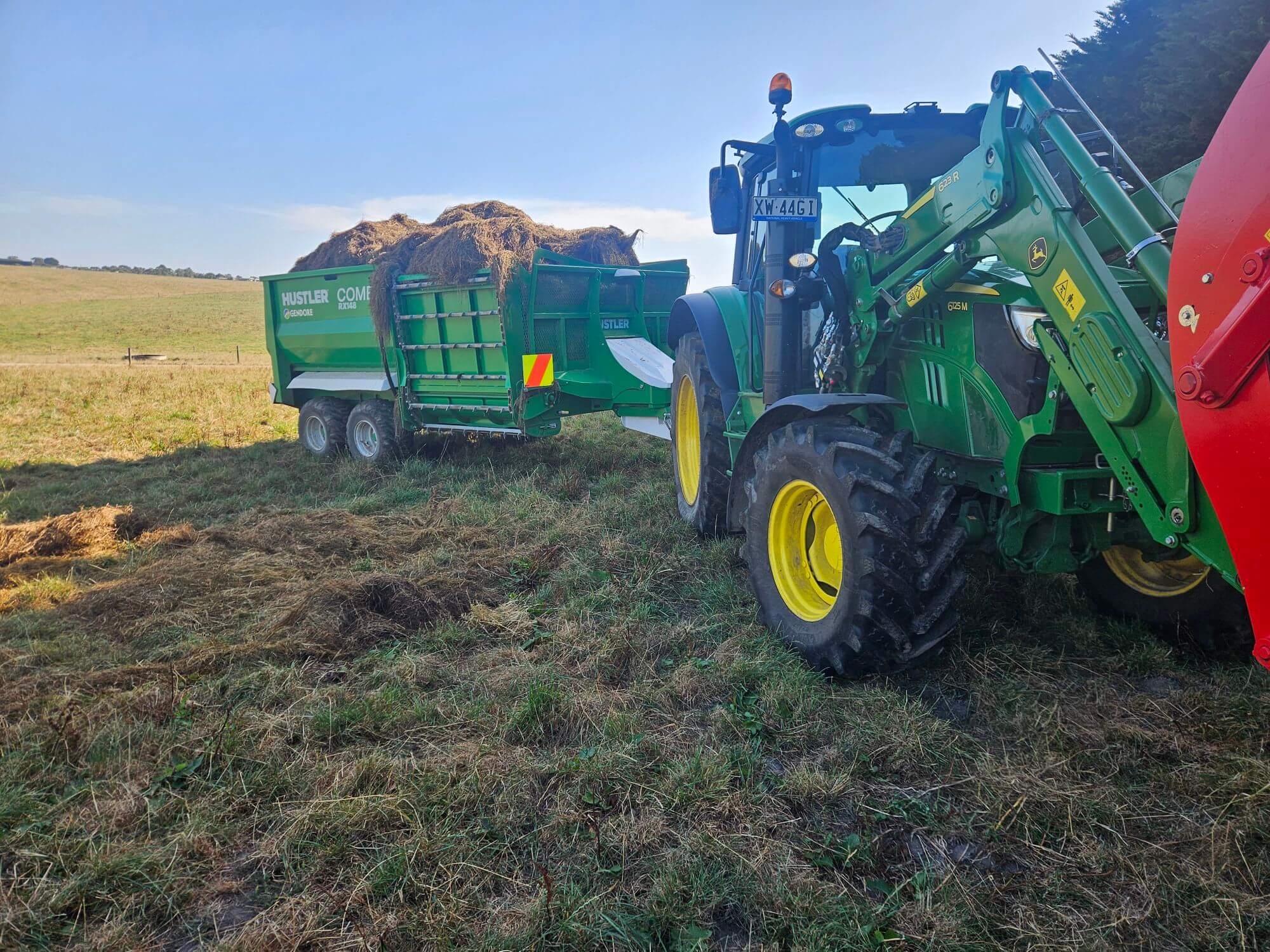

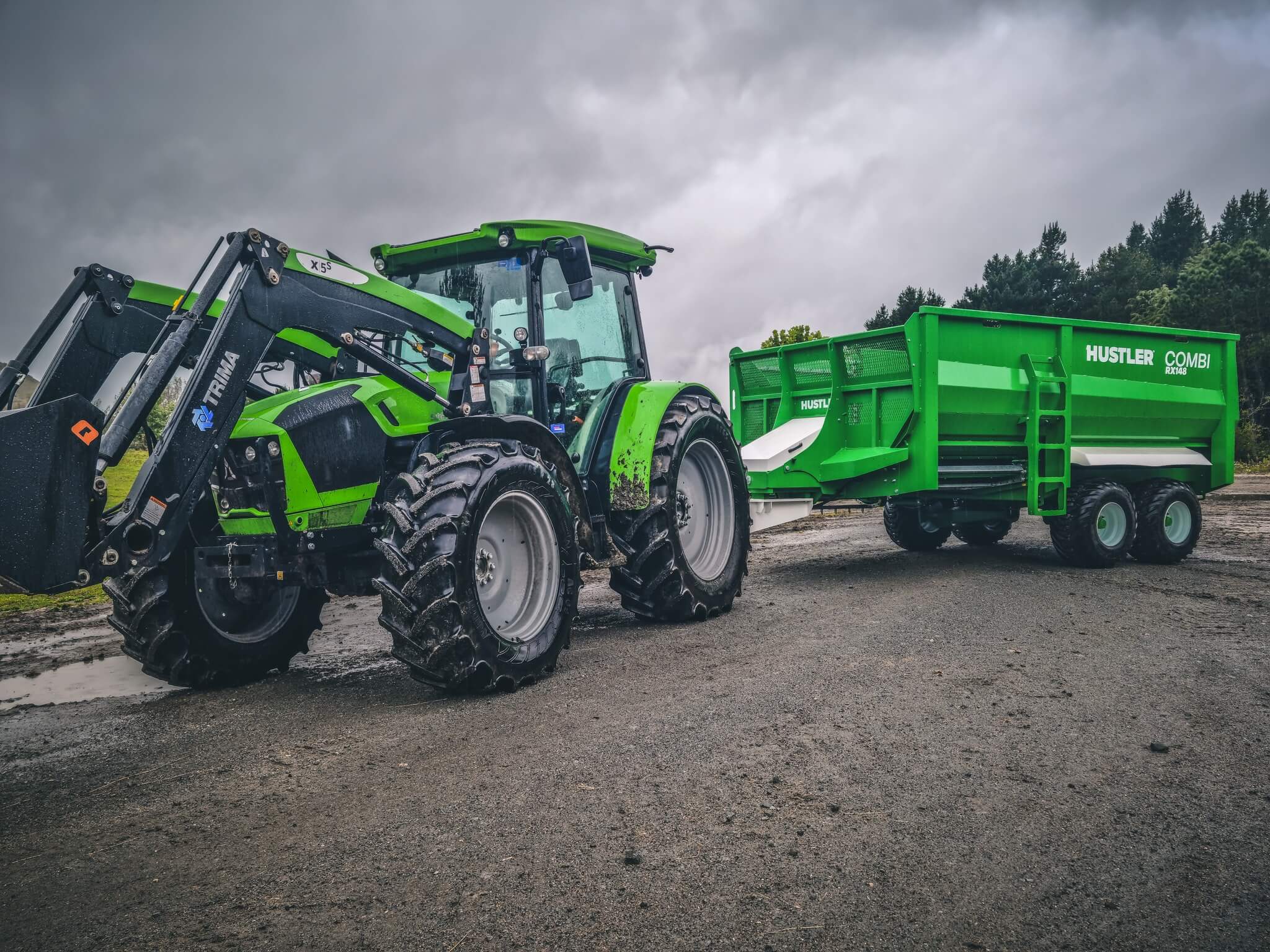

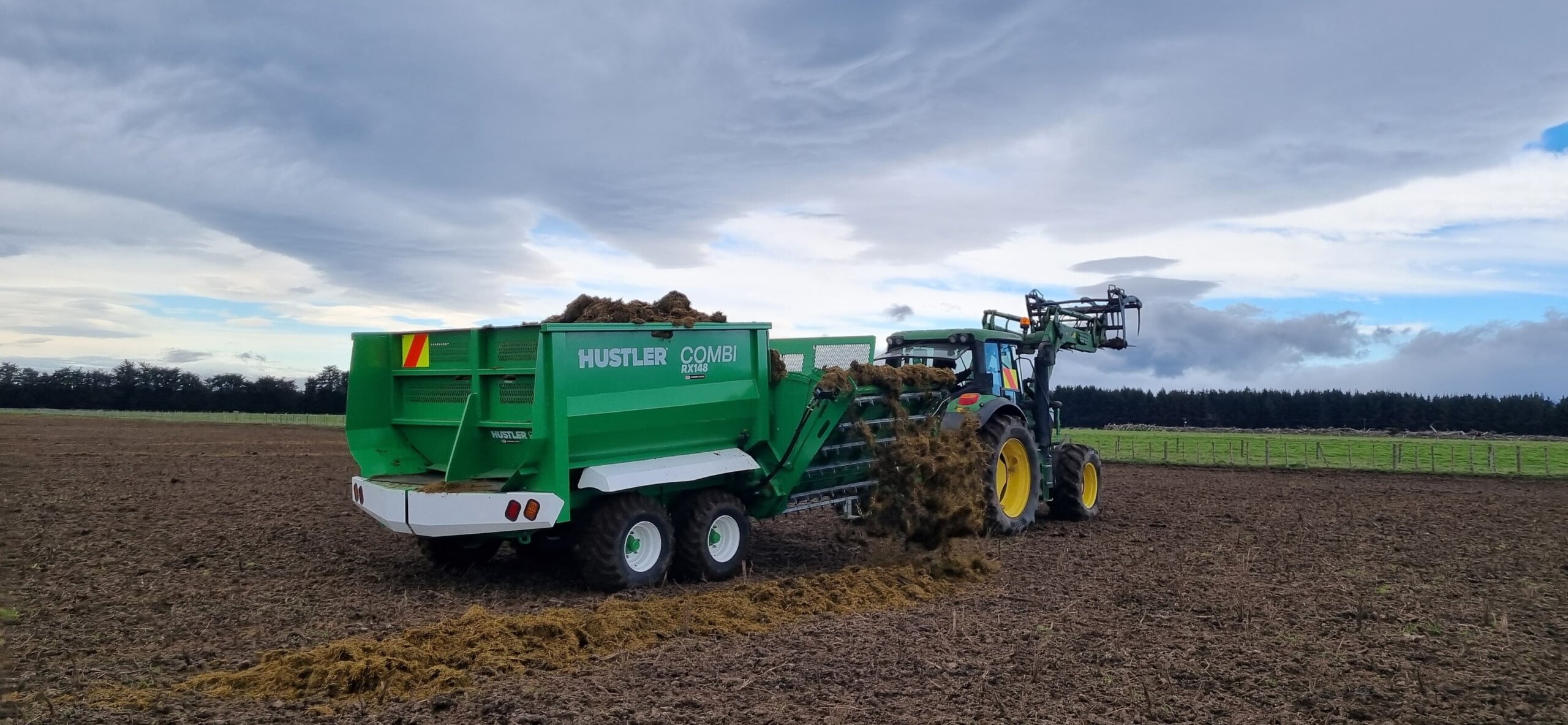

Hustler Combi RX148 feed wagon

2. Chainless Reliability & Simplicity

With its chainless rear floor, greaseless components, and simplified design, the Combi RX² multi-feeder wagon takes the crown as the most reliable option on the market!

Featuring 100% hydraulic drive (no PTO), self-aligning bearings for durability, a single elevator ram, protected motor drives hydraulic and electric components, the Combi RX² range is engineered to significantly reduce operating and maintenance costs. Plus, with the added convenience of central greasing as a standard feature, you’ll spend more time in the field and less time in the workshop.

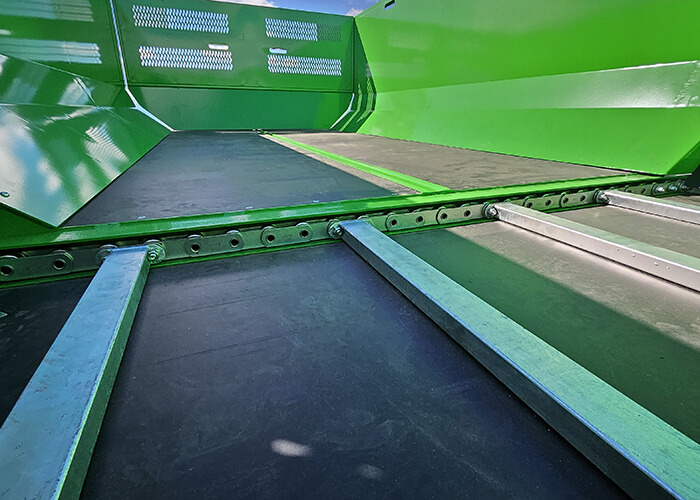

3. Trouble-free Stepless Floor and Load Dividing Design

The Hustler Combi range features a flat floor design that ensures a smooth transition between the unique, 2-speed chainless rear bed floor and cross floor, eliminating any spillage of maize/corn silage between them.

This innovative design prevents downtime caused by root crops bending bars and jamming the rear bed floor. With no staged floors, you’ll enjoy ample ground clearance, making operation in rough terrain a breeze. Take a closer look at the internal bin design, exclusive to the Hustler Combi RX² range, and appreciate its simplicity. The proven dividing system effectively reduces loads and stresses on drives, motors, shafts, and the floor, significantly extending the wagon’s working life.

10Nov2022 John Pethybridge CombiRX148 4

4. Compact Design for Unparalleled Manoeuvrability

The Combi RX² feedout wagon range offers an average 28% increase in load capacity with bales compared to other multi-purpose wagons, making it the most compact and maneuverable option in its class.

With its unique and improved drawbar design, the RX² Range provides industry-leading clearance and enhanced maneuverability. This design minimizes the risk of damage to gate posts or the machine itself, offering operators a hassle-free experience. In fact, the RX148² boasts a remarkable turning circle of 7.8 meters (23 feet), while equivalent-sized wagons require 20.8 meters (65.6 feet)!

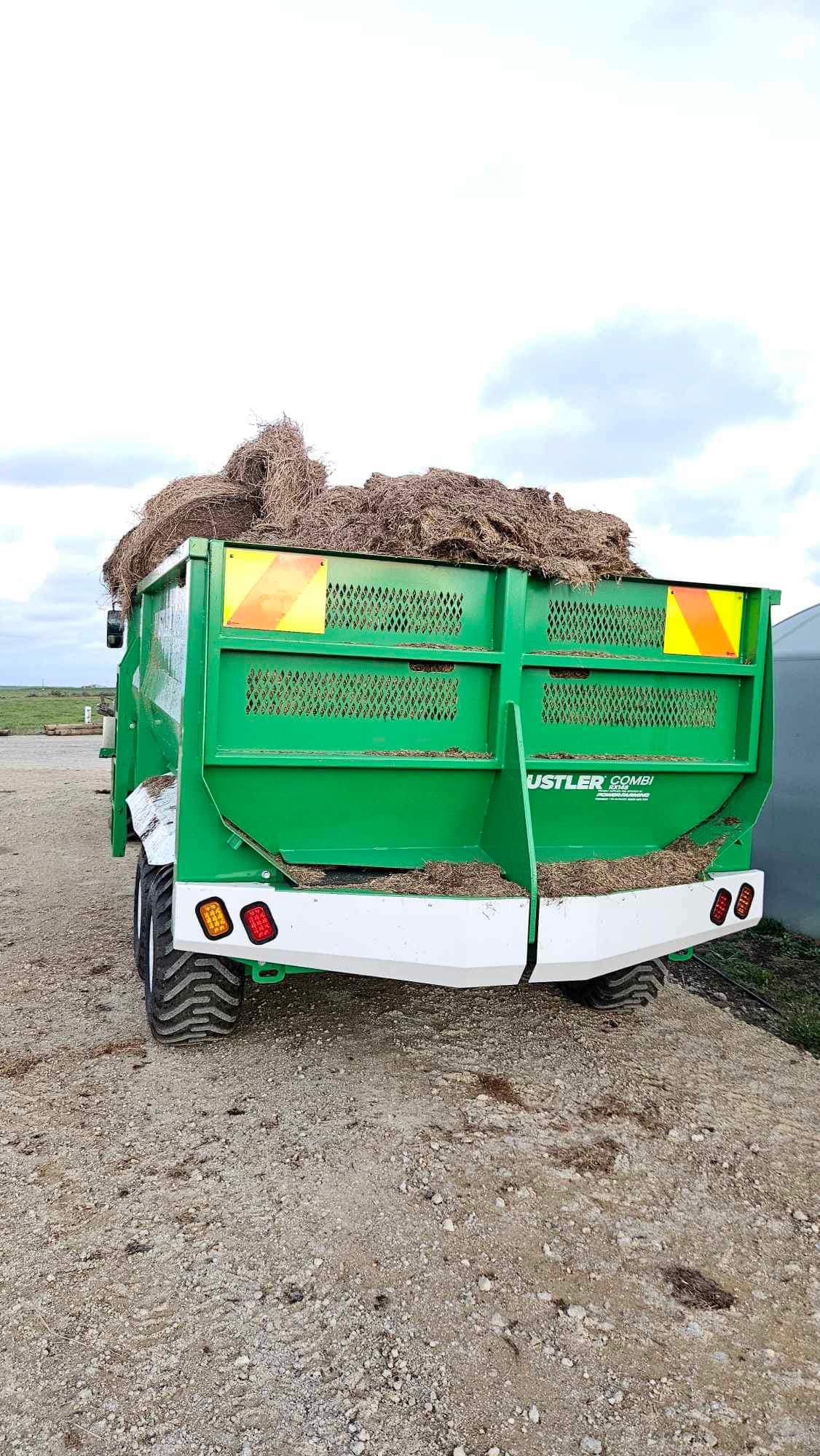

5. Unmatched Visibility

With industry-leading visibility on the load behind, feeding out perfect feed rows has never been easier, putting you in control.

The Hustler Combi RX² range offers see-through visibility on the bin and the elevator thanks to openwork panels. The ability to see the entire load from the comfort of your seat and the addition of new elevator spill panels allows you to see precisely how much feed you carry and how much is coming up the elevator, resulting in improved feed control and operator safety.

See it in Action

The new generation of Combi RX² - What changed?

THE LEGEND REBUILT.

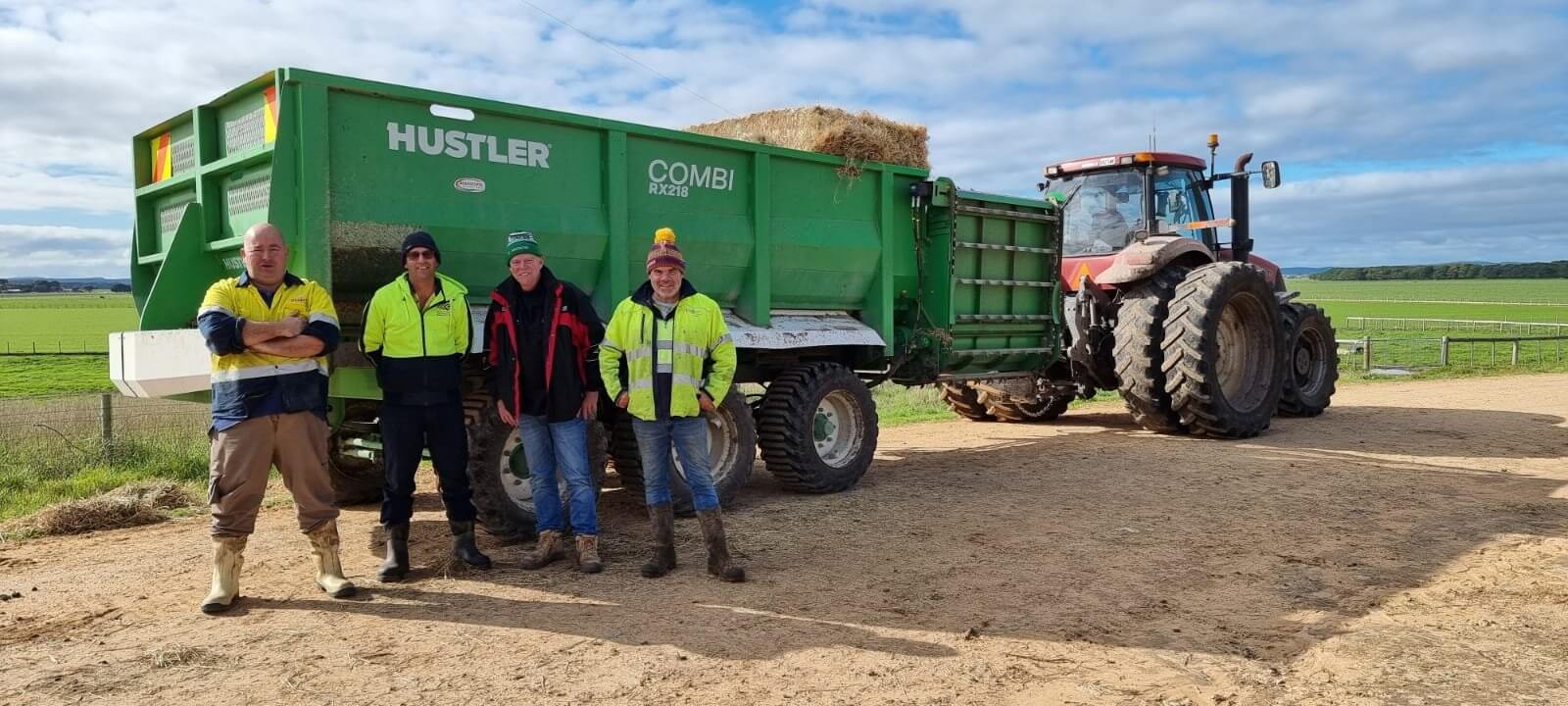

Mark Oliver, Millicent (Australia) – Combi RX218

Justin Lobb, Naracoorte (Australia) – Combi RX218

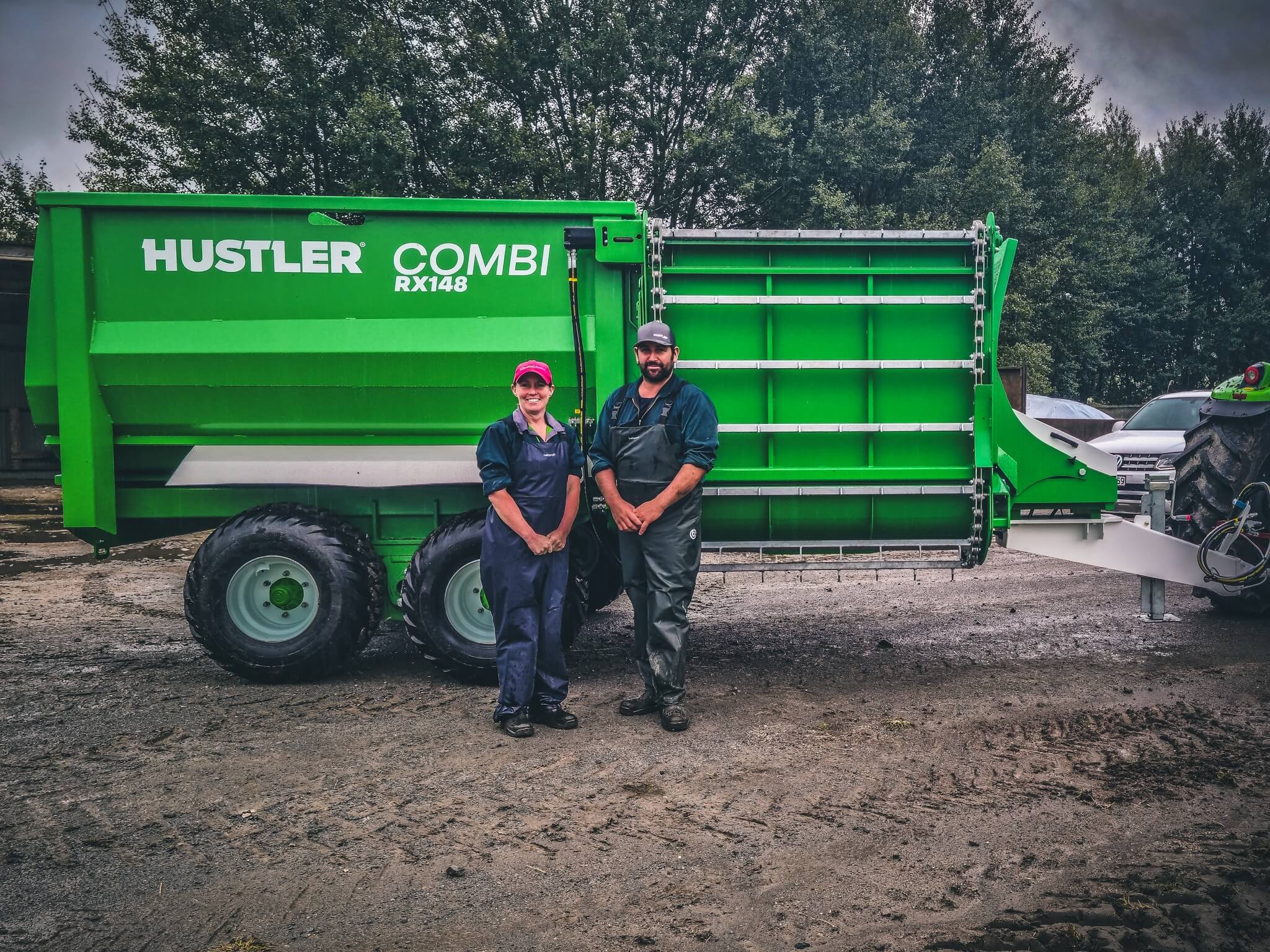

John Pethybridge, Whorouly (Australia) – Combi RX148

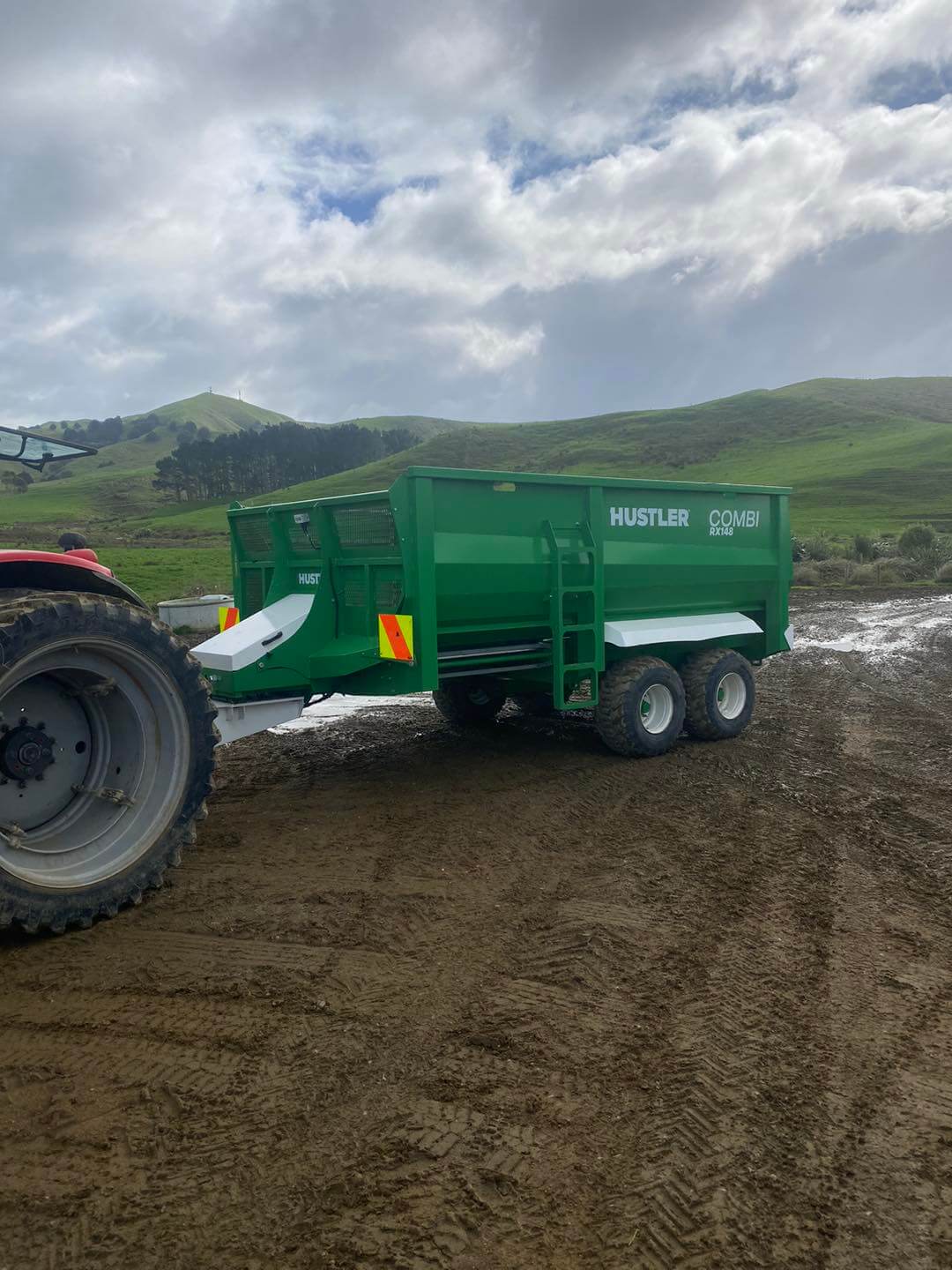

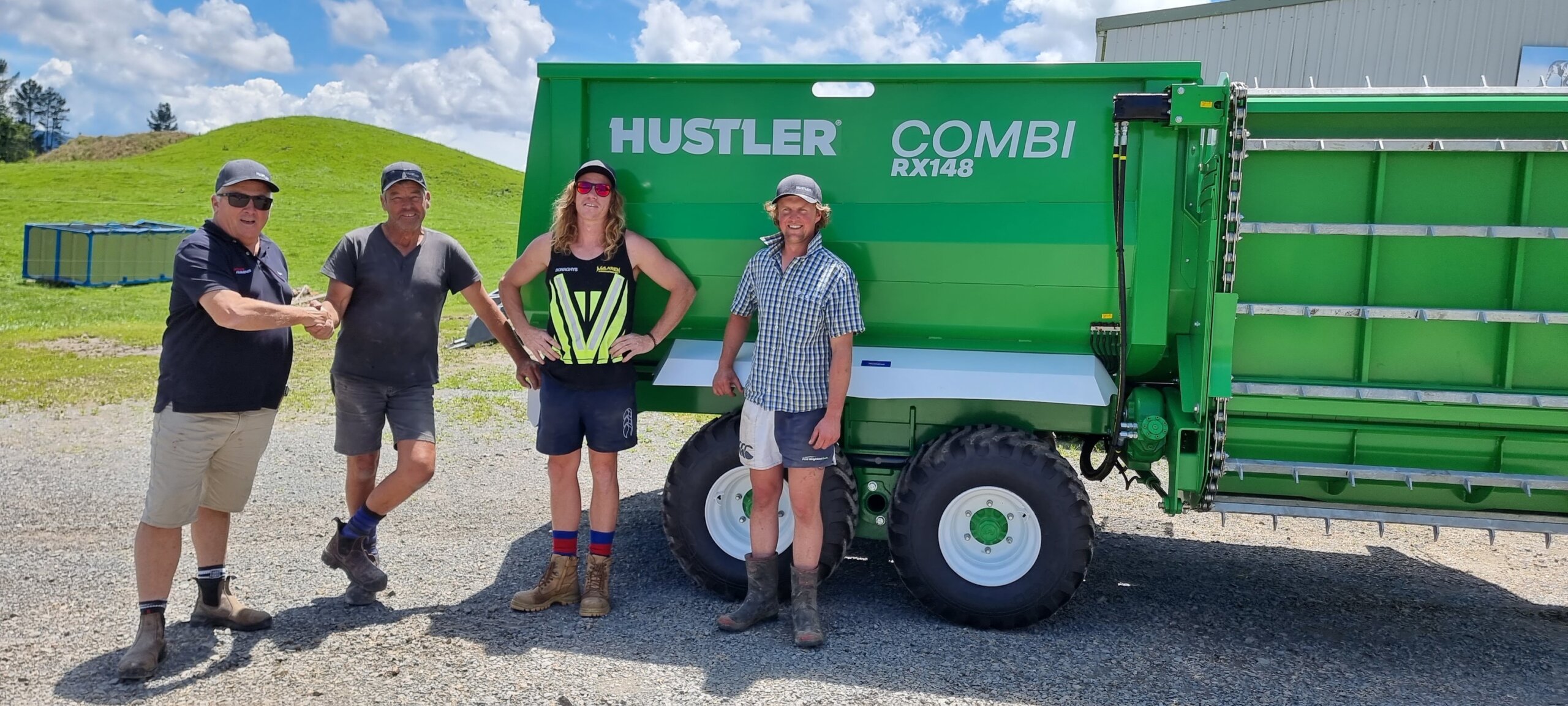

Mark Cleaver, Hawera (New Zealand) – Combi RX148

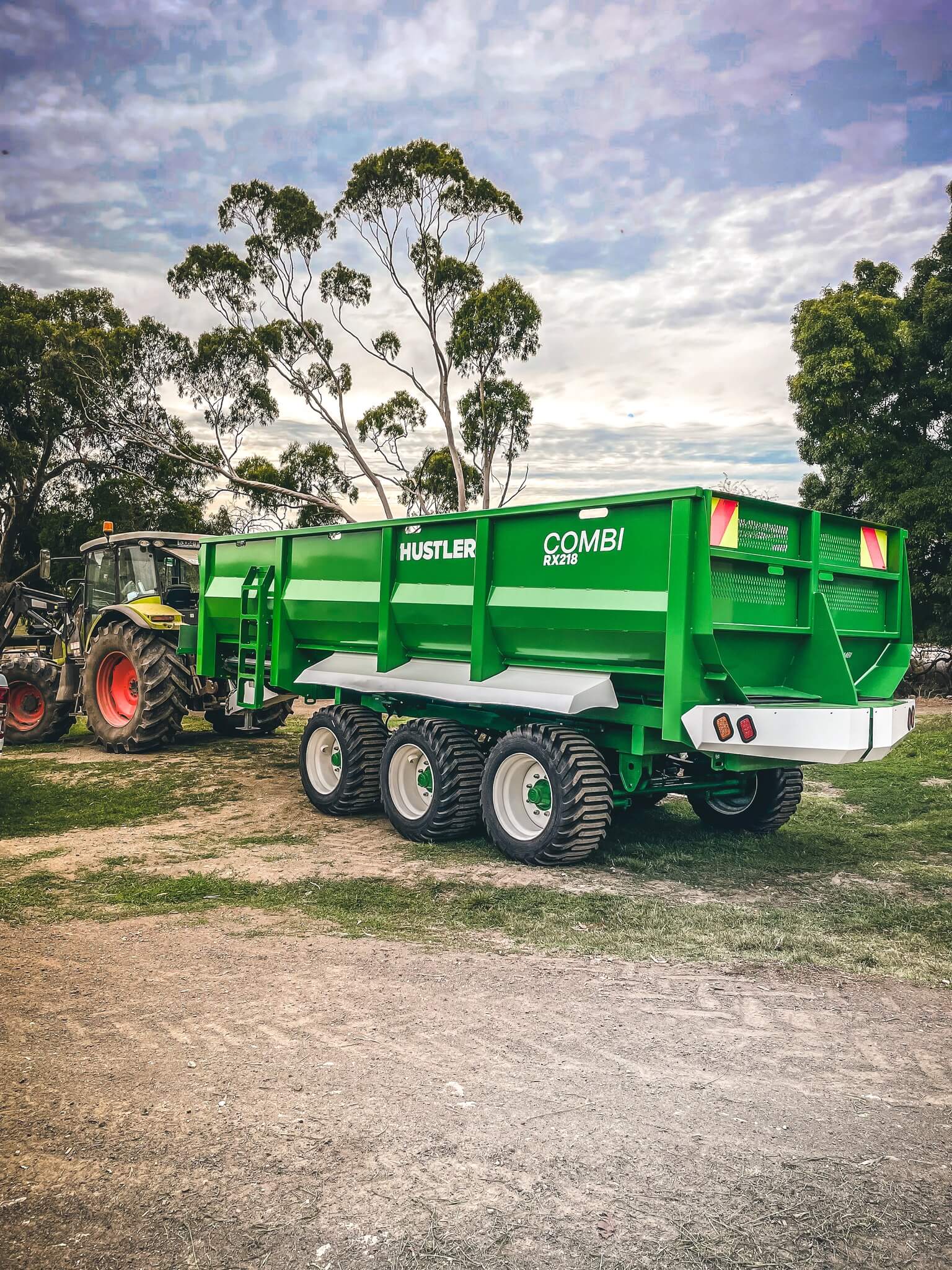

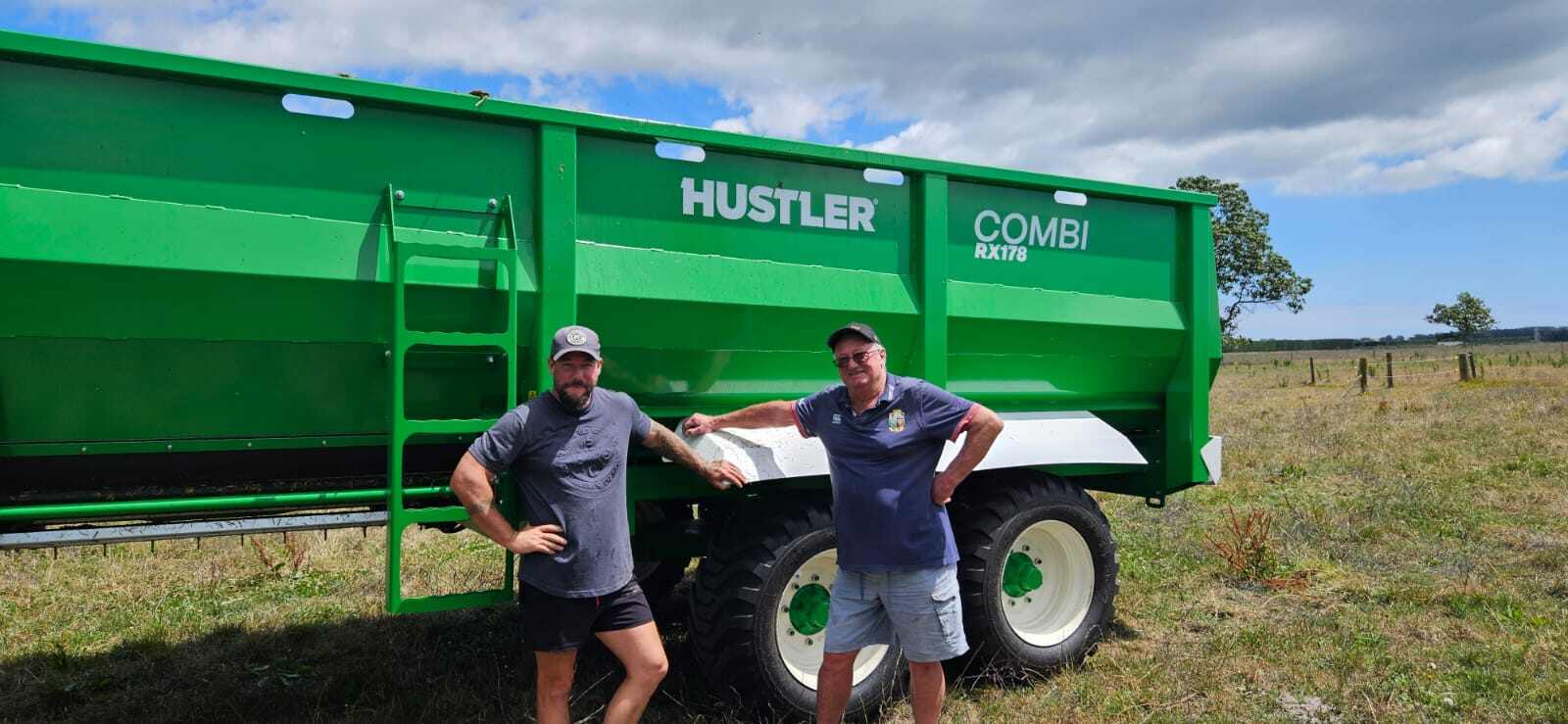

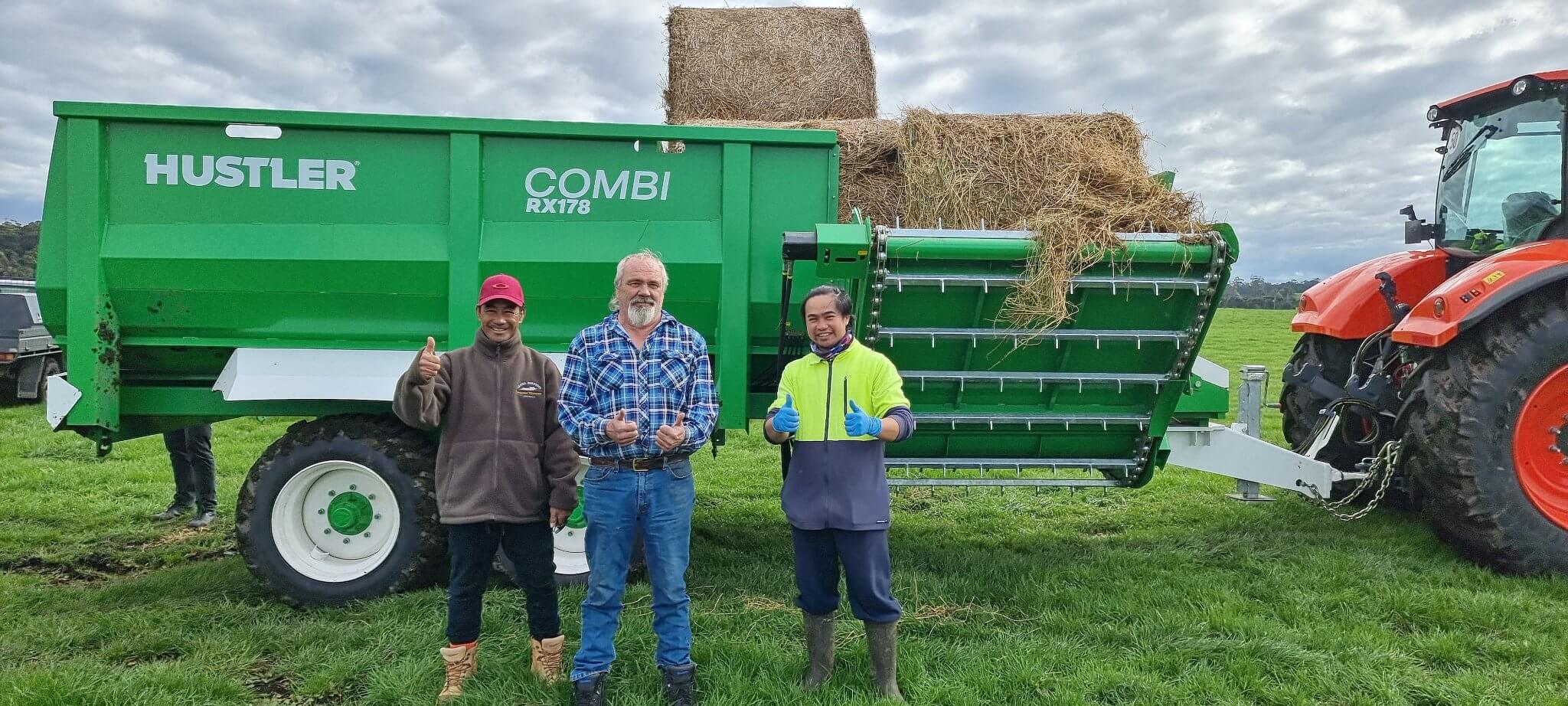

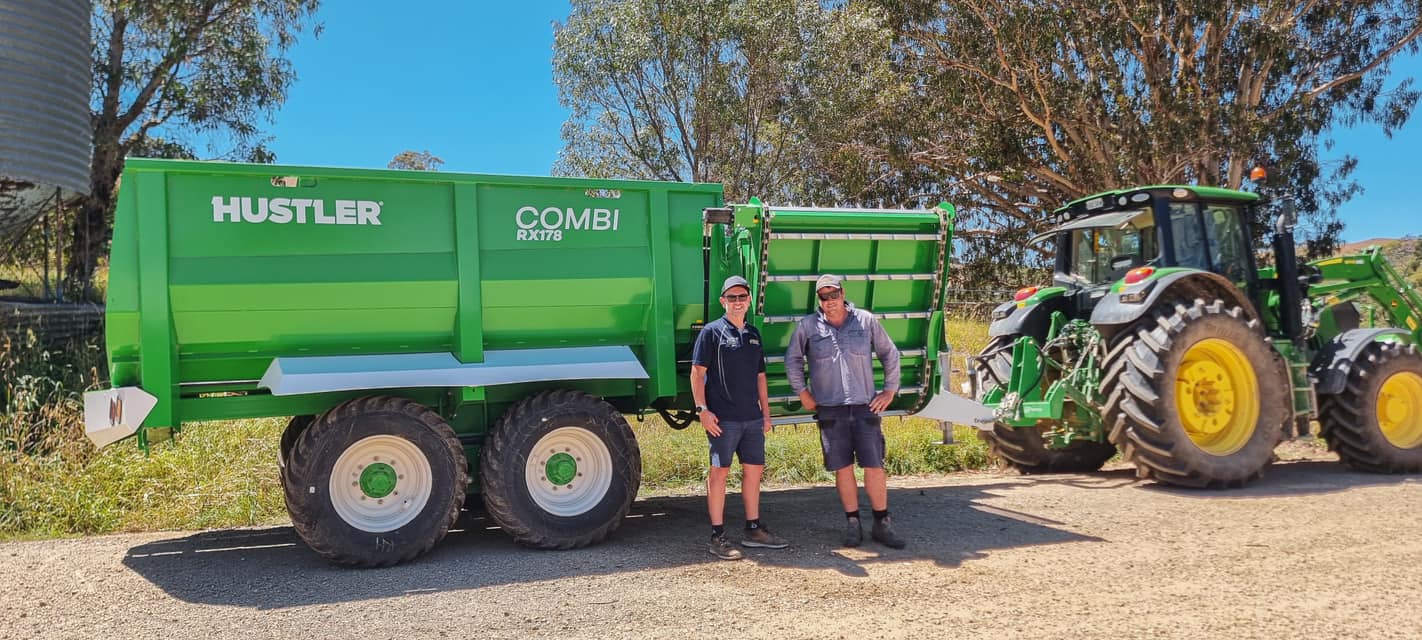

Frank Archer, Tasmania (Australia) – Combi RX178

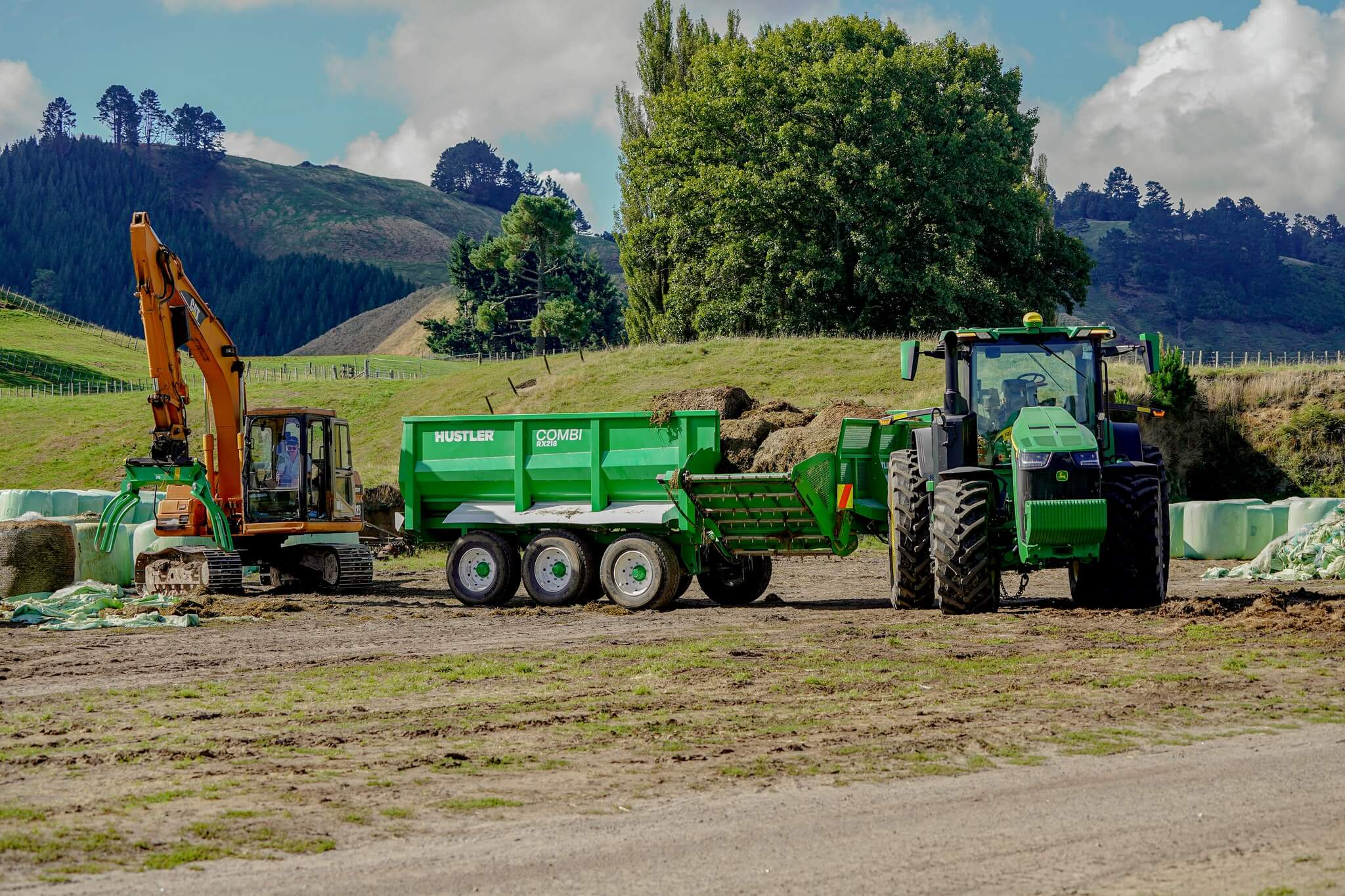

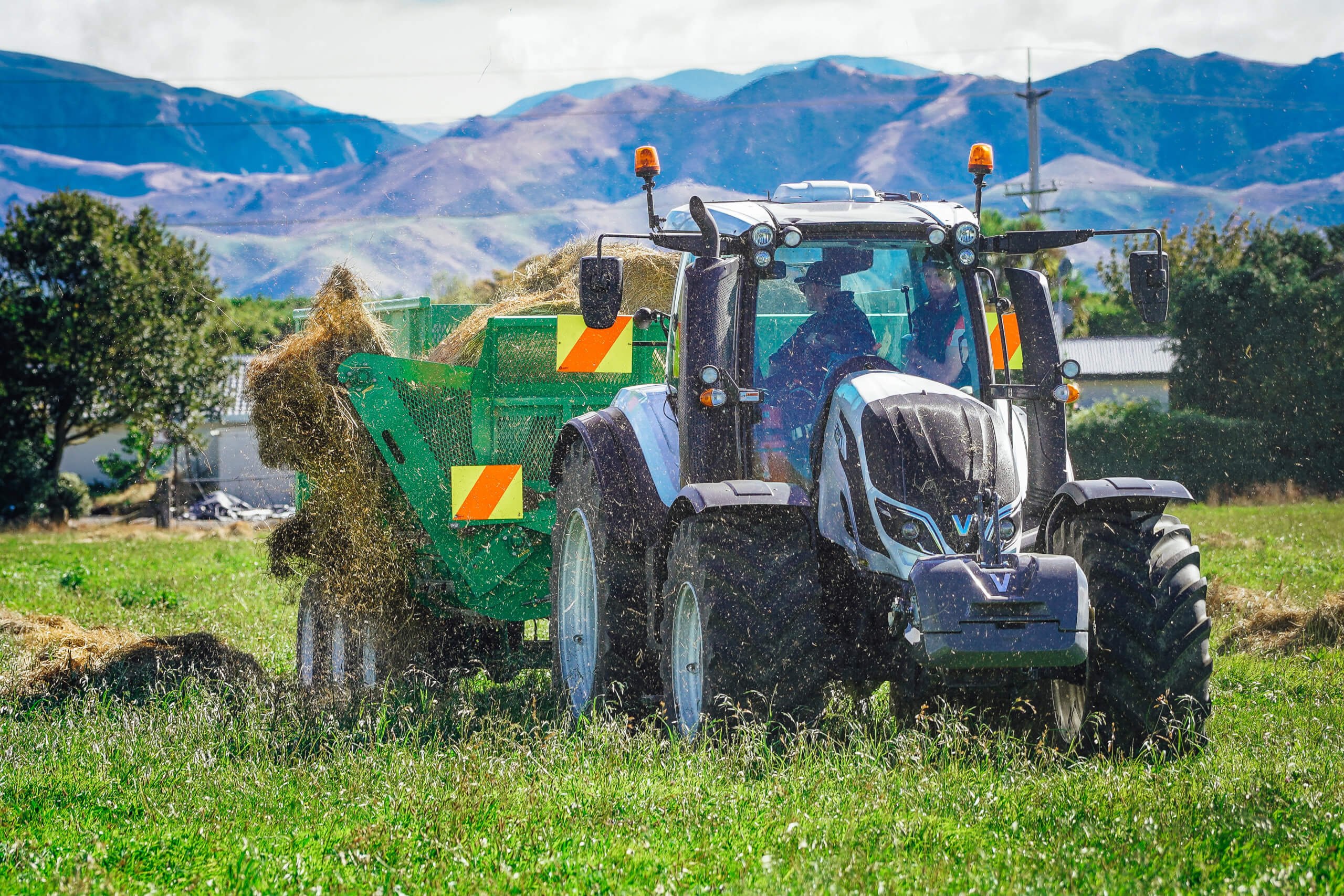

Marcus Deadman, Taupō (New Zealand) – Combi RX218

Ian Cougle, Gippsland, Victoria (Australia) – Combi RX218

Jim Bob Collins, Mitchell Oregon (USA) – Combi RX178

Winter maintenance tips for the Hustler Combi RX range

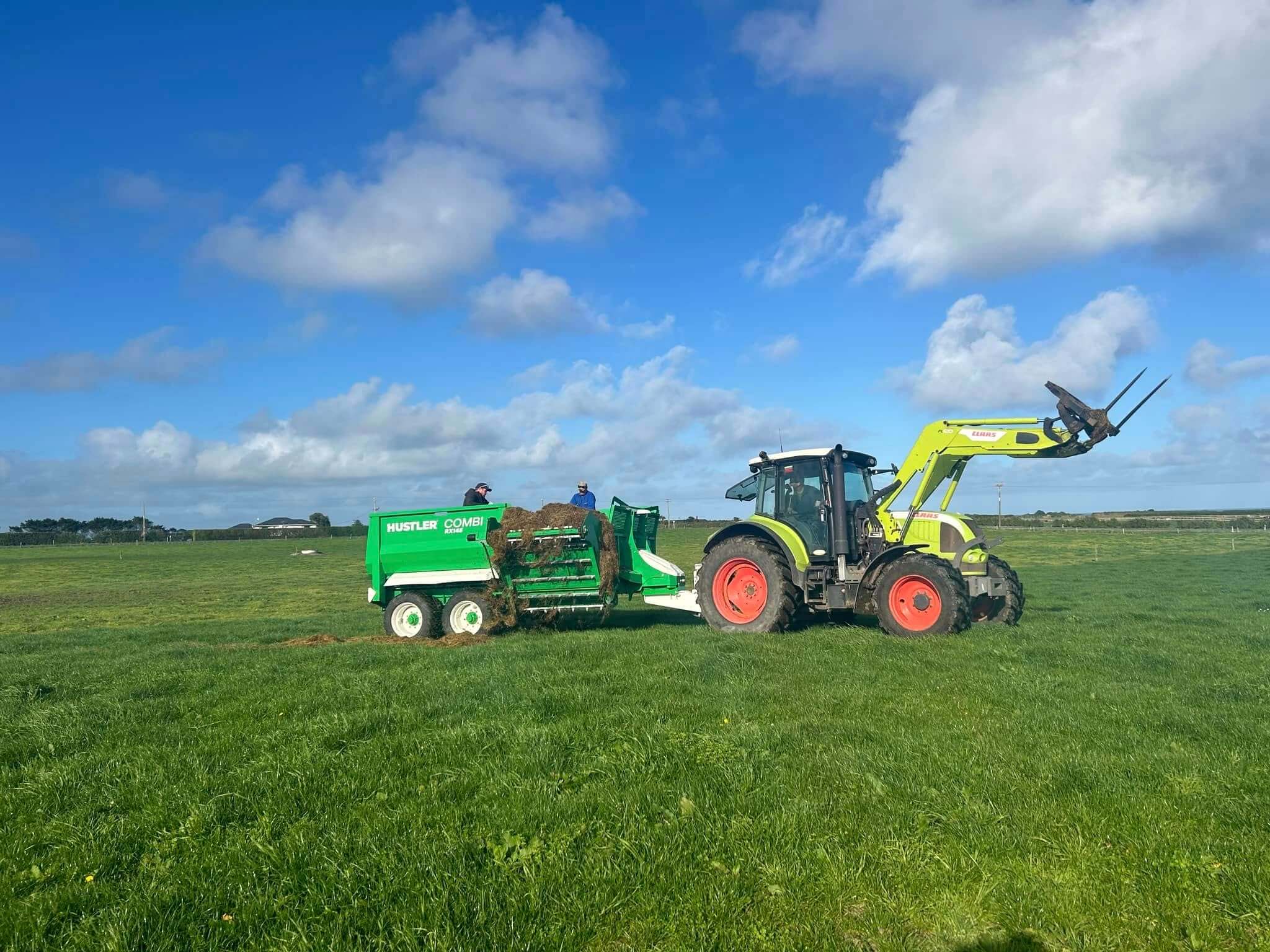

Shane Moxey, Forbes (Australia) – Combi RX148

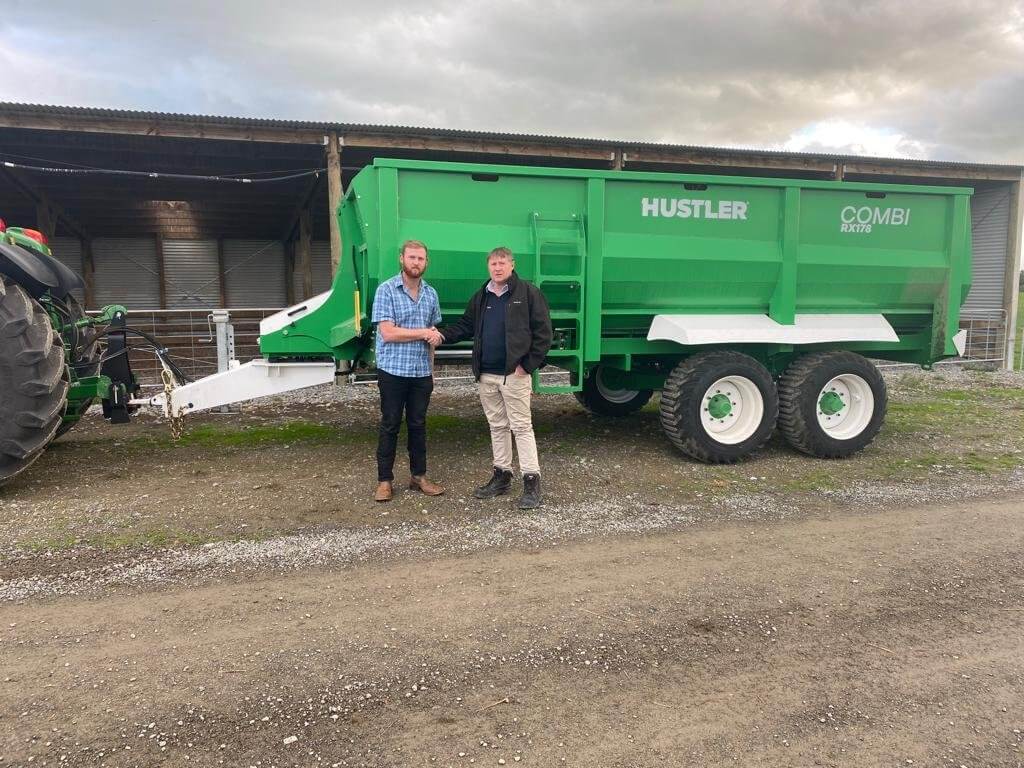

Peter King, Canterbury (New Zealand) – Combi RX178

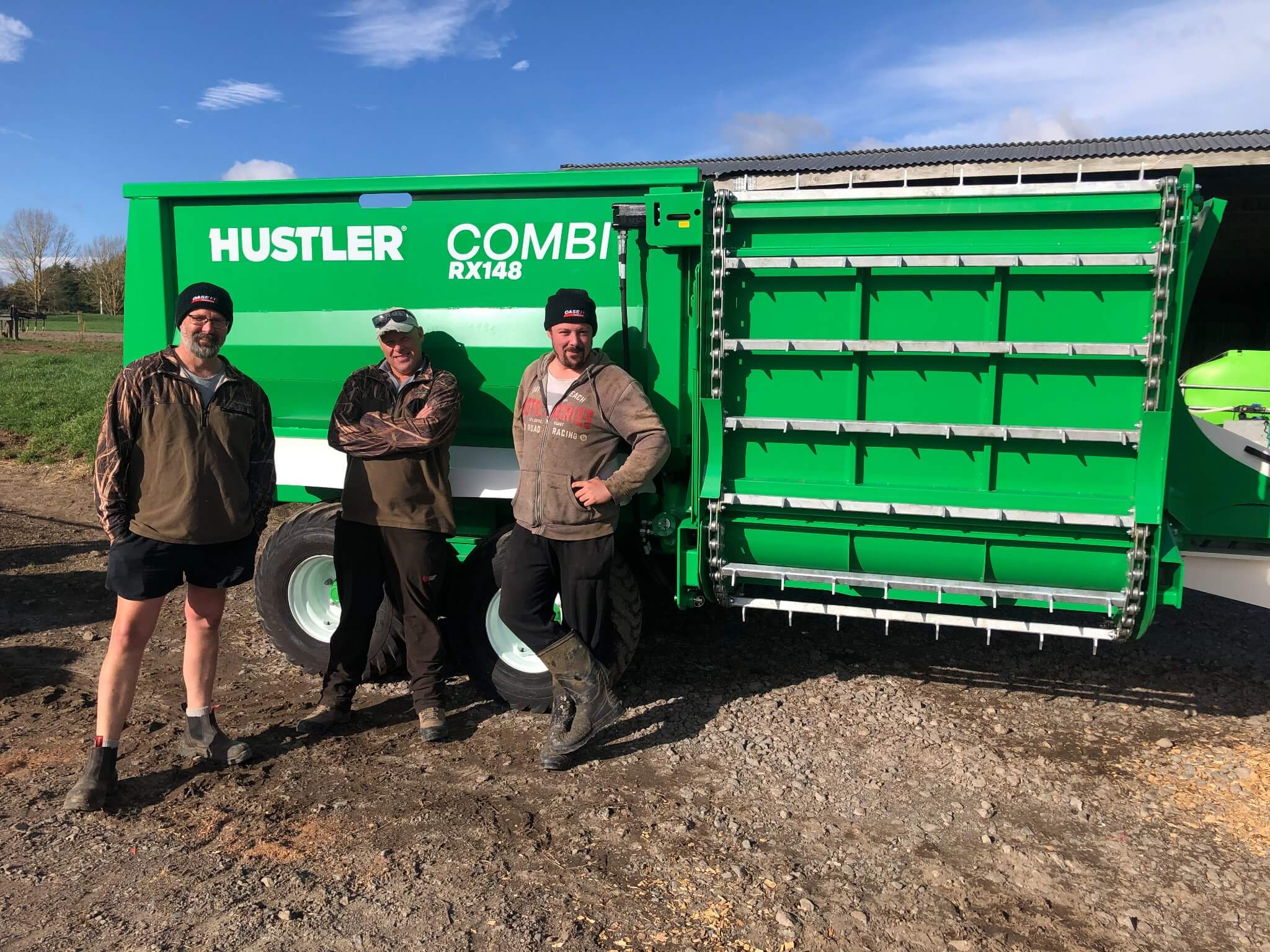

Tony Reynolds, Burnham (New Zealand) – Combi RX148

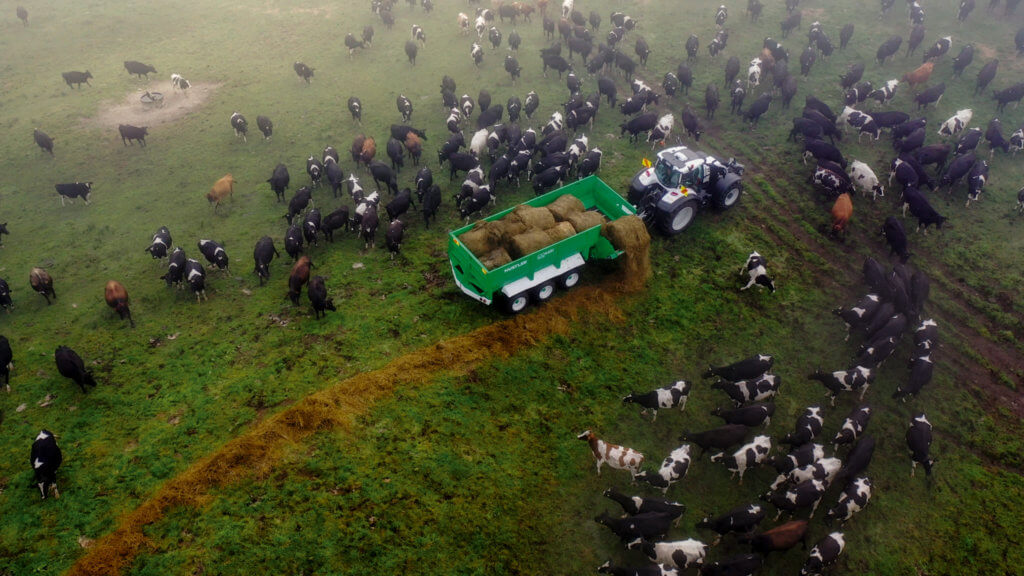

All-new Hustler Combi RX218 set a bale feeding world record!

The key differences between a Hustler Combi multi-feeder and a TMR wagon by Lance Paskewitz

Hustler Combi RX Product

Kent Smith, Missouri (United States), Combi RX148

Hustler Combi RX Product Video

Combi RX178 feat. Feedlink

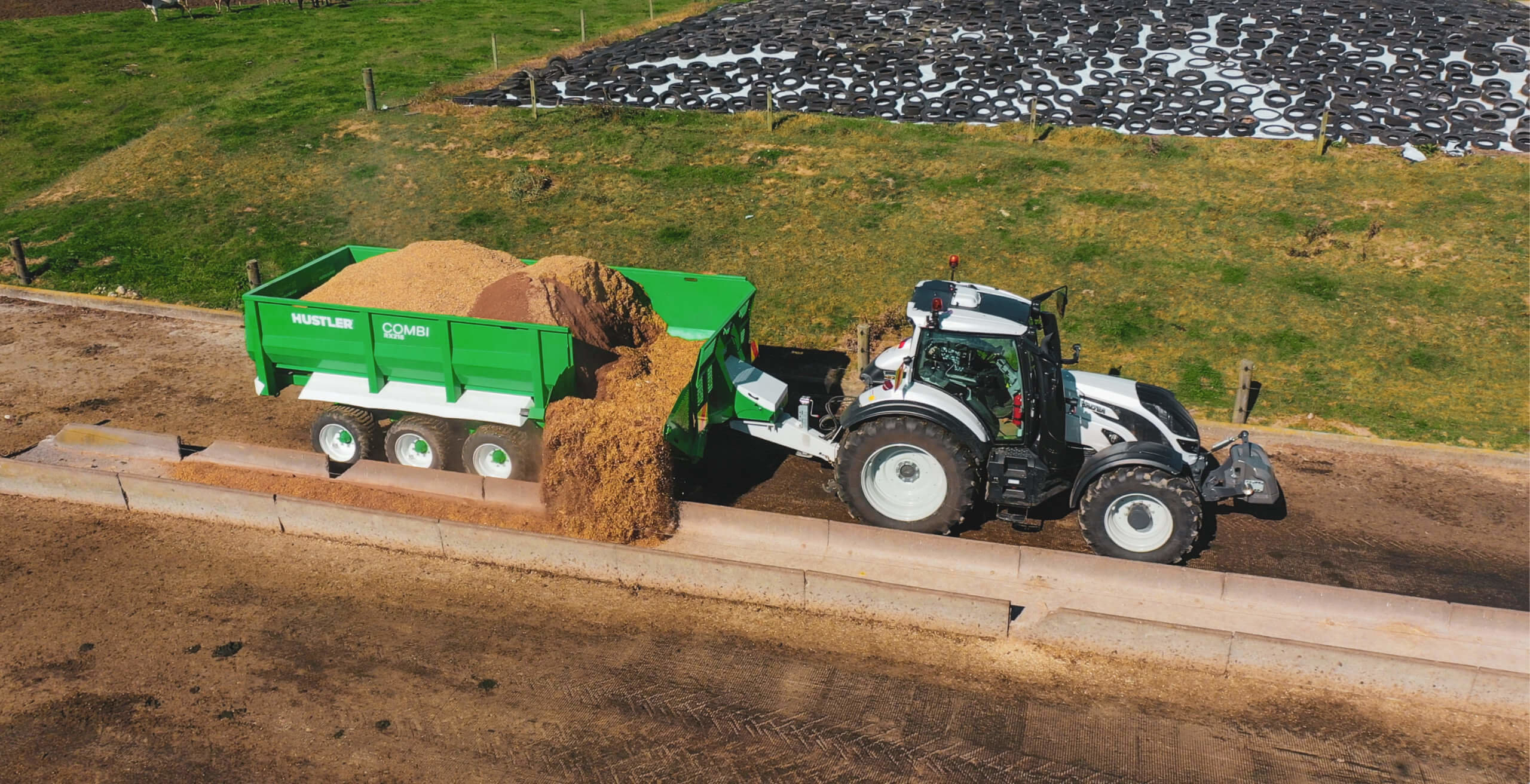

RX Combi Range Mix

Toughest Axles In The Biz

Hustler Live Virtual Demo

Geoff Sutherland, Matamata (New Zealand), Combi RX178

Product Customiser

Select the product, then options, and accessories to create your inquiry.

COMBI RX148²

Includes as standard equipment:

  • Feed Control – with silage & bales mode
  • Access Ladder

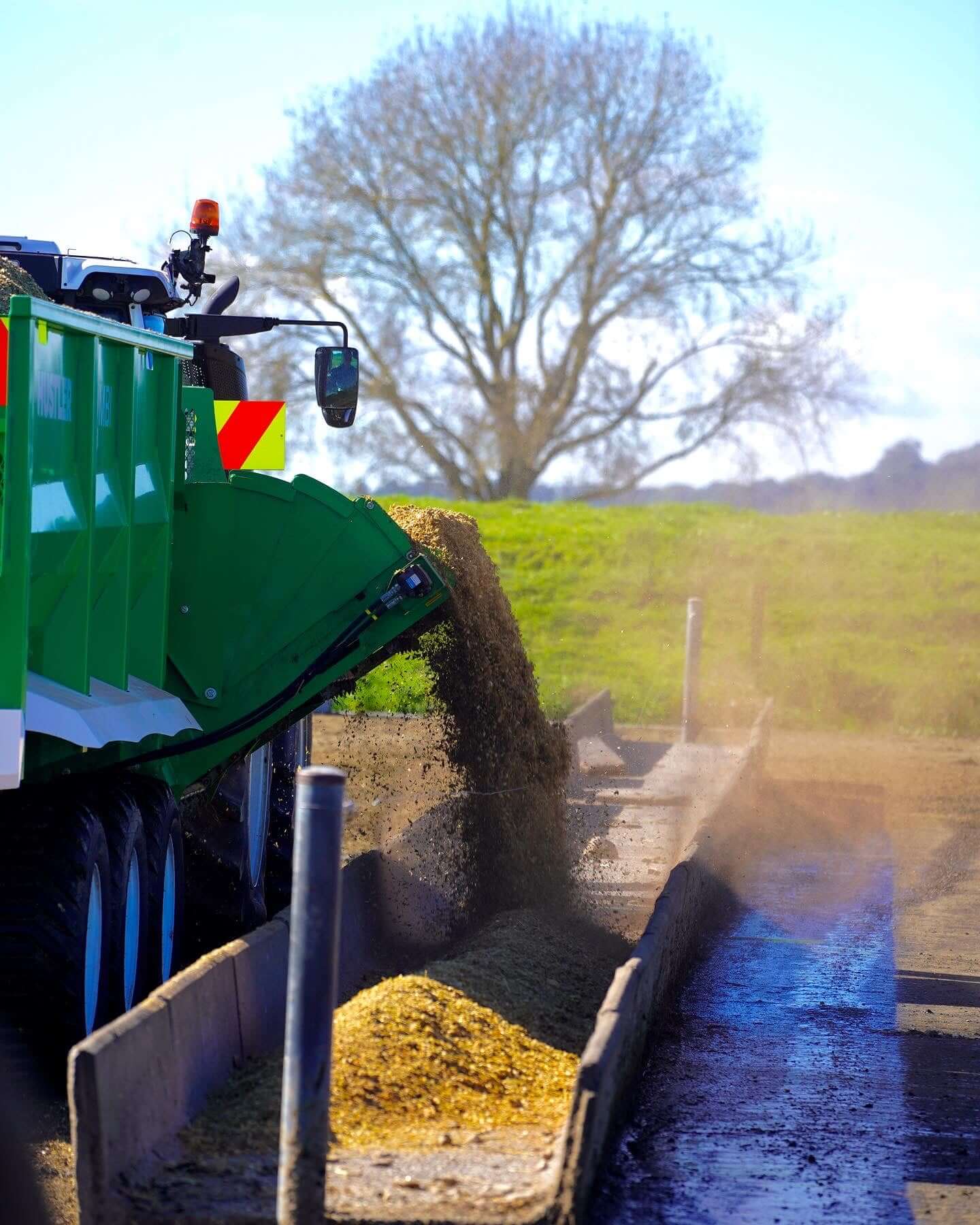

  • Feedpad optimised design
  • Elevator spill retainer panels
  • Scale Ready
  • Central axle greasing

COMBI RX178²

Includes as standard equipment:

  • Feed Control – with silage & bales mode
  • Access Ladder
  • Feedpad optimised design
  • Elevator spill retainer panels
  • Scale Ready
  • Central axle greasing

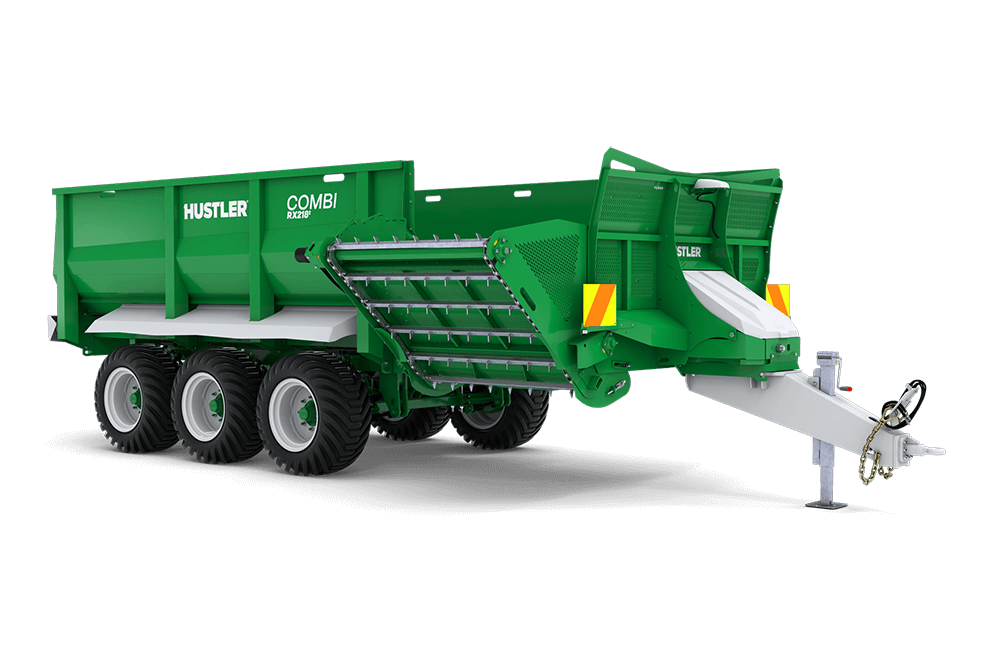

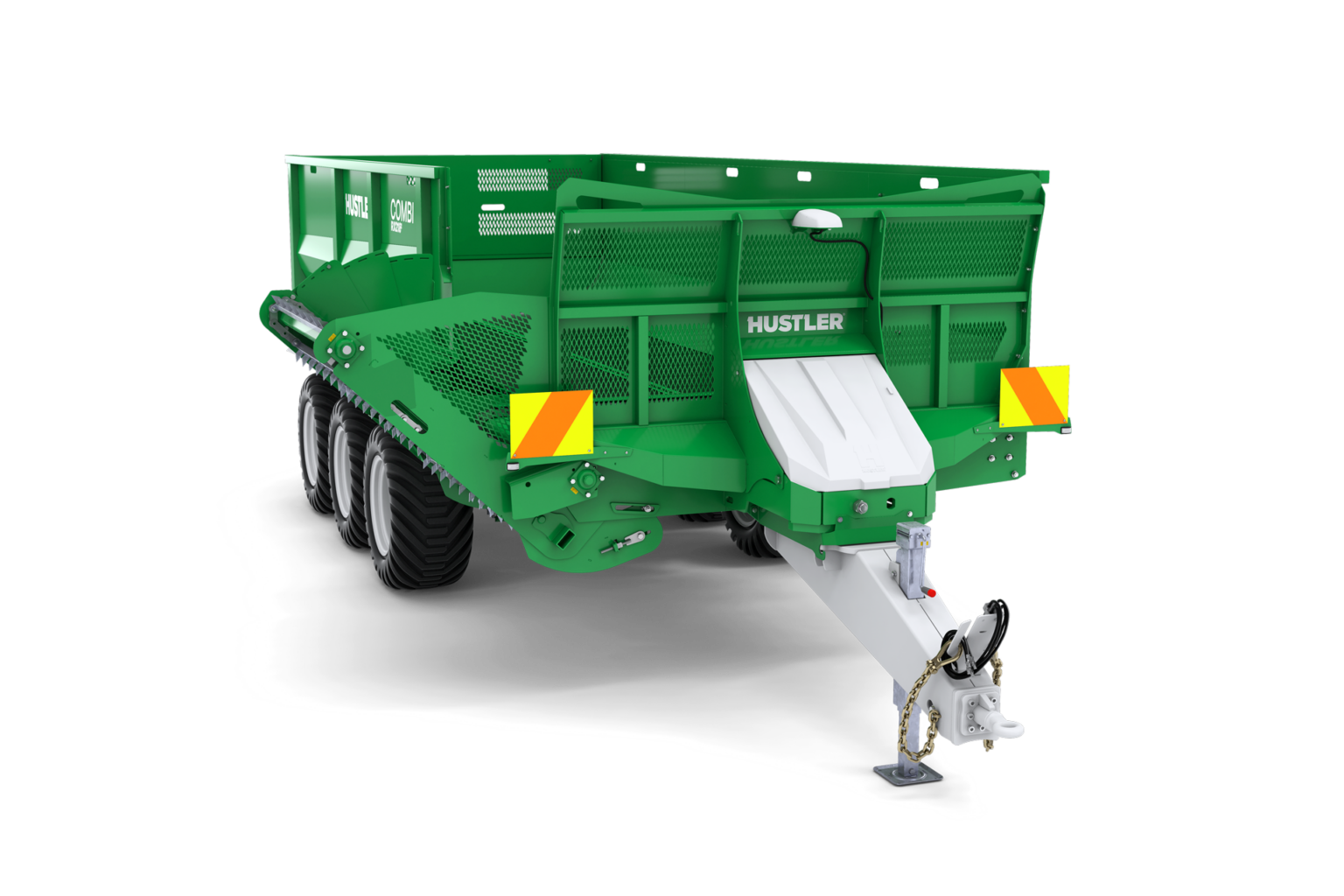

COMBI RX218²

Includes as standard equipment:

  • Feed Control – with silage & bales mode

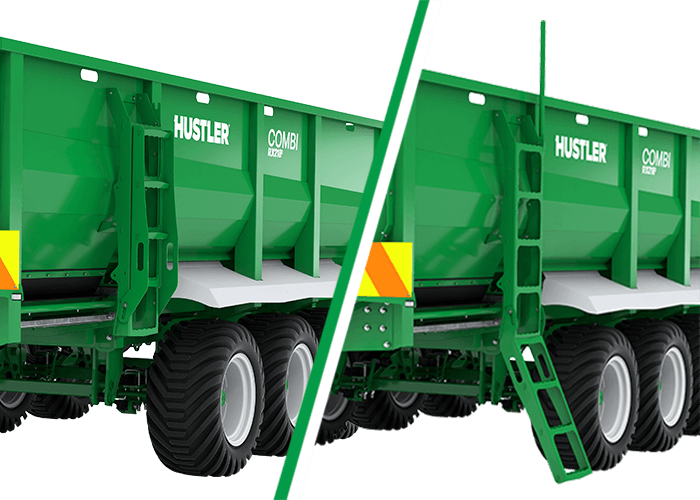

  • Foldable Access Ladder
  • Feedpad optimised design
  • Elevator spill retainer panels
  • Scale Ready
  • Steering axle
Feedlink Wireless Scales & Feed Tracking System

Feedlink Wireless Scales & Feed Tracking System

2 Wheel Hydraulic brakes

2 Wheel Hydraulic brakes

Hydraulically operated on two wheels.

4 Wheel Hydraulic brakes

4 Wheel Hydraulic brakes

Hydraulically activated on four wheels.

Feedlink In-Cab Mounting and Display

Feedlink In-Cab Mounting and Display

FeedLink in-cab mounting and display for wireless scales includes iPad & Ram mounting system

Road Visibility Kit - RX

Road Visibility Kit - RX

Road Visibility Kit – Includes front & rear hazard panels, safety chains & LED road lights

Joystick Controls

Joystick Controls

The original Combi joystick control system for full control over all floors

Basic Load Sense Controls

Basic Load Sense Controls

The entry-level Combi control option (recommended for feeding chopped silage only). Requires 3 sets of hydraulics

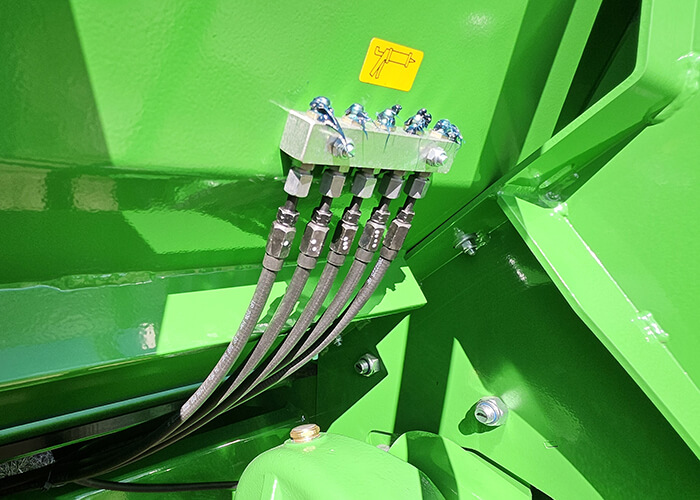

Remote Greasing

Remote Greasing

Heavy Duty Oscillating Tandem Axle

Heavy Duty Oscillating Tandem Axle

Largest pivot surface and maximum oscillation.

Chainless Rear Floor

Chainless Rear Floor

Rear floor is powered by hydraulic cylinders and greaseless slides for low maintenance and longevity.

Feedlink Wireless Scales & Feed Tracking System

Feedlink Wireless Scales & Feed Tracking System

Feedlink In-Cab Mounting and Display

Feedlink In-Cab Mounting and Display

FeedLink in-cab mounting and display for wireless scales includes iPad & Ram mounting system

2 Wheel Hydraulic brakes

2 Wheel Hydraulic brakes

Hydraulically operated on two wheels.

4 Wheel Hydraulic brakes

4 Wheel Hydraulic brakes

Hydraulically activated on four wheels.

Road Visibility Kit - RX

Road Visibility Kit - RX

Road Visibility Kit – Includes front & rear hazard panels, safety chains & LED road lights

Joystick Controls

Joystick Controls

The original Combi joystick control system for full control over all floors

Basic Load Sense Controls

Basic Load Sense Controls

The entry-level Combi control option (recommended for feeding chopped silage only). Requires 3 sets of hydraulics

Remote Greasing

Remote Greasing

Heavy Duty Oscillating Tandem Axle

Heavy Duty Oscillating Tandem Axle

Largest pivot surface and maximum oscillation.

Chainless Rear Floor

Chainless Rear Floor

Rear floor is powered by hydraulic cylinders and greaseless slides for low maintenance and longevity.

Feedlink Wireless Scales & Feed Tracking System

Feedlink Wireless Scales & Feed Tracking System

Feedlink In-Cab Mounting and Display

Feedlink In-Cab Mounting and Display

FeedLink in-cab mounting and display for wireless scales includes iPad & Ram mounting system

4 Wheel Hydraulic brakes

4 Wheel Hydraulic brakes

Hydraulically activated on four wheels.

6 Wheel Hydraulic brakes

6 Wheel Hydraulic brakes

Hydraulically activated on six wheels.

Road Visibility Kit - RX

Road Visibility Kit - RX

Road Visibility Kit – Includes front & rear hazard panels, safety chains & LED road lights

Joystick Controls

Joystick Controls

The original Combi joystick control system for full control over all floors

Specifications

Round Bales (single layer): 3-6
Medium Squares: 6-8
Large Squares (8ft long): 6-8
Loose Silage (load-level): 14 mÂł | 495 ftÂł
Loose Silage (heaped load): 16.5 mÂł | 582 ftÂł
Maximum Load: 10,000 kg | 22,046 lb
Overall Width: 3015 mm | 118.7 in
Overall Length: 6920 mm | 272.4 in
Overall Height/Loading Height: 2432 mm | 95.7 in
Tare weight: 4200 kg | 9259 lb
Standard Tyres: 400 / 60 x 15.5 Flotation Grip Tread
Axle: Tandem Walking Beam
Brakes: Optional 2 or 4 Wheel Braking
Weigh Scales: Optional Feedlink weighing and feed management system
Floors (Bed Floor / Cross Floor): 15 mm (0.6 in) HD Puck Board
Chains (Bed / X floor / Elevator): Chainless / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains
Feed bars (Bed / X Floor / Elevator): Single Hydraulic Rams / 65 x 35 RHS / 40 x 40 RHS
Joystick: In-cab Electric Control w/ Bales and Silage Mode
Hydraulics required: 2 x double-acting
Hydraulic Flow: 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum)
Hydraulic Pressure: 2050-2500 psi | 140-170 bar
Elevator width: 1645 mm | 64.7 in wide chain/slat
Jack: 80 mm | 3.1 in 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand
Towing Eye: 50 mm | 2 in swiveling forged eye
Round Bales (single layer): 3-8
Medium Square Bales: 8-10
Large Square Bales (8ft long): 8-10
Loose Silage (Load Level): 17 mÂł | 600 ftÂł
Loose Silage (Heaped Load): 20.5 mÂł | 724 ftÂł
Maximum Load: 14,000 kg | 30,865 lb
Overall Width: 3015 mm | 118.7 in
Overall Length: 7898 mm | 311 in
Overall Height/Loading Height: 2496 mm | 98.3 in
Tare weight: 4900 kg | 10803 lb
Standard Tyres: 500/50 x 22.5 Flotation Grip Tread
Axle: Tandem Walking Beam
Brakes: Optional 2 or 4 Wheel Braking
Weigh Scales: Optional Feedlink weighing and feed management system
Floors (Bed Floor / Cross Floor): 15 mm (0.6 in) HD Puck Board
Chains (Bed / X floor / Elevator): Chainless / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains
Feed bars (Bed / X Floor / Elevator): Twin Hydraulic Rams / 65 x 35 RHS / 40 x 40 RHS
Joystick: In-cab Electric Control w/ Bales and Silage Mode
Hydraulics Required: 2 x double-acting
Hydraulic Flow: 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum)
Hydraulic Pressure: 2050-2500 psi | 140-170 bar
Elevator: 1645 mm | 64.7 in wide chain/slat
Jack: 80 mm | 3.1 in 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand
Towing Eye: 50 mm | 2 in swiveling forged eye
Round Bales (single layer): 4-10
Medium Square Bales: 10-14
Large Square Bales (8ft long): 10-14
Loose Silage (Load Level): 21.4 mÂł | 755 ftÂł
Loose Silage (Heaped Load): 26 mÂł | 918 ftÂł
Maximum Load: 17,000 kg | 37,478 lb
Overall Width: 3015 mm | 118.7 in
Overall Length: 9399 mm | 307 in
Overall Height/Loading Height: 2609 mm | 102.7 in
Tare weight: 6980 kg | 15388 lb
Standard Tyres: 500/50 x 22.5 Flotation Grip Tread
Axle: Tridem Steering Suspension Axle
Brakes: Optional 6 Wheel Braking
Weigh Scales: Optional Feedlink weighing and feed management system
Floors (Bed Floor / Cross Floor): 15 mm (0.6 in) HD Puck Board
Chains (Bed / X floor / Elevator): Chainless / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains
Feed bars (Bed / X Floor / Elevator): Twin Hydraulic Rams / 65 x 35 RHS / 40 x 40 RHS
Joystick: In-cab Electric Control w/ Bales and Silage Mode
Hydraulics Required: 3 x double-acting
Hydraulic Flow: 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum)
Hydraulic Pressure: 2050-2500 psi | 140-170 bar
Elevator width: 1645 mm | 64.7 in wide chain/slat
Jack: 80 mm | 3.1 in 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand
Towing Eye: 50 mm | 2 in swiveling forged eye

Key Features

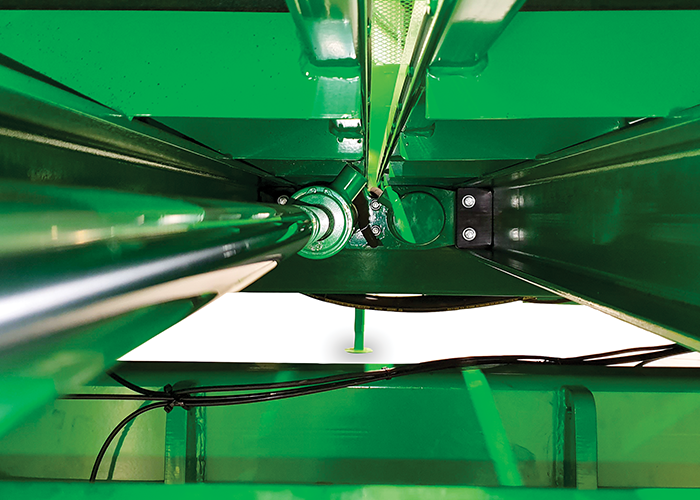

Twin-speed chainless rear floor

Bid farewell to chains with the rear floor of the Combi RX² multi-feeder range! Our innovative design features a twin-speed rear pusher blade using hydraulic cylinders and greaseless slides with up to 5 times longer replacement life (if you ever get to replace them!) ensuring smooth operation, minimal maintenance and extended service life. The Combi RX² also includes a redesigned pusher blade for increased strength, simplicity and reduced weight.

Twin speed chainless rear floor 700 500

Internally ported rams

Internally ported rams eliminate hose failures and downtime, showcasing another clever innovation from Hustler. The Combi RX² multi-feeder range features larger pushing rams to provide up to 34% greater pushing power. Massive sticky, dense, wet loads are a breeze.

Internally ported rams eliminate hose failures 700 500

Fingertip control over the entire operation

The standard Feed Control™ in-cab electric joystick provides precise control over all feeder functions, allowing for easy management of various feed types and densities. Automated and manual control over each floor with a silage and bale feeding modes are readily switchable for optimal efficiency.

Hustler Combi Feed control 700 500

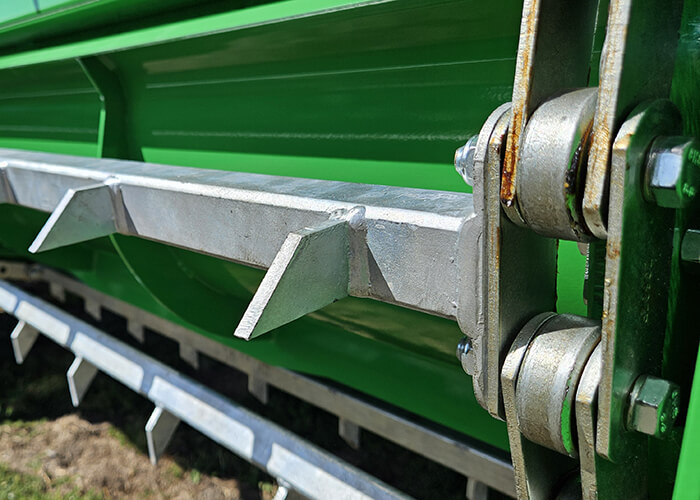

Toughest chains, drives and feedbars yet

Featuring high-tensile Bisalloy® sprockets, robust zinc-plated 24,000lb combined-strength roller chains, and larger 47.5 mm (1.87 in) diameter rollers and pins, the Combi RX² handles demanding loads effortlessly. The new chain guides on the cross floor ensure straighter tracking with no derailing, while larger RHS feed bars offer optimal strength.

tough bars and chains 700x500

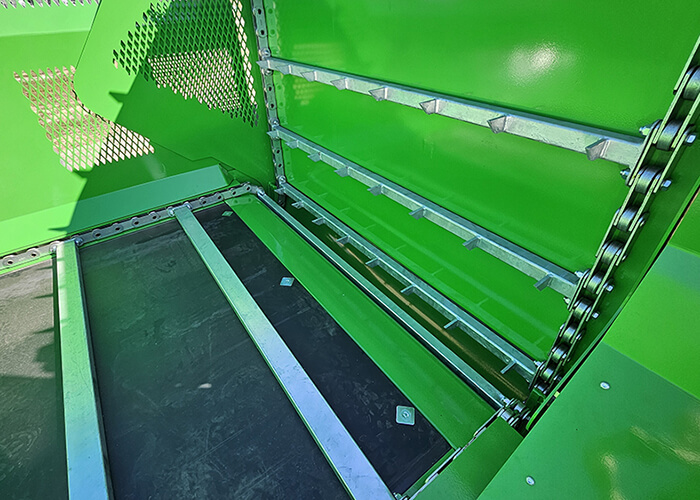

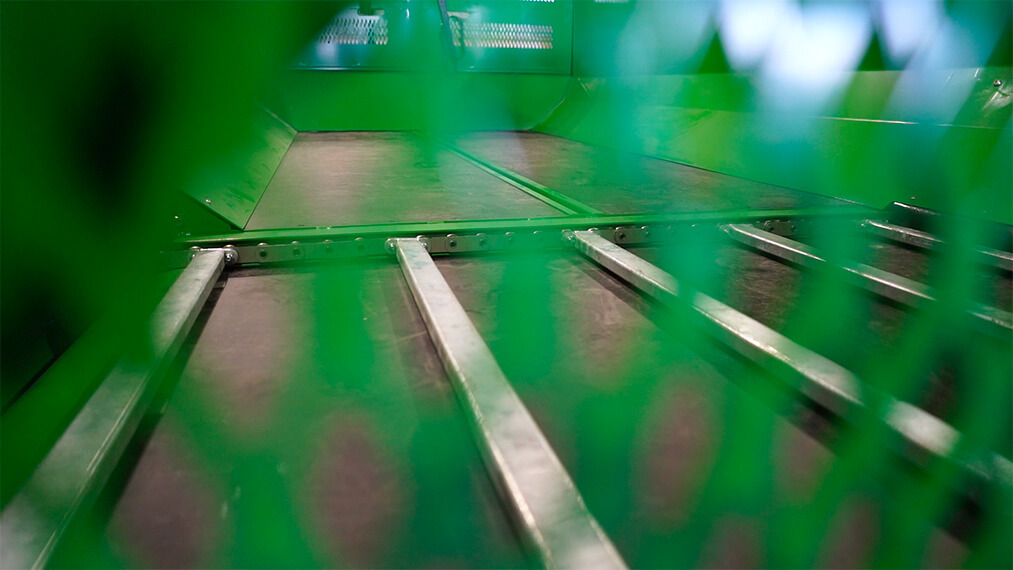

Impact-resistant and low-friction floors

The heavy-duty 15-mm (.59-in) thick puckboard floors of the Combi RX² endure heavy loads with ease while providing a smooth surface for efficient feed flow. Compared to wood or steel, they offer reduced friction, cutting power requirements for smoother feed movement. The new wider cross floor design reduces crushing and jamming, with a steeper left-hand side to minimise operator errors.

PuckBoard Combiwagon

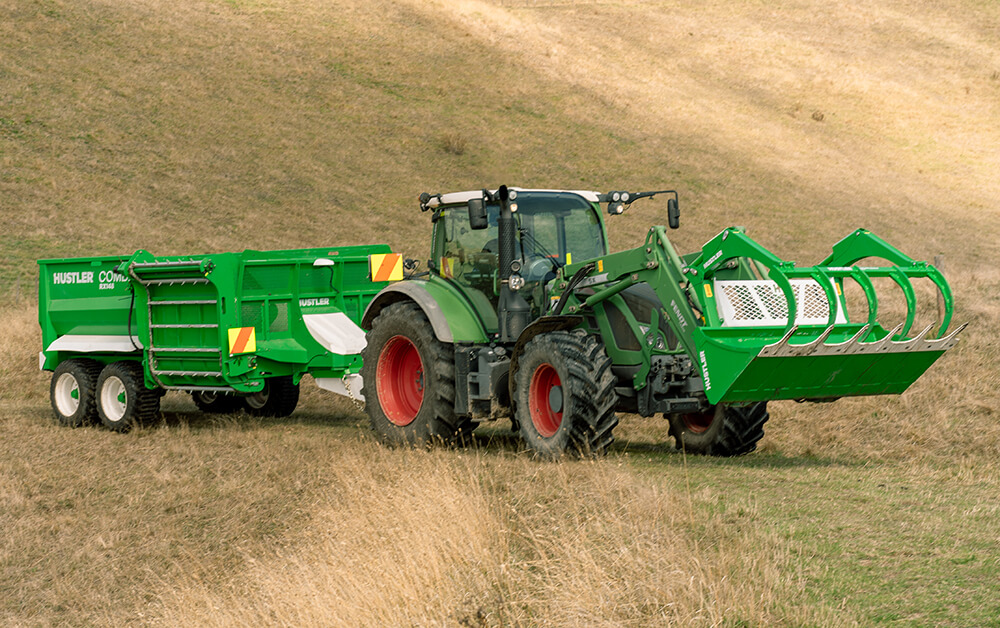

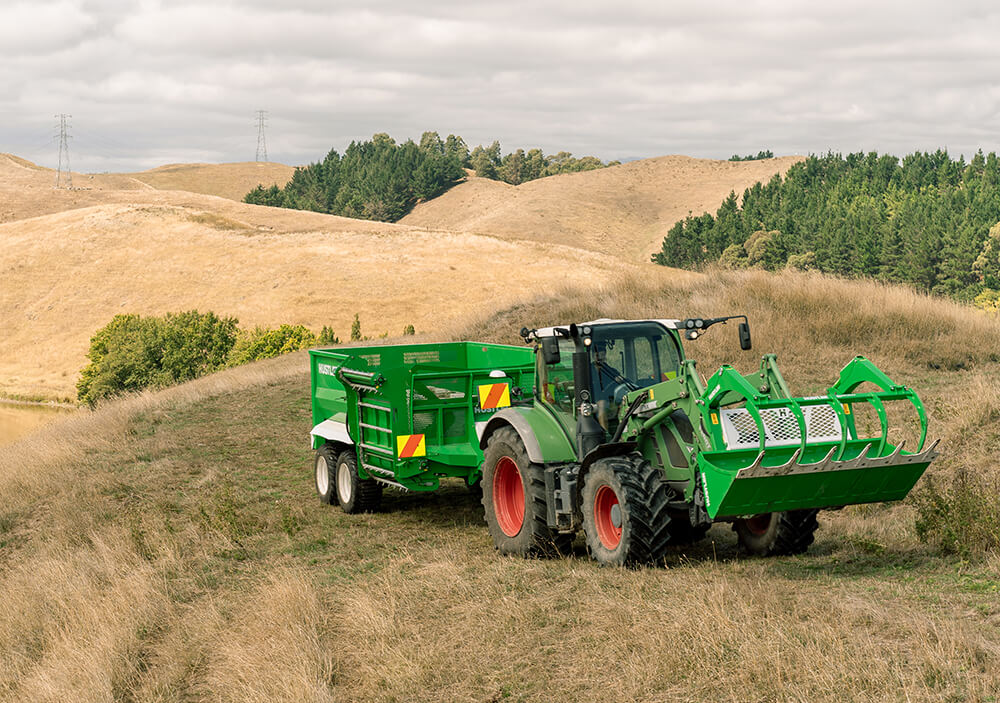

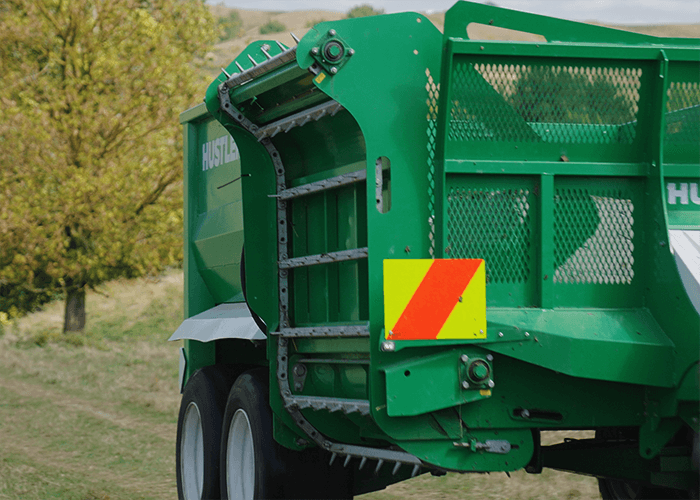

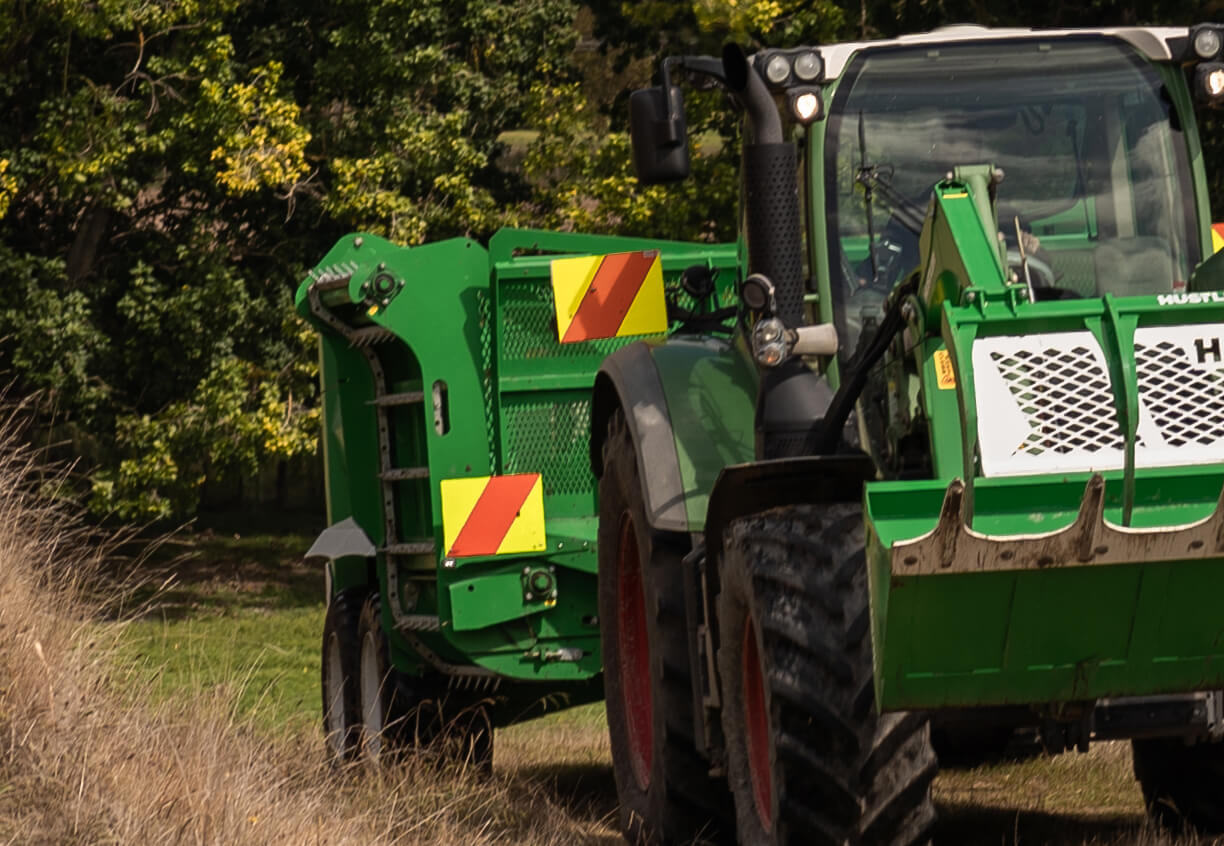

Includes the optional curved elevator, and special feedbars designed for accurate trough feeding

The curved elevator, shaped like a hockey stick, is a new advancement in feed delivery technology for the Combi RX² range. Combined with its special feedbar design, this curved elevator offers better trough feeding, ensuring a more even distribution of feed across the trough. The improved release point guarantees accurate feed placement, enhancing feeding efficiency and reducing waste.

optional curved elevator

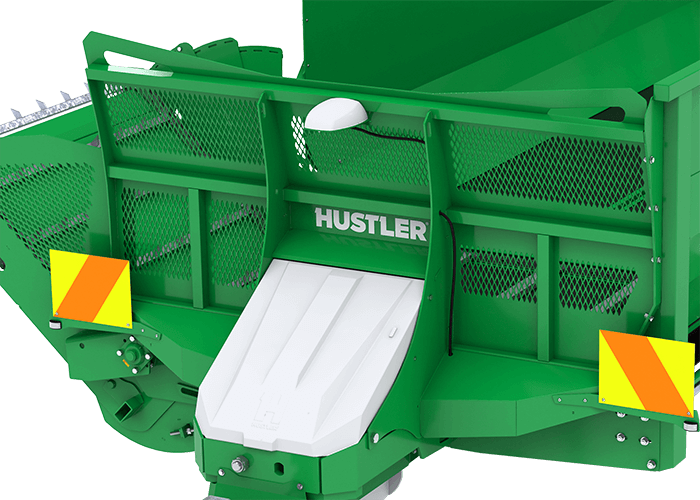

View-through visibility into the wagon

When it comes to visibility no other wagon beats a Combi RX². See right through from the cab to the rear of the machine with an unobstructed view through the entire wagon and cross floor providing safety and efficiency during feeding operations. The clever cut-out design of the front panel means you can also see the feed coming out of the side elevator.

view through visibility

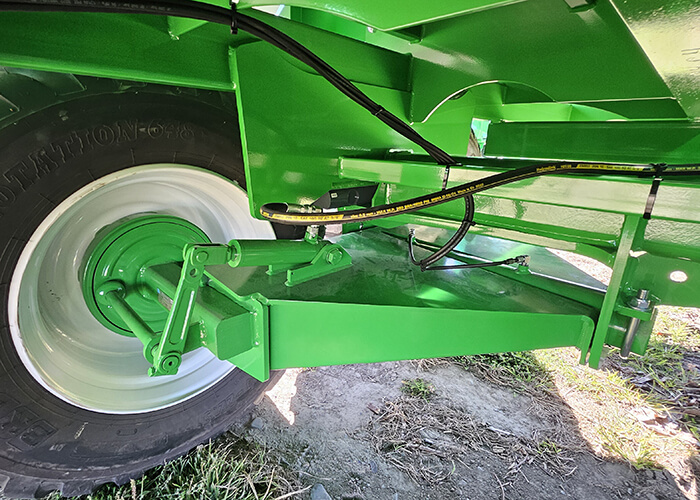

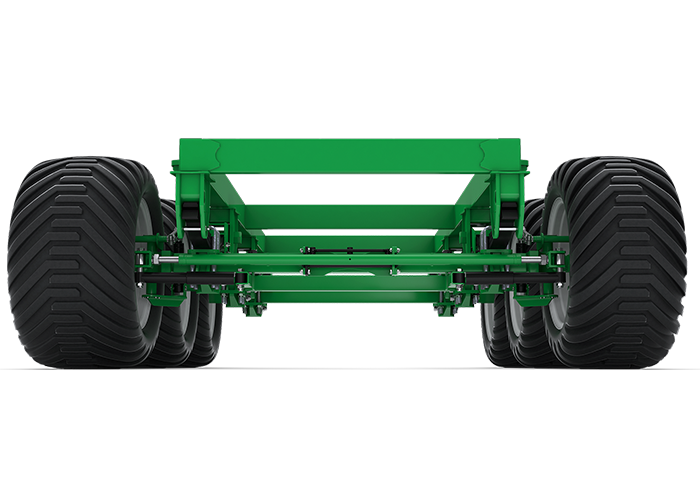

Strongest axles on the market

The massive 2,200 cm² (341 sq²) pivot surface area and 100 mm (4 in) diameter pivot pins ensure outstanding strength and minimize the risk of axle failure. With the pins bolted on the outside and securely fastened on the inside, there’s virtually no chance of them loosening. Additionally, the tandem axles offer a 15-degree oscillation, setting another industry standard.

massive axles (3) 700x500

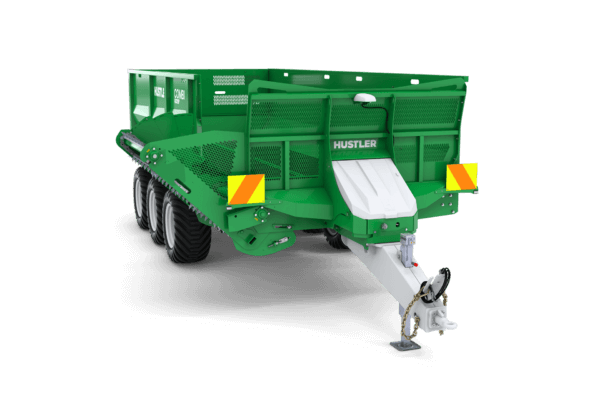

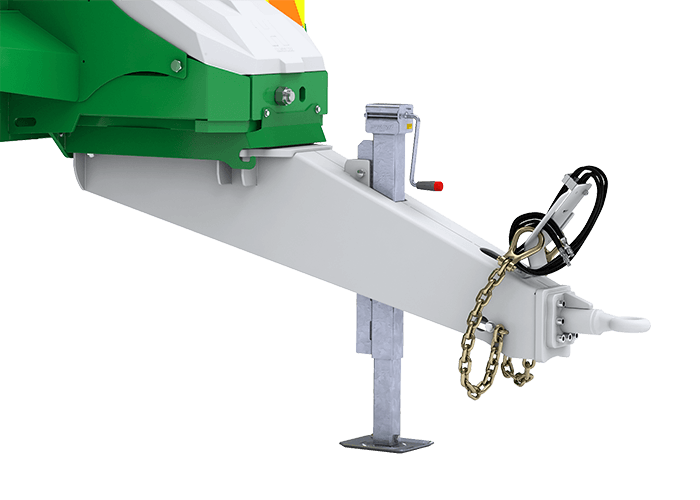

Single post drawbar with massive link arm clearance

The Combi RX² drawbar provides superior manoeuvrability and generous linkage arm clearance. The new angled chassis rails in the Combi RX² range allow sharper turns, reducing the risk of tire rubbing. This design evenly distributes the load, when both on the jack and attached to the tractor, eliminating the need for a parking stand.

drawbar

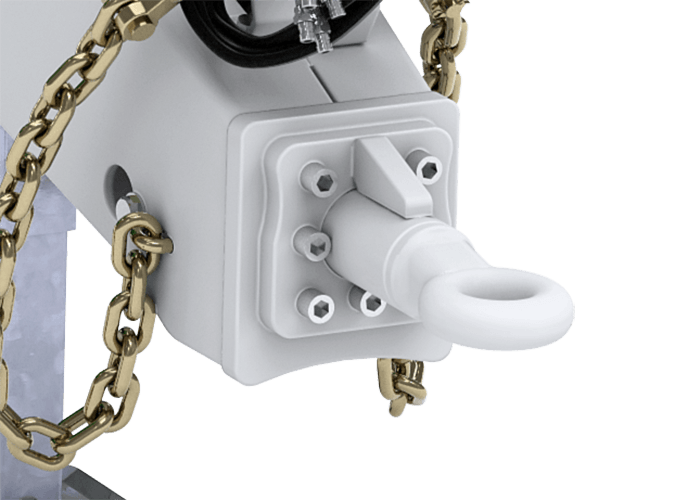

Removable drawbar eye hitch

Featuring a bolted drawbar eye, the Combi RX² is adaptable to various hitch types, including fixed eye, swivelling, clevis, or spoon type hitches. Its ample clearance also accommodates pickup hitches seamlessly.

drawbar eye

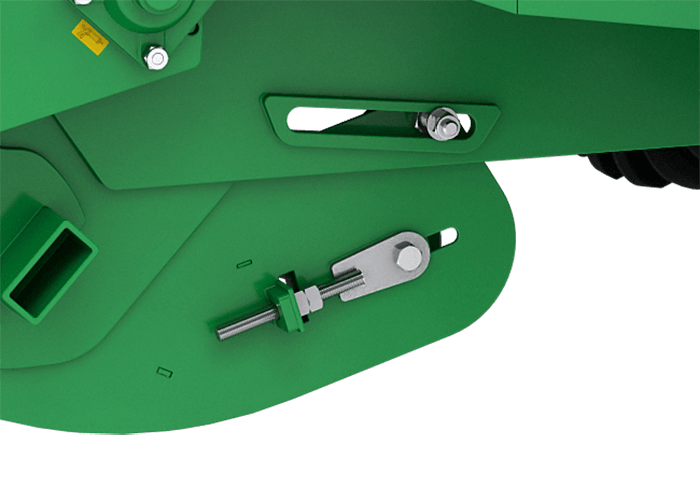

Improved chain tensioner design

All chains feature adjustable tensioners with convenient access for prolonged lifespan and straightforward maintenance. The latest upgrades in the Combi RX² multi-feeder range enhance reliability with increased tensioner adjustment range and improved access makes servicing easier.

Improved chain tensioner design

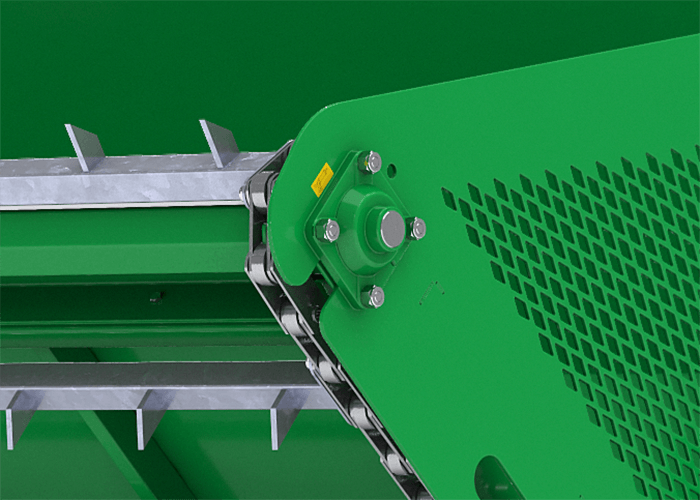

Durable self-aligning bearings

Combi RX² multi-feeder range features self-aligning bearings for more flexibility, reduced friction, lower maintenance requirements and longer service intervals, enhanced load distribution and reliability compared to bushes.

Durable self aligning bearings

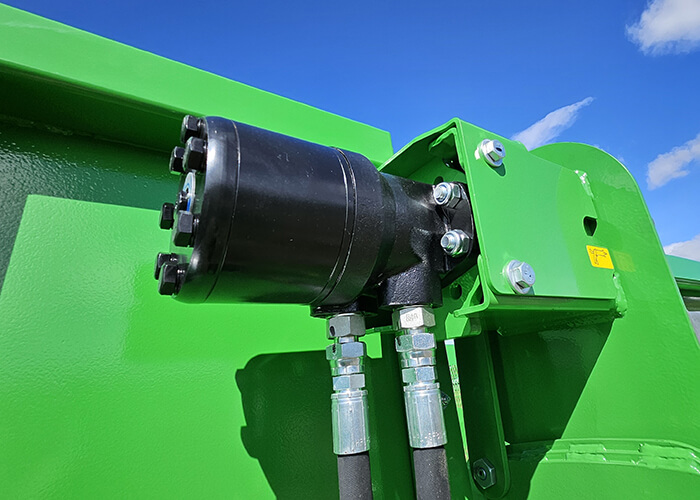

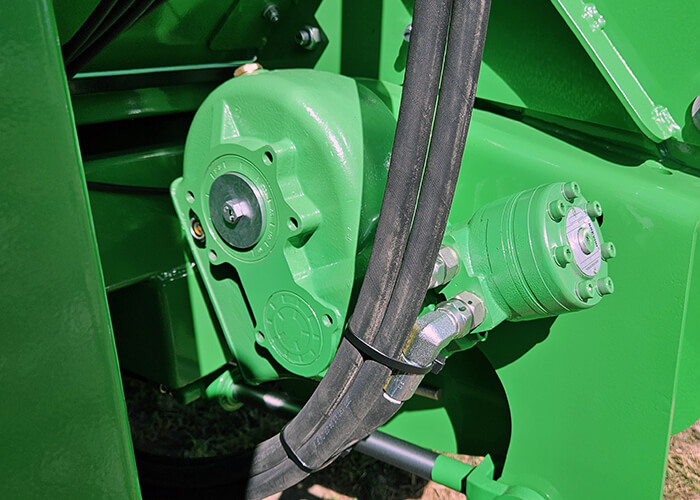

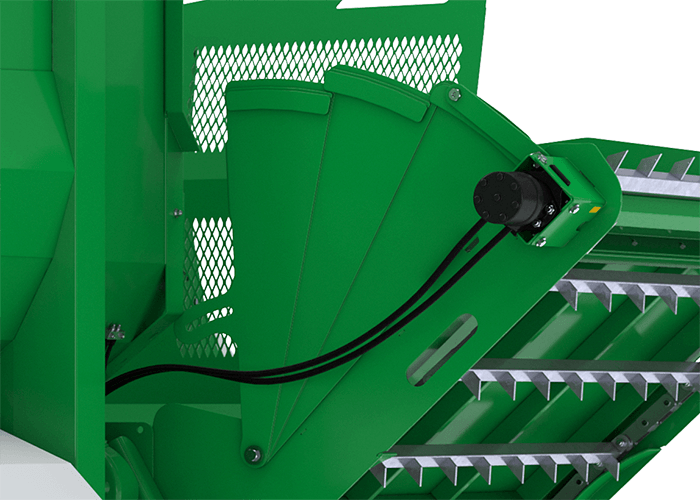

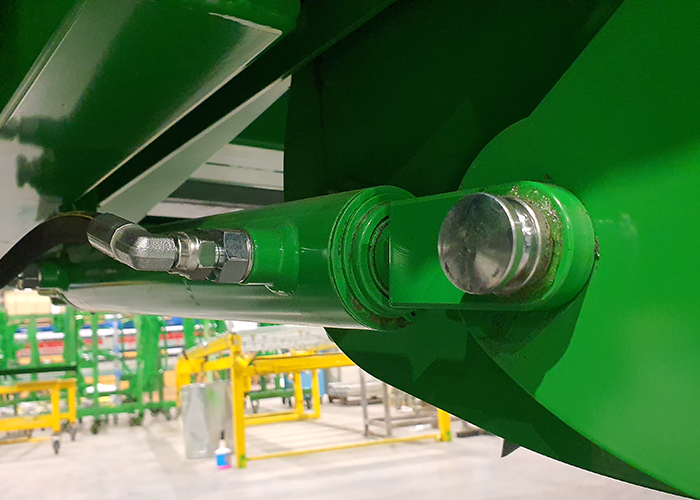

Single elevator ram and improved motor

Featuring a single elevator ram and an enhanced motor, the Combi RX² ensures efficient operation and minimal maintenance. Positioned to avoid damage from debris, the elevator ram eliminates twisting and protects the seals from tire debris and silage juices. Additionally, the revamped motor connection system provides a secure, locked-on and foolproof solution, with 3 redundancies built in for reliability preventing downtime.

Single elevator rams 700 500

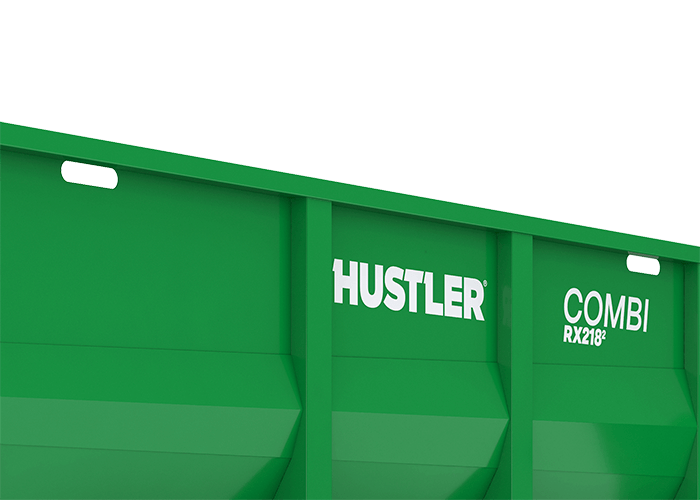

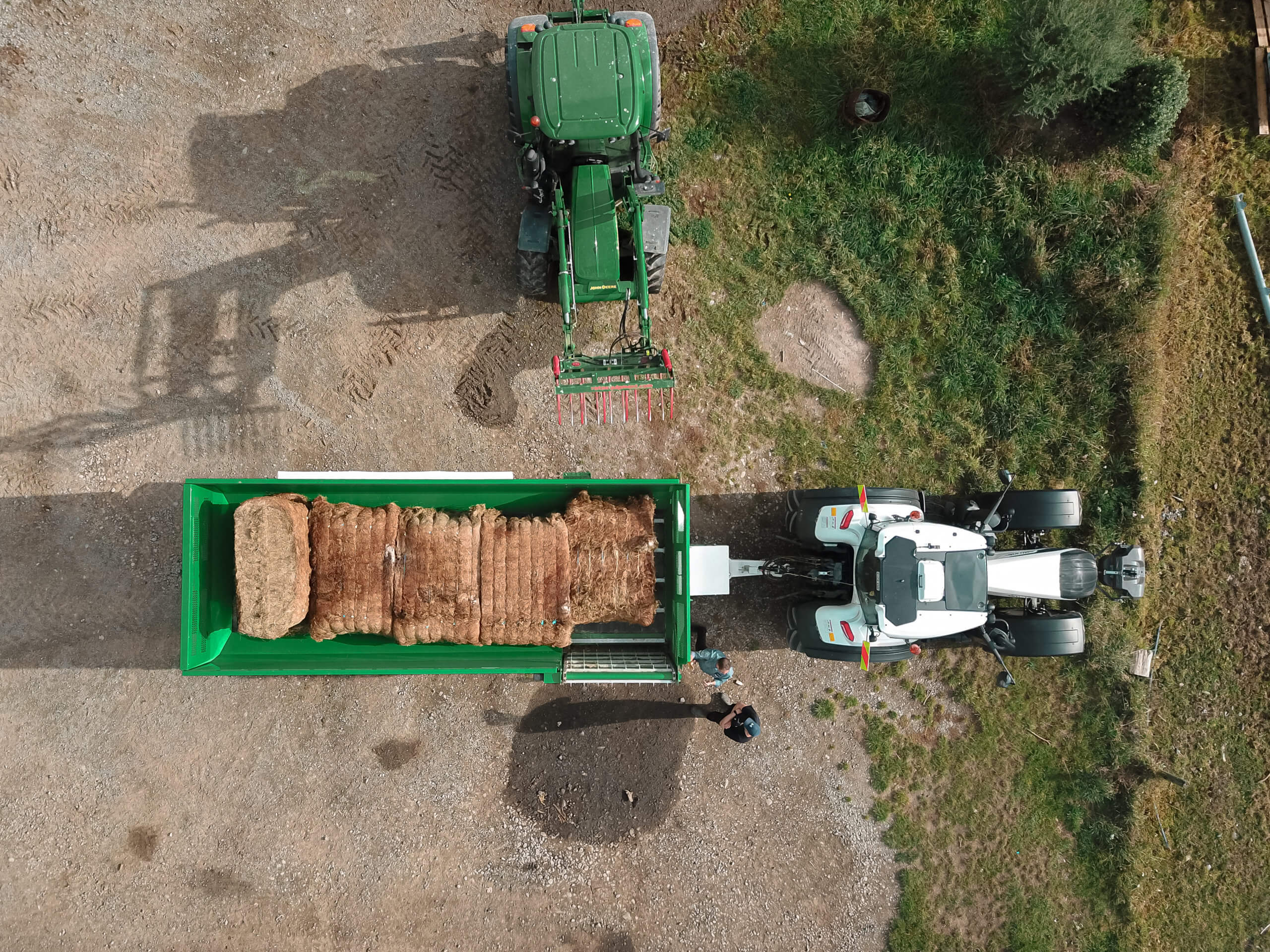

Bale string tie points

Cleverly integrated tie points along the wagon’s length allow for easy tying of square bale strings, enhancing operator safety and convenience. Simply cut, tie, and clean bale strings after feeding out.

square bale tie points

Unique design scale ready integration

The unique design of the Combi RX’s load cell integration, 2.46 times stronger than the old design, simplifies scale installation. With fewer load cells, there’s less wiring, fewer electronics, and fewer potential issues.

Scale ready 700 500

All vital parts and components protected

All vital components of the Combi RX² are safeguarded, ensuring heightened safety and reliability. This includes fully shielded hydraulic motors, drives, and load cells, conveniently located hydraulics and electric valves beneath an accessible bonnet cover at the front of the machine, and covered driveshafts to prevent feed material wrapping and reduce the risk of jamming and blockage.

new motor connection (2) 700x500

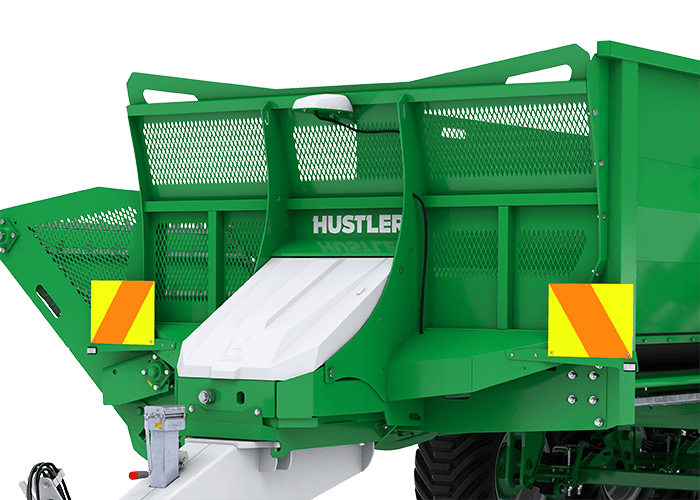

Facelift for a modern aesthetic touch

Combining both form and function, the new high-density polyethylene, easy-to-access front bonnet, and redesigned antenna, paired with the new angled chassis rails design, provides a modern aesthetic touch to the Combi RX² while protecting hydraulics and electric valves from the elements and scale antenna from impacts whilst loading, and improving turning radius.

Facelift for a modern aesthetic touch

Low maintenance elevator fan panels

Innovatively designed, the Combi RX² features a single set of elevator spillage fans, minimising maintenance requirements. Through clever engineering, we’ve reduced the number of fans needed for the required tilt angle, eliminating 14 wearing parts from the design and streamlining operation for enhanced simplicity and efficiency.

Low maintenance elevator fan panels

Largest ground clearance

Featuring the largest ground clearance on the market, the Combi RX² ensures that its elevator remains out of harm’s way, reducing the risk of damage to the machine’s vital components when operating on uneven terrain.

On the RX218² model we developed an improved spring and sub-frame design featuring Bisalloy wear plates with an improved design and thickness so rest assured operators can expect reduced greasing requirements, less wear and lower maintenance, resulting in a wear-block design that no longer requires replacement catering to the needs of high-end users.

largest ground clearance 700 500

Efficient load distribution

The load dividing design of the Combi RX² ensures reduced stress on all drives, contributing to the longevity of the machine. Additionally, with the floors traveling less per load, they experience less wear and tear compared to other wagons.

flat floor design (2) 700x500

Integrated Access Ladder

This standard feature facilitates safe and easy access to the wagon for tasks like removing bale strings. On larger models, a NEW foldable ladder and handrail are included for added convenience.

access ladder

Smart hose holder

Standard integrated hose holder, strategically positioned on the drawbar at the front of the machines, minimise the risk of hose chafing and subsequent downtime.

Smart hose holder

Cross-floor hydraulic gearbox drives

Standard hydraulic gearbox drives are now integrated into all Combi RX² models to eliminate moving parts, enhancing reliability and boosting drive power.

combi gearbox 700x500

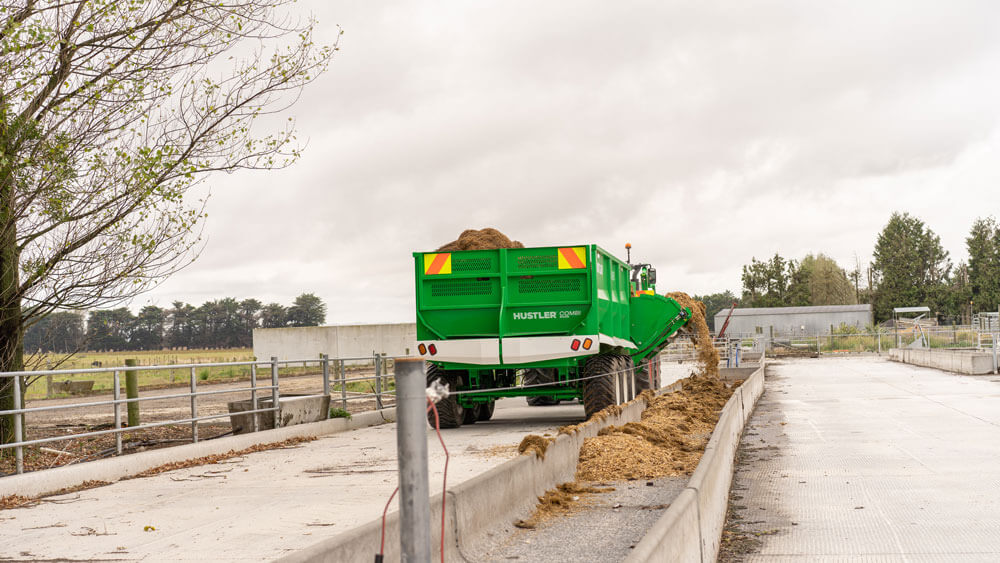

Standard feedpad optimisation for cleaner operation

Included as standard equipment on all models within the Combi RX² range, our unique feedpad optimised design eliminates feed spillage from underneath the side elevator and prevents feed from accumulating and dropping between the rear and cross-floor, significantly reducing mess on your feedpad – a definite advantage over traditional chain-driven rear floors found on other feedout wagons!

non spill feedpad kit (1) 700x500

Axle central greasing

Standard on all Combi RX² models, the central greasing station simplifies maintenance by reaching difficult-to-access grease points.

grease points 700x500

Improved cable and hose tracks

Built-in cable and hose tracks come standard to shield against potential damage. In the latest Combi RX² models, hose routing has been optimised to minimize chafing and enhance flow.

hose guides 700x500

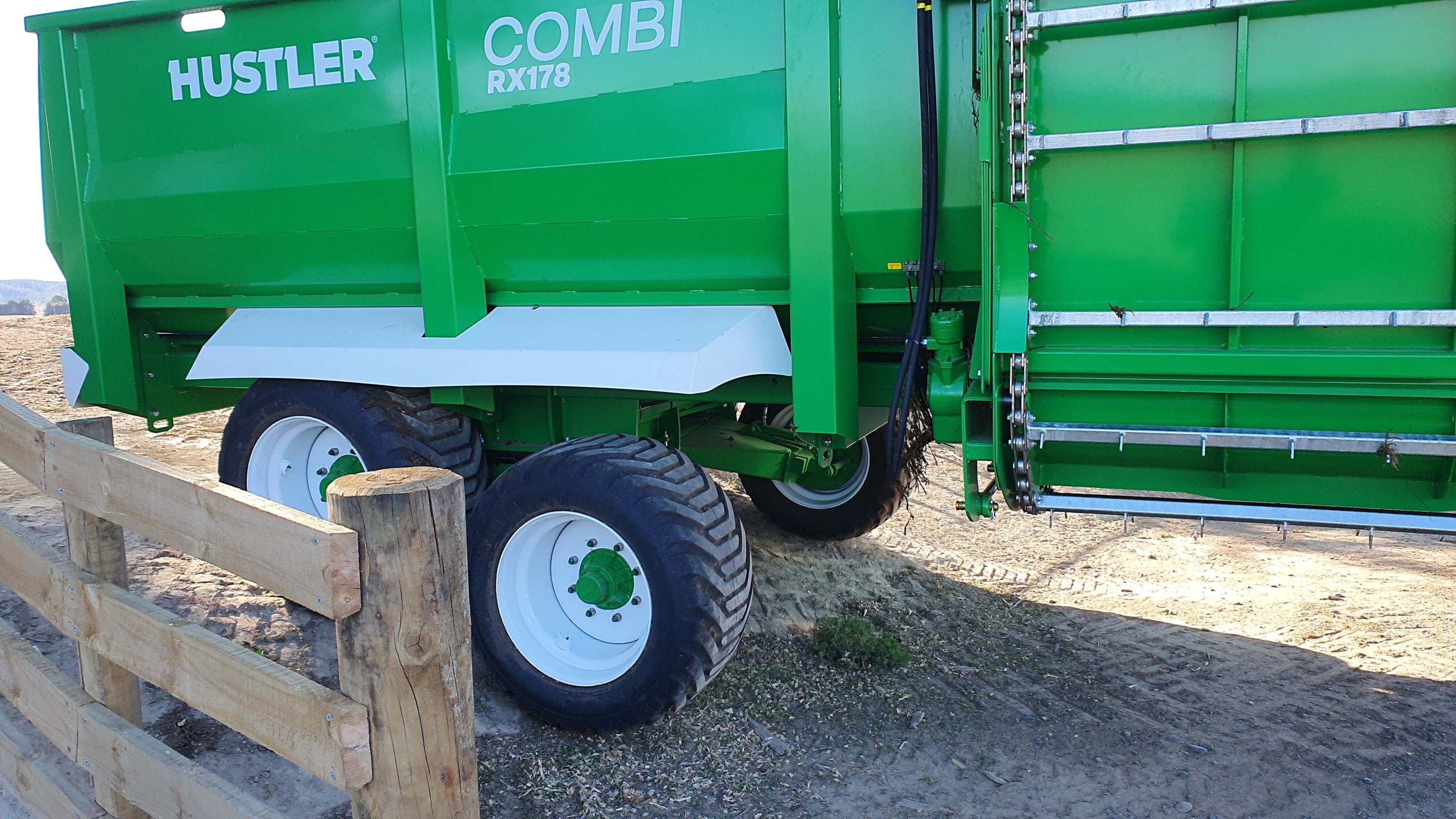

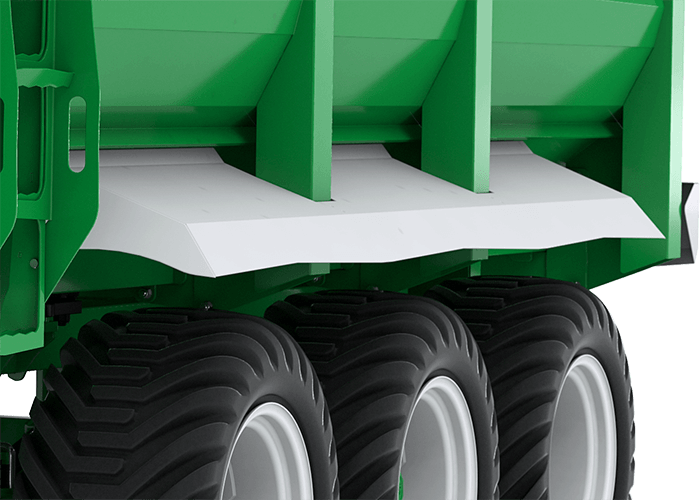

Built-in tapered mudguards / fenders

Tapered mudguards/fenders are included as standard equipment on all wagons in the Combi RX² range to prevent material buildup during loading.

Built in tapered mudguards fenders

Testimonials

“We switched to the Hustler Combi feeder because of the reputation it’s got to be very durable and the Chainless floor to minimise breakdowns.”

Clinton Fawthorpe, Clydevale (New Zealand) - Combi RX148
Frank Archer

“Hustler has a really good combination of practicality and ease of use”

Frank Archer, Tasmania (Australia) - Combi RX178
Ian Cougle

“It’s exceeded our expectations”

Ian Cougle, Gippsland, Victoria (Australia) - Combi RX218
Jim Bob

“It’s allowing us to be more efficient and faster and to feed better because we can blend that hay as it’s coming out, and to know exactly how many pounds we’re putting on the ground.”

Jim Bob Collins, Mitchell Oregon (USA) - Combi RX178
John Pethybridge

“It just makes life a lot easier for us and makes us avoid a lot less stress,”

John Pethybridge, Whorouly (Australia) - Combi RX148
9Jun23 HustlerCombiRX218 LocmariaFarms Australia JustinLobb (1)

“If we’re looking at feeding both silage and hay out, the Hustler Combi RX218 was probably the best option for that”

Justin Lobb, Naracoorte (Australia) - Combi RX218
Marcus Deadman

“It was a life-changer for us anyway”

Marcus Deadman, TaupĹŤ (New Zealand) - Combi RX218
Mark Cleaver

“Just works brilliantly where there is no blockages, no time wasting swapping implements over.”

Mark Cleaver, Hawera (New Zealand) - Combi RX148
20Jul23 MarkOliver MayuraStation CombiRX218 Australia (4)

“The versatility of the Hustler Combi is really what I guess sold it for us”

Mark Oliver, Millicent (Australia) - Combi RX218
peter

“It’s got less moving parts, it just seems more idiot-proof to me and couldn’t be happier.”

Peter King, Canterbury (New Zealand) - Combi RX178
Shane Moxey

“You load the Hustler up, take it out to the field, spread out the feed and all gets eaten, no waste, less compaction on the paddock”

Shane Moxey, Forbes (Australia) - Combi RX148
16Sep21 Tony Reynolds CombiRX148 byQuest 10 web

“We chose the Hustler because it didn’t have floor chains”

Tony Reynolds, Burnham (New Zealand) - Combi RX148

Newsletter Signup

Get Out There, in Hustler Country episodes and the latest news
