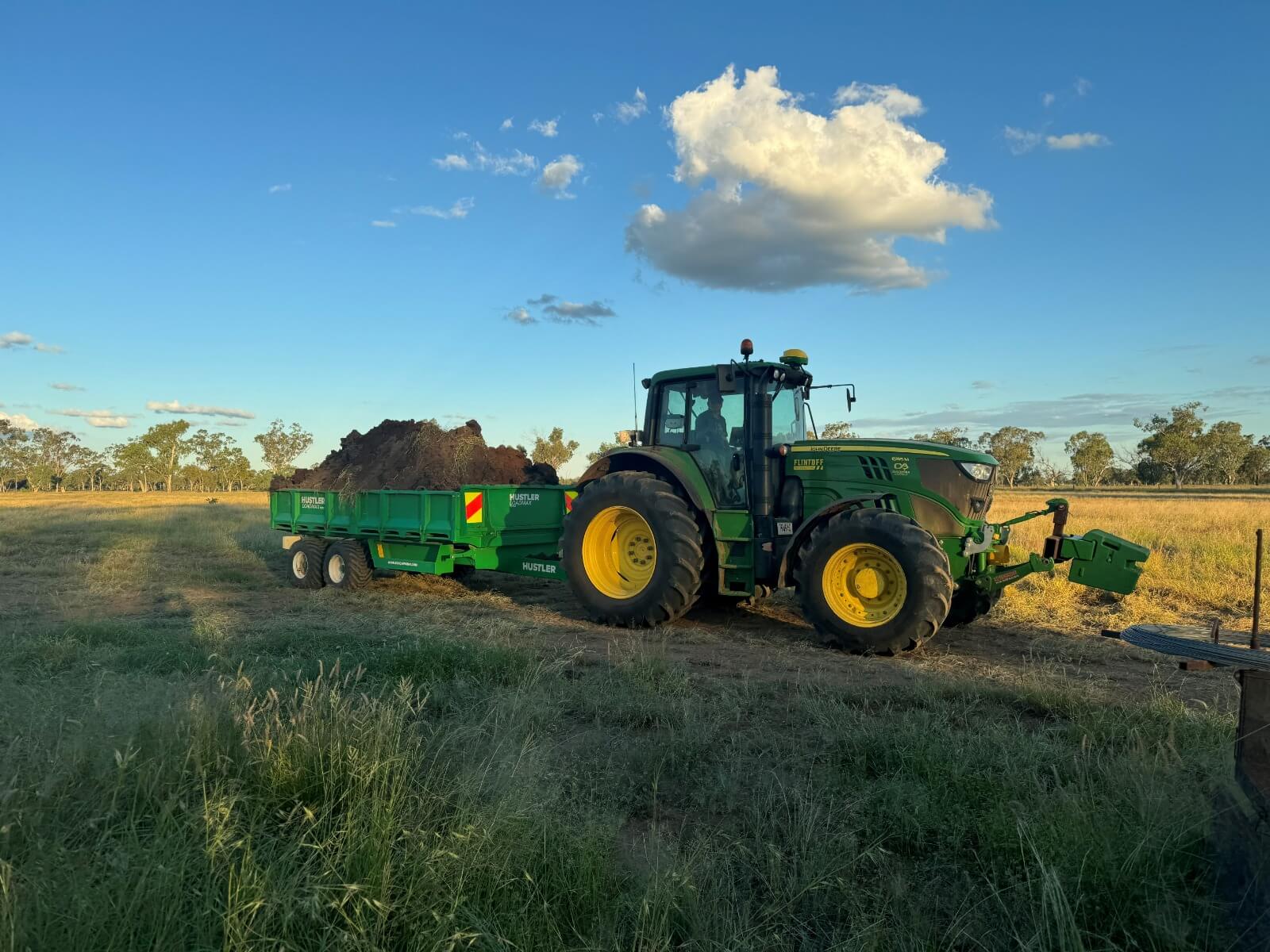

LoadMax Tip Trailer

Owners are telling us our LoadMax trailers are overbuilt, and handle way more than their rated capacity.

So what better way to launch the New Series 2, 14 Tonner by throwing on a dozer tipping the scales a smidge over 22 tons to test out this beast! The silky smooth riding hydraulic suspension is just one new innovation…

Watch Video

LOADMAX  TX108  TX110  TX114

Trailers that push every boundary to the max.

The world’s best farmers have been asking for a tough, versatile trailer that saved them time and hassle with any on-farm handling duties, so they could get more done every day. So that’s what we built into our 8, 10 and 14 tonne models.

Our new series 2 builds upon the solid foundations of our tough multi-purpose trailers and includes new features and refinements to keep them ahead of the herd.

Download Brochure Get a Quote Check out our Flatbed Trailer range

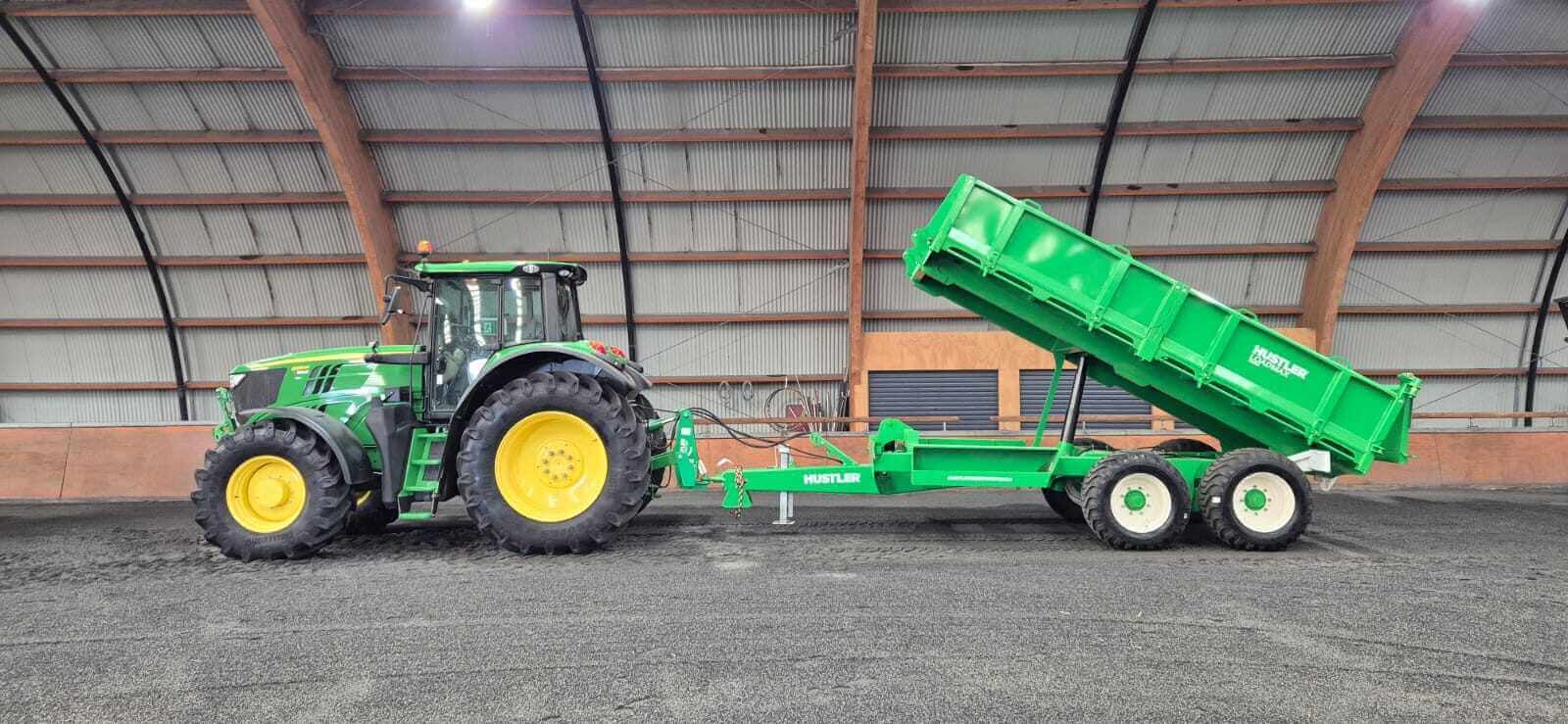

What's new with LoadMax TX114²?

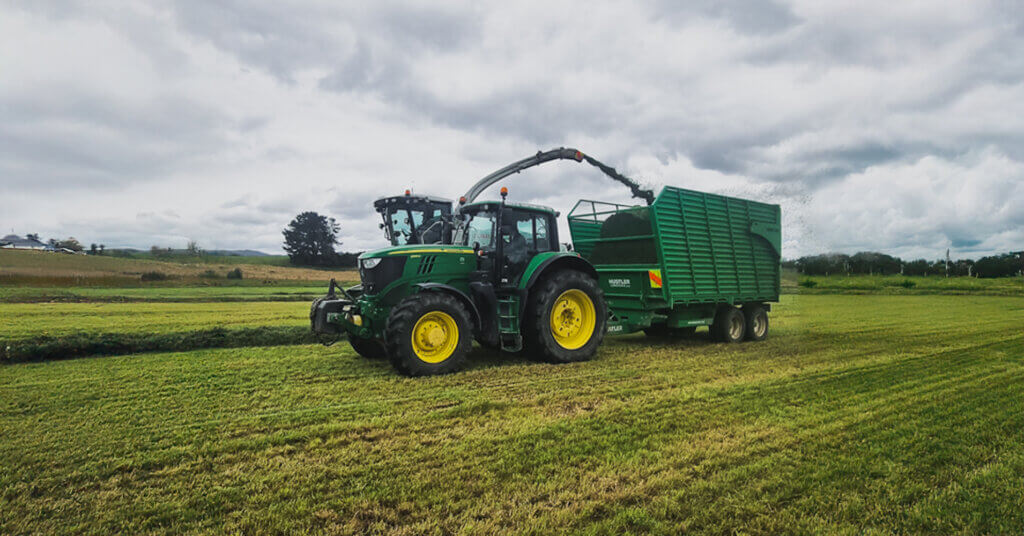

SilageCrate2 Wide

How do you make the best, better?

When faced with the challenging task of improving upon an already industry-leading multi-purpose trailer, our product development team turned to some of the country’s leading contractors for help.

Our new series 2 LoadMax TX114 has been developed, and field-tested by contractors over the past 2 years

Hydraulic Drawbar Suspension

New Hinge Design

Bigger, Tougher 20PR 500/50/22.5 Wheels

Improved Hose Routing

Same Tough Chassis Design

5 Reasons to Choose LoadMax

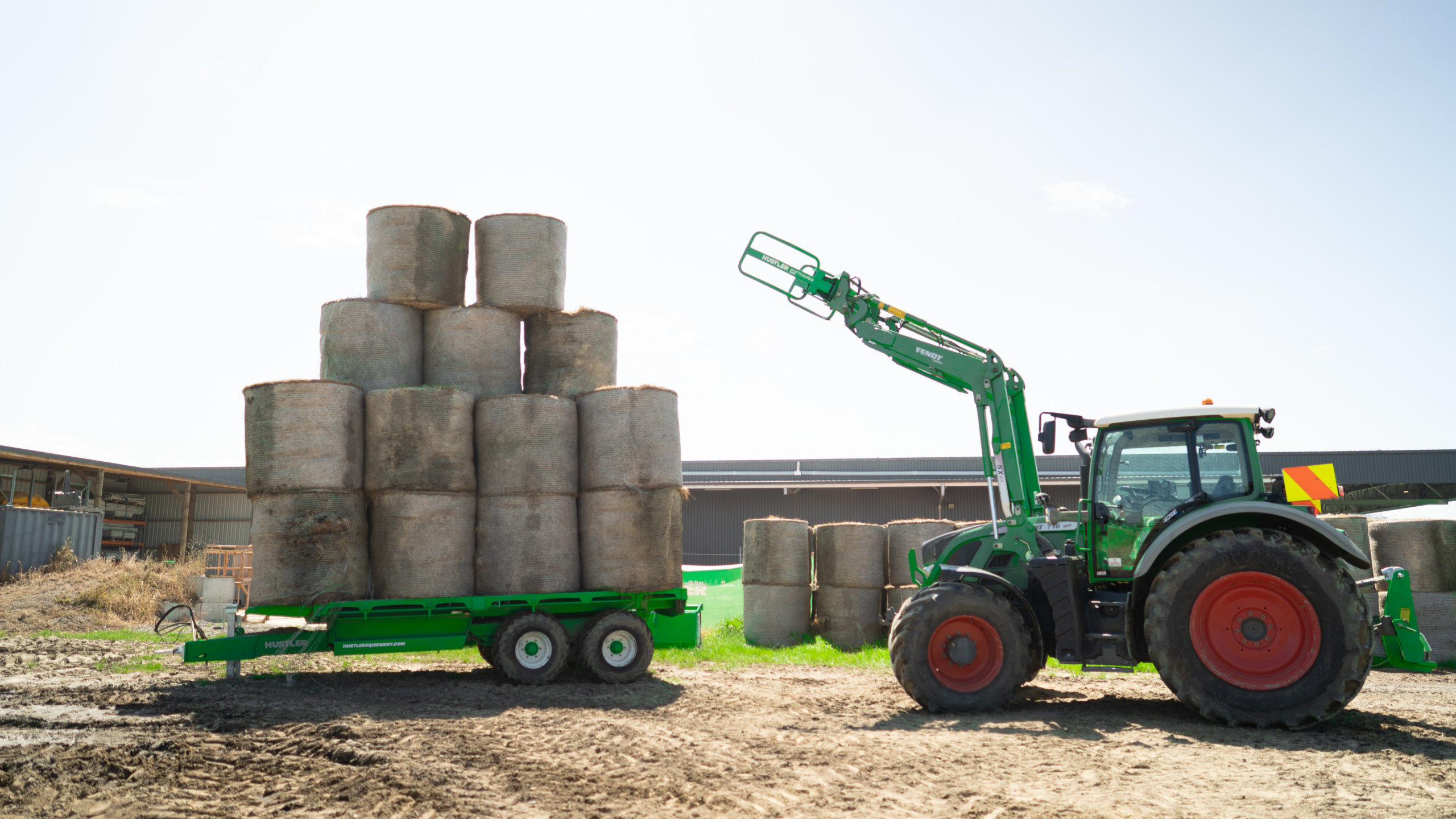

DSC09165

1. Versatility

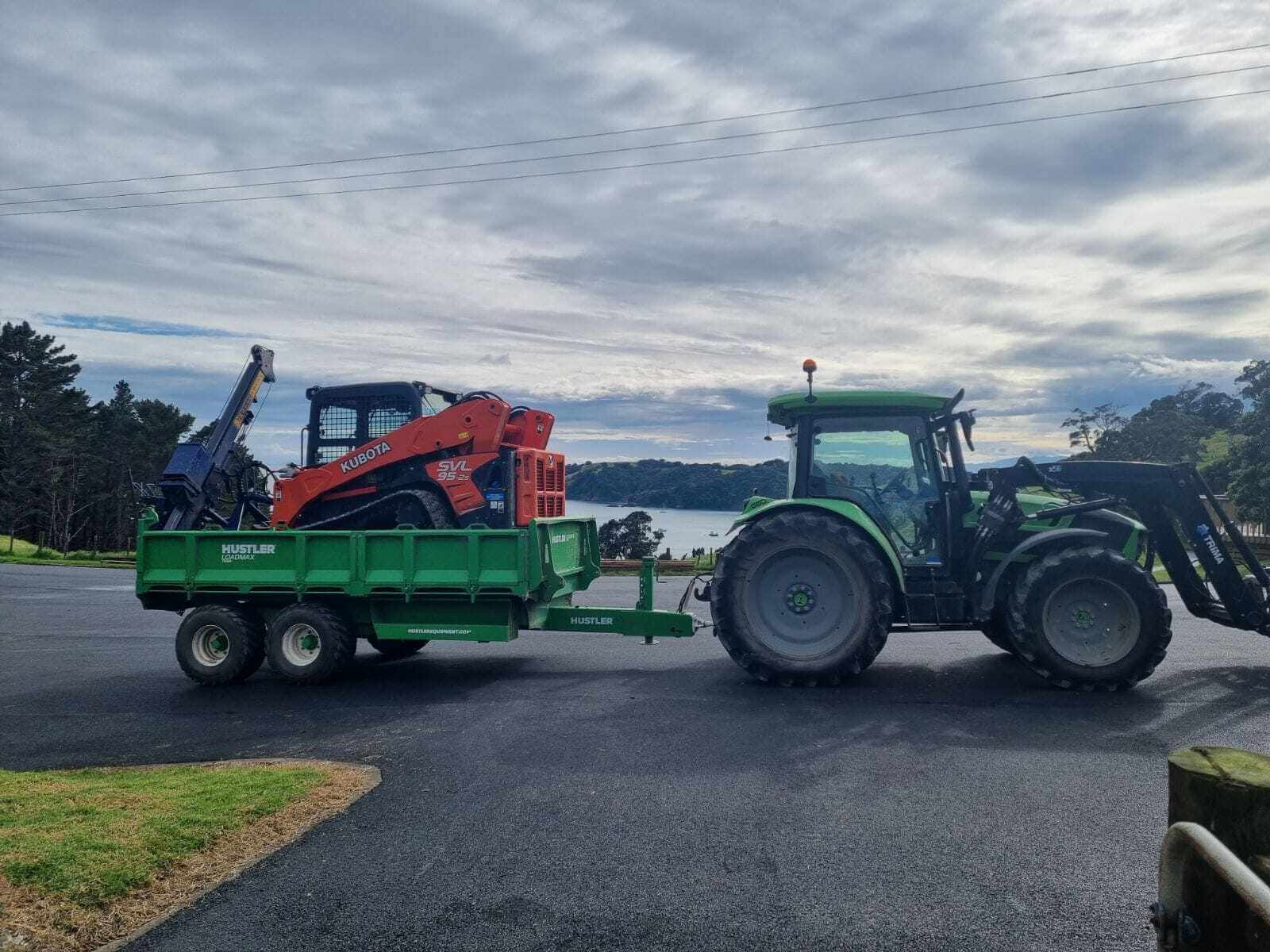

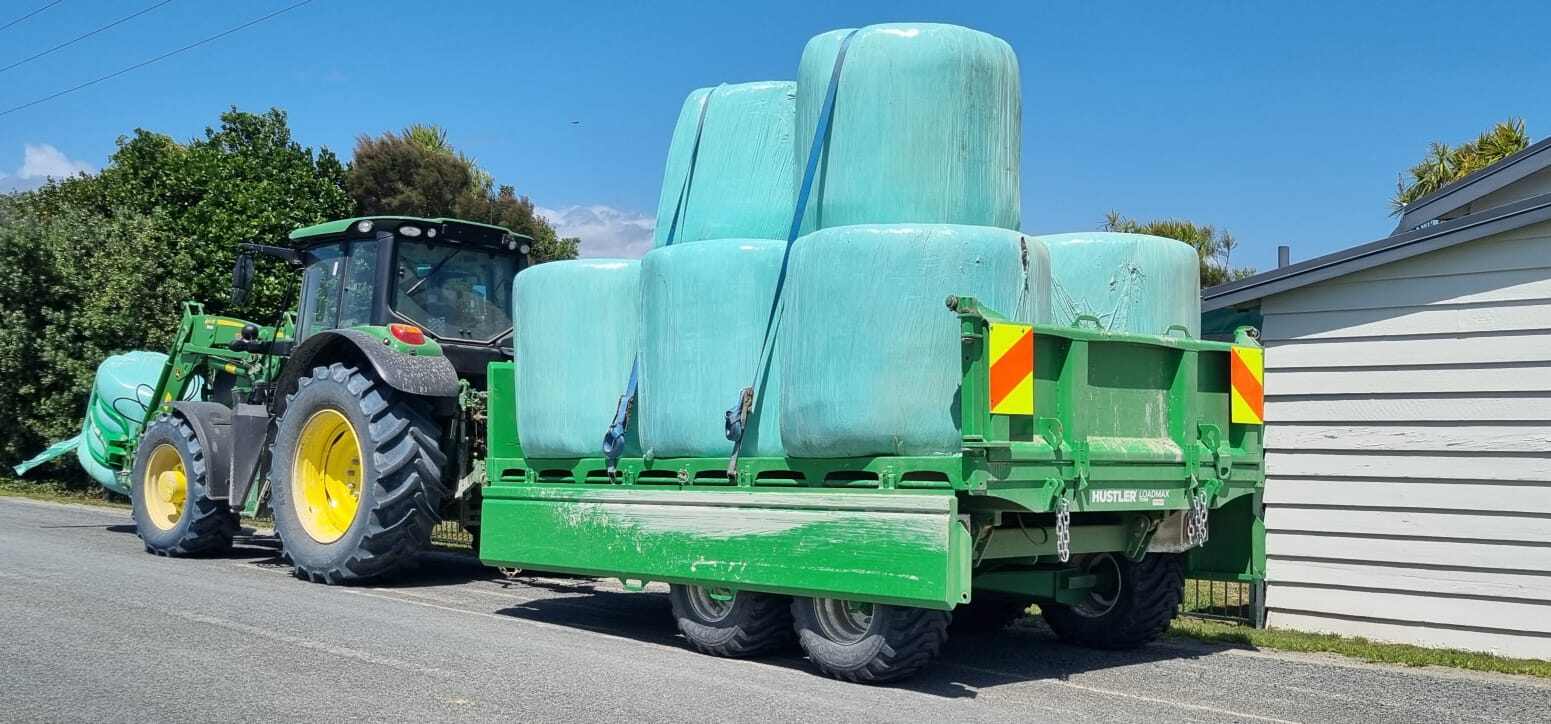

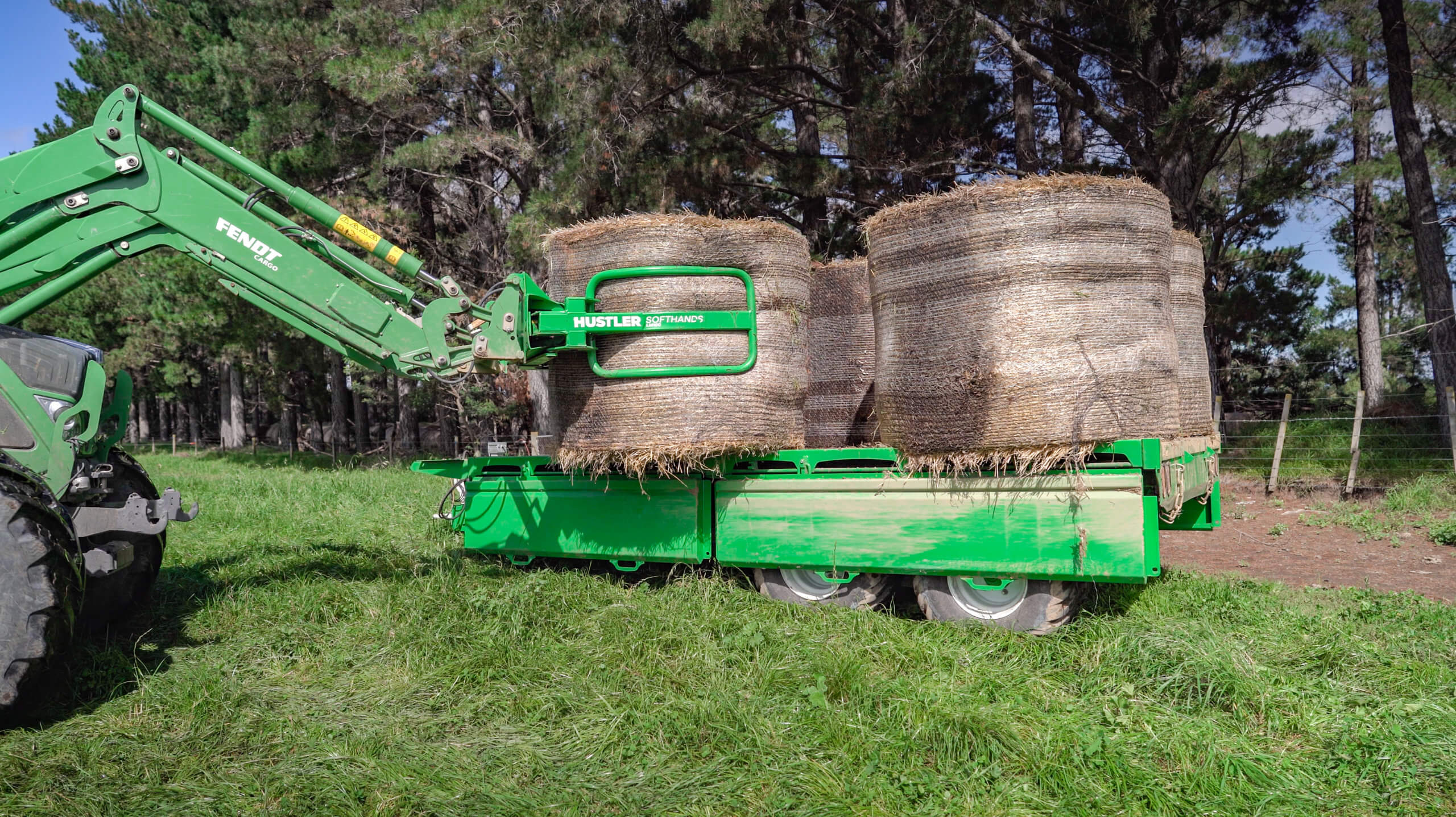

From the folding, load-bearing headboard, 2-piece folding and removable sides with center and corner posts that serve as bolsters, 2-way swinging tailgate, massive toolboxes, and the largest deck size in its class LoadMax is designed as the most versatile trailer on the market be it for transporting Dirt, Rocks, Manure, Bales, Bags, Logs, Pipes, you name it LoadMax is ready.

2. Unique convenience features

LoadMax comes standard with 8 unique operator convenience features including:

  1. Hassle-free hydraulic tailgate release
  2. Massive toolboxes on both sides of chassis
  3. The angled top of sides to prevent material build-up and spillage
  4. 2-way swinging tailgate
  5. Folding, load-bearing headboard
  6. Lifting eyes on sides and tailgate
  7. Central greasing
  8. Quick-Lift, centre mounted jack

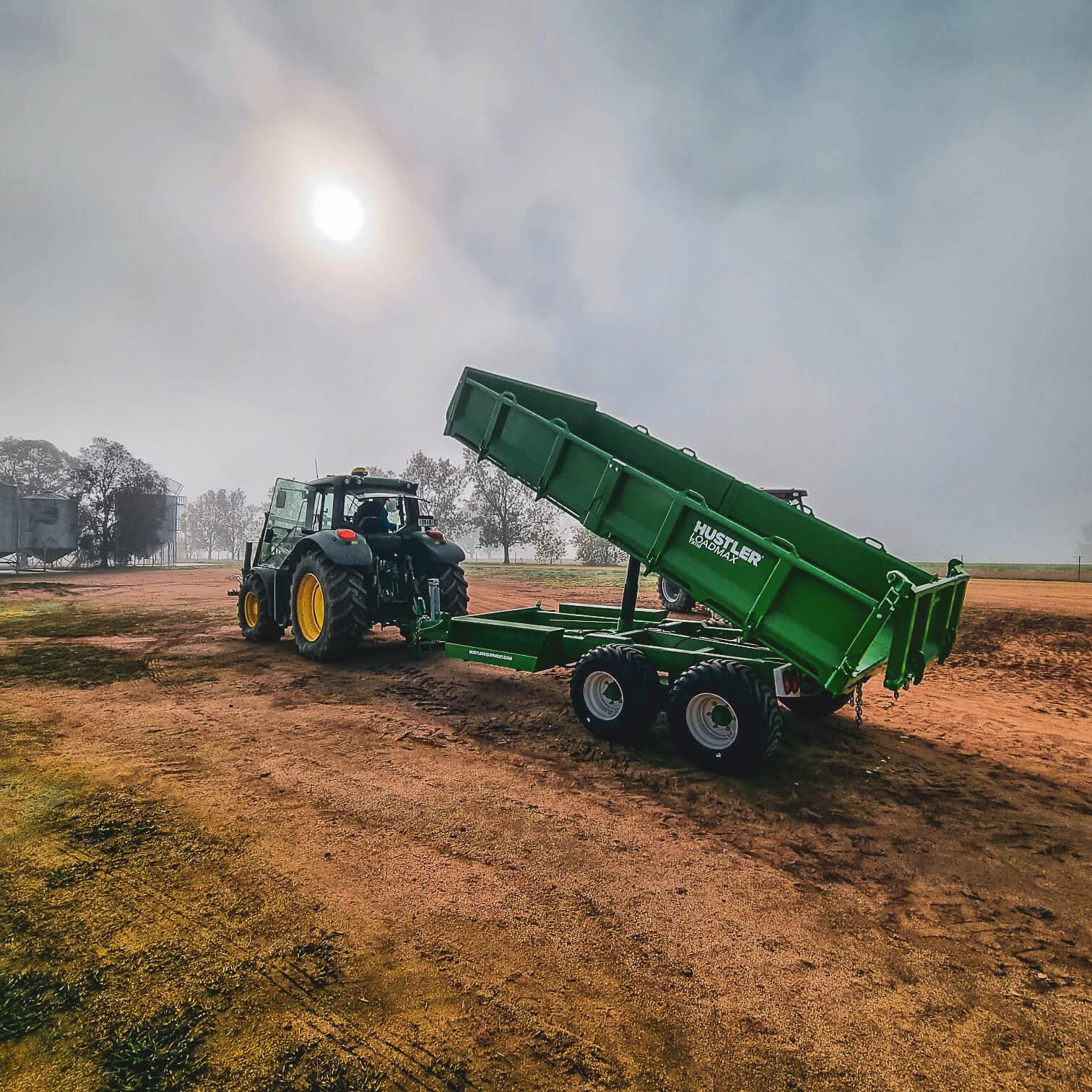

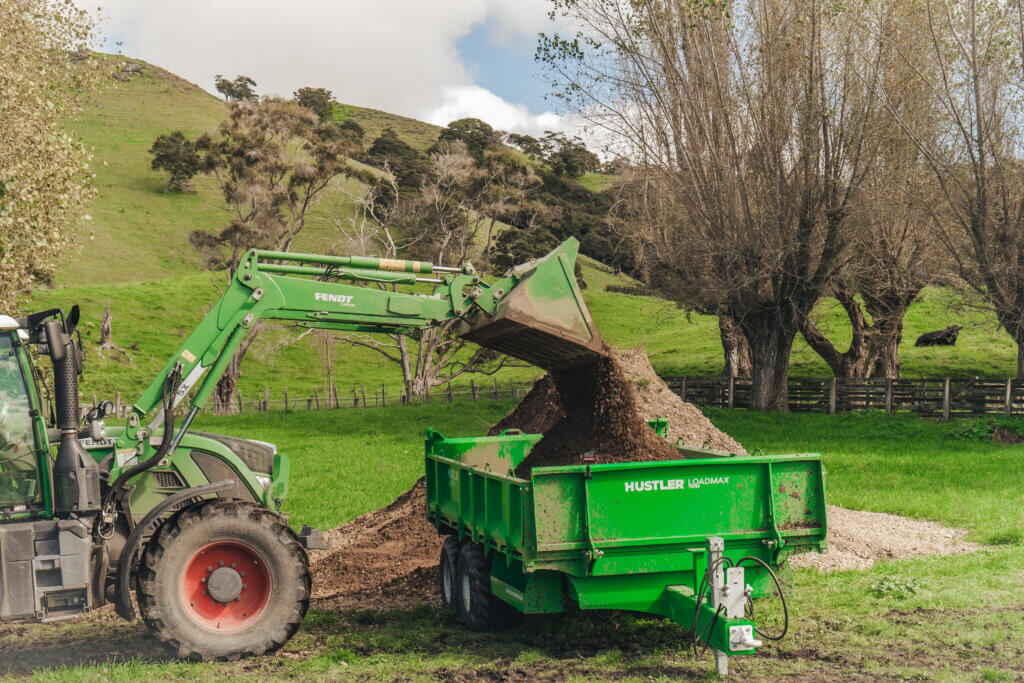

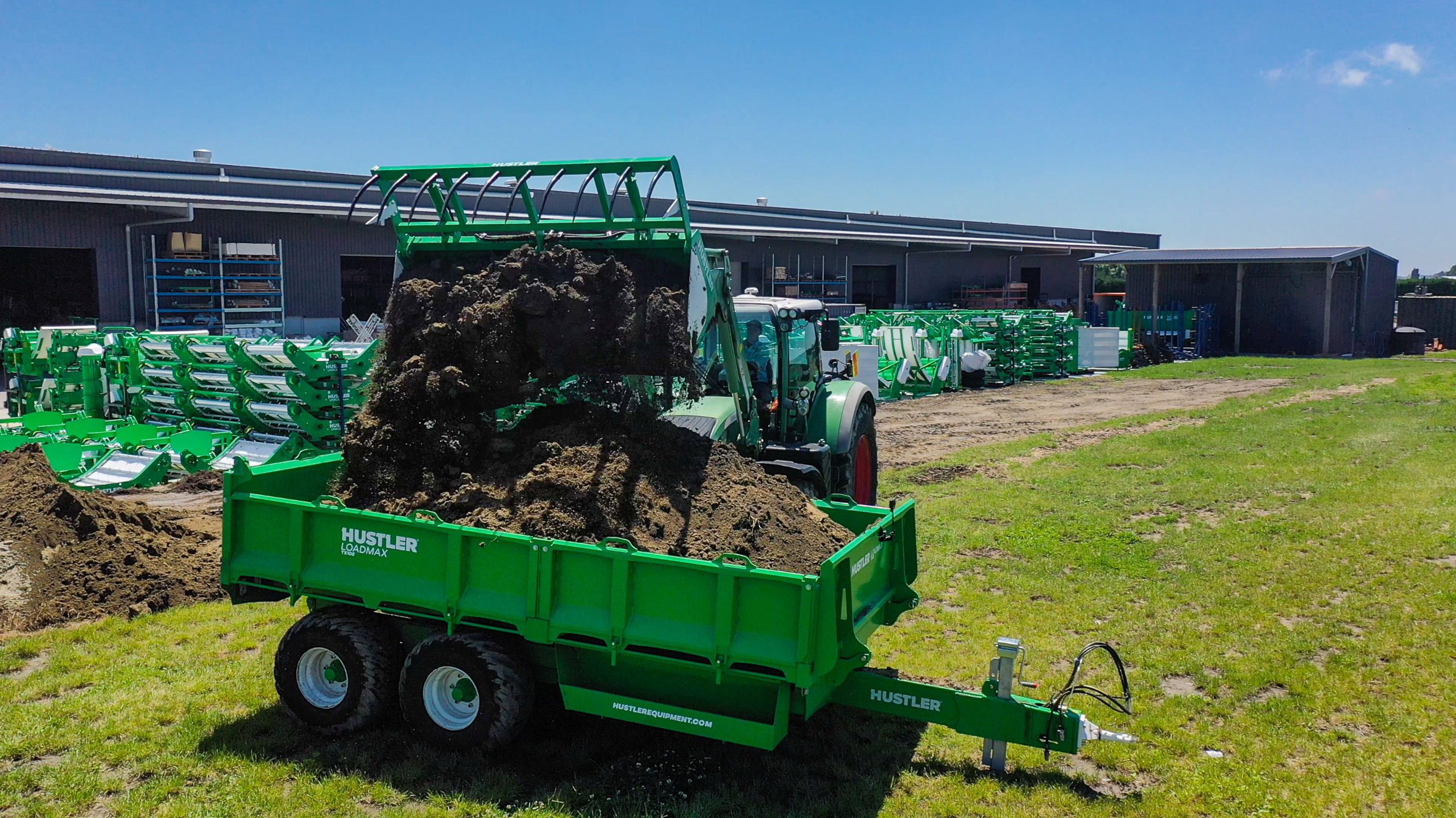

LoadMaxTX110 loading

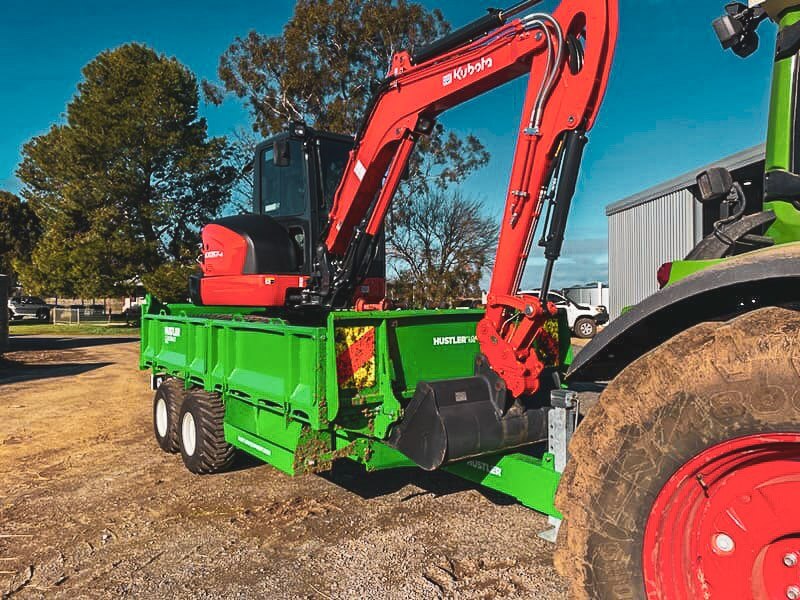

Smart Contracter Taking use of LoadMax

3. Tough and low-maintenance

With an oversized chassis, reinforced sides and tailgate, longer-lasting steel deck, our proven axles system with the largest pivot surface area in the industry, central greasing point for axles, hydraulic tailgate release, durable ArmaCoat powder finish, LoadMax is built for a longer hassle-free lifespan, and great resale value

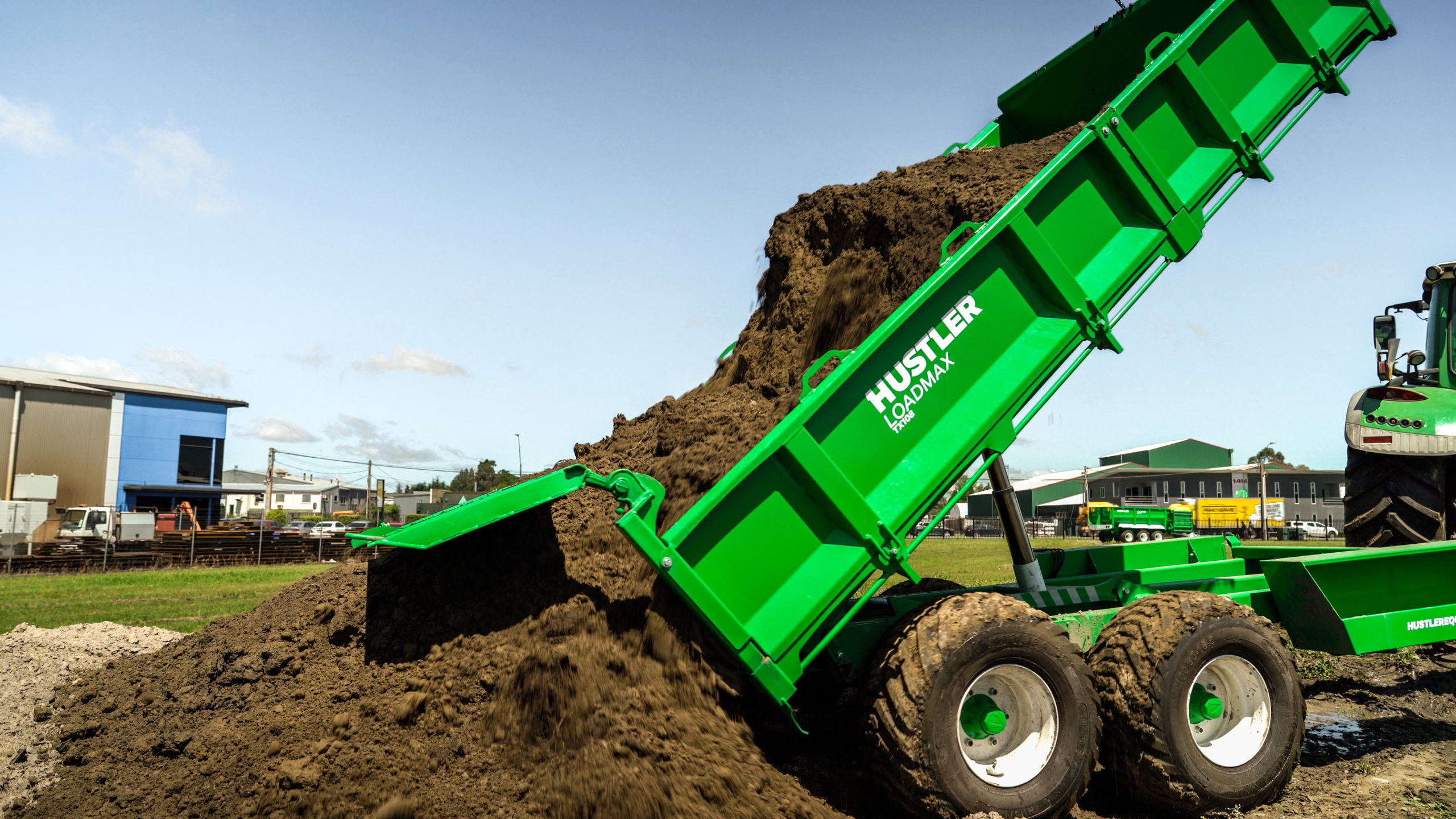

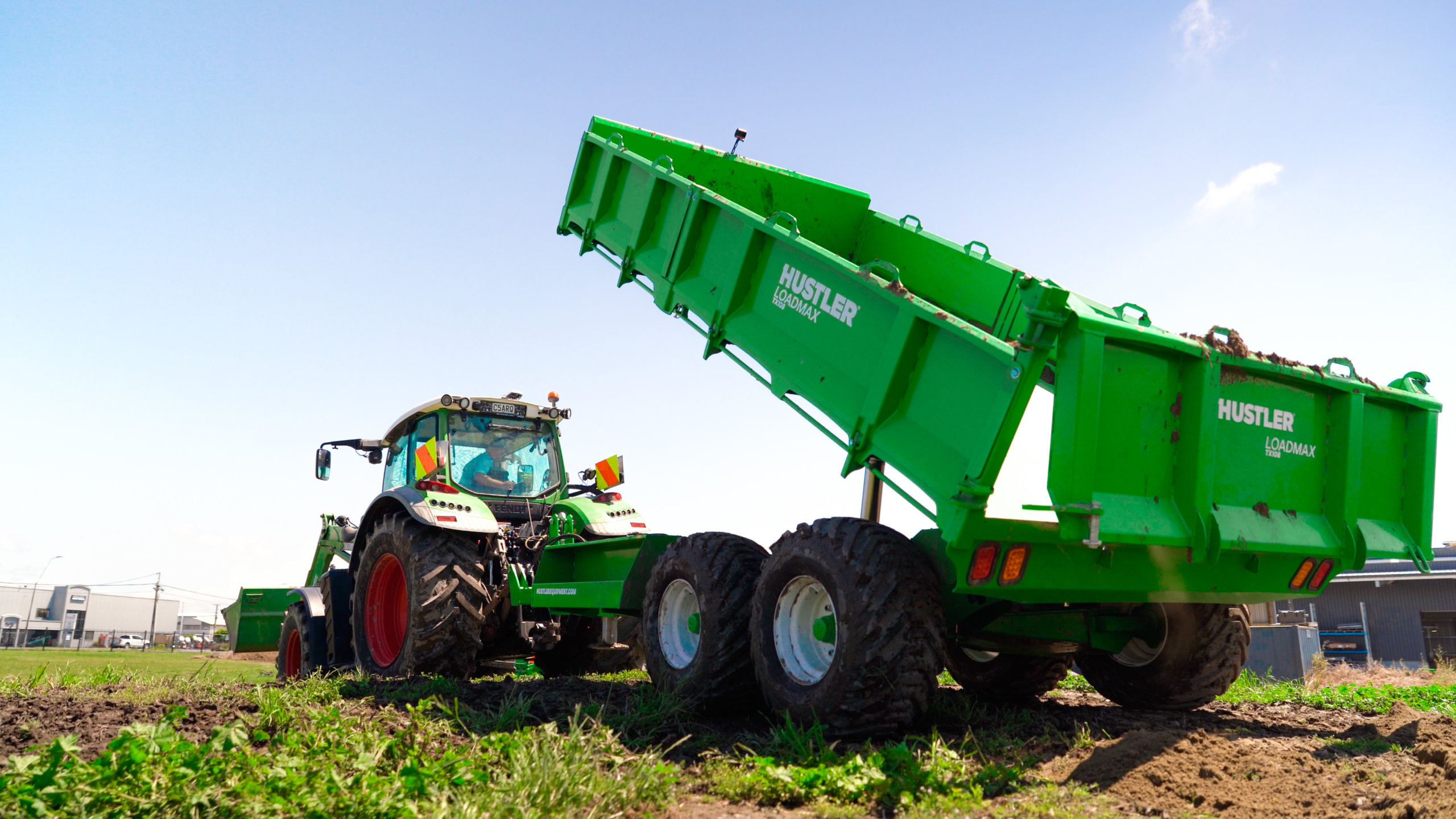

4. More Tipping Power

A steeper tipping angle, taller sides, and high-pivot tailgate make for easy off-loading of even the stickiest of materials. The powerful multi-stage cylinder minimizes the oil capacity requirement and provides a generous redundancy in lifting power. Our cylinders use chrome shafts for longevity and reduced maintenance.

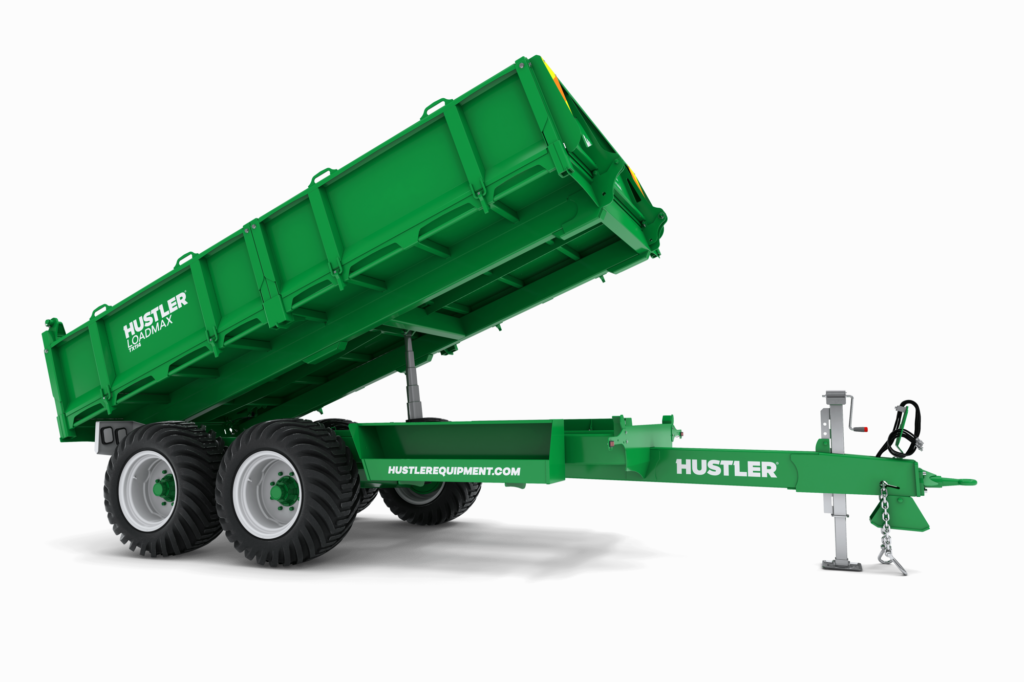

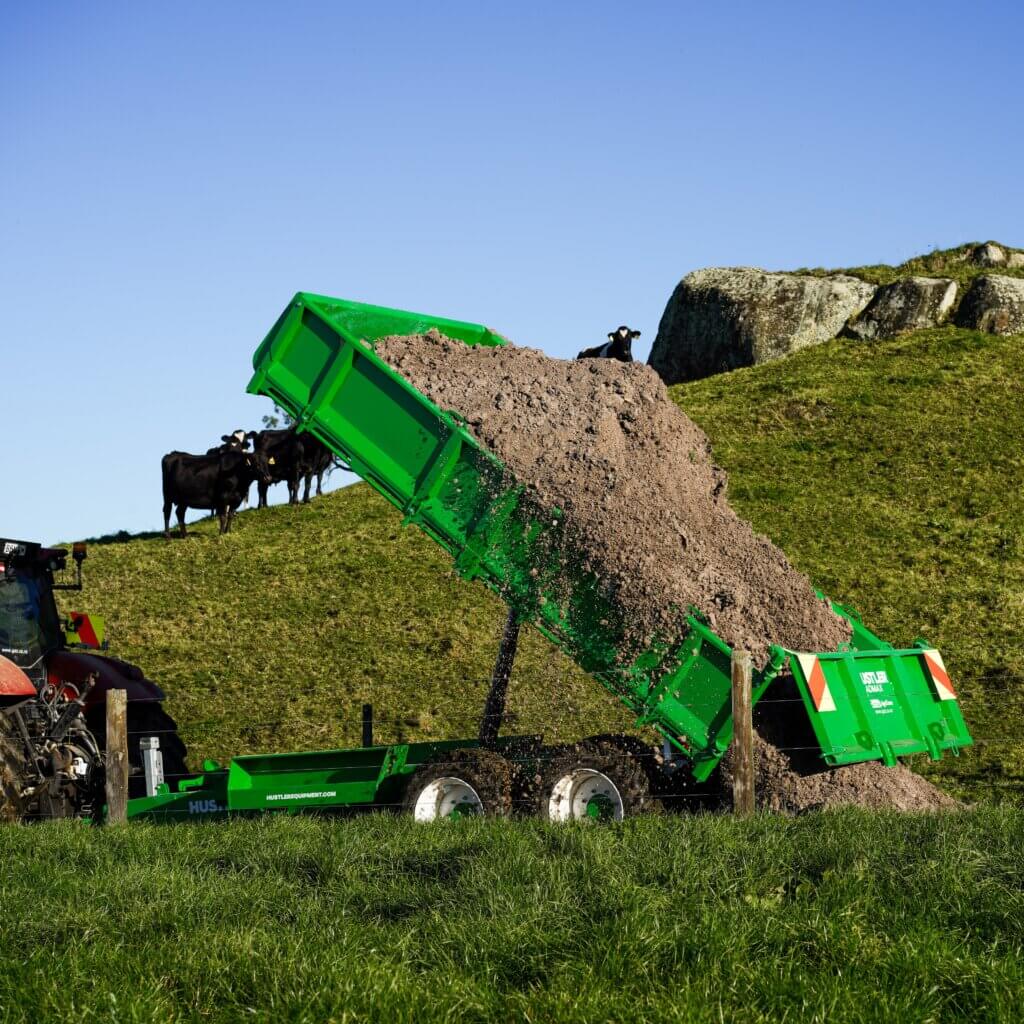

Hustler LoadMax TipTrailer TX114 Hero Square

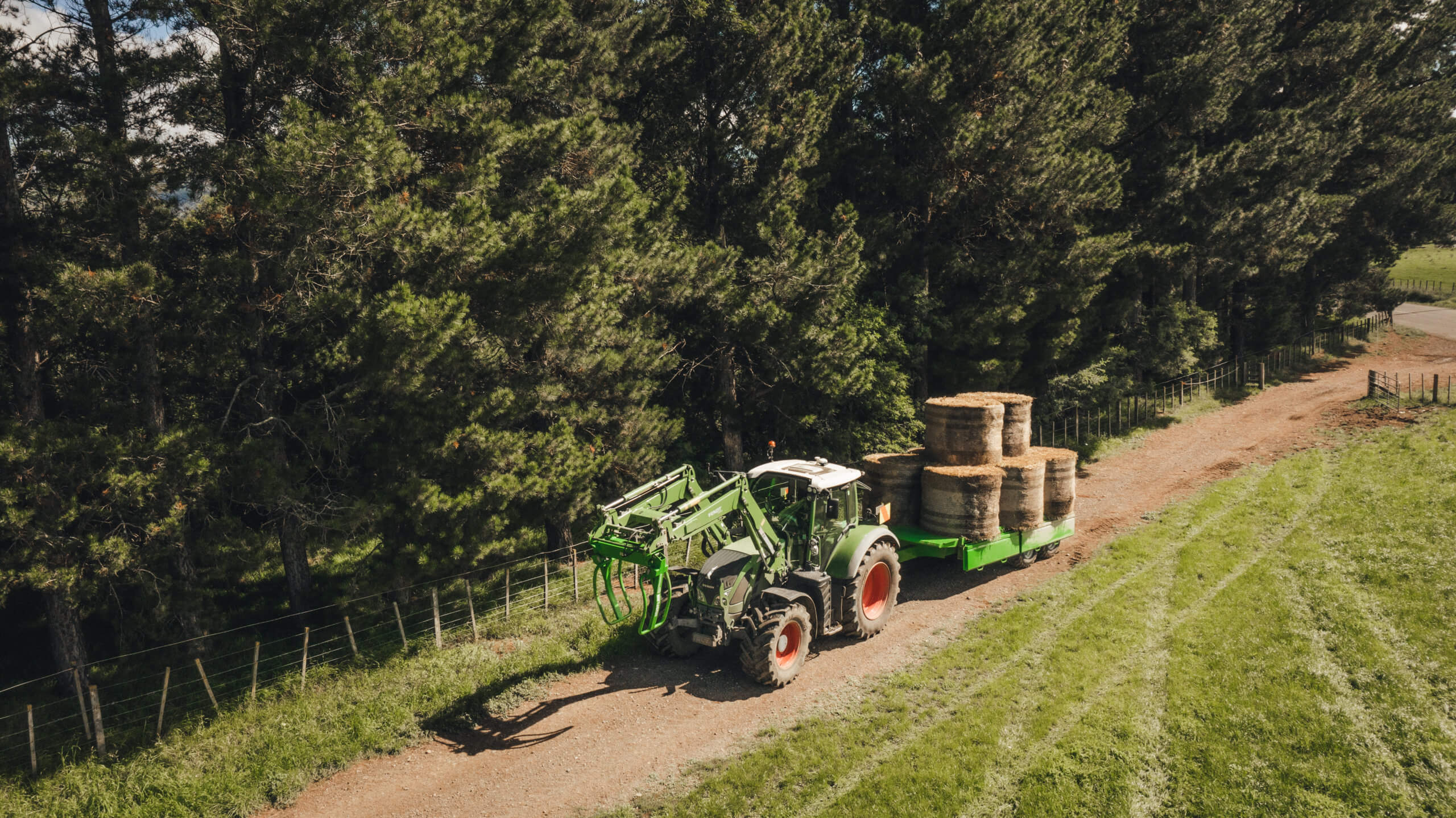

DJI 0612

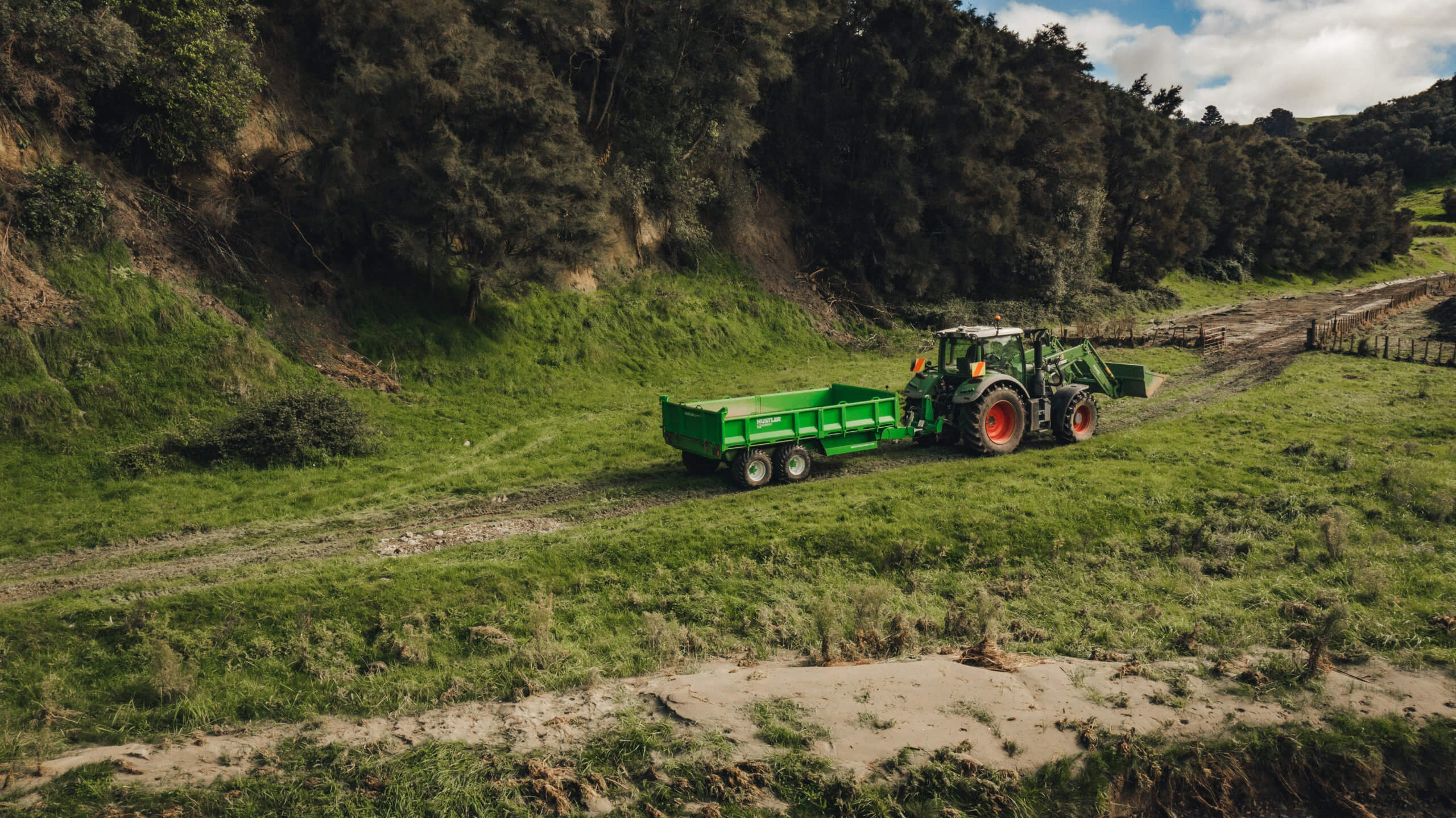

5. Ready for all conditions

LoadMax is fitted with large floatation tyres as standard which make it ready for all-terrain and weather conditions. In situations where trucks would probably give up, a tractor-towed tip trailer can power through, thanks to wide flotation tyres and excellent oscillation.

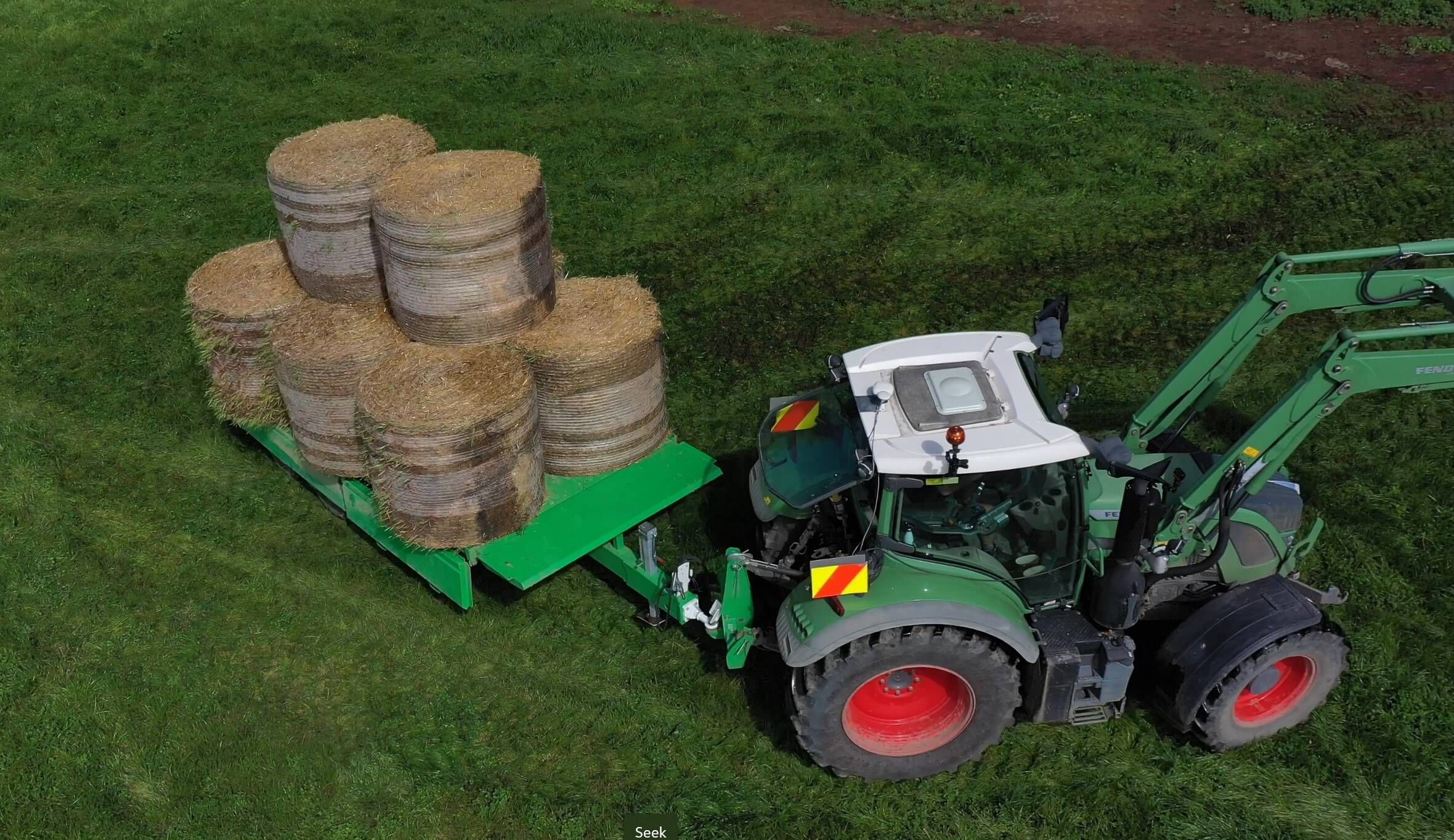

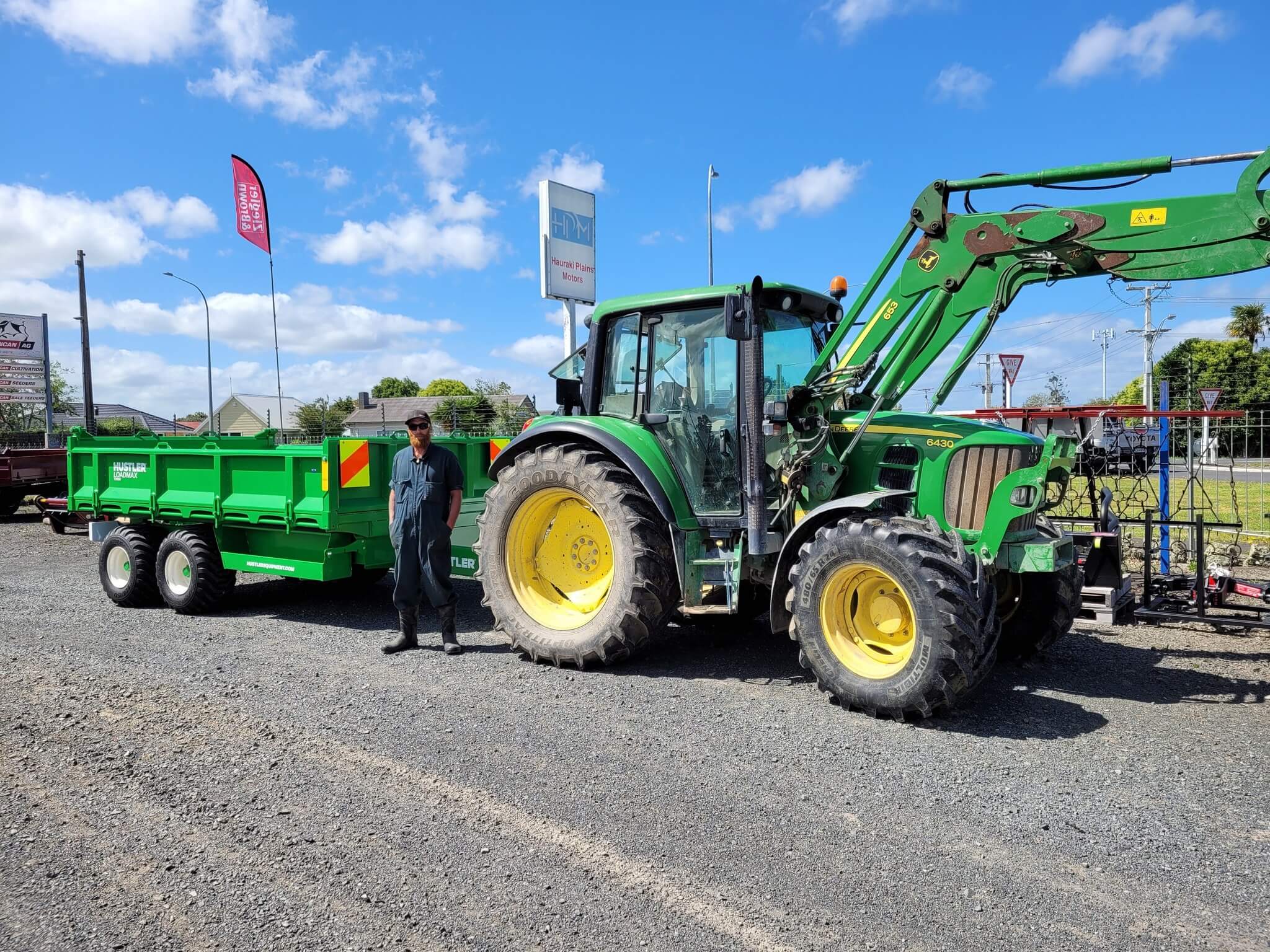

Colin Mathis, Tokoroa (New Zealand) – Loadmax TX114

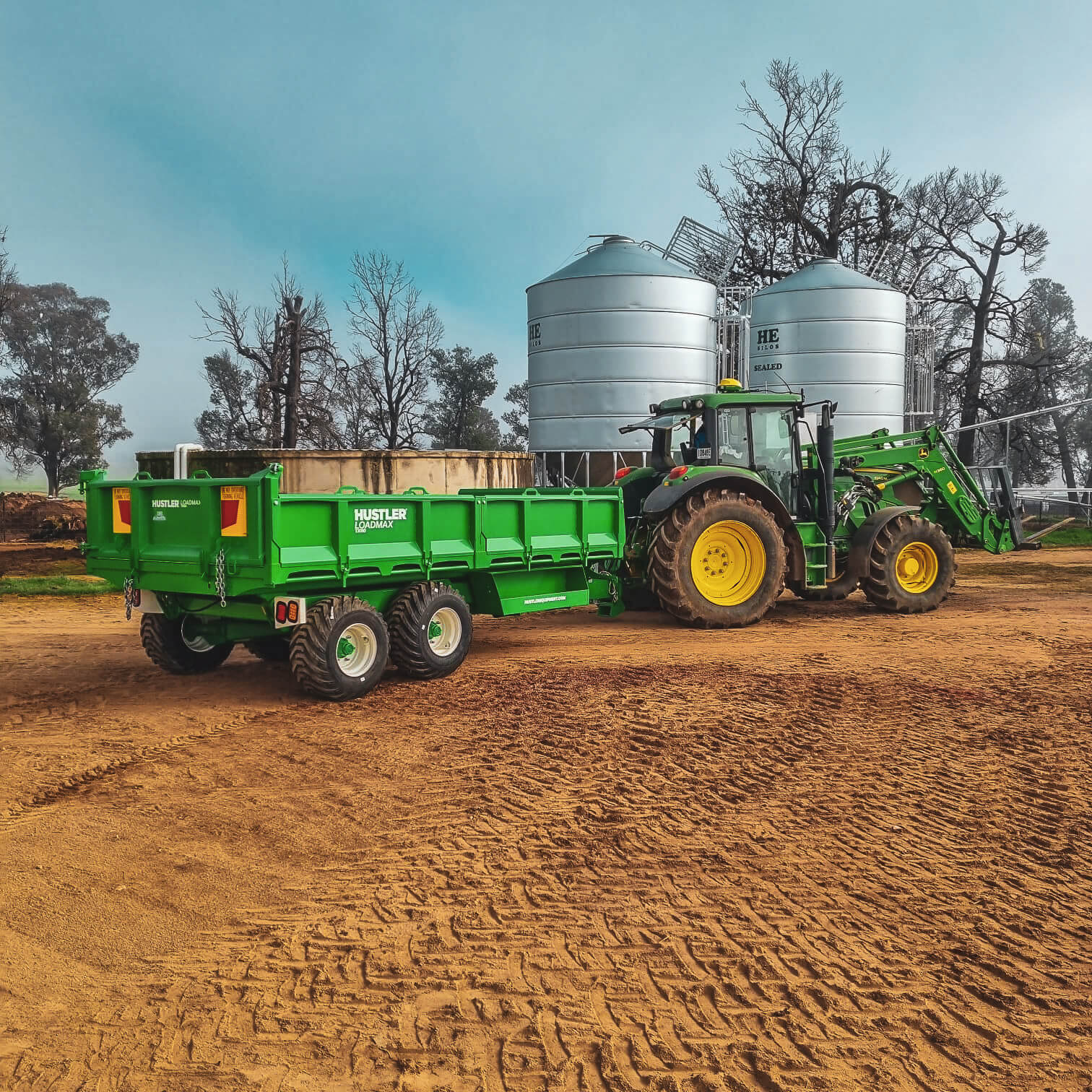

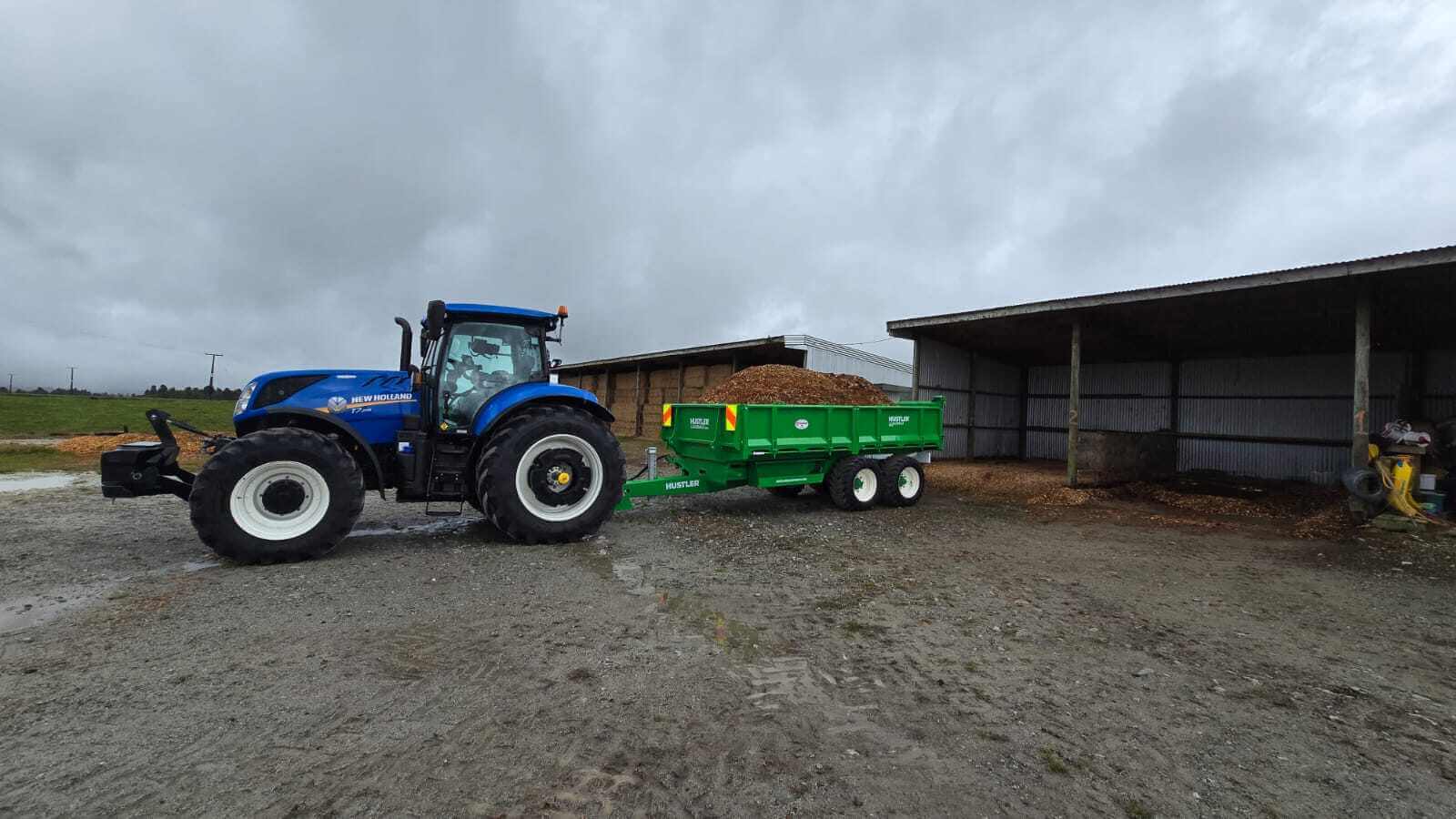

Nick Lissamon, Beef Farmer, Australia - LoadMax TX114

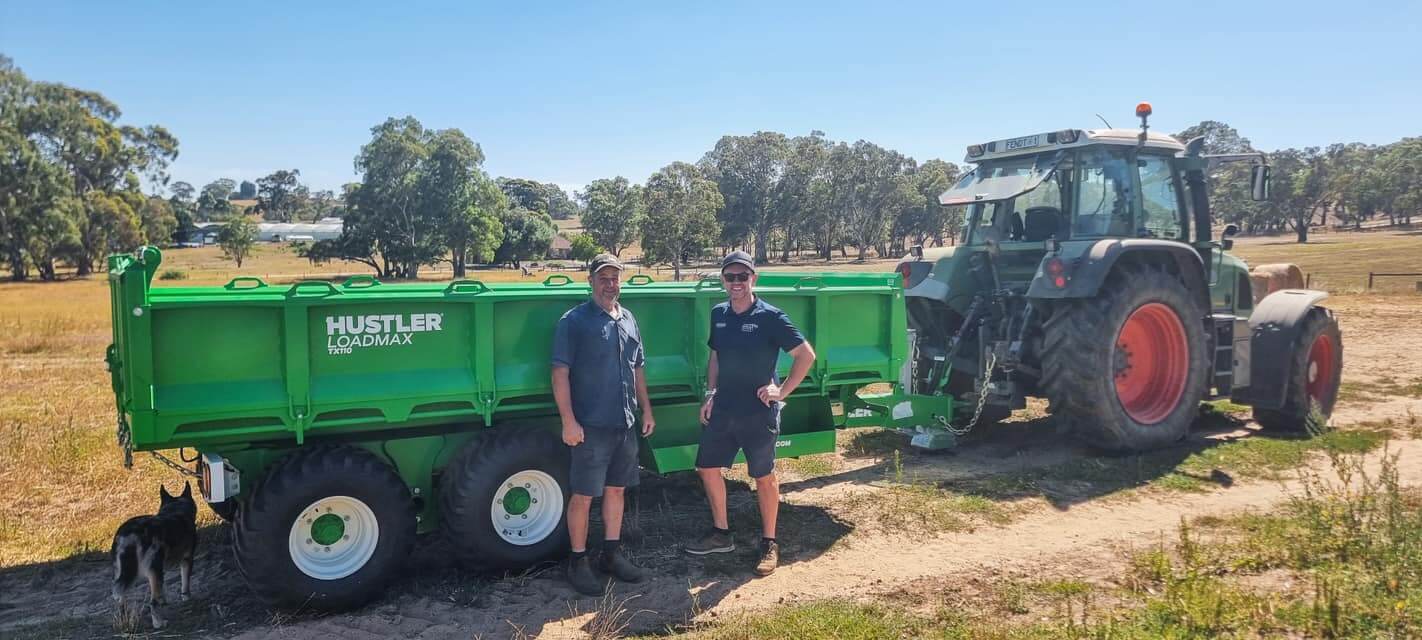

Matt Glennen, Dairy Farmer Austraila - LoadMax TX110

Nigel Parkinson, Fencing & Earthmoving Contractor, New Zealand - 3x LoadMax TX114

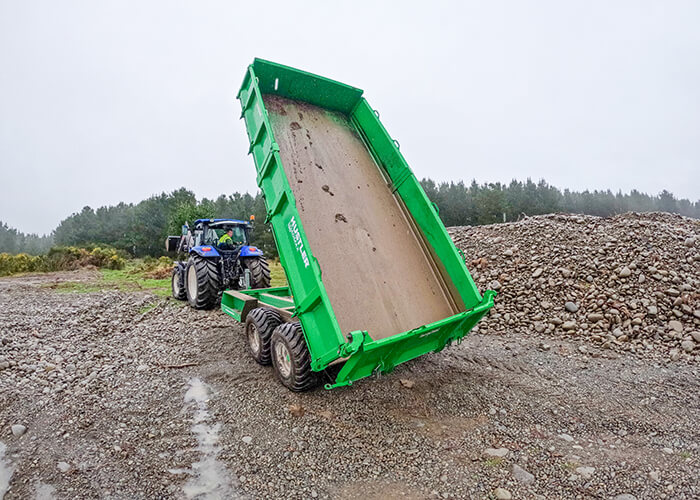

Mark Cox, Canterbury Plains (New Zealand) – Loadmax TX110

Hustler LoadMax Tip Trailer Range Walkaround

LoadMax Tip Trailer Explainer video

Product Customiser

Select the product, then options and accessories to create your enquiry.

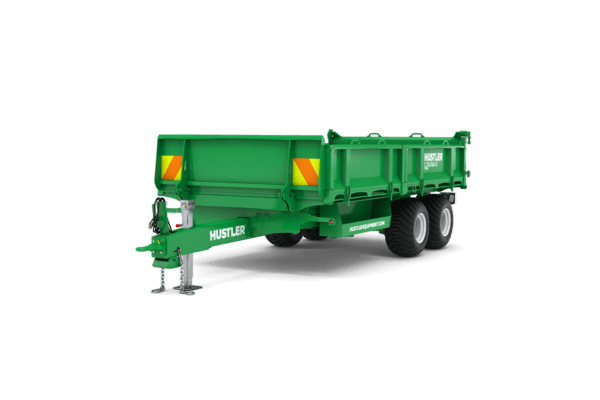

TX114

Includes as standard:

2 Wheel Brakes
Road Ready Kit

Select this model Select options
2 Wheel Hydraulic brakes

2 Wheel Hydraulic brakes

Hydraulically operated on two wheels.

Road Ready Kit

Road Ready Kit

Includes safety chains, LED lights & hazard panels.

2 Wheel Hydraulic brakes

2 Wheel Hydraulic brakes

Hydraulically operated on two wheels.

Road Ready Kit

Road Ready Kit

Includes safety chains, LED lights & hazard panels.

Features and Benefits

Angled top of sides Folding headboard Steep tipping angle Clever ram placement 2 speed jack Safety stand Massive tool-boxes Overbuilt chassis Toughest Axle Hydraulic taildoor release Dual swing tail door Tough reinforced sides 2-piece, removeable sides Hydraulic Drawbar Suspension

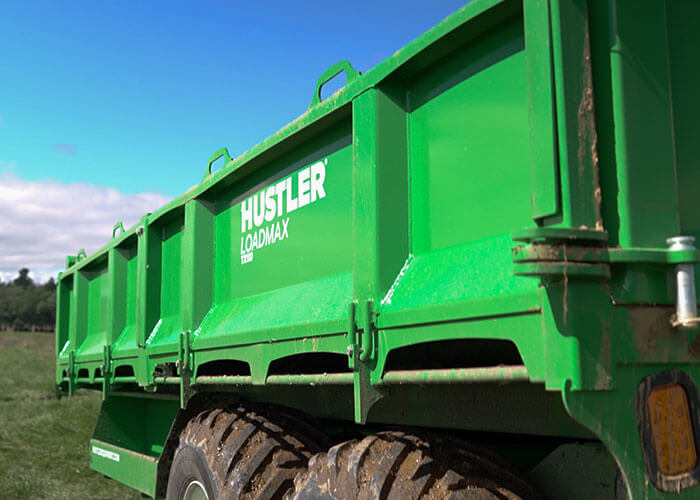

Angled top of sides

LoadMax’s angled top of sides not only gives more strength but also prevents dirt building up and dropping off as you drive down the road.

Angled top sides 700x500 1

Folding headboard

As standard LoadMax TX110 and TX114 come with a removable and folding headboard so you can carry more.

*LoadMax TX108 does not have a folding headboard, only removable

DSC09165

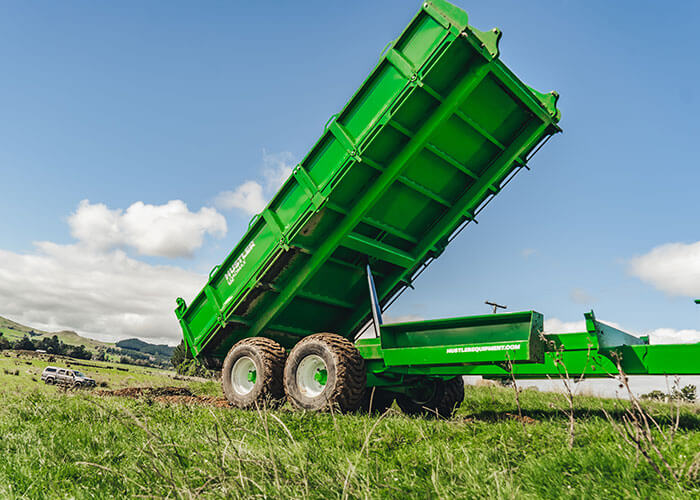

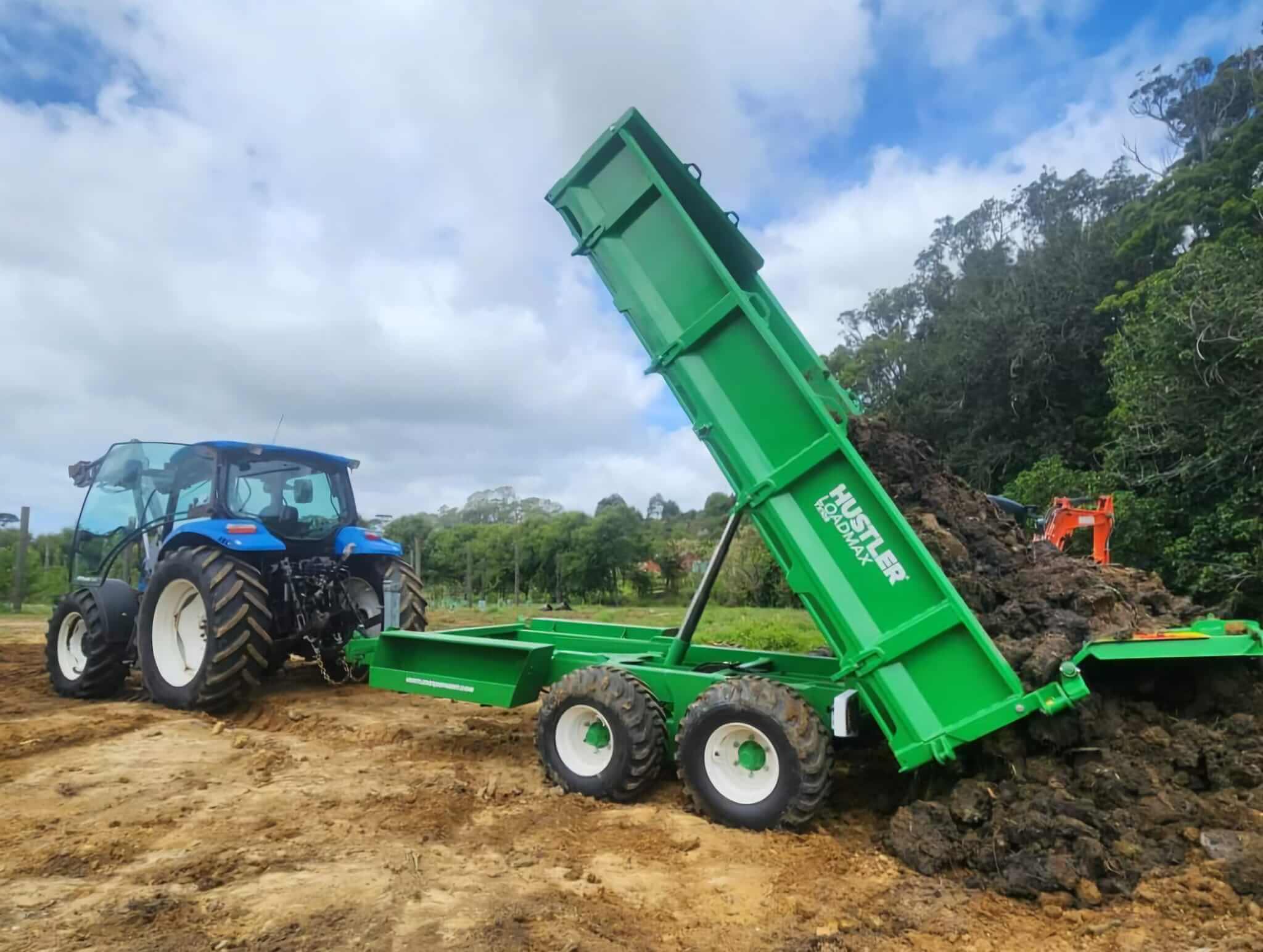

Steep tipping angle

Less dirt hung-up in the LoadMax thanks to a steeper tipping angle.

steep tipping angle 700x500 1

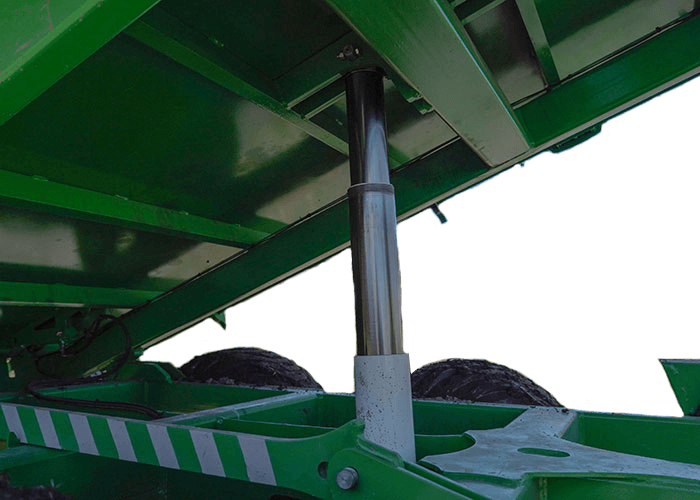

Clever ram placement

Our centre mounted vertical pushing ram provides more pushing power, and less stress for a more robust design, and the bottom is protected by the chassis.

feature shot template 700x500 clearcut1

2 speed jack

Massive 2 speed jack, and forged towing eye, leaves no stones unturned in the LoadMax design.

2 speed jack 700x500 2

Safety stand

As standard LoadMax has a built in folding safety bar for maintenance.

feature shot template 700x500 safety stand

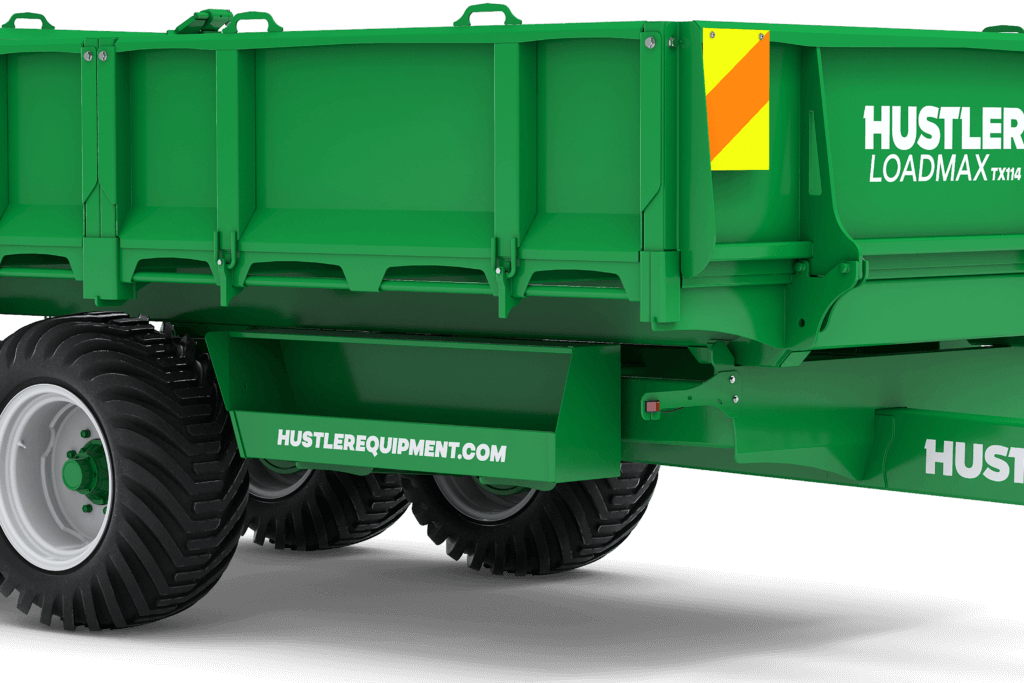

Massive tool-boxes

The huge tool-boxes as standard are a game changer for LoadMax with loads of room for straps or anything else you need to take with you.

LOADMAX TX114 Large Toolboxes

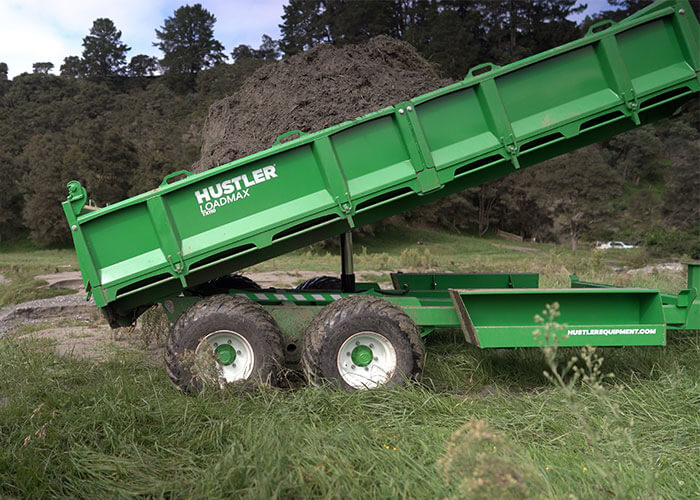

Overbuilt chassis

We recieved feedback farmers wanted a tough no nonsense trailer… so we over engineered every part of it! Nothing compares.

overbuilt chassis 700x500 1

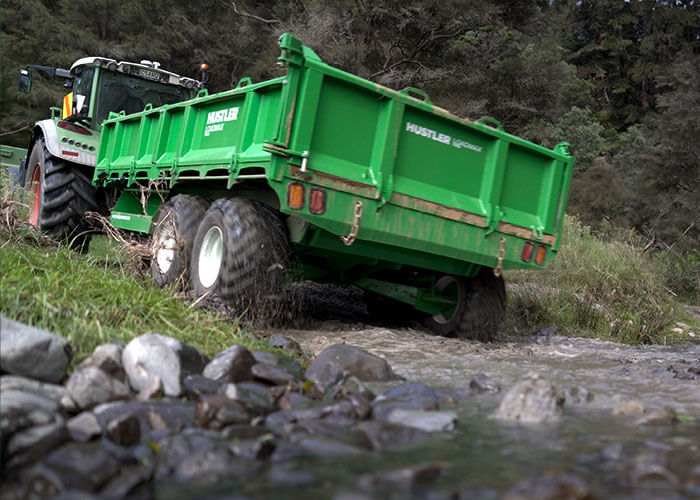

Toughest Axle

Our proven tandem axle with 4” diameter pins are indestructable. Never again will you need to replace bushes!

Toughest axel 700x500 1

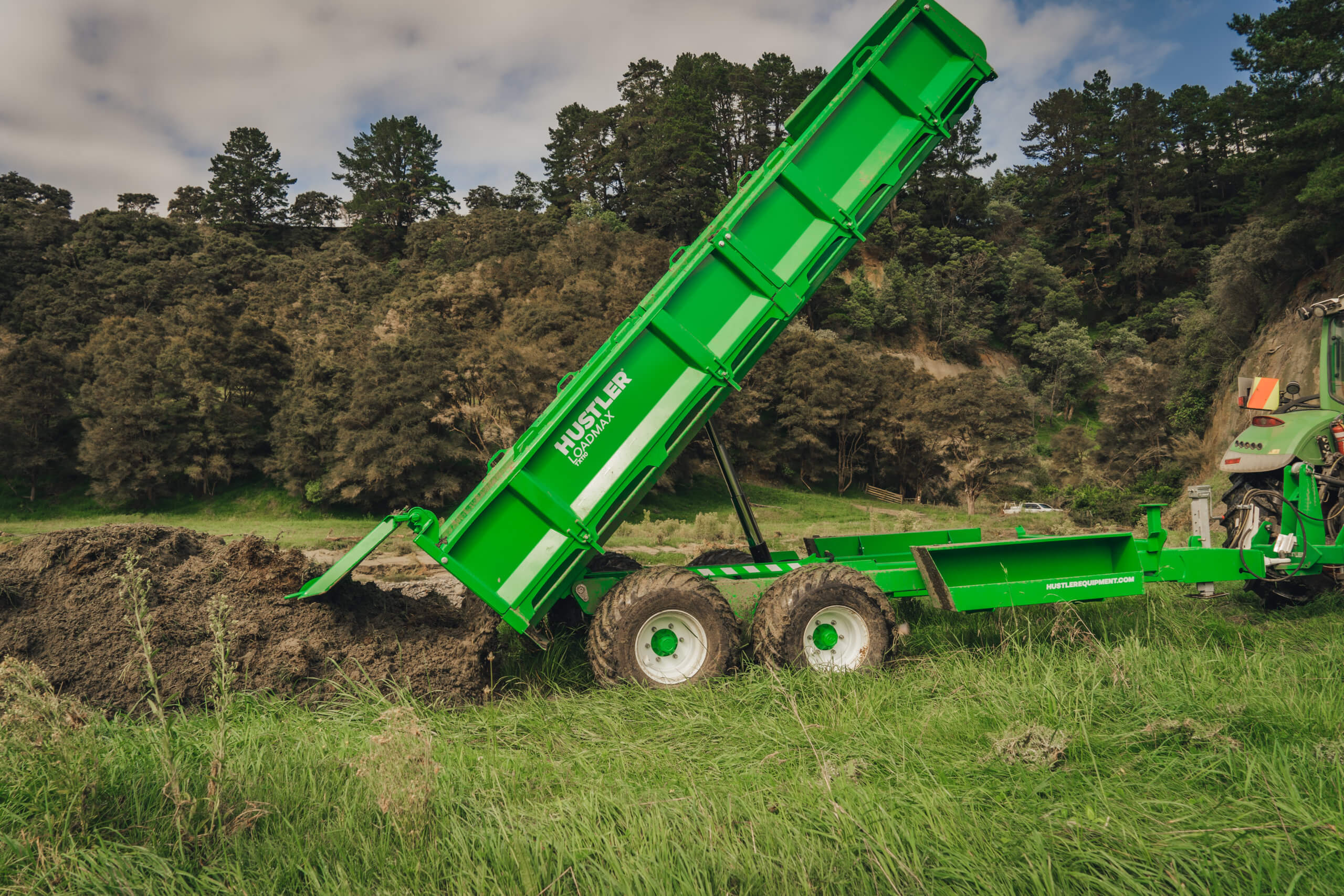

Hydraulic taildoor release

Gone are the days of wire-ropes or chains and frequent adjustment that comes with it. LoadMax features as standard a hydraulic tailgate trip and now you can control from the cab when to release the tailgate. This is also a safety feature for our dual-hinged design.

DSC03486

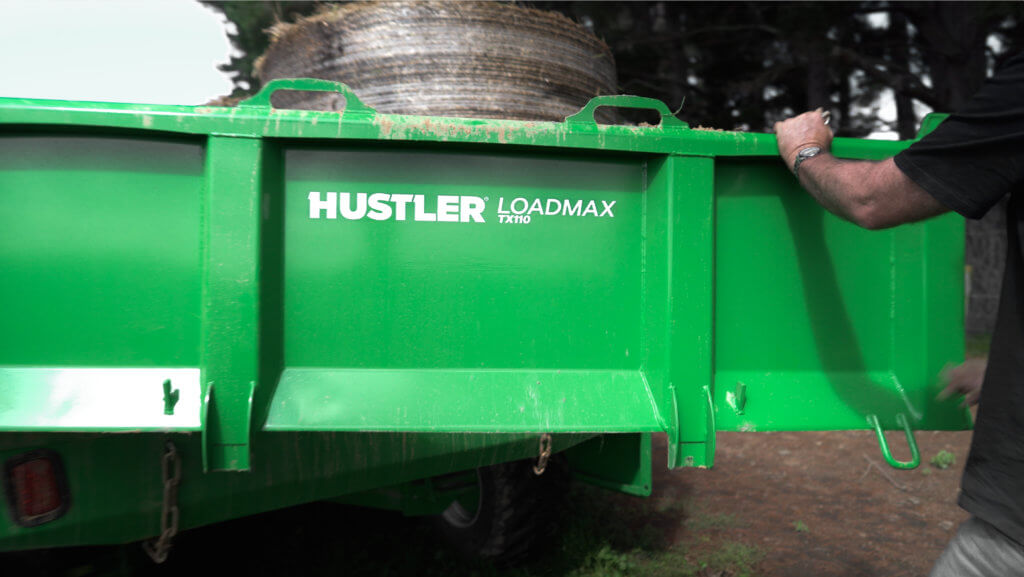

Dual swing tail door

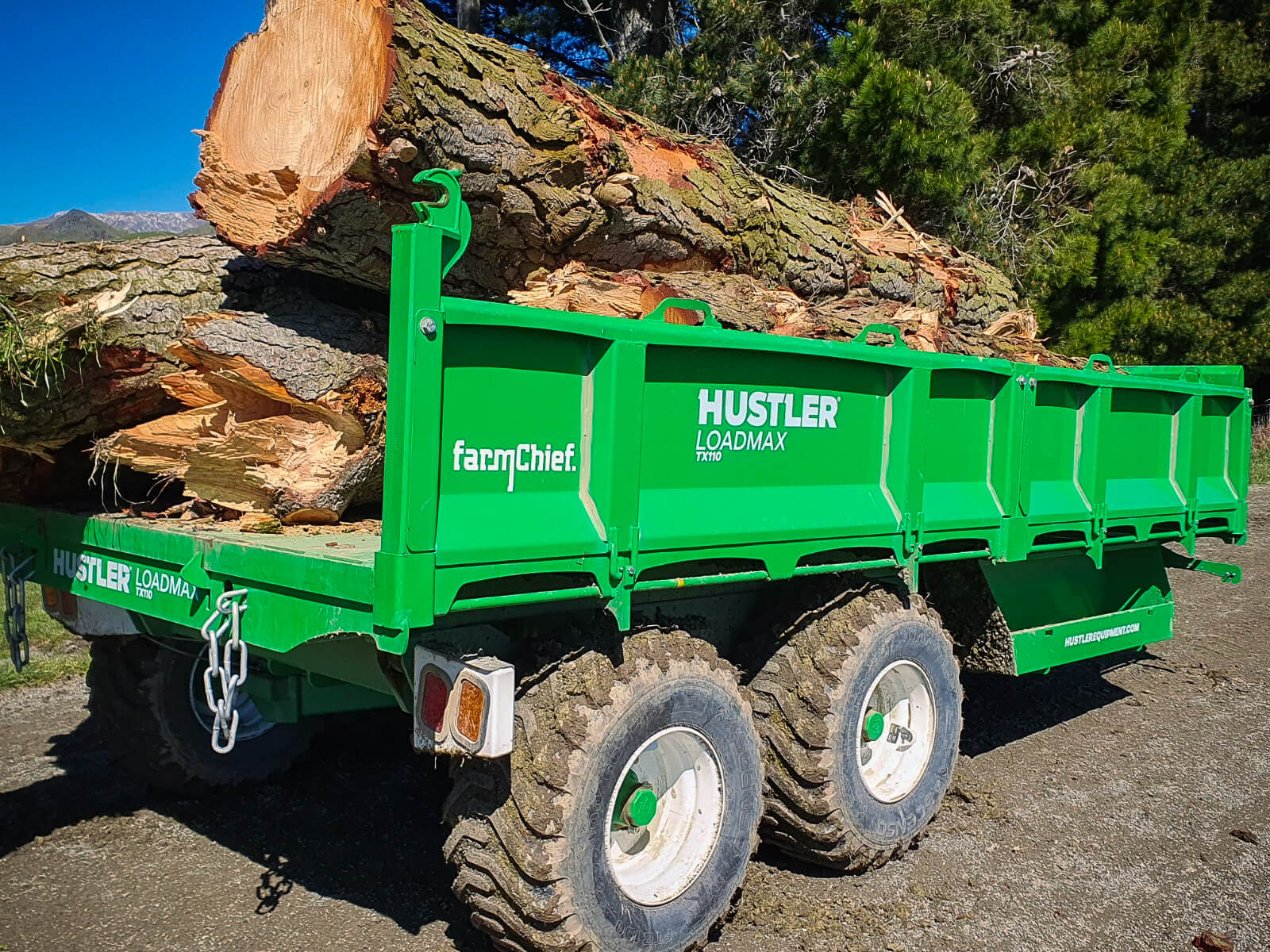

Standard LoadMax comes with a dual-hinged tail door for normal emptying and spreading or side folding for logs, rocks or machinery transport.

MicrosoftTeams image 23 2

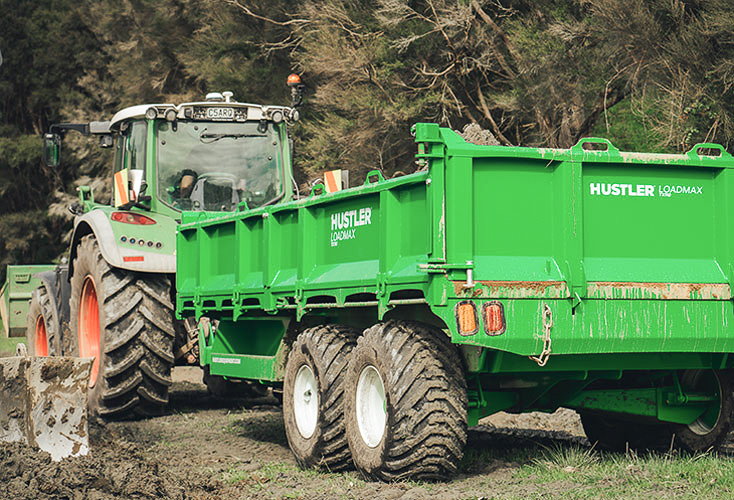

Tough reinforced sides

Tough reinforced sides, headboard and tailgate with quickly removable hinges handle the impact of heavy rocks.

Tough reinforced sides 700x500 2

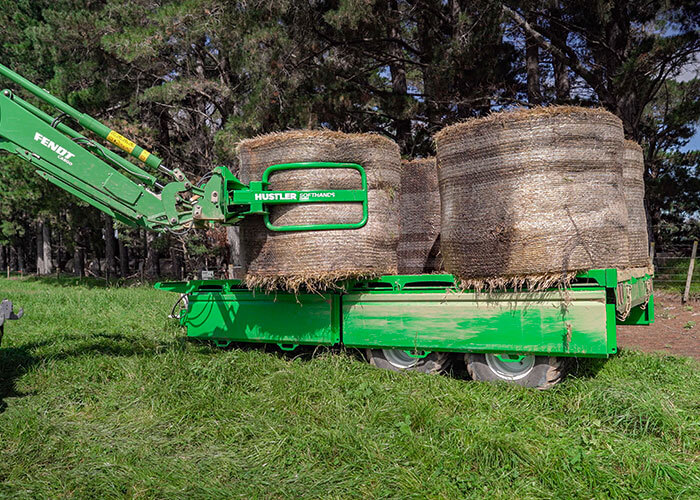

2-piece, removeable sides

2-piece removable sides with centre post for strength and lifting eyes make them easier to handle.

*LoadMax TX108 does have a single piece side



2 peice removeable sides 700x500 1

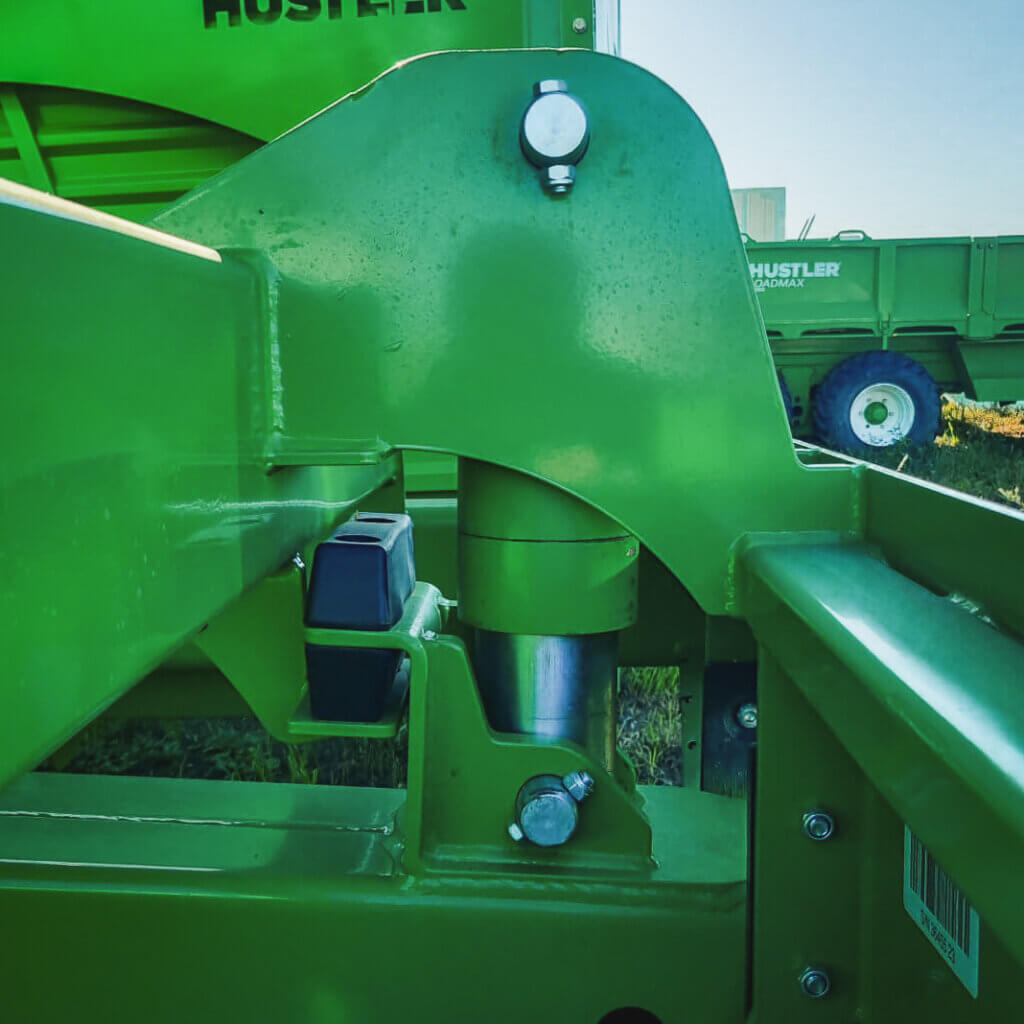

Hydraulic Drawbar Suspension (TX114² only)

A smooth ride is a safe ride and reduces driver fatigue. We developed the cutting-edge Hydraulic suspension system*, much like the front suspension on your tractor, for reliability, adjustability, and a silky smooth ride that cannot be matched by a coil or leaf type spring.

This advanced suspension system minimizes wear and tear, ensuring better protection for your gear and it’s ready to handle the toughest jobs with ease.

* This only applies to TX114².

HydraulicDrawbarSuspension

Specifications

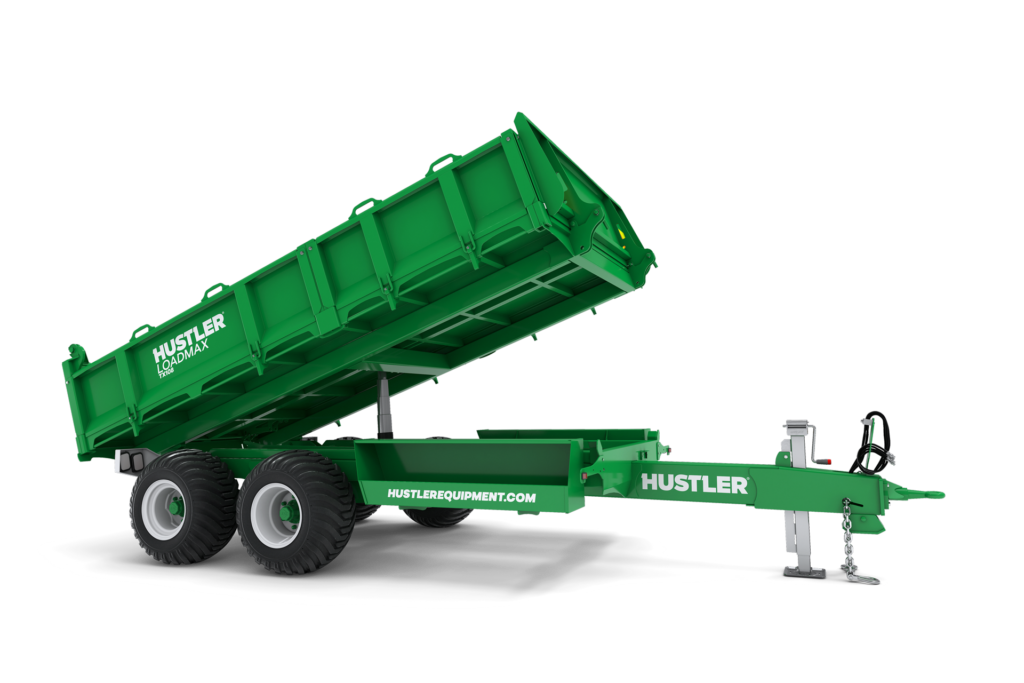

  • TX108
  • TX110
  • TX114
Deck size 4000 x 2400 mm | 157.4 in x 94.4 in
Side height 500 mm | 19.4 in
Capacity (load-level) 4.8 m³ | 6.2 yd³
Lift capacity 8 Tonnes | 17,600 lb
Wheels 400/60 x 15.5
Axle size (tandem) 70 x 6 stud walker
Eye type 2” Swivel
Sides Single-piece sides
Tailgate Dual swing
Tailgate trip Hydraulic
Tipping angle 58º
Hydraulics required: 1 x double-acting, 20-40 litres/min (5.3-10.5 gal/min), 2610 psi maximum
Tare weight: 2970 kg | 6548 lb
Deck size 4500 x 2400 mm | 177.1 in x 94.4 in
Side height 500 mm | 19.4 in
Capacity (load-level) 5.4 m³ | 7 yd³
Lift capacity 10 Tonnes | 22,000 lb
Wheels 400/60 R 15.5
Axle size (tandem) 70 x 6 stud walker
Eye type 2” Swivel
Sides Two-piece sides
Tailgate Dual swing
Tailgate trip Hydraulic
Tipping angle 60º
Hydraulics required: 1 x double-acting, 20-40 litres/min (5.3-10.5 gal/min), 2610 psi maximum
Tare weight: 3330 kg | 7341 lb
Deck size 4800 x 2660 mm | 188.9 in x 104.7 in
Side height 650 mm | 25.5 in
Capacity (load-level) 8.3m³ | 10.8 yd³
Lift capacity 14 Tonne | 30,800 lb
Wheels 500/50 x 22.5
Axle size (tandem) 80 x 8 stud walker
Eye type 2” Swivel
Sides Two-piece sides
Tailgate Dual swing
Tailgate trip Hydraulic
Tipping angle 60º
Hydraulics required: 1 x double-acting, 20-40 litres/min (5.3-10.5 gal/min), 2610 psi maximum
Tare weight: 4180 kg | 9215 lb

Use your mouse (desktop ) or your finger (tablet) to get a 360° view of the machine

360

What customers are saying

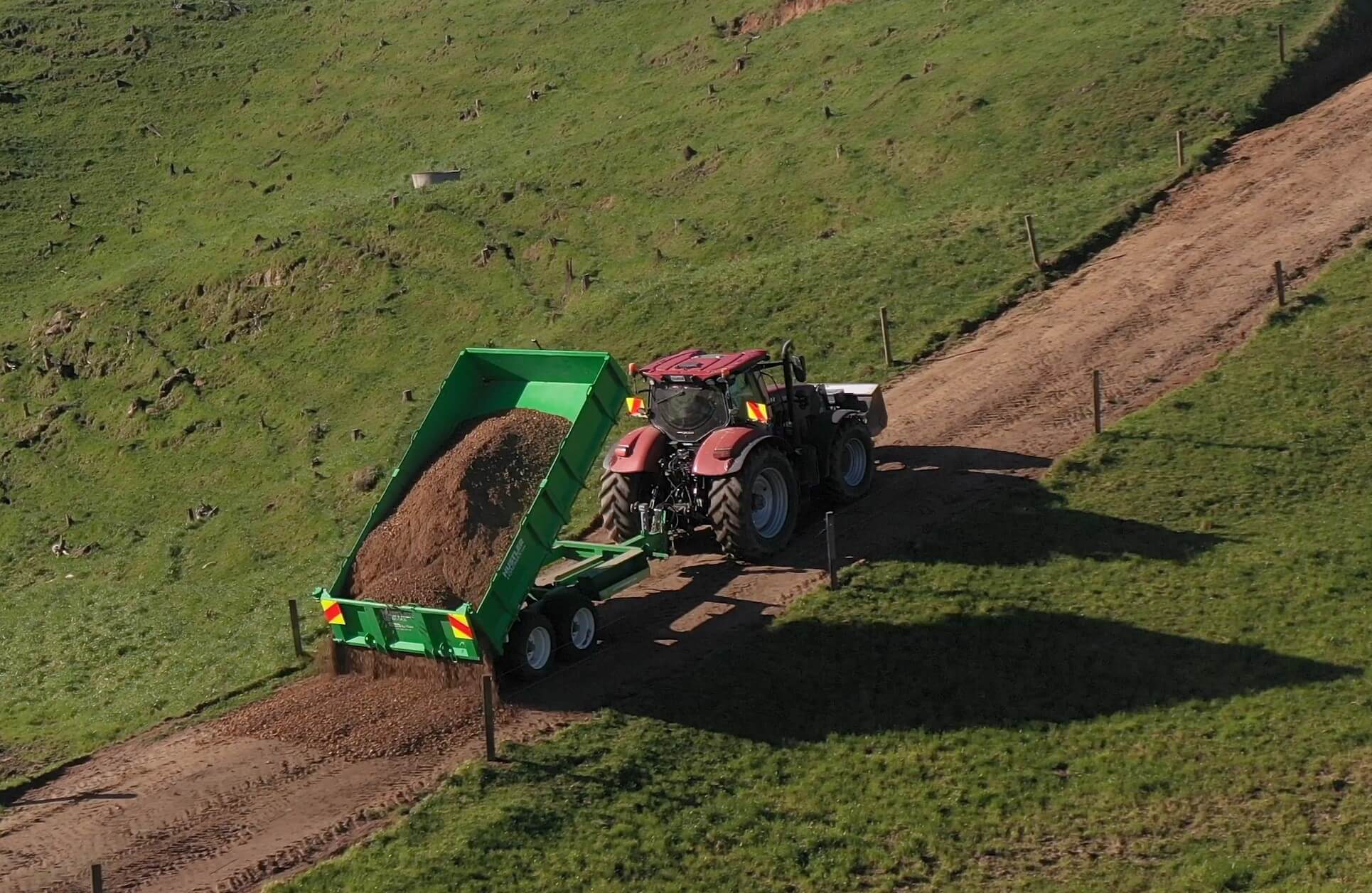

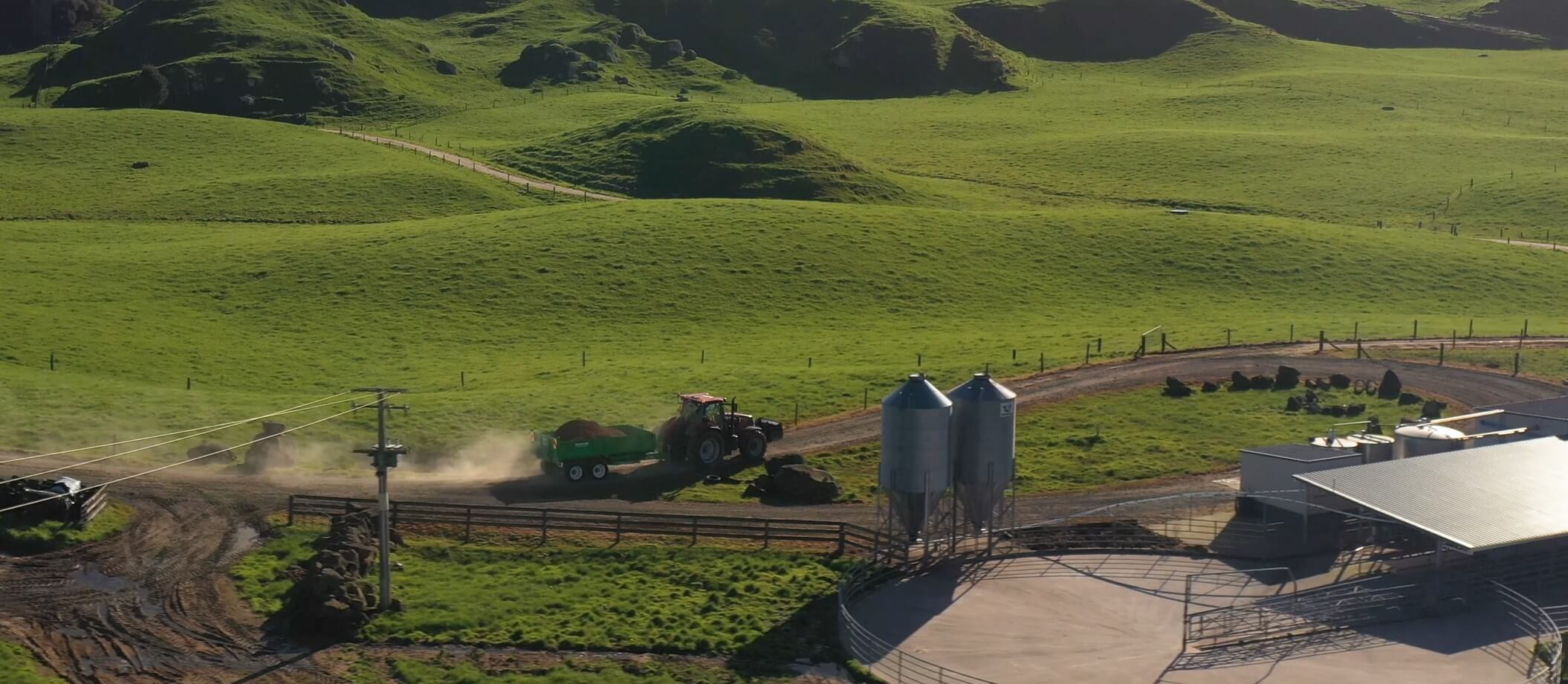

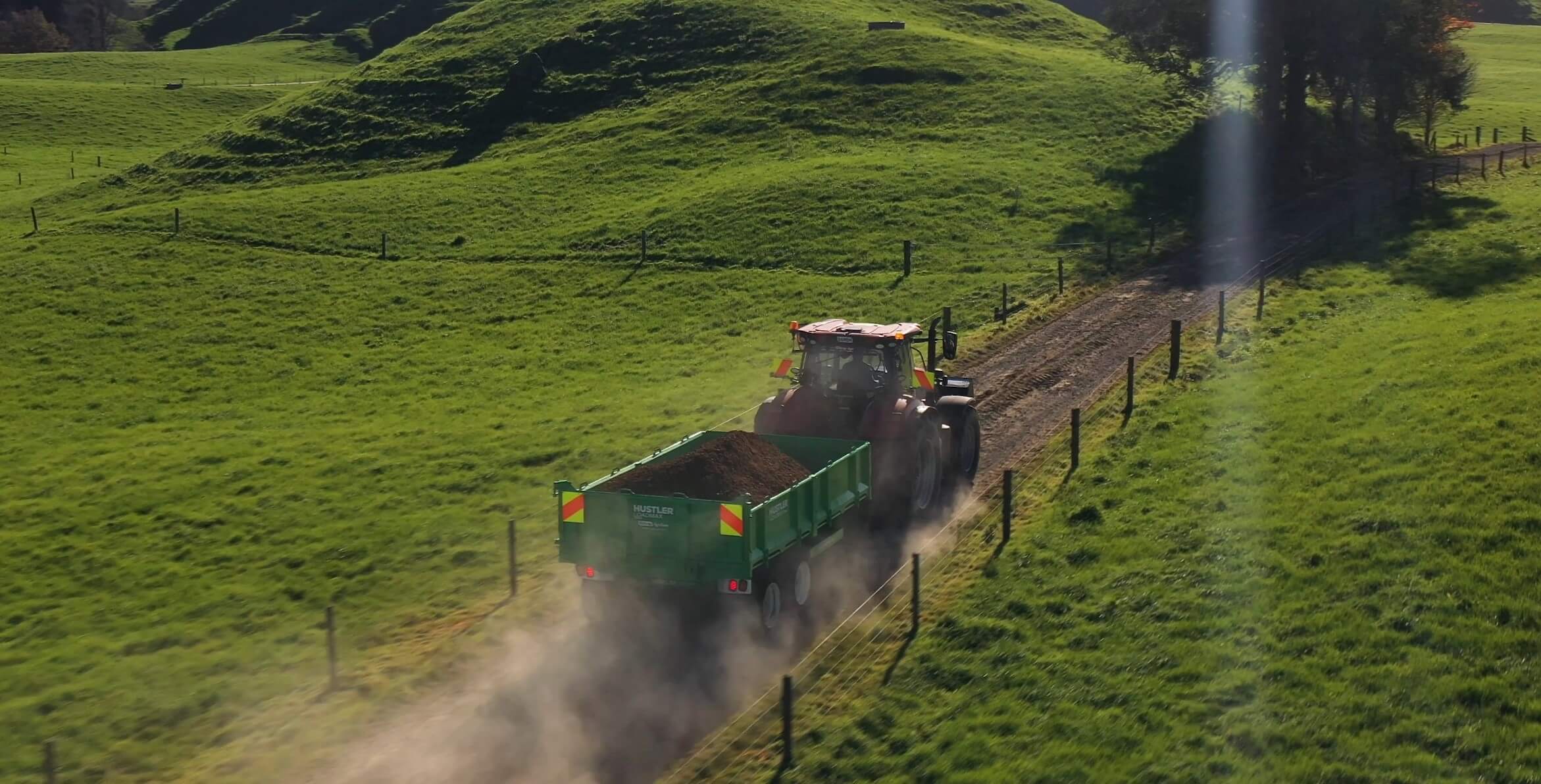

Colin Mathis 4

“I never had to use customer service or a parts number, because it doesn’t break.”

Colin Mathis, Tokoroa (New Zealand) - Loadmax TX114
Read more
mark cox

“The tipping feature with the automatic gate is great – easy to for the operator use”

Mark Cox, Canterbury Plains (New Zealand) - Loadmax TX110
Read more
