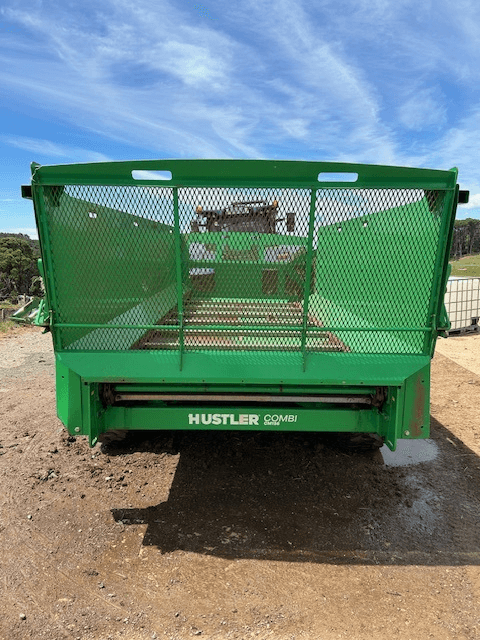

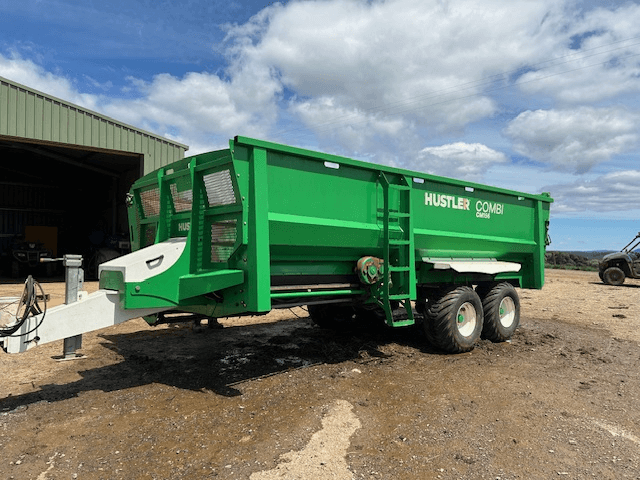

Hustler Combi CM156 Silage Wagon

LOADED WITH INNOVATION

• Feedpad spilling retention kit standard.
• Gearbox drives on all floors.
• Strongest 65×35 box section bolt on bars on X floor and rear floor.
• Covered shafts and proven steel floors last the life of the machine.
• All drives running on bearings.
• Scale ready which weighs when on the jack and attached to the tractor.
• Bolt on mudguards, access platforms and ladder standard.
• Central greasing on axle and difficult to reach bearings.
• Toughest axle design with massive 2,200cm2 of pivot surface area.
• Simplified loadcell integration for easier retro fitment of scales.
• Elevator stands up vertical for more compact transport mode.
• Lower maintenance front and rear elevator spill retainers as standard.
• Guarding and covers for hydraulic valves

SPECIFICATIONS

• Round Bales: 4-8
• Medium Square Bales: 4-8
• Large Square Bales (8ft): 2-4
• Loose Silage (Load Level): 15m3
• Loose Silage (Heaped Load): 17m3
• Maximum Load: 10,000kg
• Overall Width: 2720mm
• Overall Length: 7920mm
• Overall Height / Loading Height: 2300mm / 2150mm
• Bin width: 2290mm
• Bin length: 5775mm
• Tare Weight: 4,210kg
• Standard Tyres: 400 / 60 x 15.5 Flotation Grip Tread
• Axle: Tandem Walking Beam
• Brakes: Optional 2 or 4 wheel braking
• Weigh Scales: Optional Feedlink weighing and feed management system
• Floor: Welded Steel Floors
• Chains (Bed / X floor / Elevator): Twin 12,000lb Roller Chains
• Feed Bars (Bed / X Floor / Elevator): 65 x 35 RHS / 65 x 35 RHS / 40 x 40 RHS
• Joystick: Standard In-cab electric joystick
• Hydraulics Required: 2 pair double acting
• Elevator: 1645mm wide chain/slat
• Jack: 80mm 2 speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand
