ScoopMax Bucket Grabs

Hustler’s range of Bucket Grab’s helps you to get the max from your operation. Reducing wastage and increasing efficiency is what we are about, to help you achieve more everyday!

LM180  |  LM240  |  LX200  |  LX240

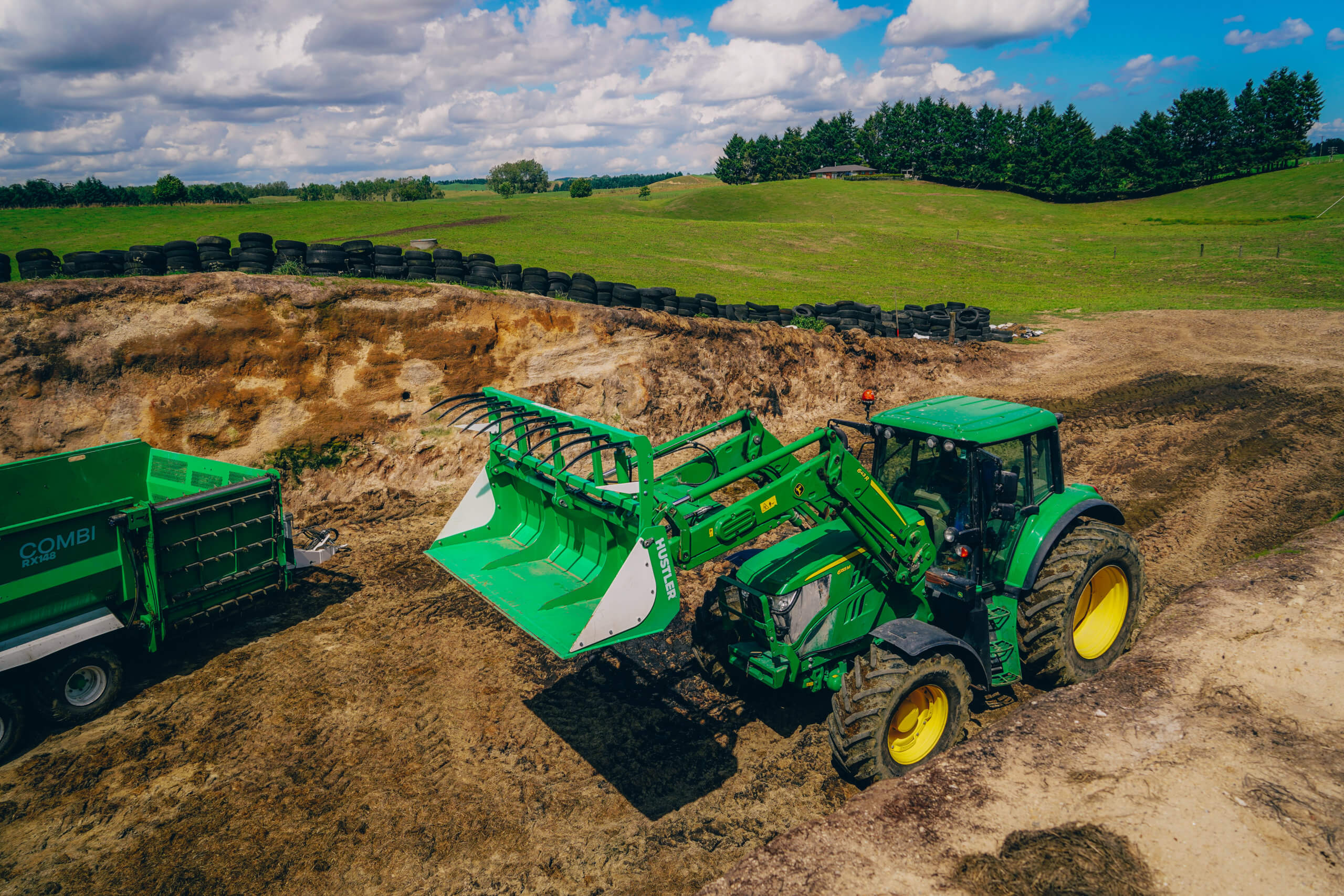

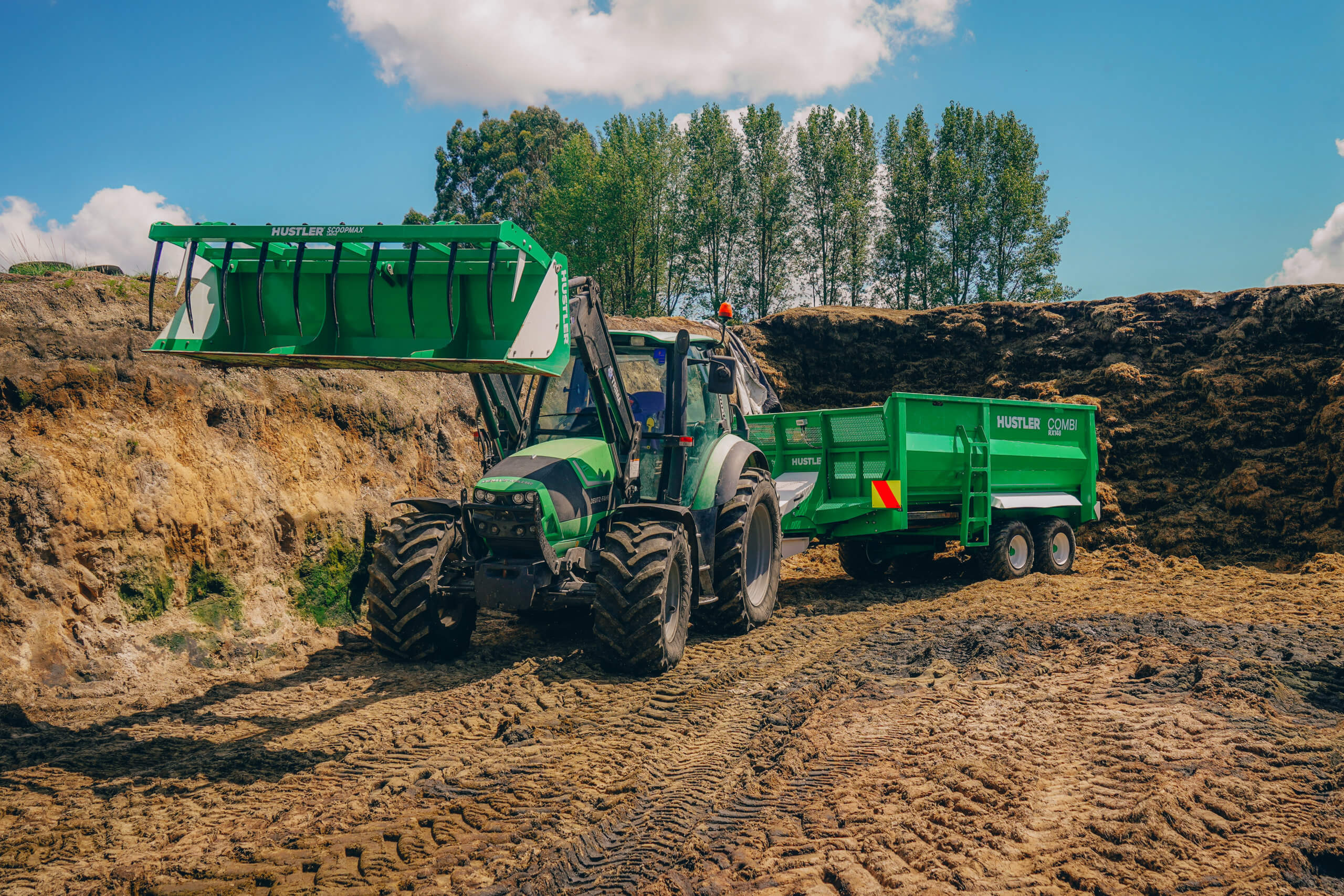

Loader mounted bucket grab for scooping, handling and loading loose feeds, silage, soil, rock and more

The ScoopMax range of bucket grabs is one of the most versatile attachments you’ll ever own! ScoopMax allows you to perform all duties you’d normally use a bucket for, thanks to the wide grapple opening with the added benefit of being able to clamp your load. ScoopMax reduces spillage when handling maize corn or other fine products for improved efficiency. The LM series for everyday farmers, and ultra heavy duty LX series for loaders, skid-steers, telehandlers, and shovel loaders have you covered.

5 Reasons to Choose ScoopMax

1. Extremely versatile

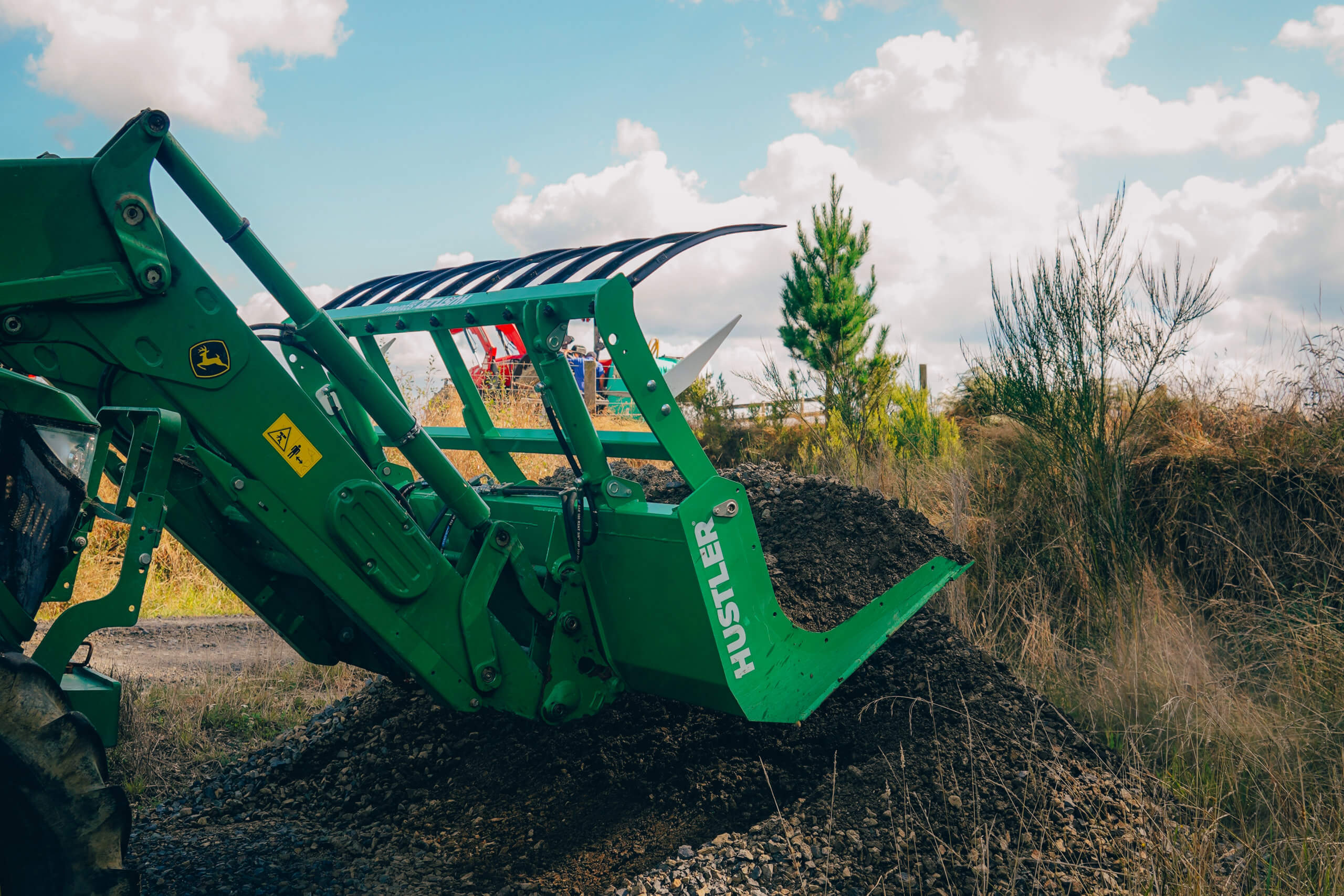

Handle anything from grains to logs, and everything in between. ScoopMax has the benefits of general purpose bucket, with the advantages of a grapple or silage grab.

ScoopMax Edited 2

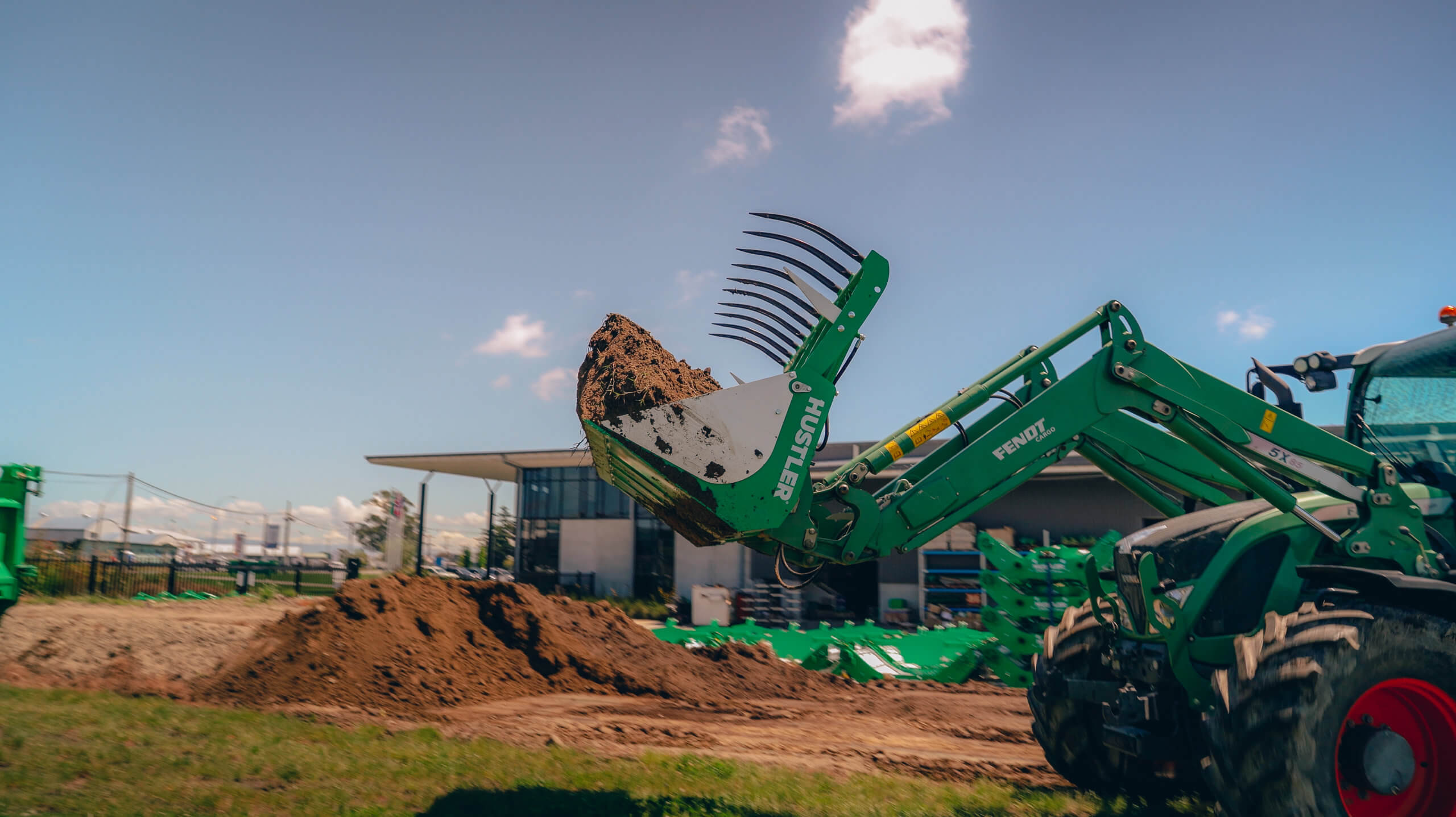

ScoopMax Edited 11

2. Reduced spillage

The removable sides gives you minimal spillage to reduce waste when handling or loading fine / loose products.

3. Tough design

From the reinforced and greaseable pivots and pins to the hardox HB500 cutting edge, ScoopMax is built for the long-haul. Backed by Hustler’s market leading 5 year warranty, giving you peace of mind that this will be used for years to come.

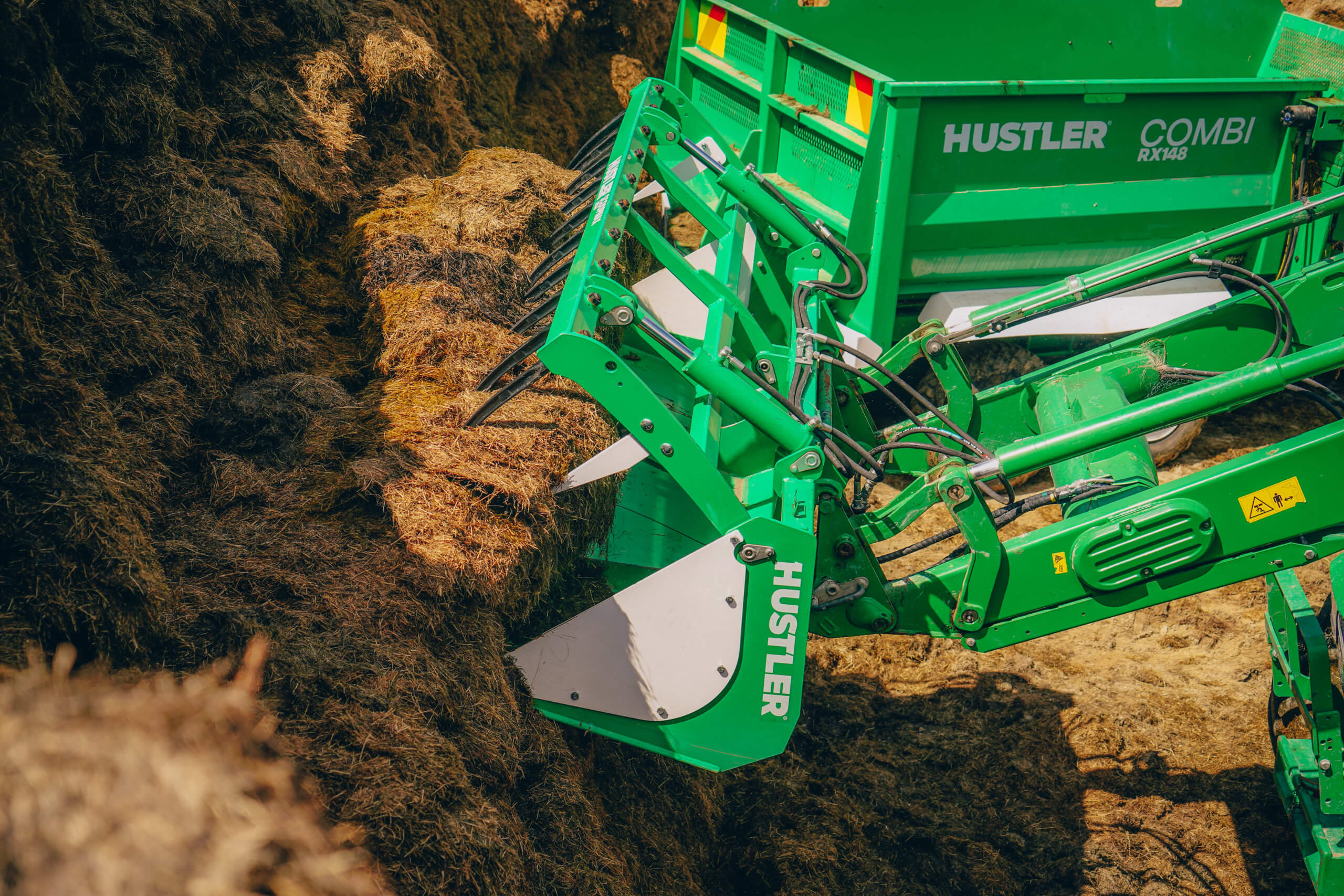

ScoopMax Edited 13
ScoopMax Edited 3

4. Removable Sides

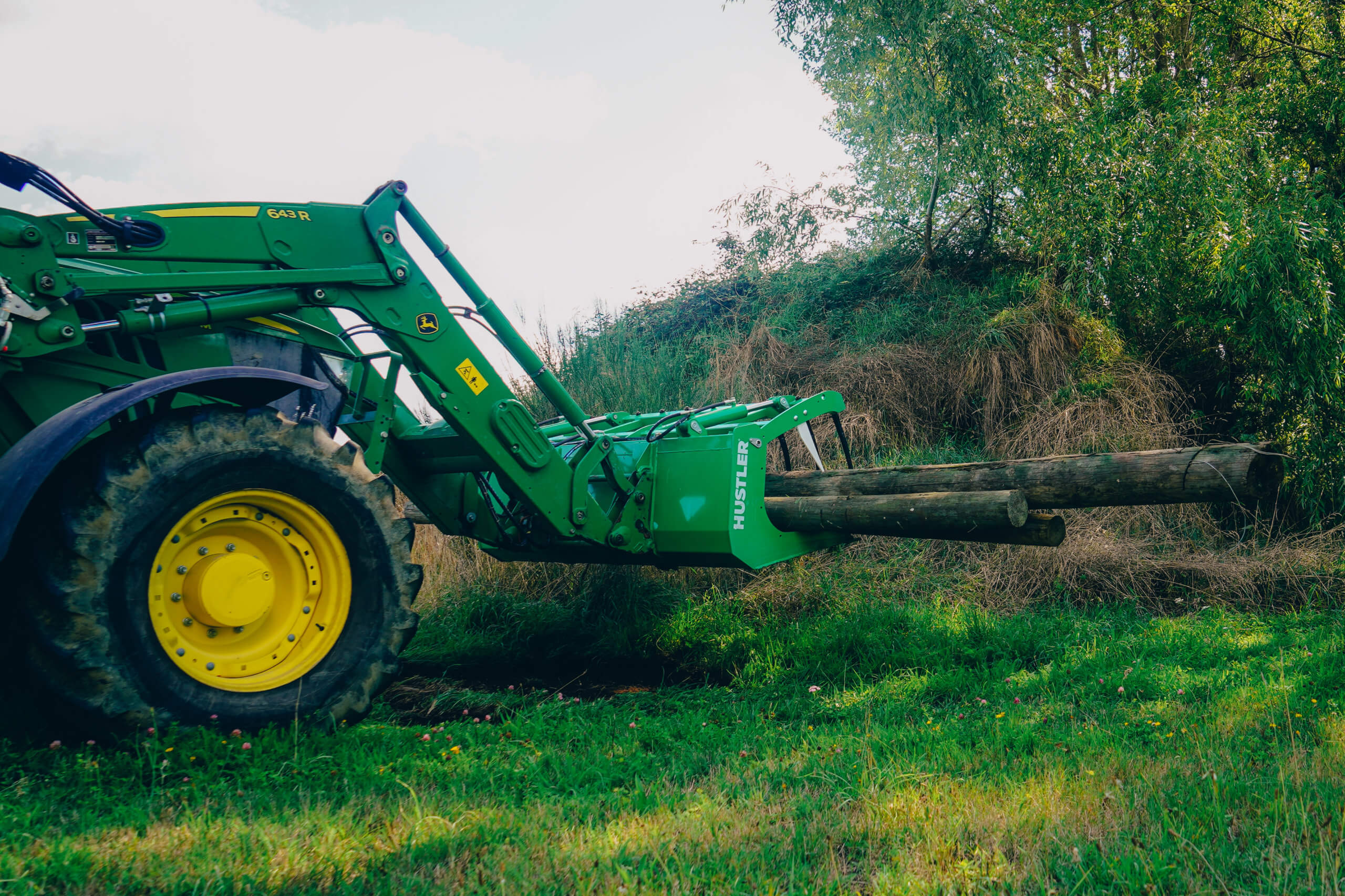

The removable sides make room for even more versatility allowing the handling of items that are longer than the buckets such as pipes or posts.

5. Unique clamp radius

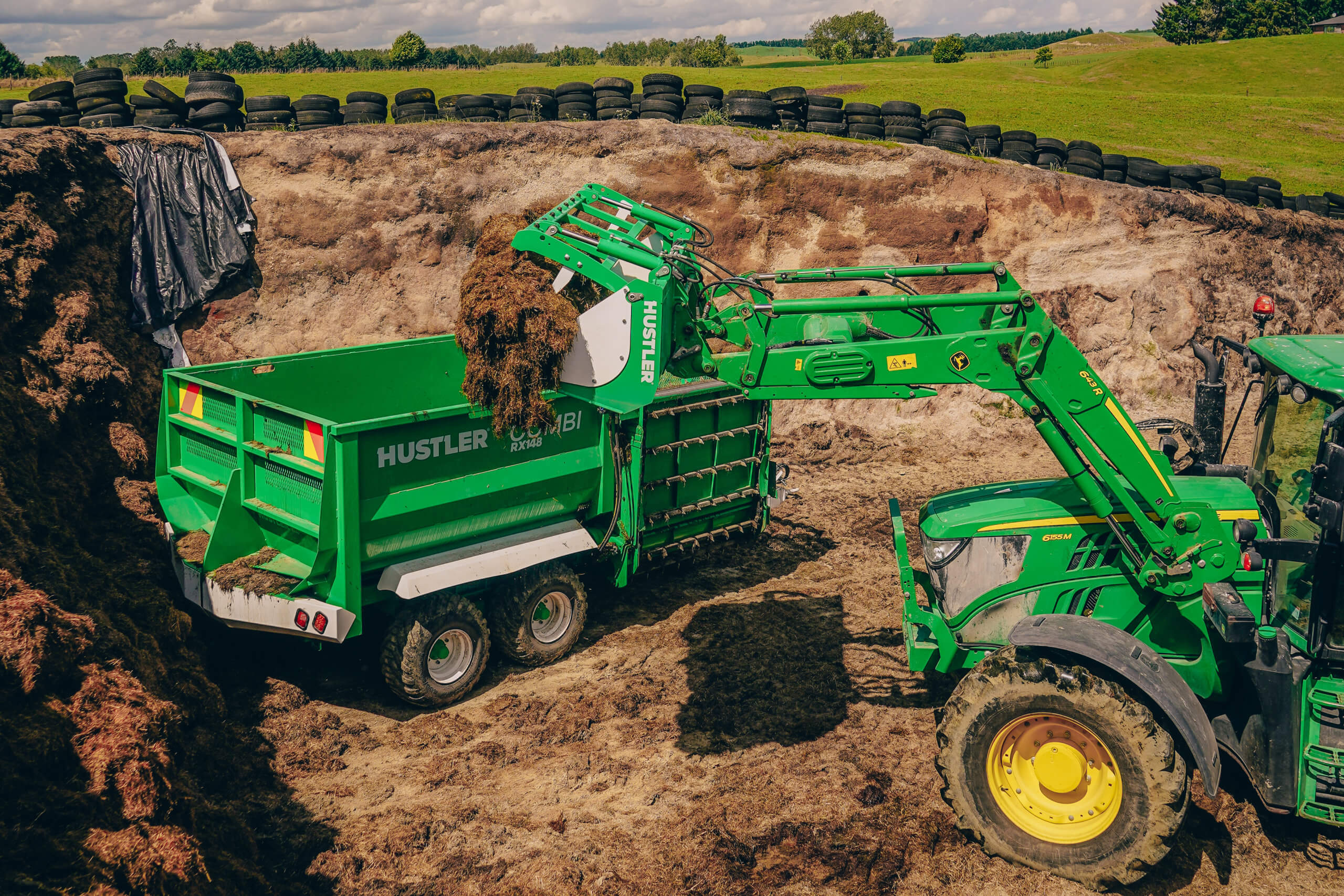

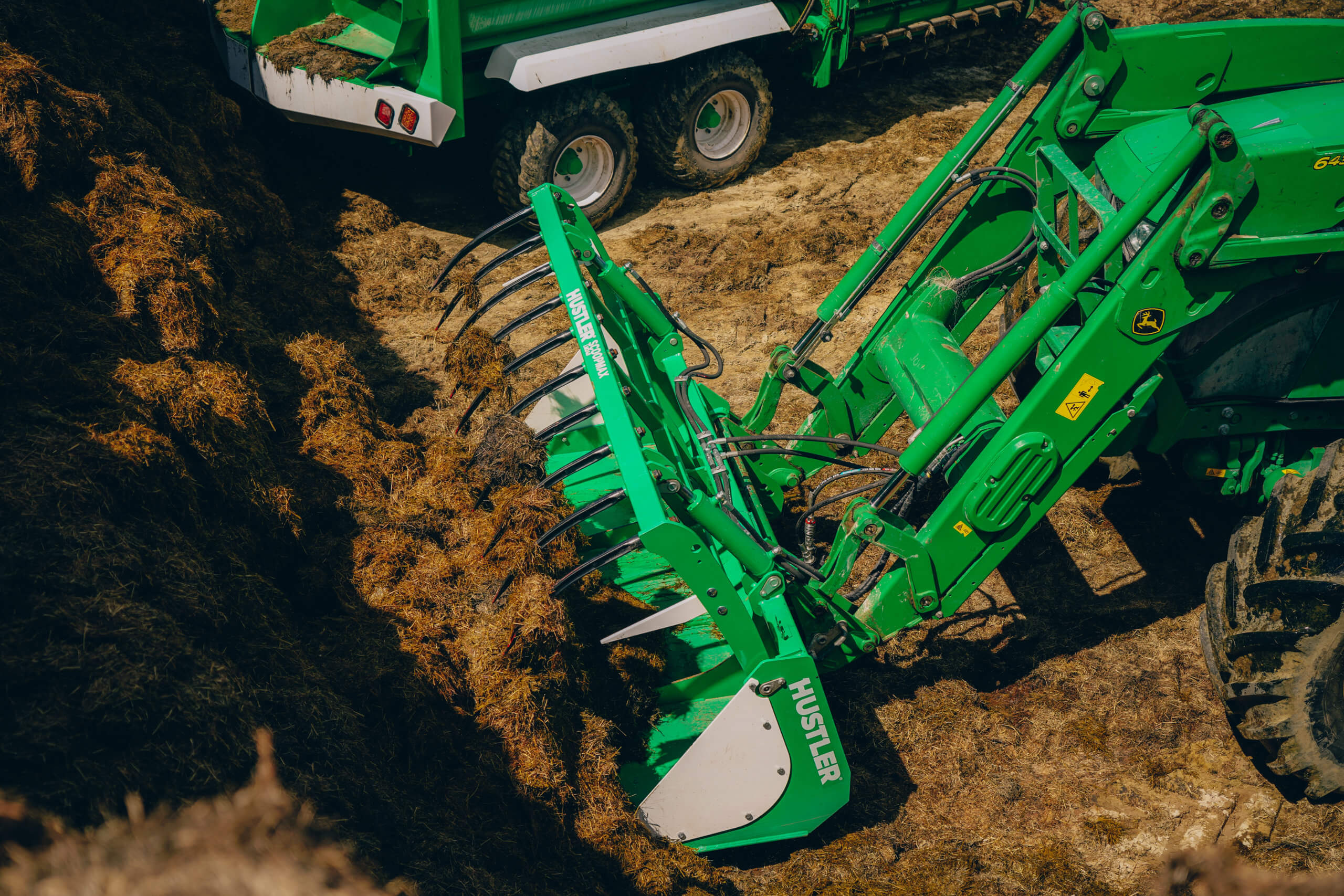

Our unique clamping radius makes for a near-perfect clamp curve keeping a very clean face on your silage pit.

ScoopMax Edited 9

Product Customiser

Select the product, then options and accessories to create your enquiry.

Euro Hitch Brackets

Euro Hitch Brackets

Euro Hitch Brackets

Euro Hitch Brackets

Euro Hitch Brackets

Euro Hitch Brackets

Euro Hitch Brackets

Euro Hitch Brackets

Features & Benefits

Removable bucket sides

Fully enclosed back reduces spillage and minimises waste. This also increases the structural strength of the grab.

Toughest cutting edge

110x16mm (4.33×0.629”) Hardox HB500 Abrasion Resistant cutting edge. Used in mining & earthmoving machinery, this gives the toughest cutting edge.

Reinforced pivots & pins

Reinforced and greaseable pivots and pins.

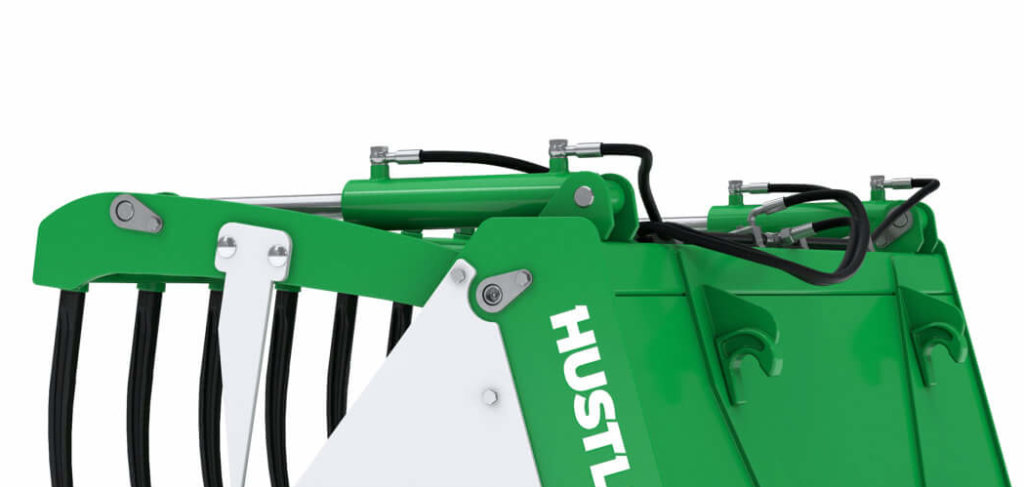

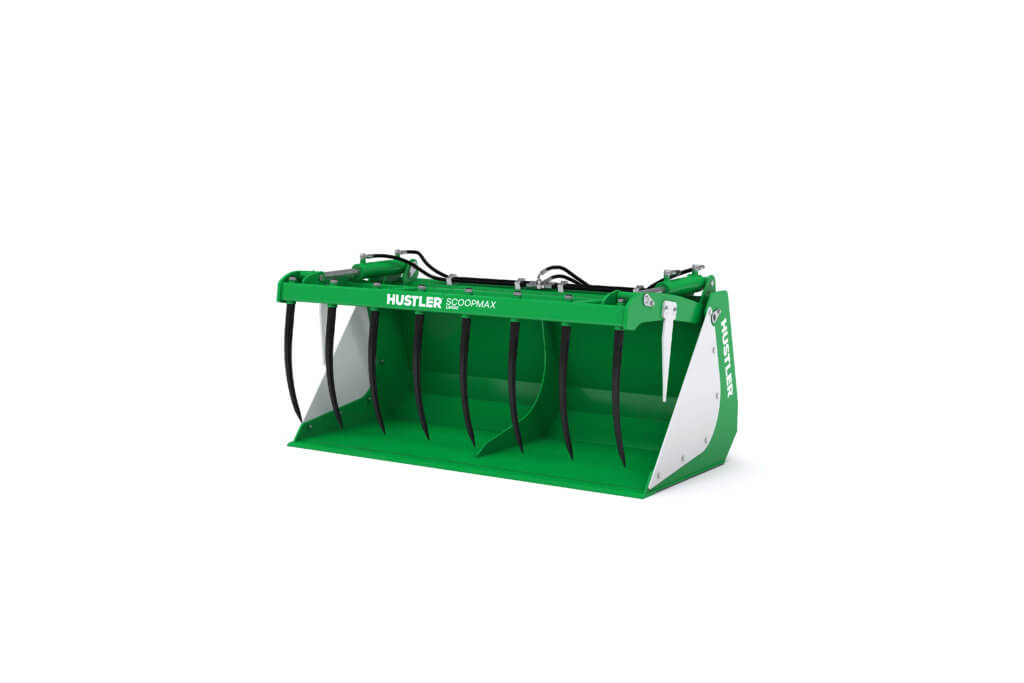

ScoopMax LM180 05 1

Side containment tines

Side containment tines come standard on the ScoopMax reducing spillage and minimises waste. Keep you pit face looking clean and decrease movements of loading created by spillage.

Efficient space utilisation

Large capacity with a compact design for improved visibility and loading.

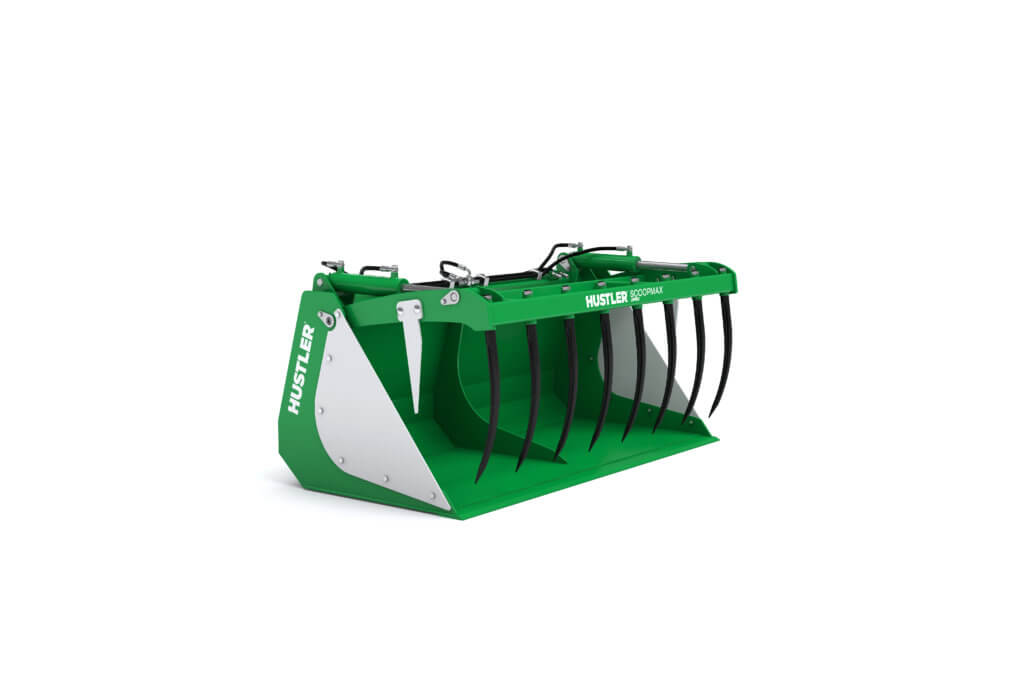

ScoopMax LM180 07

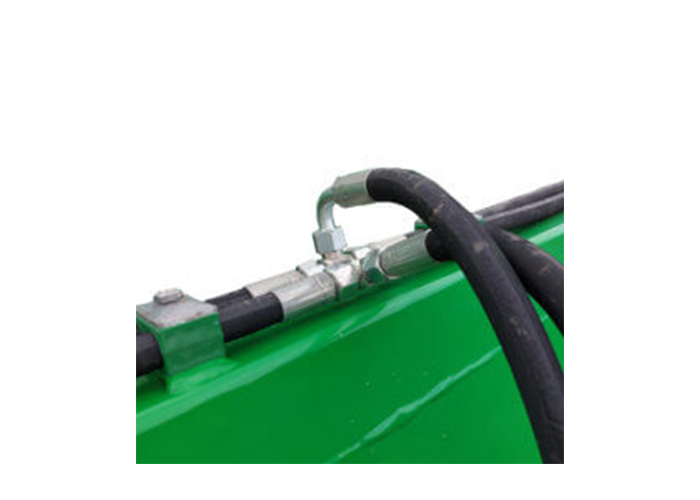

Hose exit

Central hose exit to remove risk of hydraulic hose snagging.

hose exit 700 500 3

Hydraulic hose holders

Location of hydraulic rams means more efficient use of the stroke of the ram due as it is a more natural movement of opening and closing of hand.

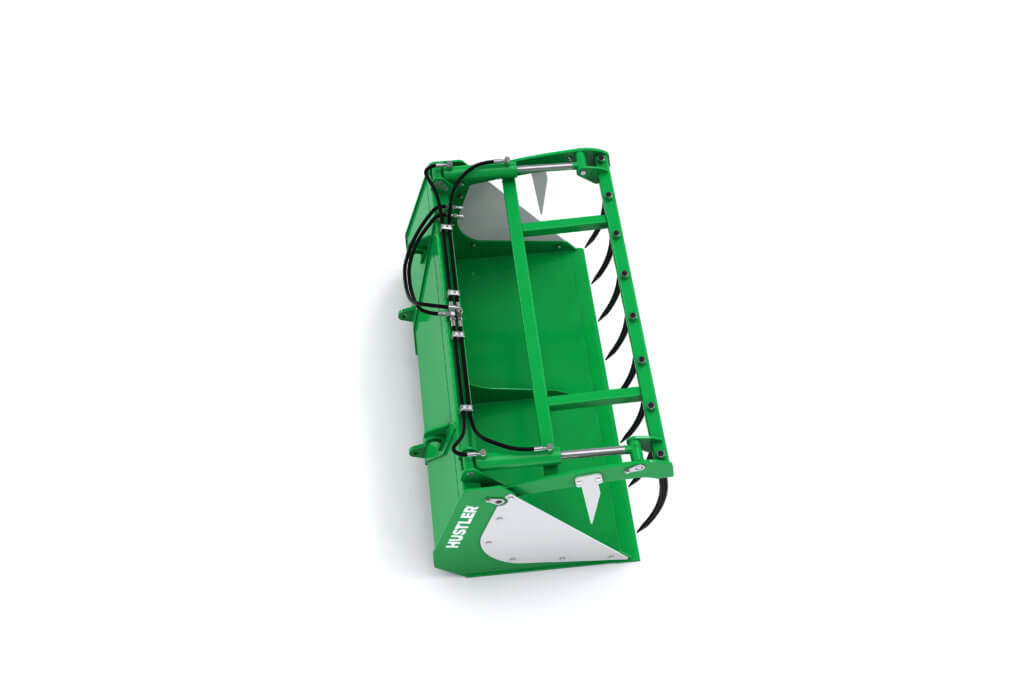

ScoopMax LM180 08

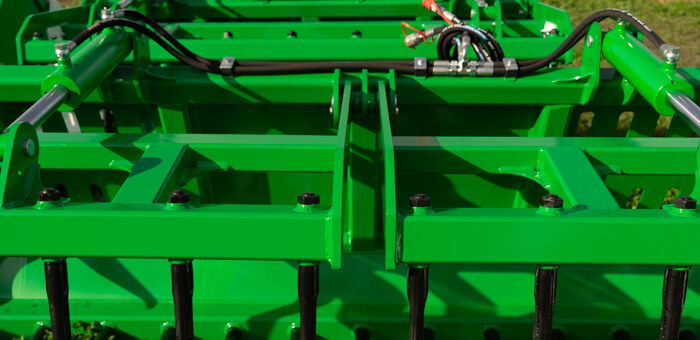

Split Clamp

Models over 2 metres (78″) wide have a split clamp which saves the steel from twisting constrains for a longer lifespan.

Split Clamp Grabmax scoopmax


Unit Weight 342kg | 753.9lbs
Dimensions (L x W x H) 1800mm x 1000mm x 845mm | 70.8" x 39.3" x 33.2"
Capacity 0.99 m³ | 1.29 yd³
Tines (top) 8 forged tines
Clamp Twin ram clamp
Unit Weight 430kg | 947.9lbs
Dimensions 2400mm x 1000mm x 845mm | 94.4" x 39.3" x 33.2"
Capacity 1.32 m³ | 1.72 yd³
Tines (top) 10 forged tines
Clamp Twin ram clamp
Unit Weight 541kg | 1192.7lbs
Dimensions 2000mm x 1150mm x 940mm | 78.7" x 45.2" x 37"
Capacity 1.44 m³ | 1.88 yd³
Tines (top) 10 forged tines
Clamp Twin ram, split clamp
Unit Weight 632kg | 1393,3lbs
Dimensions 2400mm x 1150mm x 940mm | 94.4" x 45.2" x 37"
Capacity 1.73m³ | 2.26 yd³
Tines (top) 11 forged tines
Clamp Twin ram, split clamp
