Swifthitch Snelkoppelingen

Swiftly connect to trailed implements at unbeatable speed.

SWIFTHITCH HEAVY DUTY | SUPER DUTY

Swiftly connect to trailed implements at unbeatable speed.

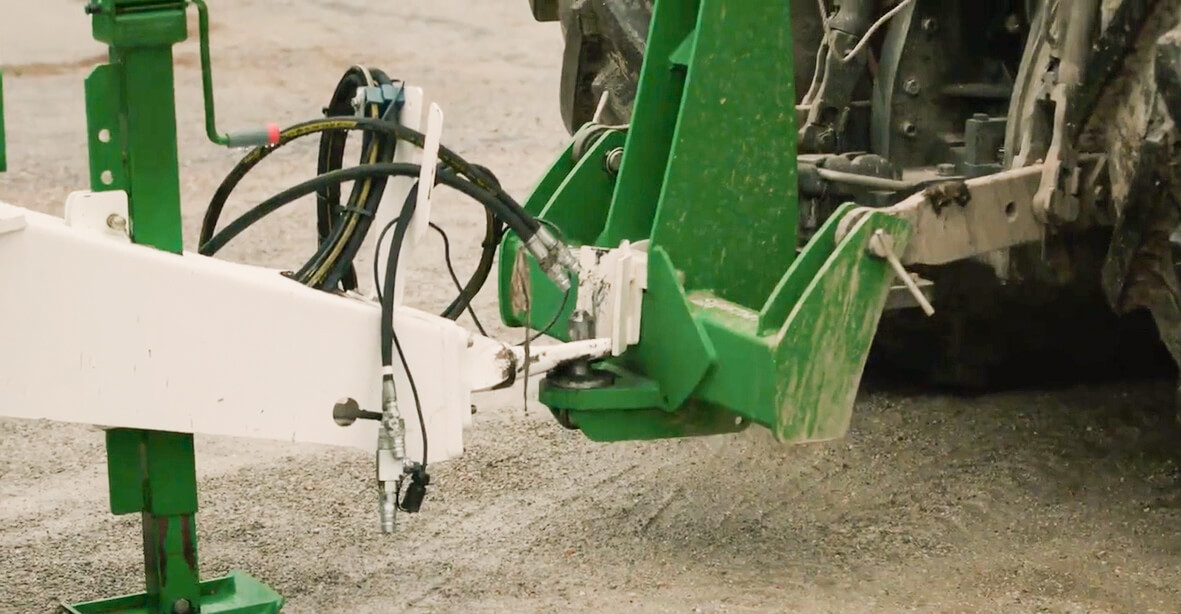

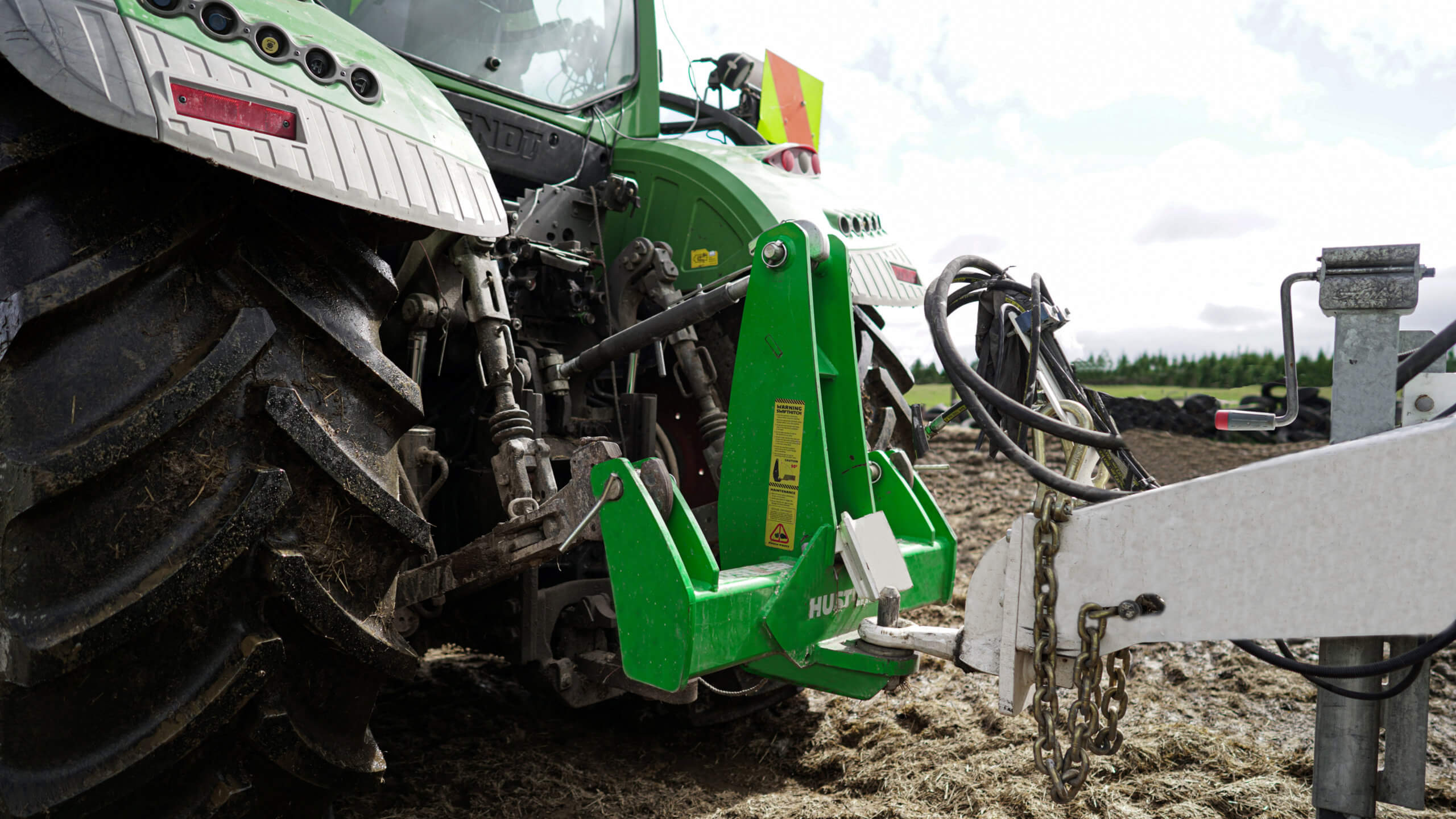

Hustler Swifthitch provides the operator with better visibility, more manoeuvrability and easier connecting than any towbar quick hitch on the market which makes it easier to use and saves your precious time. And it doesn’t stop there… it also has the strongest latching system providing more safety and you’ll never need to get the grinder and welder out to replace a wear pad again!

5 Reasons to Choose a SwiftHitch

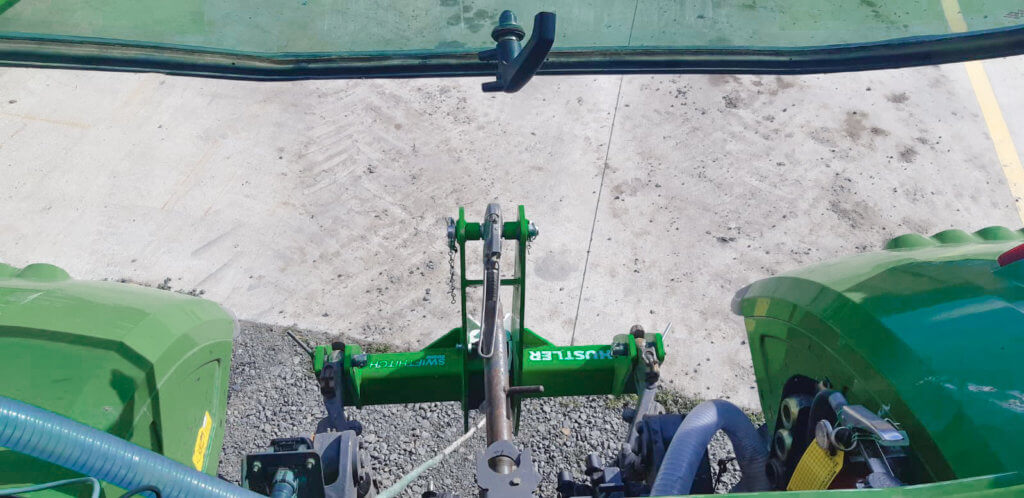

1. Industry Best Visibility

Cleanest and widest see through tower on the market, and a clear view to the top of the pin.

SwiftHitch Top View

2. Stands By Itself

Stands up on its own, making it easy to store, and connect to the tractor with huge lower linkage arm clearance. ISO standard hitch mounts ensure linkage arms go low enough to connect.

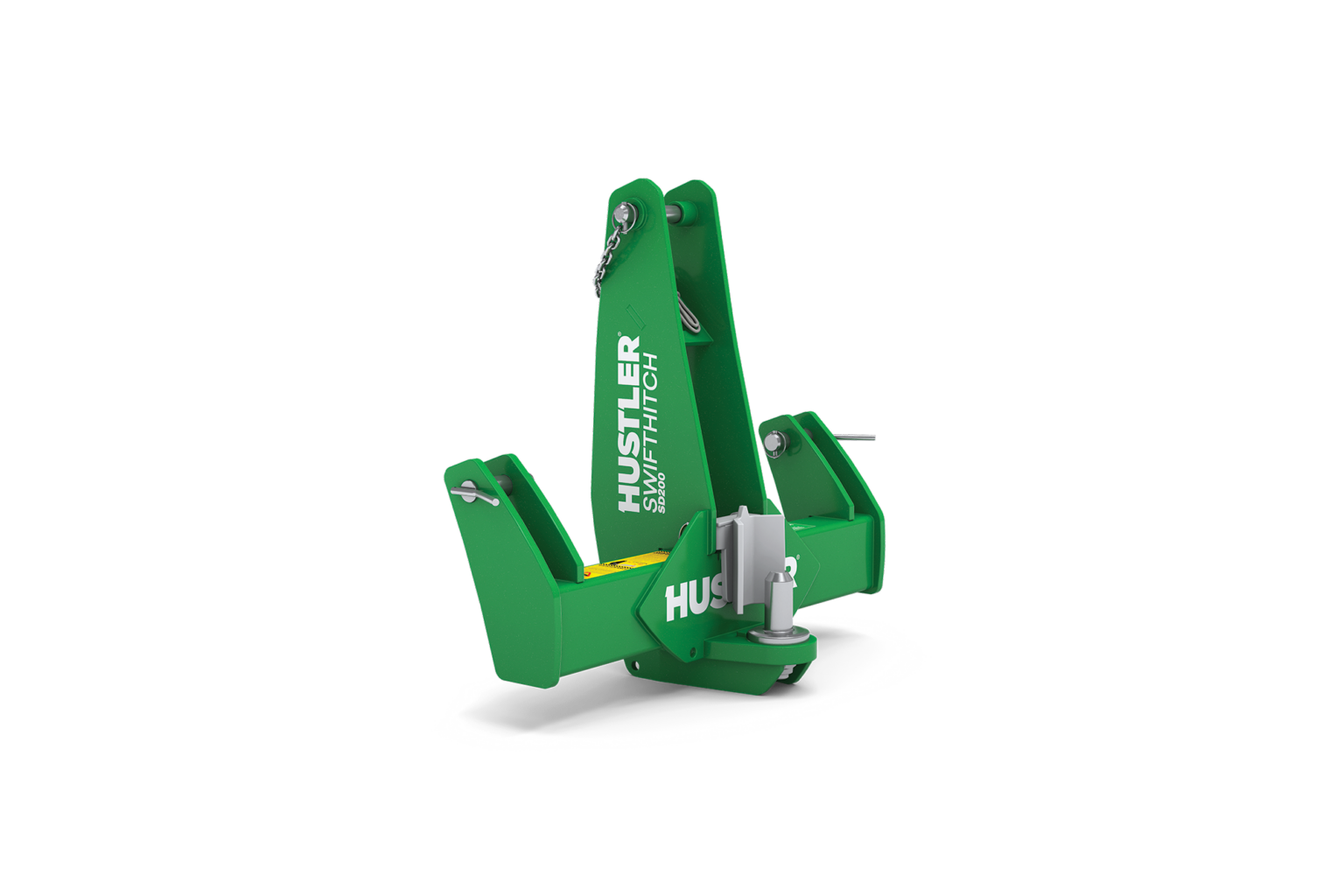

SwiftHitch SD50 back left2 web

3. Self-Aligning Latch

Unique ‘V’ shape latch design that guides the pin under the towing eye making it easier to connect when slightly off centre.

SwiftHitch 2

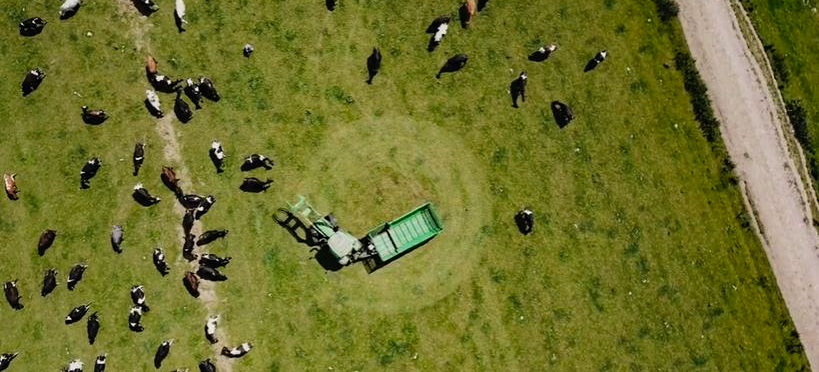

4. Tighter Turning

Allows full 90 degree turning when used with single post drawbar trailers – tightest turning angle of any hitch on the market, providing better maneuverability.

Combi SwiftHitch Top View

5. Clevis Hitch Mounts

With the most 3 point linkage arm clearance on the market, hooking up to your tractor is even easier.

Combi SwiftHitch 2

See it in Action

Swifthitch - The world's best trailer quick hitch

Matt Fryer Tests Hustler's new SwiftHitch

Hustler Danny Devine SwiftHitch

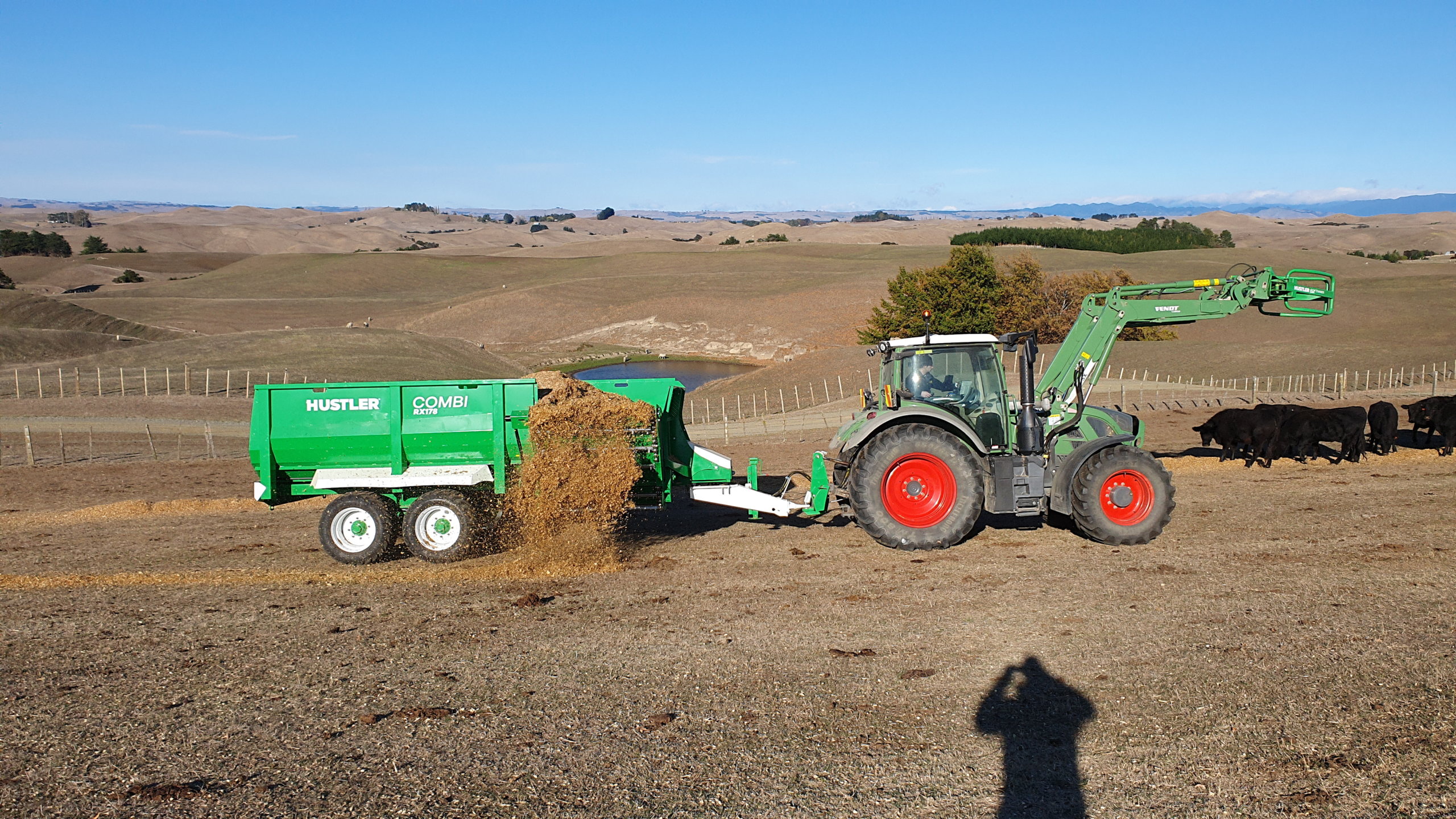

Paul Tobin's SwiftHitch connects & disconnects the tractor from the wagon with ease.

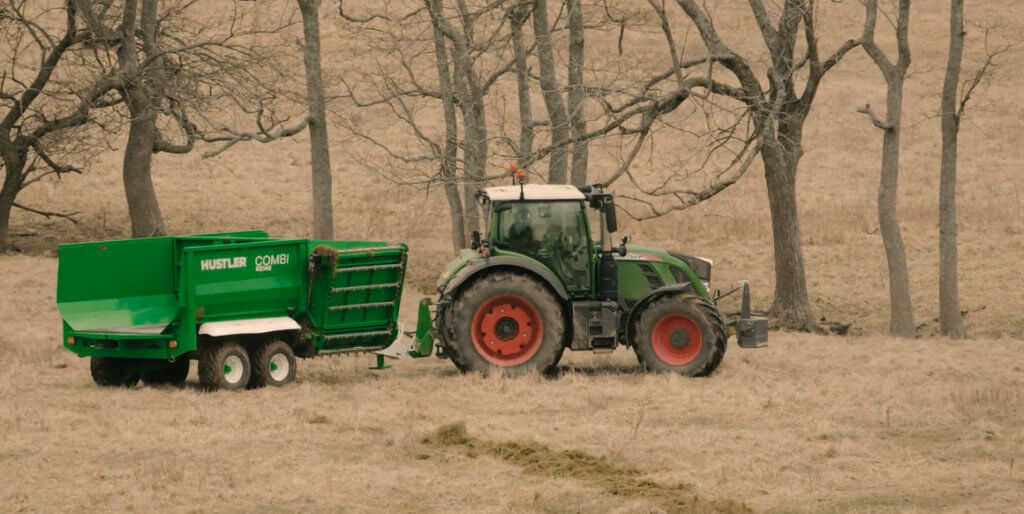

Kent Smith, Missouri (United States), Accident Story - SwiftHitch, Combi RX148

Product Customiser

Select the product, then options and accessories to create your enquiry.

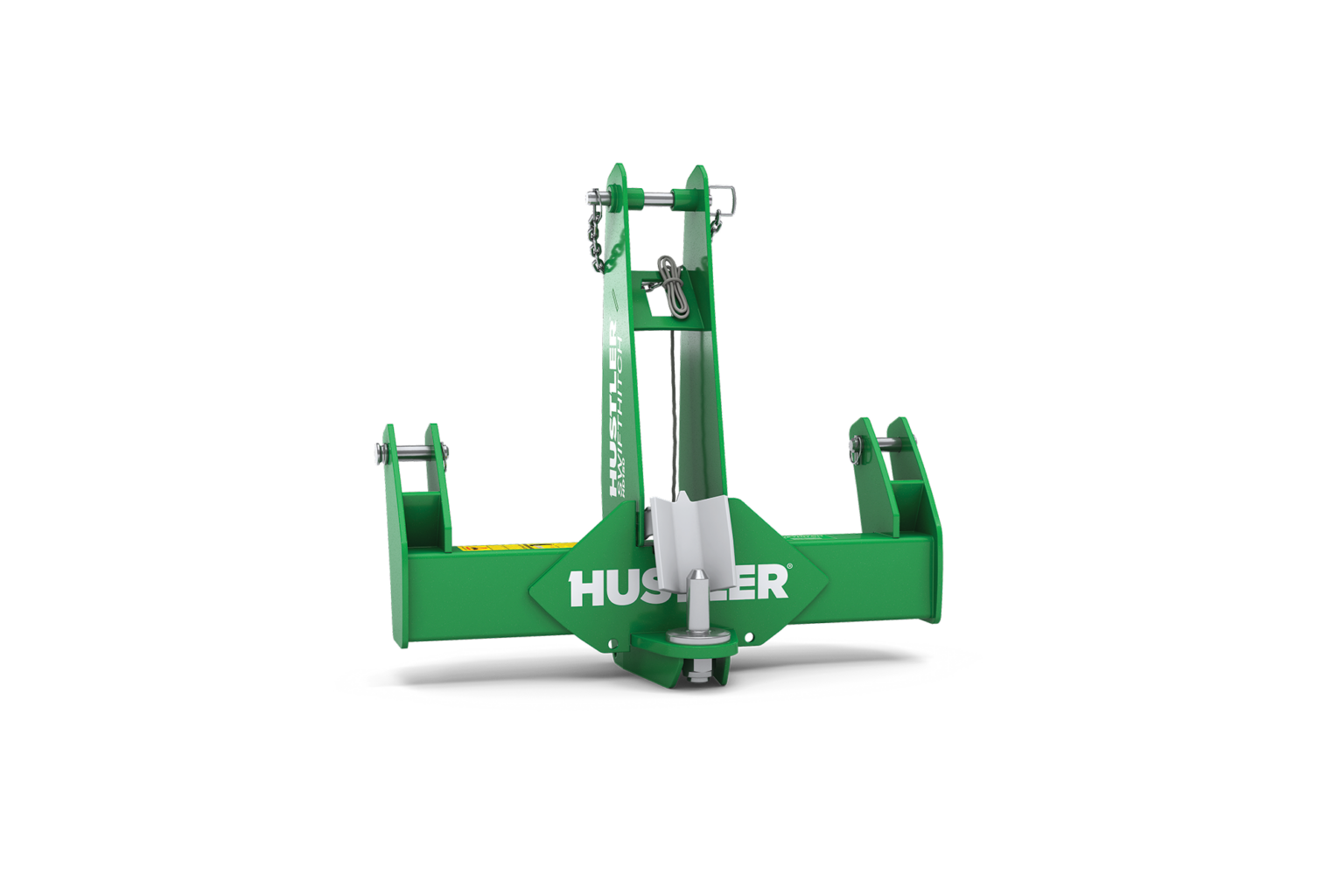

Heavy Duty

Includes as standard equipment:

15 Ton rated

Super Duty

Includes as standard equipment:

20 Ton Rated

40 Pin Heavy Duty

40 Pin Heavy Duty

32 Pin Heavy Duty

32 Pin Heavy Duty

50 Pin Super Duty

50 Pin Super Duty

32 Pin Super Duty

32 Pin Super Duty

40 Pin Super Duty

40 Pin Super Duty

Specifications

Ton: Up to 15 ton rating
Tow Pin: 32mm or 40mm
3PTL Clevis mounts: CAT 2
Wearpad: Replacable Bisalloy
Latching pin: 3/4″
Drawbar load: 4,000kg
Ton: Up to 20 ton rating
Tow Pin: 32mm or 40mm or 50mm
3PTL clevis mounts: CAT 3
Wearpad: Replacable Bisalloy
Latching pin: 3/4″
Drawbar load: 5,000kg

Features & Benefits

arm clearance 700 500

Huge Lower Hitch Arm Clearance

Replaceable Bolt-in Wear Pad

Most other Quick Hitches on the market have wear pads that need to be cut off and re-welded on once worn out – this can be as frequent as once a year. Our replaceable bolt-in wear pad is simple to replace and saves you time and hassle.

Replaceable Wearpad 700 500

High Visibility Latch

High visibility latch with pointer – contrasted in white for better visibility/safety and a built-in pointer which helps with lining up the towing eye.

more pin cover 700 500
90 degree 700 500

Allows full 90 degree turning when used with single post drawbar trailers – tightest turning angle of any hitch on the market, providing better manoeuvrability.

Easy to Store

Stands up on its own, making it easy to store, and connect to the tractor.

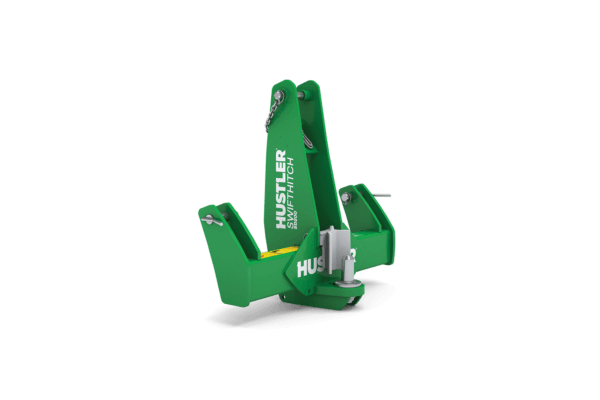

SwiftHitch SD50 back left2 web
High tensile tow pin

High Tensile Tow Pin

4140 tow pin for longer life – 50mm standard (Optional 40mm pin available)

Unique ‘V’ shape latch design that guides the pin under the towing eye making it easier to connect when slightly off centre.

easy to connect clearcut 700 500
Latch 700 500

Strongest/Safest Latching Mechanism on the Market

Latching mechanism/lever is protected inside the main uprights for protection from damage and to eliminate accidental disconnection.

Best Visibility on the Market

Cleanest and widest see-through tower on the market, and a clear view to the top of the pin.

best visablity
top pin 700 500

Large Latch Pin

Largest latching pin 3/4” to provide more reliability and loading.

more pin cover 1 700 500

More Pin Cover

Latch covers more of the eye than others. Latch locks against the pin, making it impossible to accidentally disconnect, or a forced disconnection.

Replaceable Wearpad 700 500

Wear Pad

Replaceable wear pad doesn’t require an engineering job to replace it.

 “A few of the key things we liked about SwiftHitch is the nice strong tongue, structure and design on it and really good visibility through the centre from the cab. It saves us a lot of frustration during the 2-3 months when feeding out and speeds the job up”

Matt Fryer, Hawkes Bay (New Zealand) - SwiftHitch
_STU5043

“The strength is really unbelievable, that’s why we choose Hustler’s Swifthitch”

Danny Devine, Kurow (New Zealand) - Swift Hitch
