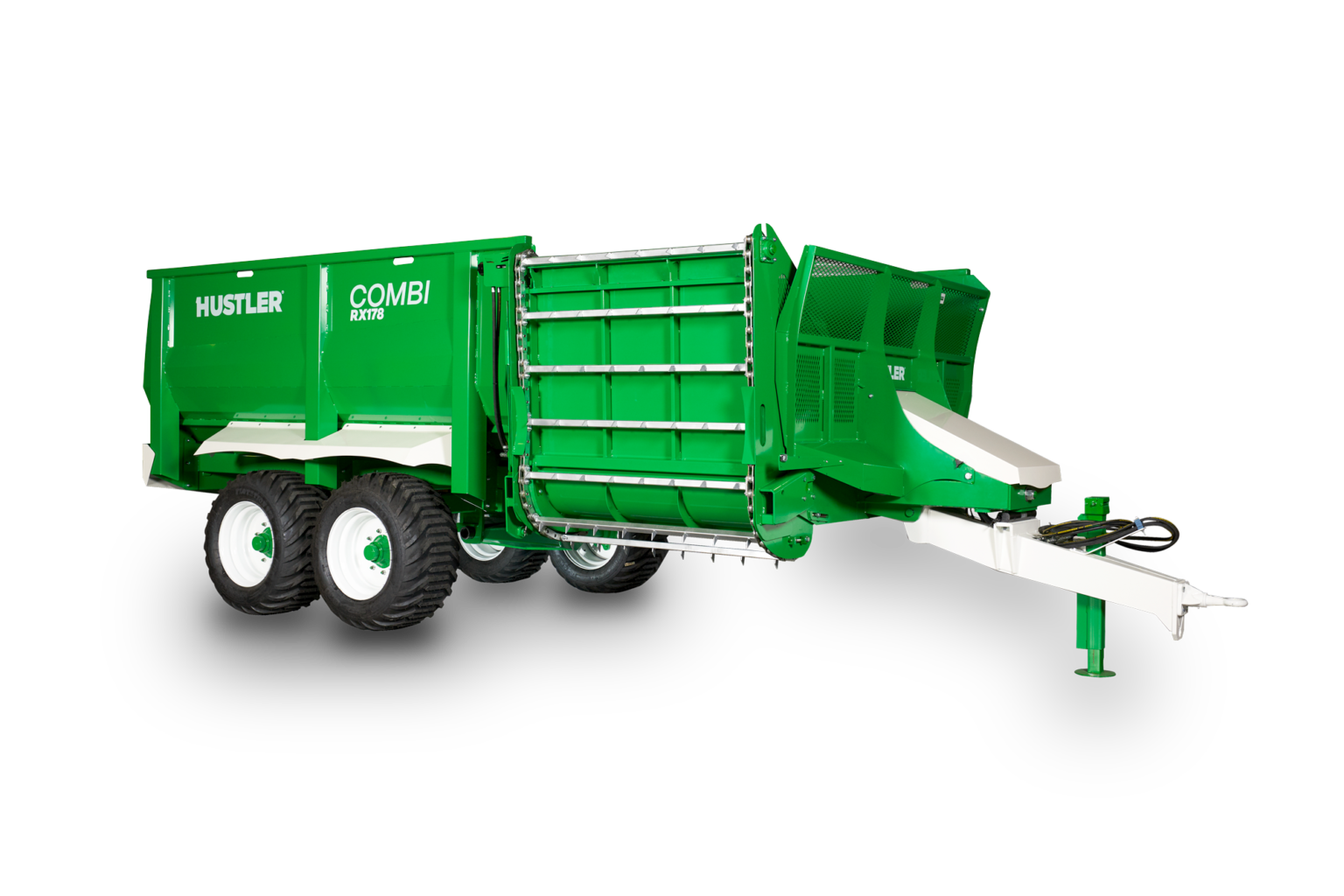

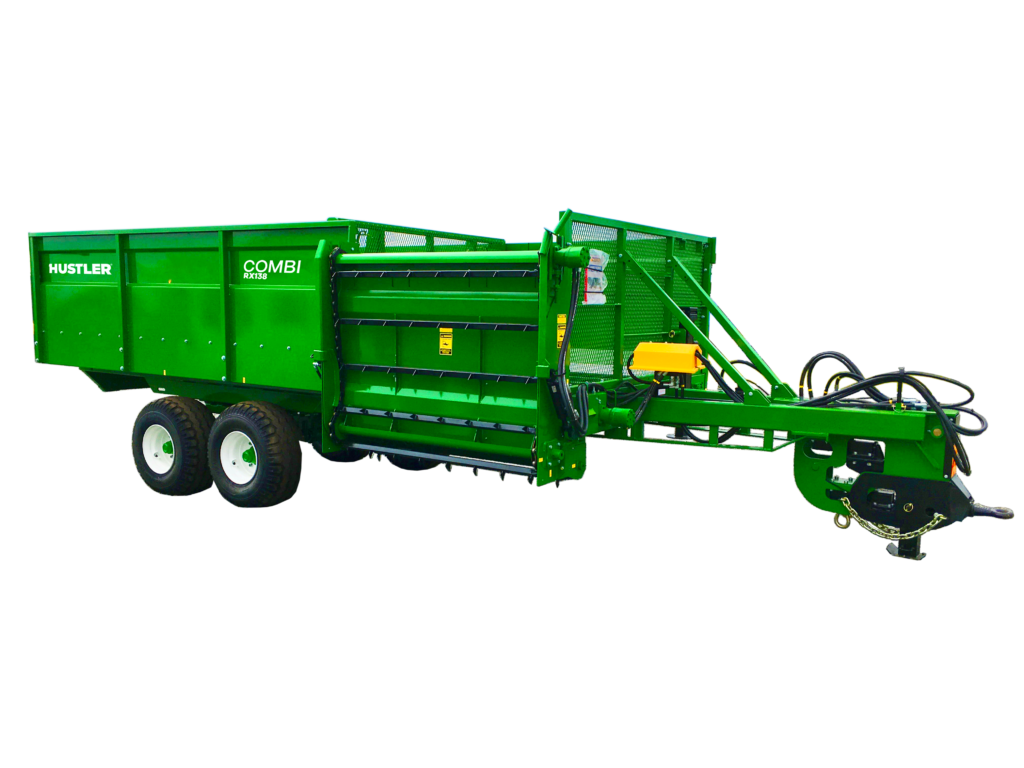

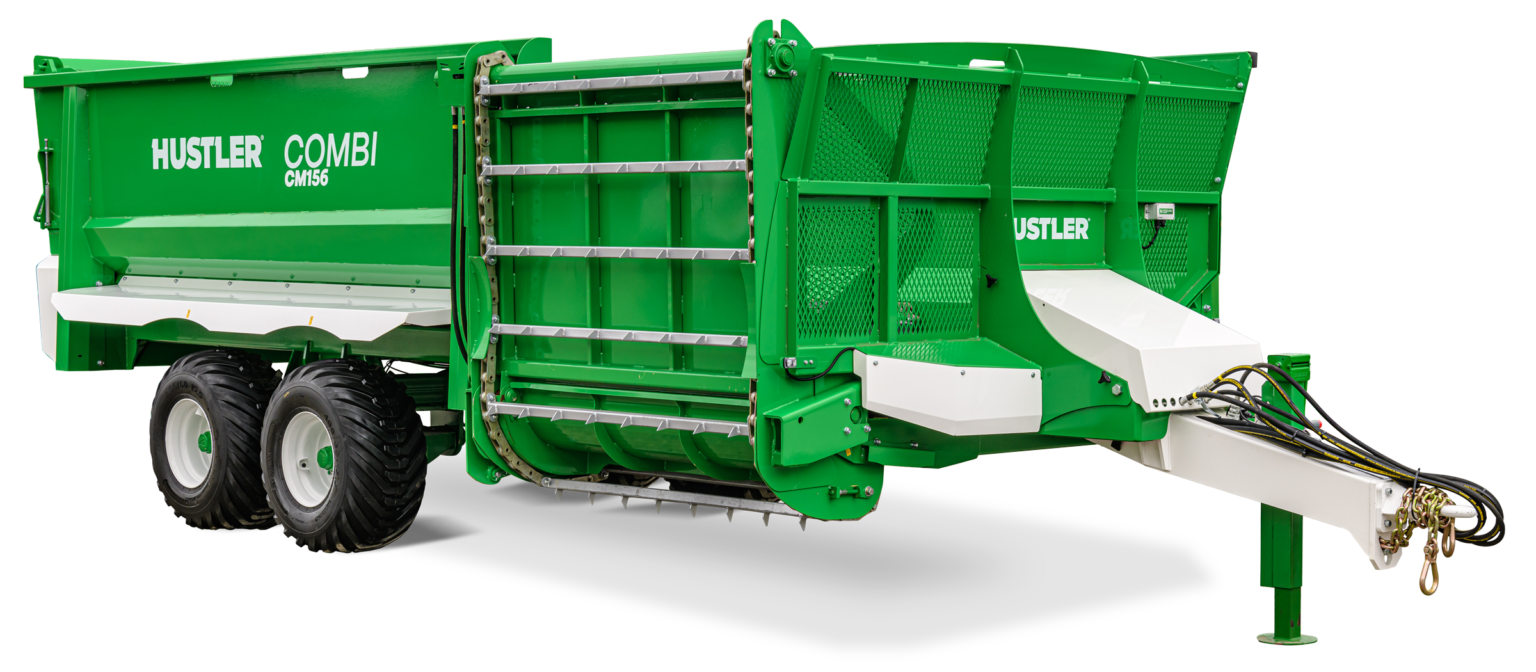

The Combi Feeders (Chainless rear floor) eliminates the need for floor chains in the main load area increasing capacity in a more compact size. Capable of feeding every type of supplementary feed you can lay your hands on, including all bale types, shapes and sizes. And any type of loose feed including fine chop silage, maize silage, root-crops, vegetables and more. Available in 2 sizes: COMBI FEEDER Chainless RX136 – 13.5 – 16.0m3. COMBI FEEDER Chainless RX216 – 21.5 – 24.0m3.
If you’re feeding a combination of bales, silage, root-crops or any other supplementary feed, then the Combi Feeders is the only multi-feeder you’ll need. Combi Feeders (Chainless rear floor) is able to feed all types, shapes and sizes bales including straw, hay and baled silage, fine chop silage, maize silage, root crops and literally any type of feed you can lay your hands on. The unique elevator design delivers feed out of the side of the machine allowing you to feed into troughs, feed-pads, bunks or open pasture
The unique design of the Combi Feeders (Chainless rear floor) provides the operator with more control and visibility of the task at hand. More control over the feed-row lets you maximise your feed by varying from light for sheep and deer to the heavier row for feeding cattle and anything in between with no big clumps left in the pasture. The ability to see the entire load from the comfort of your seat puts you in control of feeding

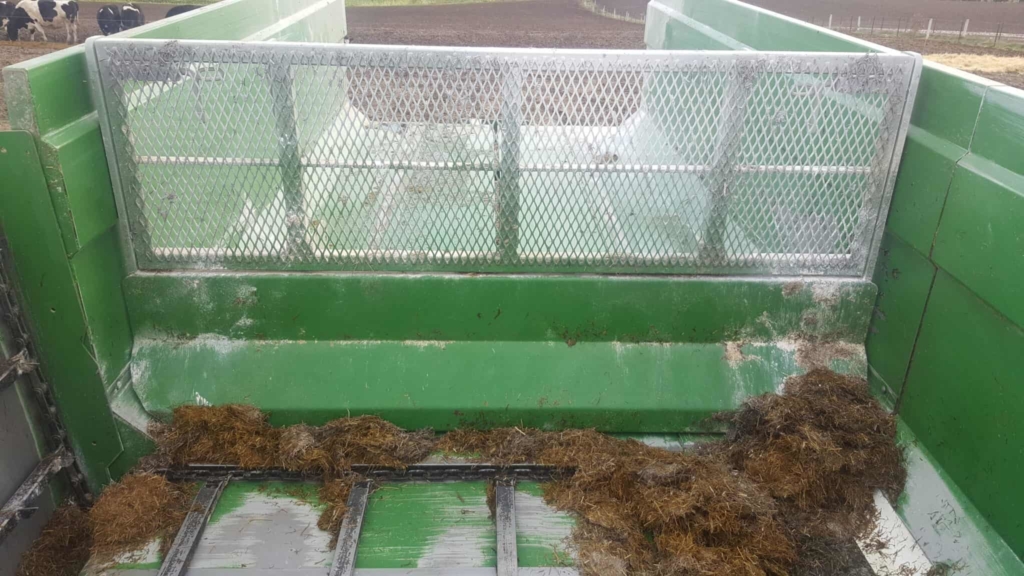

The combination of a tough, well-proven design with the design smarts of the unique load dividing system reduces loads and stresses on drives, motors, shafts and the floor extending the working life, reducing maintenance and less to wear out which lets you spend more time feeding out, less time in the workshop. The Combi Feeders (Chainless rear floor) has a single hydraulic ram delivering 12000kg pushing power, which eliminates 1 set of floor chains reducing maintenance and the mesh tail-door gives good visibility.
With a simple Joystick Control Feeding System, only 2 double acting hydraulic outlets are required to operate the entire machine. Elevator, loading forks, main floor and cross floor giving you more control, from your fingertips. You have full control of the feed material and the two-piece pusher blade allows easy rear loading. The low loading height simplifies loading and the wide design makes it the most stable unit on the market.
All Combi Feeders (Chainless rear floor) now come load cell ready as standard, which allows you to add the weighing option when it suits your operation so you can accurately measure the correct amount your herd needs, reducing waste and increasing the performance of your farm.
|Round Bales 4" Diameter:|
|Bulk Silage Level Loaded:|
|Bulk Silage Heaped Loaded:|
|Overall Height Loading:|
|Axle, Hubs & Studs:|
|Capacity:||4 – 5|
|Round Bales 4" Diameter:||6 – 15|
|Bulk Silage Level Loaded:||16m3|
|Bulk Silage Heaped Loaded:||12 tonne|
|Overall Height Loading:||8950mm|
|Standard Tyres:||400/60 x 15.5 Grips|
|Axle, Hubs & Studs:||Heavy Duty Tandem Oscillating 70mm|
|Towing Eyes:||50mm Swivel|
|Hydraulics:||2 pair double acting|

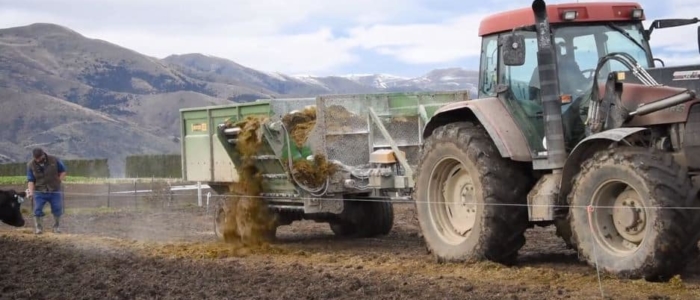

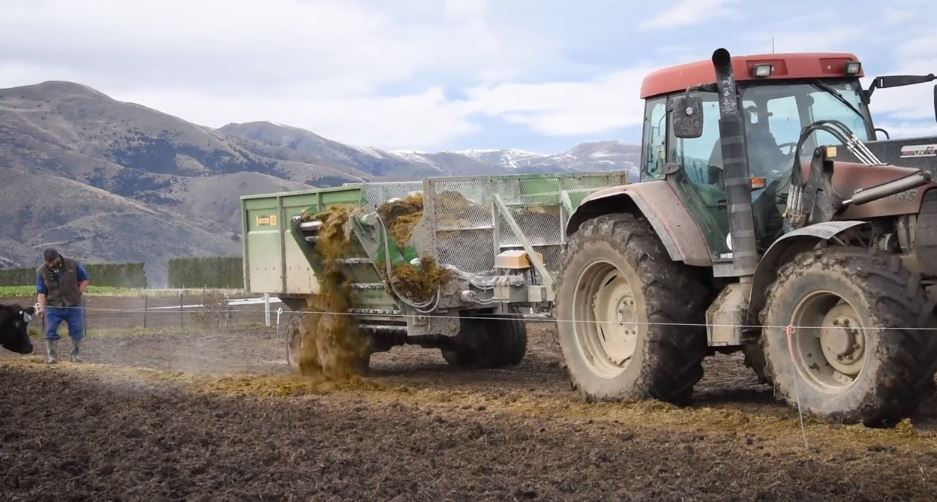

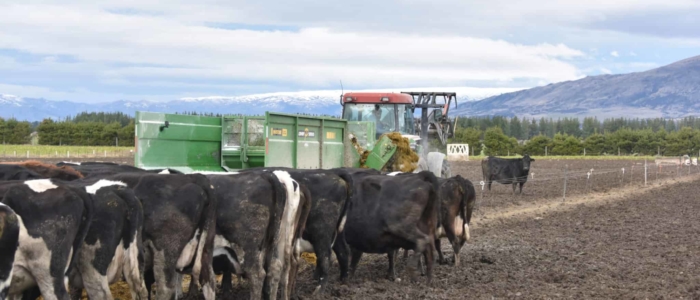

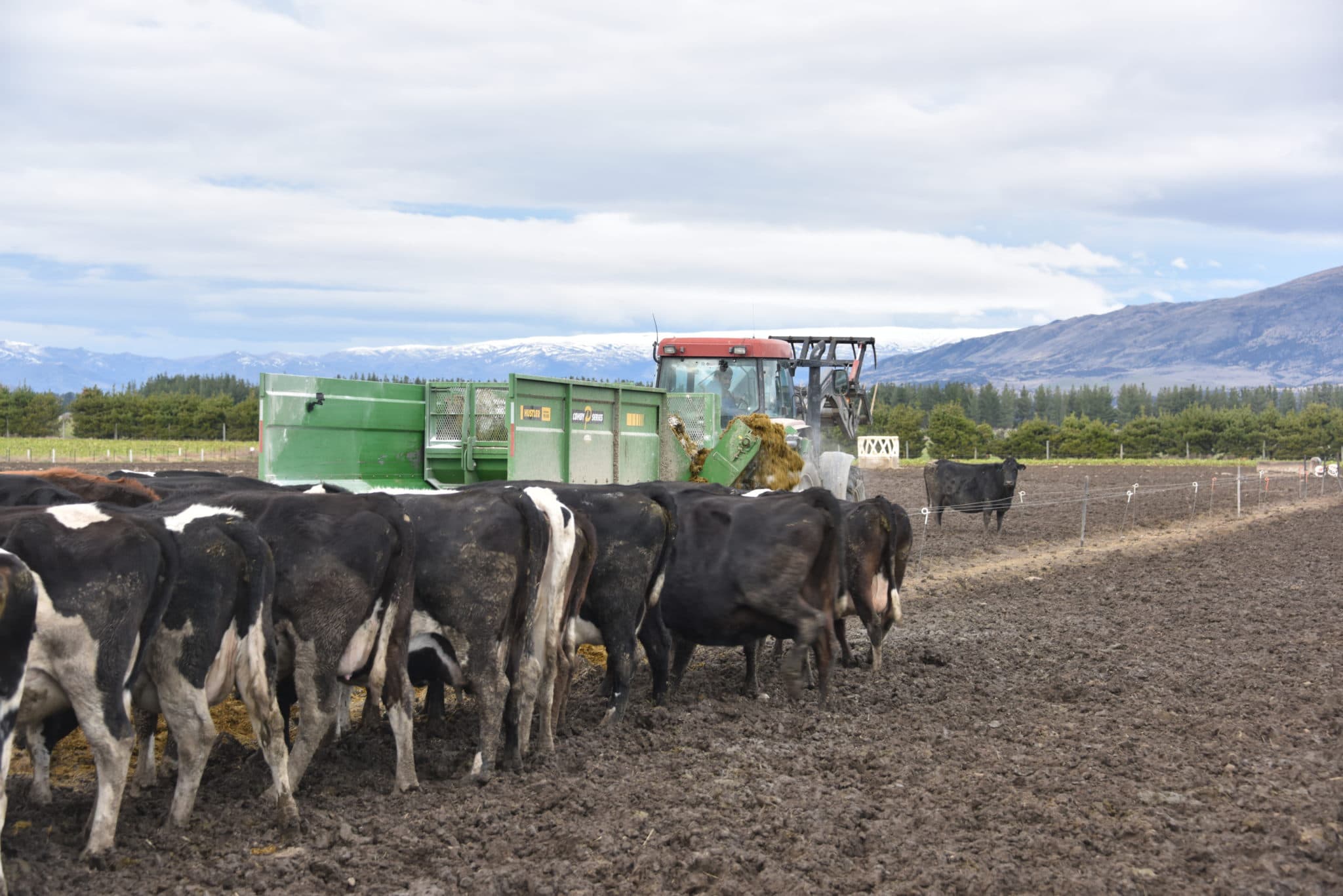

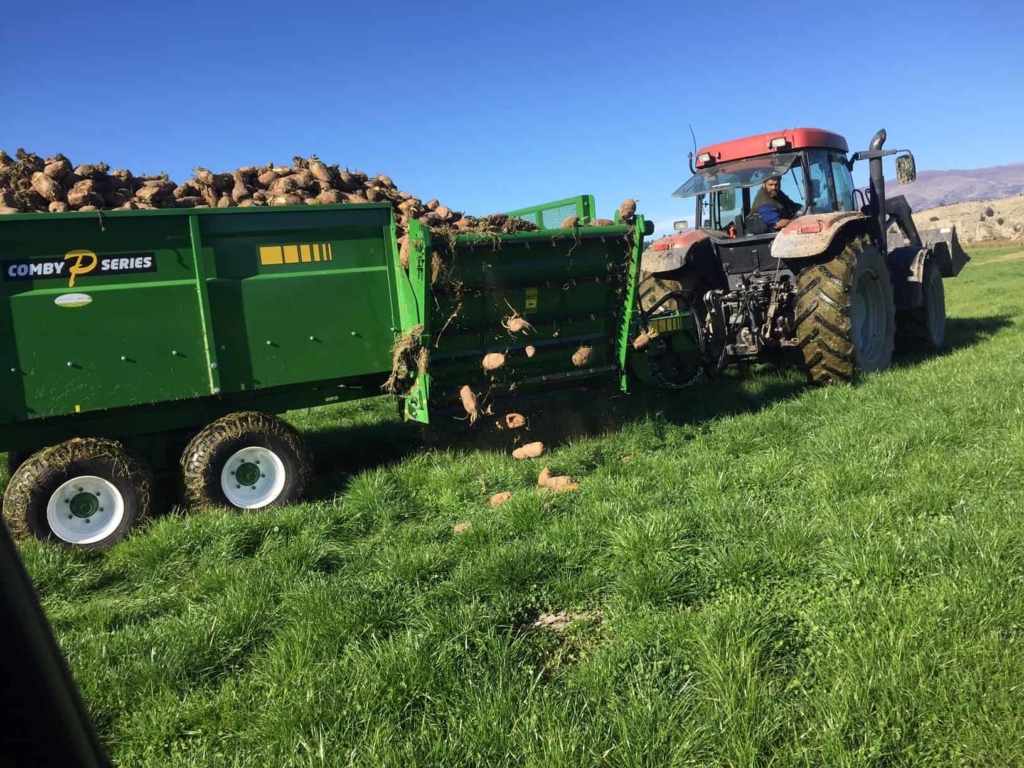

Allows the operator to easily feed into troughs, bunks or pasture, and to vary the thickness of the feed-line. The generous overhang eliminates feed being driven over by the wheels, whilst maintaining stability.

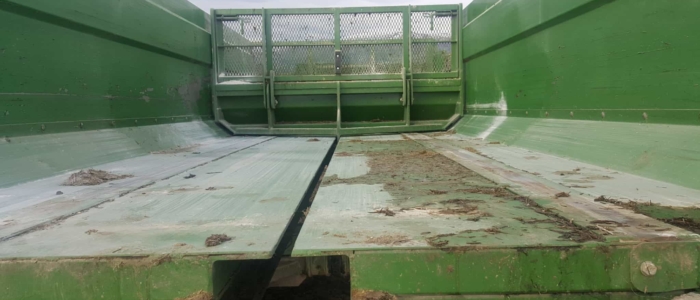

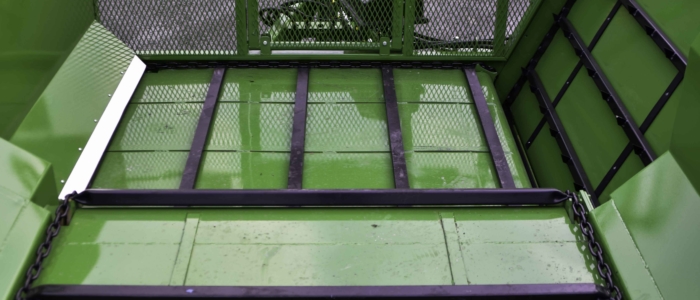

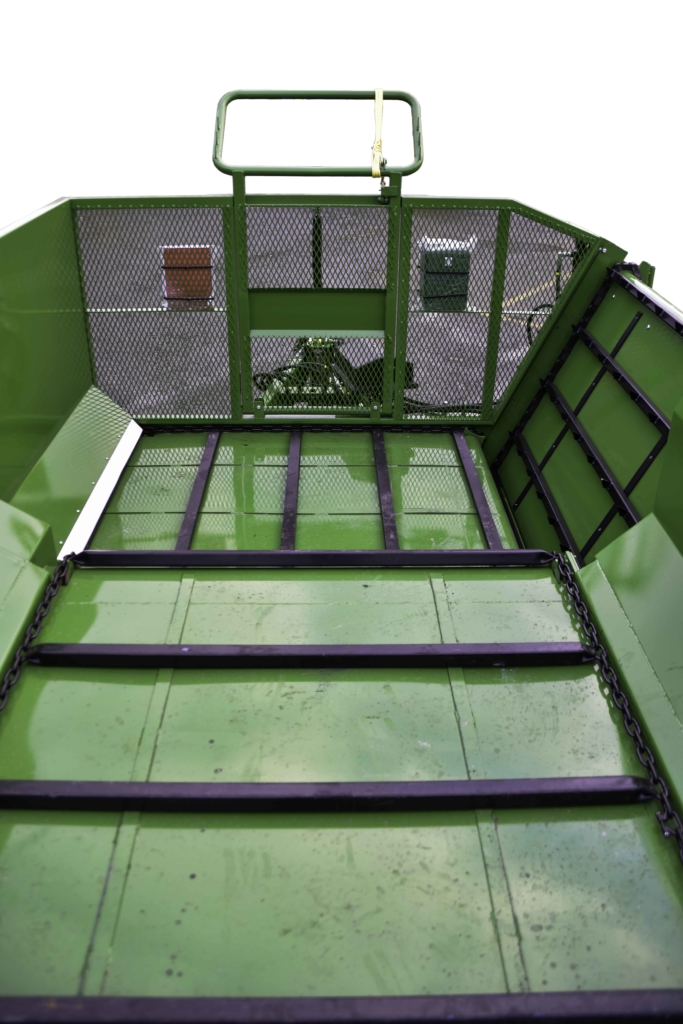

The all steel floor design, that lasts the lifetime of the feeder, you’ll never need to worry about a broken board breaking a chain, or rotting out from the exposure to silage juices.

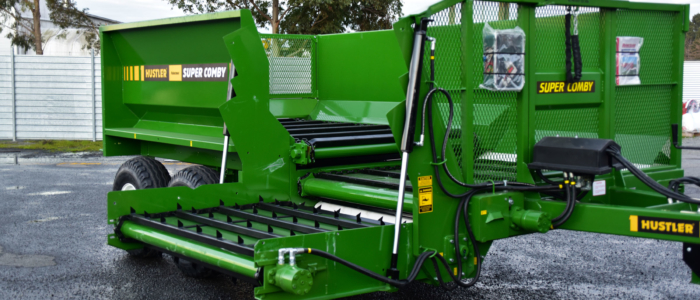

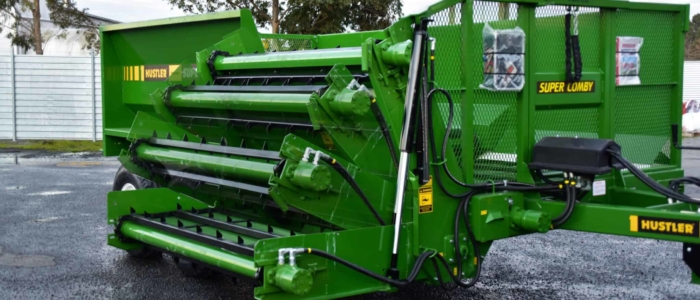

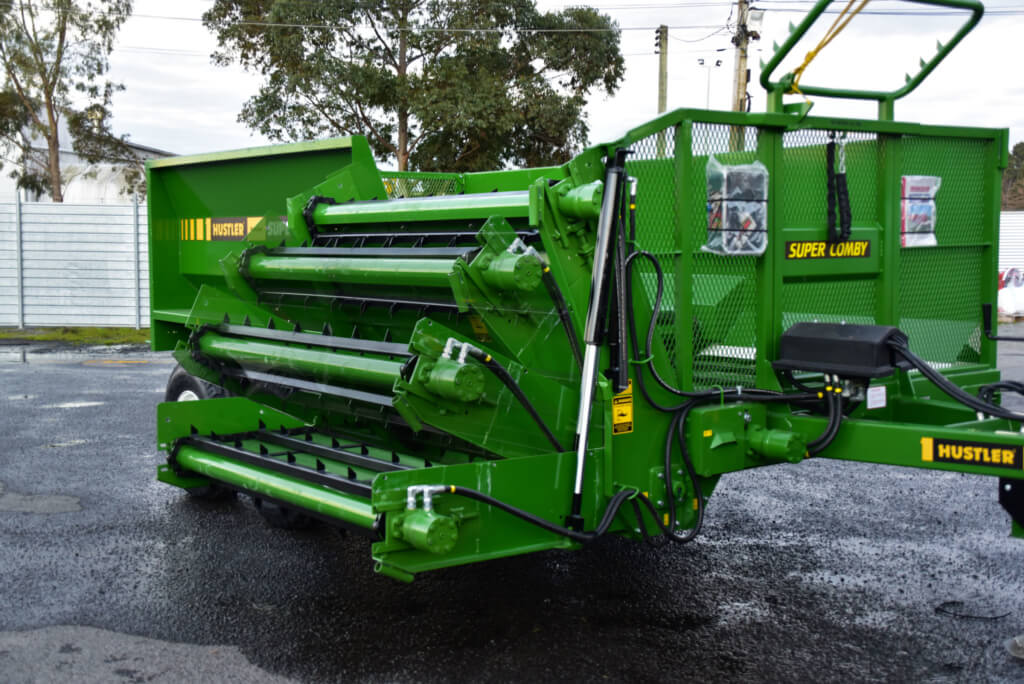

The widest elevator on the market at 1635mm wide, handles any shape or size of supplementary feeds, even the largest of 5’ bales. And the chain/slat design never slips or stretches like that of a conveyor belt. The new design has a 500mm longer elevator.

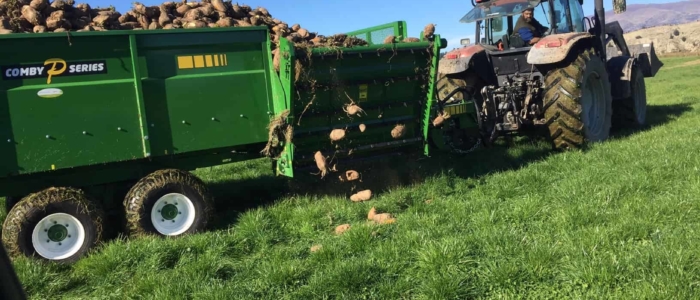

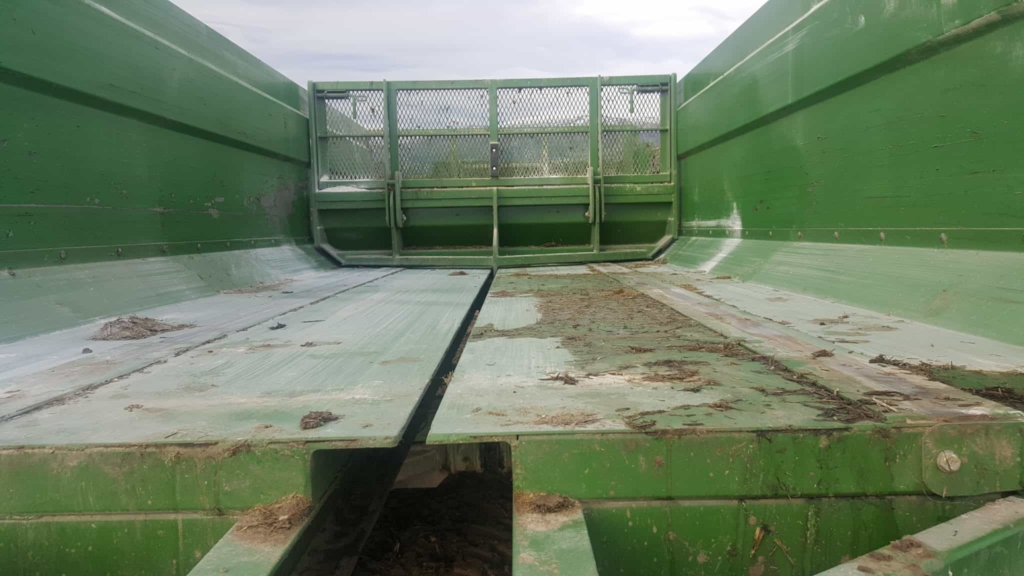

Hydraulic ram powered rear pusher blade eliminates the need for another set of chains which is ideal when feeding root crops. The hydraulic cylinder reduces the number of moving parts

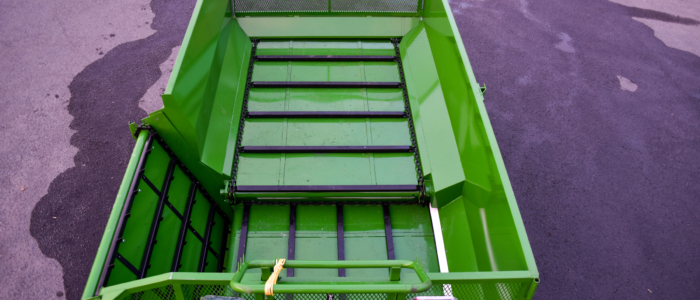

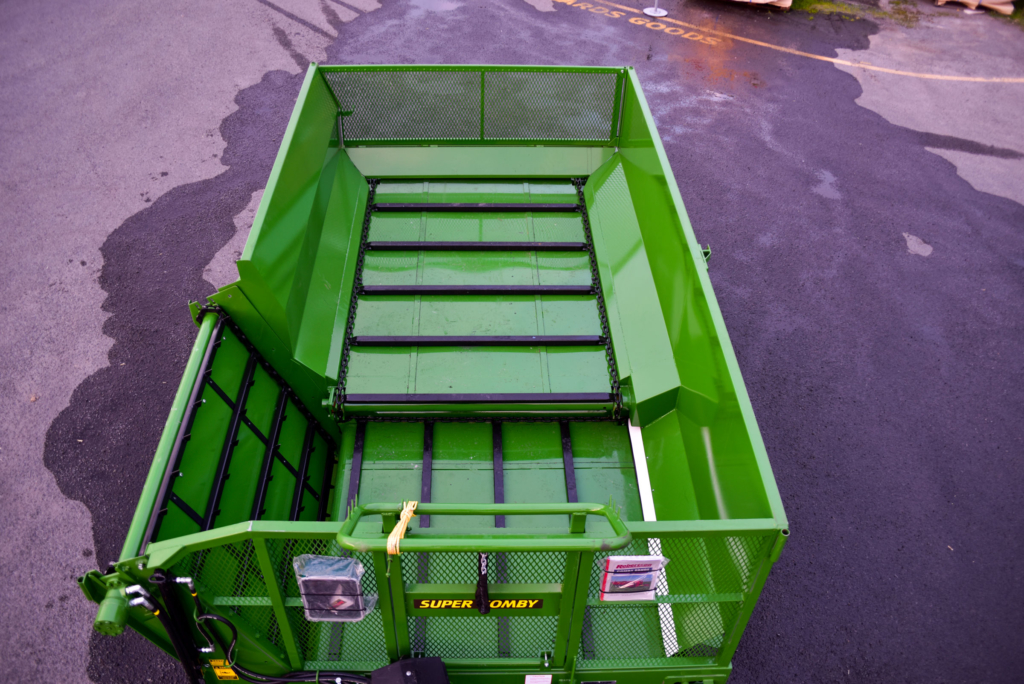

The unique load dividing design utilises the entire body for storage capacity, making for the more compact and manoeuvrable feeder with better visibility of the load and more weight transferred to the tractor, especially important when operating in the field.

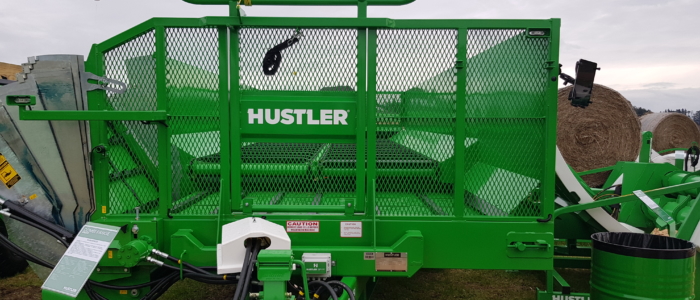

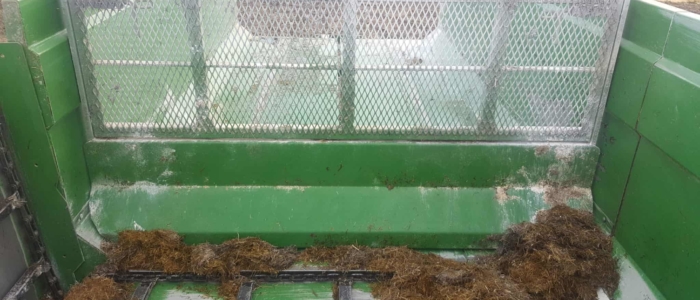

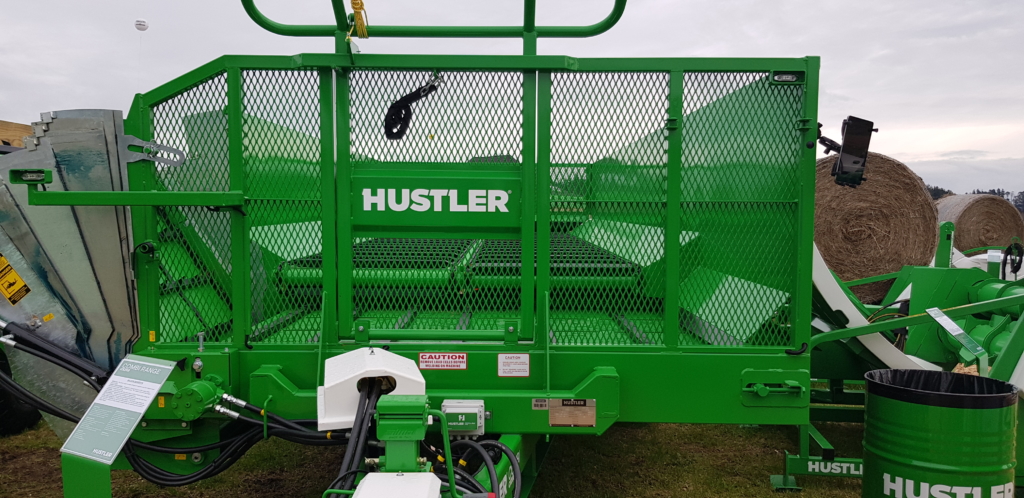

The tailboard glides on wear resistant UHMW slides which eliminates the need for greasing.
The rear pusher blade folds down to which makes it easier when loading bales from the rear of the feed out wagon.

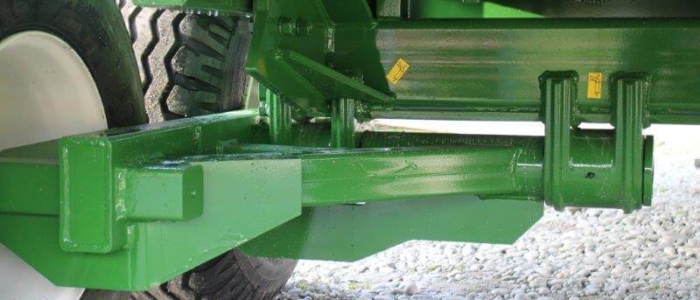

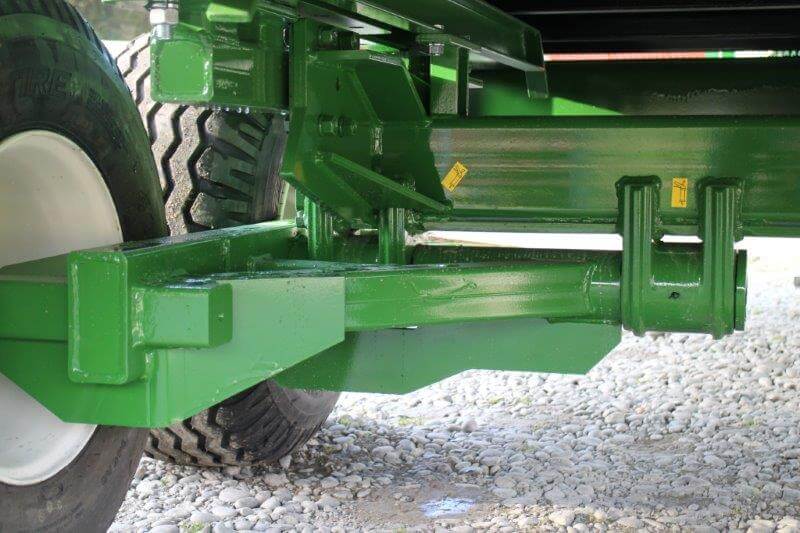

The toughest axle design on the market by a country mile, giving total peace of mind and eliminating any possibility of downtime.

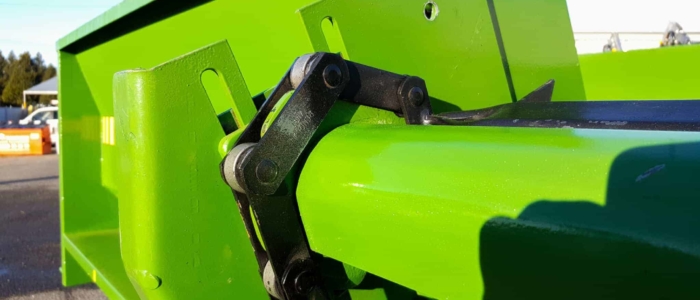

New Thermoform floor covers the driveshafts which eliminate any possibility of feed wrapping around the shafts or jamming.

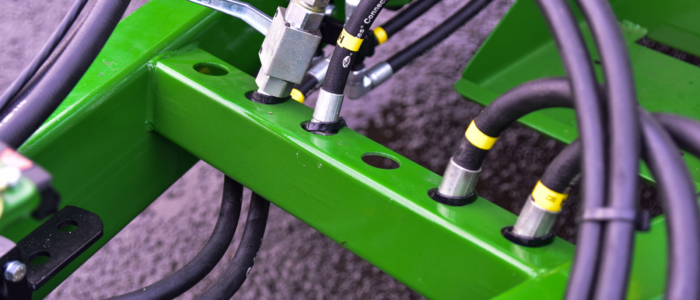

The built-in hose holder keeps hoses neatly stored out of the dirt when unplugged from the tractor.

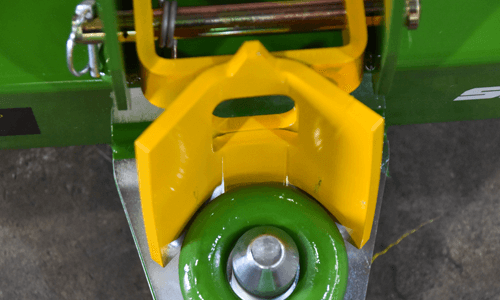

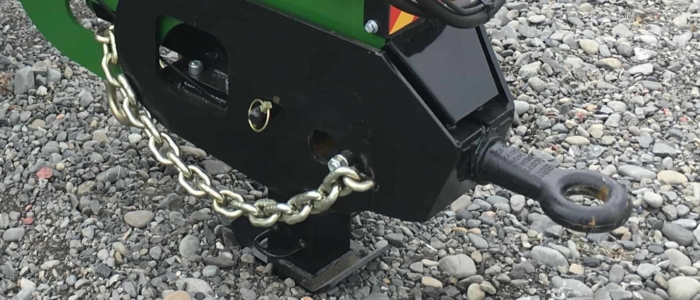

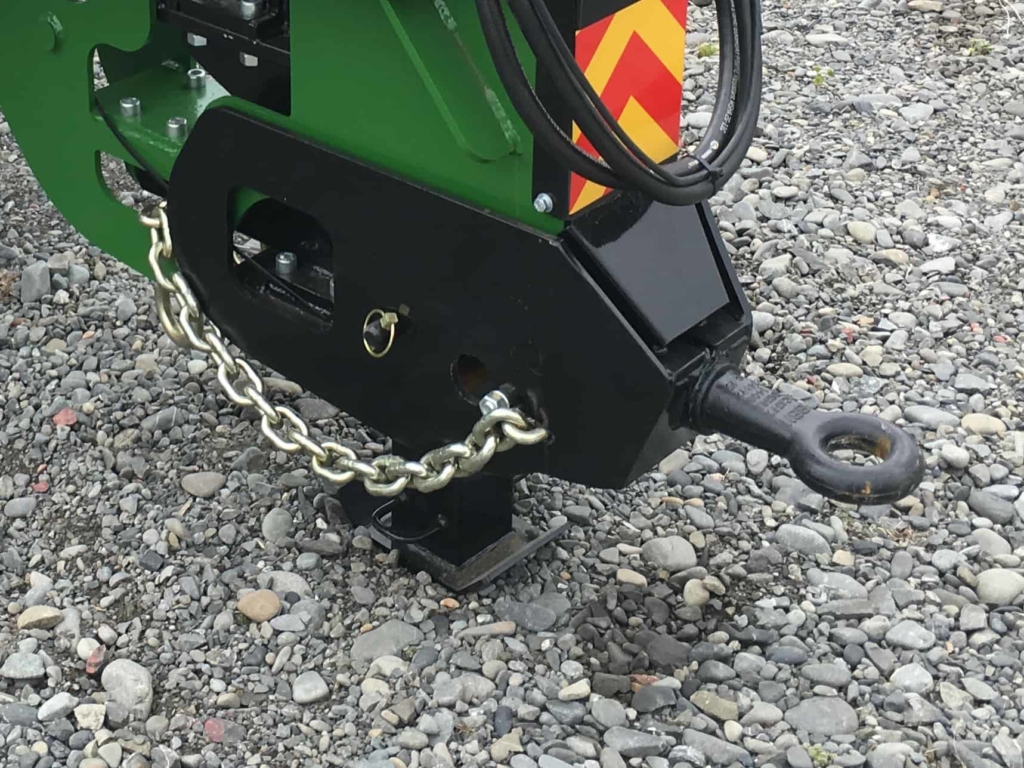

Built in, folding quick hitch foot makes for quick and easy hitching up when operating with just one tractor

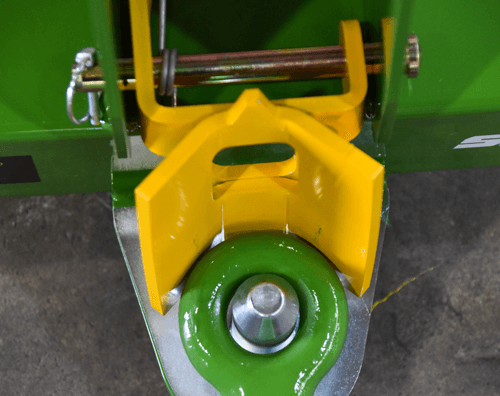

Only 2 pairs of double acting hydraulic remotes and a trailer plug connection are required to power the Super Comby, and the close off tap makes connecting and disconnecting to the tractor very quick and easy.
The tough 80mm screw jack with the large support area stows out of harm’s way when operating

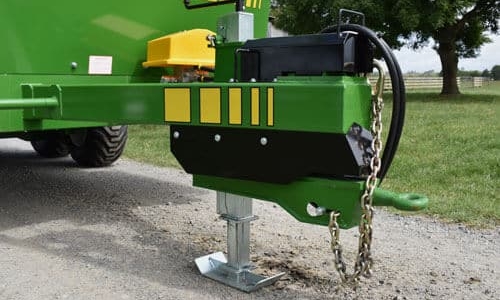

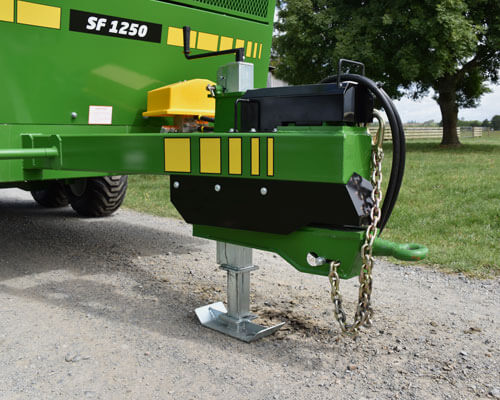

Standard the Super Comby comes with safety chains, for added operator safety both on and off the road.

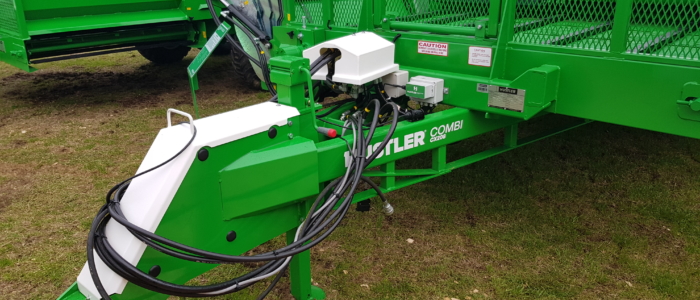

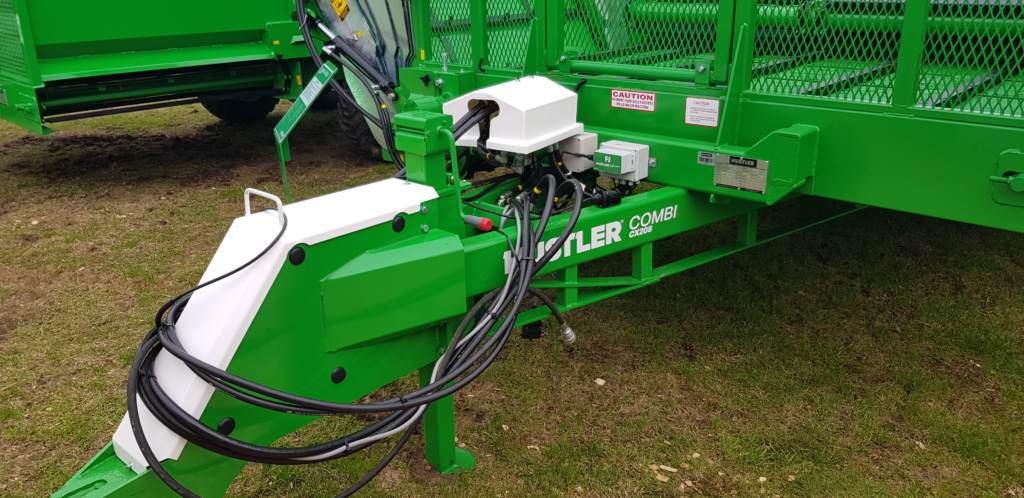

All new Comby wagons come weigh-scale ready from the factory, providing you with a future-proofed feeding solution and easy entry into the world’s best silage feeders. The unique design weighs the entire feeder, whether parked or on the tractor.

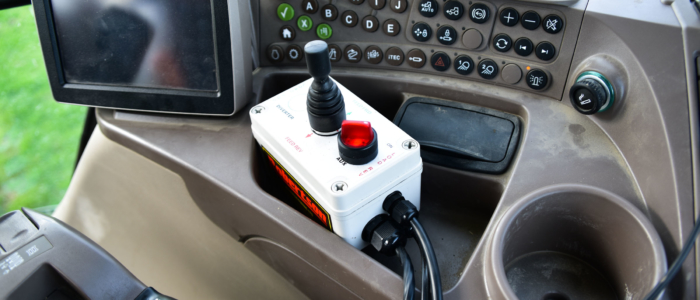

Standard in-cab electric joystick gives fingertip control over the entire feeder, letting you control the feed row of any feed type and density.
