Contractors Bale HandlersMega Soft Hands
This model is now replaced by the Softhands LX200 bale handler.

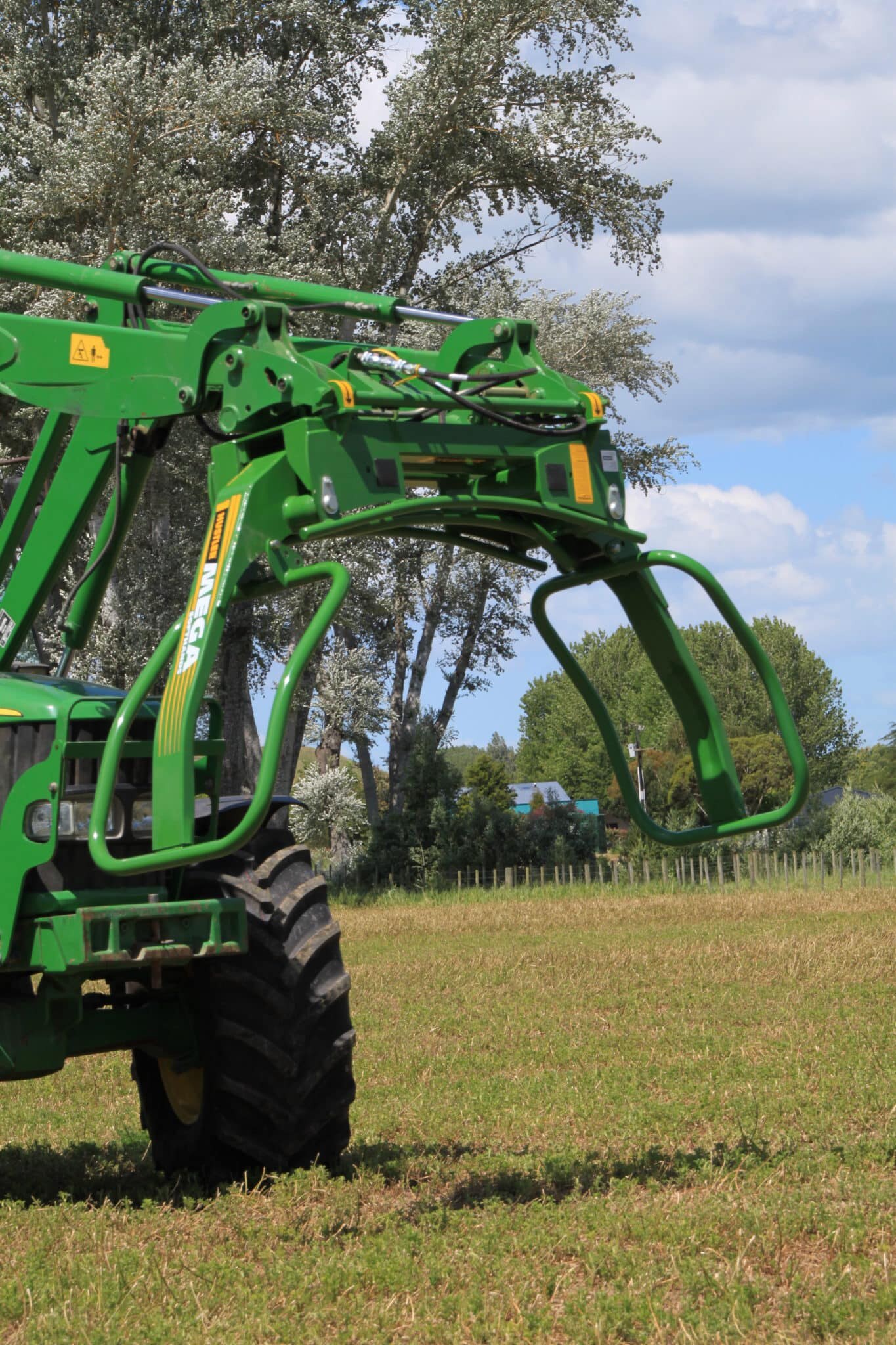

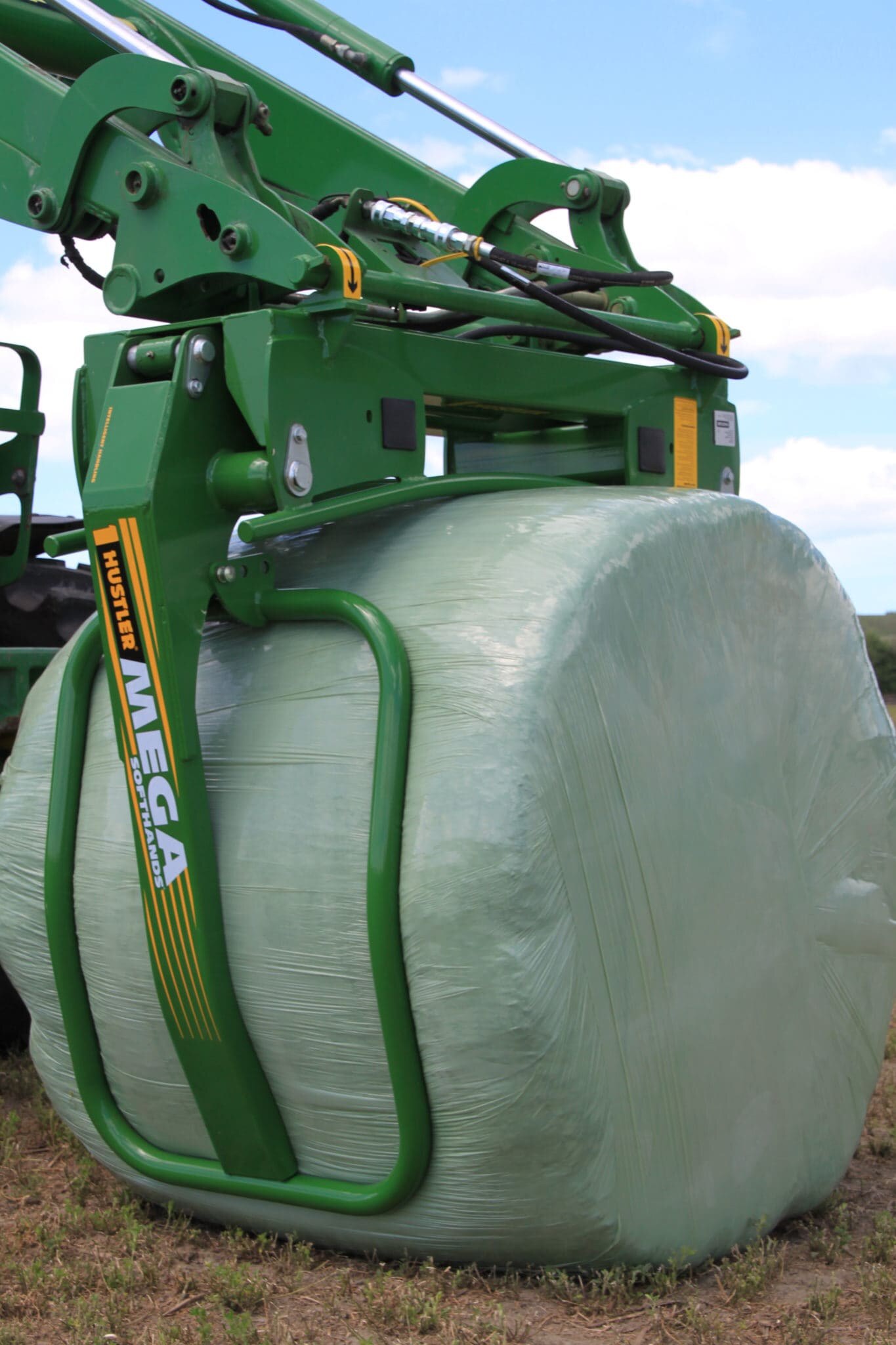

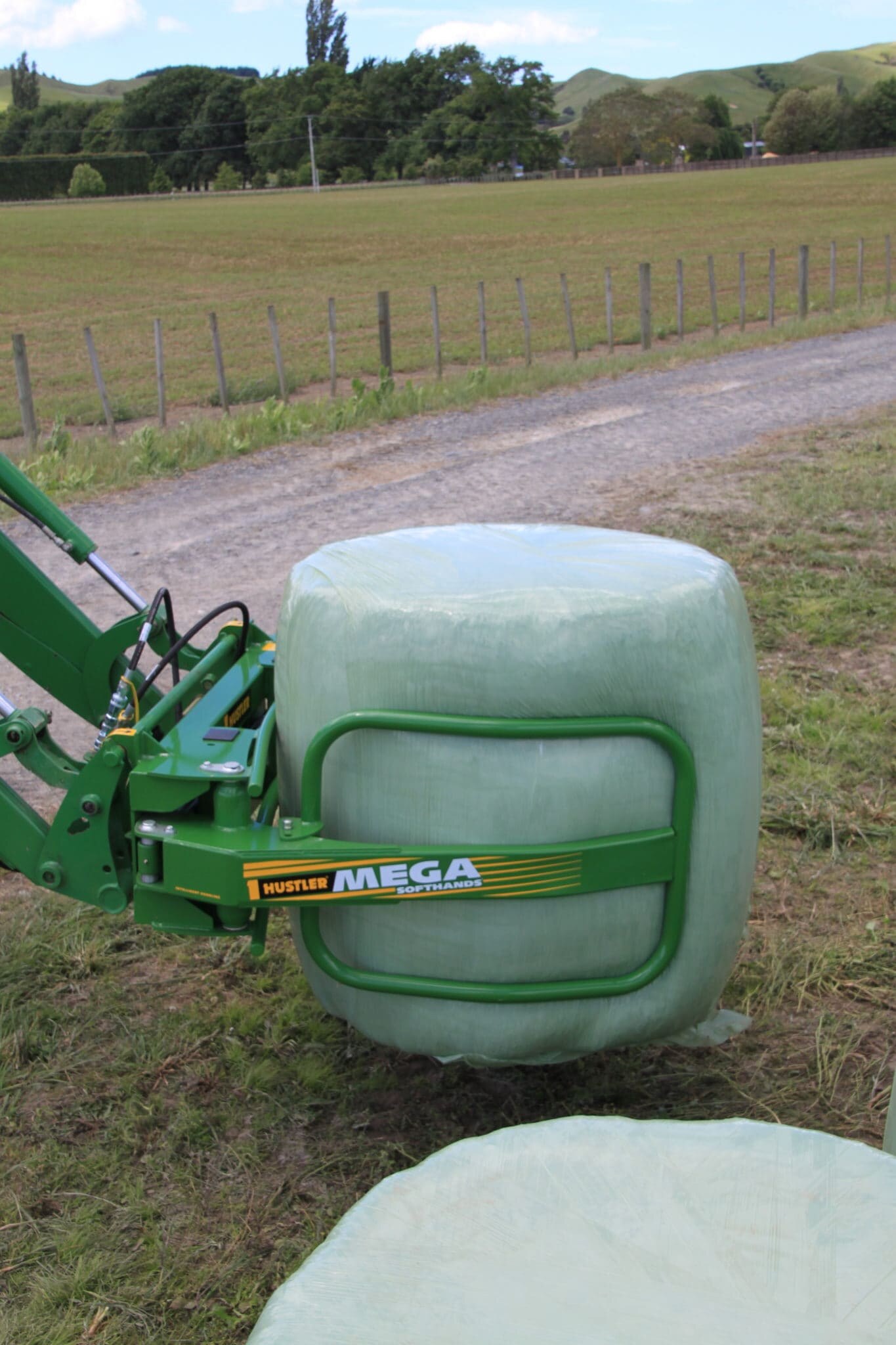

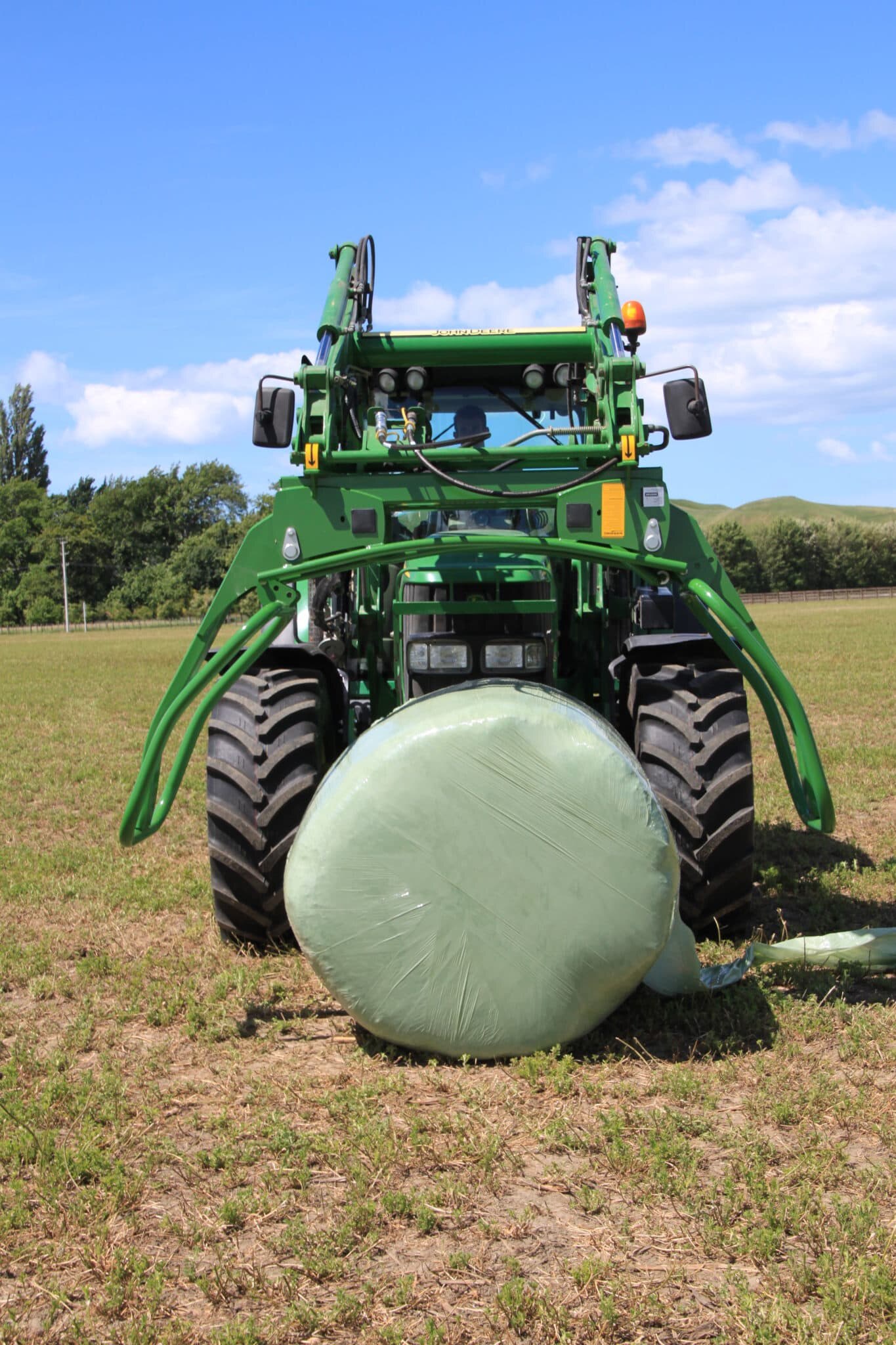

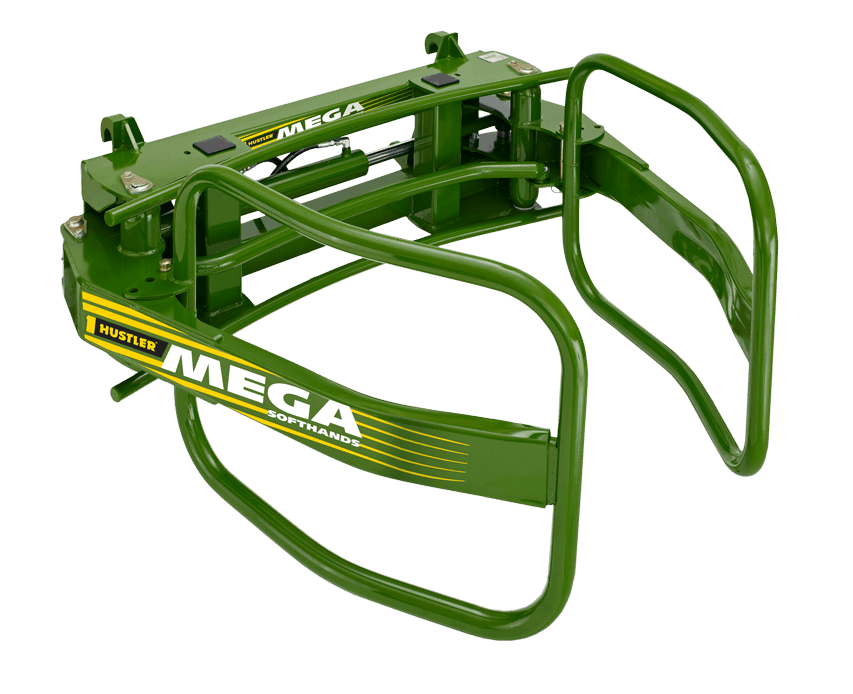

Built for the serious contractor or large scale farmer the versatile Mega Soft Hands® bale grab can handle both square and round bales. Oversized 38mm bushed pivots give unbeatable strength and reliability. With the tallest hands on the market, you can safely clamp 2 bales at a time, providing more grip on the bale reducing damage and deformation when compared with conventional bale grabs. Horizontal nudge bars eliminate pinch points and eliminate ripped or damage bales when compared to other bale clamps. Field-tested to handle bales up to two tons.
Benefits

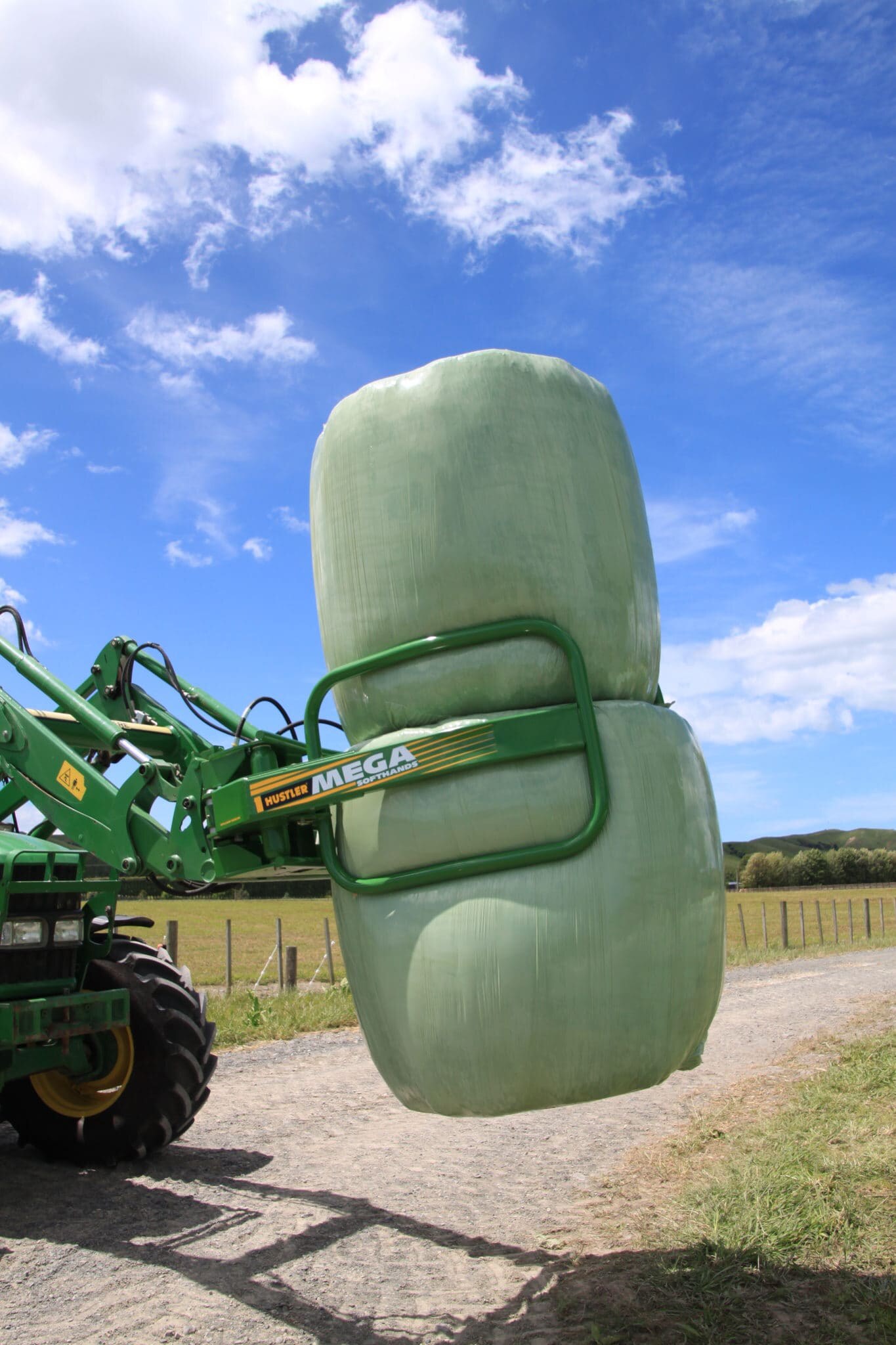

- Double the capacity – Clamp 2 bales at once (subject to tractor and loader capacity). Cut the time it takes unload/load a truck in half. Rated to handle 2 tonnes.
- Handle square or round bales – One bale handler to shift all your bales! With the 3 position adjustable hands the grip can be fine-tuned to handle virtually any bale size of rounds or squares.
- Huge 38mm pins with replaceable bushes – A bale handler that withstands the test of time. Tough enough to handle a telehandler and hundreds of thousands of bales each year without flogging out.
- Equaliser® bar standard – Designed for ultimate control and safer operation. The invention of an Equaliser® allows you to place bales exactly where you need them, not where gravity takes it.
- 4 year warranty – Hustler’s stamp of quality, backed up by more than 200 accredited dealers nationwide.
Specifications
- BALE SIZES ROUND: all sizes
- BALE SIZES SQUARE: will clamp .9m up to 1.8m
- MAX OPENING/CLOSING: 2.3m/0.4m
- BALE WEIGHT: up to 2 tonne total
- UNIT WEIGHT: 220kg
- HYDRAULICS REQUIRED: 1 X double-acting, 12-60 litres/min, 2250-3000 psi
Features
Even Pressure
Even clamping pressure avoids overstretching balage wrap.
Slim Hands
Slim hands make stacking bales close together a breeze.
Adjustable Hands
3 position adjustable hands allows the handling of both rounds & square bales.

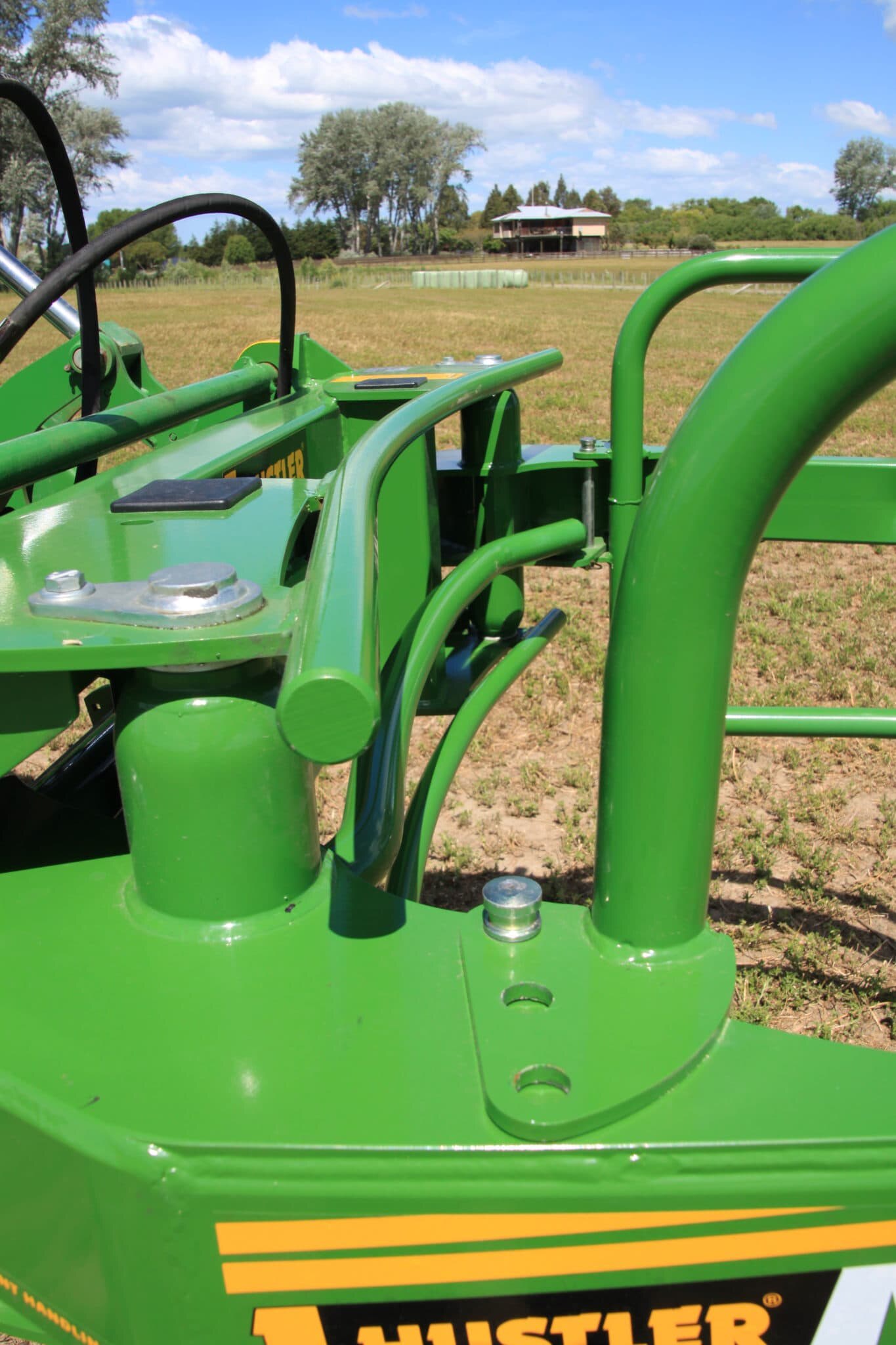

Huge Pivot Pins
Huge pivot pins with beefed-up pivots & greasable bushes.
Equaliser® Bar
An Equaliser® Bar keeps the hands moving symmetrically for precision bale control and operator safety. It is removable if you prefer floating hands.
New Contoured Shape
New contoured shape eliminates any bale tearing or ripping.
Built to Last
Every aspect of the Mega Soft Hands® is built to last, from the extra heavy-duty pivots to the replaceable, greasable bushes.
