Square & Round Bale FeederChainless X5000

This model is now replaced by the Trailed Chainless TX205 round and square bale feeder

The top of the range trailed Chainless double bale feeder. The Chainless X5000 trailed square and round bale feeder is self-loading, suitable for feeding out any bale, round or square, and it maximises feed use. Designed for medium to large operations.

Benefits

  • Chainless – no troublesome feed chains is a key advantage for – Reliability, lower maintenance and quieter operation, the teasing action of the rotors uses feed more economically, because it is easier for the cattle as they can eat it because it is fluffed up. The Chainless X5000 can effectively feed out any bale type in both round or square. Chainless is a virtually silent feeding operation which means stock are more comfortable.
  • The new rotor shape has better penetratration on tight bales and the shape cleans sticky bales better. The new Axial rotor centralizes the bale in the feeding chamber, so that there is less wastage. It has more grip on sloppy, rotor cut bales which makes feeding them out easier and more efficient. The larger bale chamber makes it possible to feed out a wider range of bales, and also makes using the X5000 trailed bale feeder very simple for operators of all skill levels and reduces the need for platform adjustment.
  • The new Easy Clean Hypaflo wiper panel – The newly developed wiper panel that clears the hay from the rotors better. It has a new quick release latching system for releasing the panel to clean out any hay.
  • Total Control 2 Loading system – gives you total control over loading the bale. The simple, reliable and fool-proof single cylinder design of the Hustler loading system is safer than other loading systems and allows unwrapping of the bale above the feed cradle, reducing waste.  The Hustler loading system can be reversed if the operator decides not to load that bale. It also has more support area for soft or square bales. The X5000 square and round bale feeder has more leverage, stronger design and larger 1.5 tonne capacity.
  • Loaded with time-saving and money-saving features such as; QRC Grips, Drawbar hose holder, biggest stub axles on the market, Loadial loading indicator, Feedguide built in platform height guide and Hustler’s stamp of quality, full 2 year warranty, and much more…
  • Stability – The Chainless x5000 bale processor with its low centre of gravity and wide wheel track makes it the most stable bale feeder on the market when in operation adding peace of mind.

Specifications

  • Bale sizes round: all sizes up to 5’ X 6’
  • Bale sizes square: all sizes up to 8’ long
  • Bale weight: up to 1500kg ea
  • Unit weight: 1180kg
  • Hydraulics required: 2 X double-acting, 30-60 litres/min, 2250-3000 psi
  • Capacity: 2x bales (round or square)
  • Tynes: 2x Forged high tensile
  • Towing eye: Adjustable height, 50mm swiveling forged, 12t rated
  • Axles: 6 Stud, 60mm Square
  • Wheels: 13/55 R16
  • Ground clearance: 443mm
  • Loading: self-loading
  • Size (L x W x H): 4467 x 2410 x 1669mm

Features

round bale feeder axial-rotor1-350x151

Axial rotor

The addition of a new Axial Rotor with centralising paddles keeps the bale positioned in the centre of the feeding chamber to minimise wastage and provide better grip on soft bales.

trailed bale feeder IMG_1320_edit-350x151

Feedout any bale

The Chainless X5000 trailed bale feeder is the most versatile bale feeder, it will feed out any bale round & square.

round bale feeder axial-rotor1-350x151

Feed control

Infinite variation in feed control, allows you to feed thick for cattle, thin for sheep to increase the palatability for your stock.

round bale feeder platform1-350x151

Polyethylene floor

Hustler’s proven polyethylene platforms with ribbed design keeps bales tracking straight and with 30% less friction than steel it reduces drag on the bale which makes feeding out sticky bales easier and it will never corrode. The X5000’s platform is wider to reduce waste with sloppy bales.

Low maintenance drive

The entire drive system is now located at the rear, which allows better manoeuverability. Bigger outboard bearing blocks are easily greased, larger shafts, automatic drive tensioners require no adjustments, and is designed to handle larger 1.5 tonne bales.

round bale feeder wiper-panel1-350x151

Hypaflow wiper

The Easy Clean Hypaflo Wiper Panel minimises blockages and ensures that hay drops outside the wheel tracks to avoid being flattened into the mud. A quick release latch releases the wiper panel for easy cleaning.

FeedGuide

The clear, easy to read platform height guide shows starting positions for various bale types making it easier to use for all operators.

Protective covers

Transmission covers protect against mud and debris getting at the heavy duty drive system which reduces maintenance.

Loadial

The new easier to read loading indicator makes loading any bale simple: line up the indicator to correct bale position, back in and load.

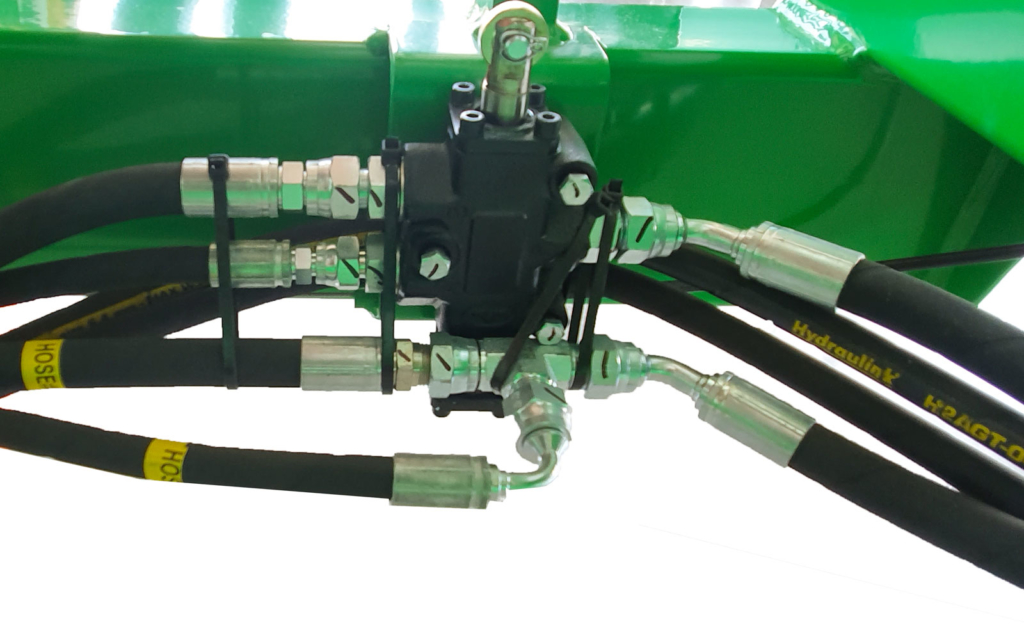

Divertor valve

Our divertor valve is a safety feature and allows the X5000 to be used behind tractors with just 2 double acting remotes.

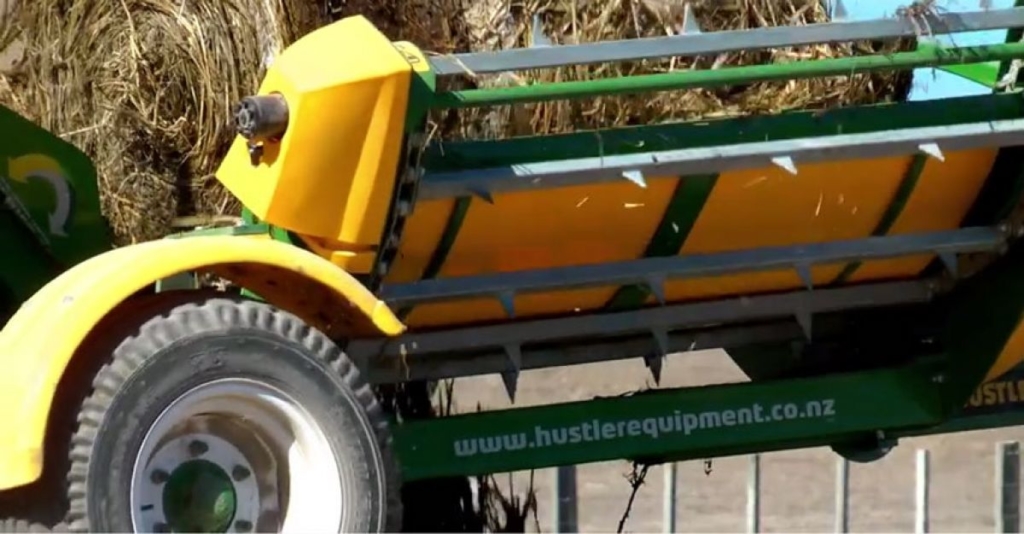

High tensile chassis

The X5000 round and square bale feeder is built to handle larger bales and has an impressive strength to weight ratio, achieved by using high tensile steel and larger section members. We’ve done our homework and put the steel where it’s needed, not in case it’s needed.

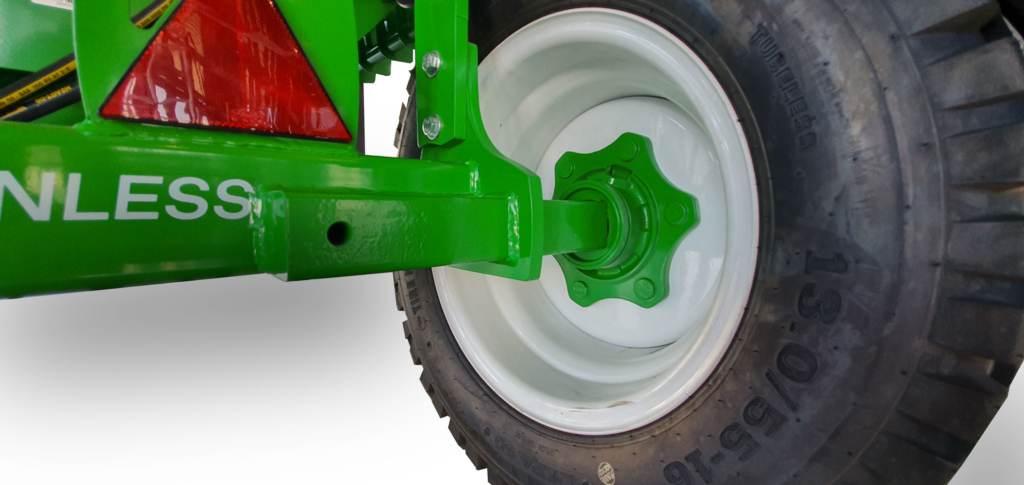

6-stud axles

Our 6-stud axles are the strongest on the market giving you longer life and more load capacity.

Massive ground clearance

The X5000 bale processor is has the more ground clearance allowing you to operate on rugged terrain and with the clean underside of the chassis there is nothing to damage or get snagged should you belly out.

Single post drawbar

The single post drawbar design has set the benchmark in feeder maneuverability and tighter turning. The drawbar is fitted with built-in road-legal safety chain mounts and an adjustable height towing eye.

Swiveling towing eye

The heavy duty 12,000kg rated forged towing eye has 50mm height adjustment to suit different size tractors. It rotates 360°, making feeding out on uneven terrain trouble-free.

Heavy duty parking jack

New heavy-duty parking jack has an oversize mounting for a positive lock and safety. To allow for tighter turning, we’ve added an extra mount on top of the drawbar for stowing the jack.

round bale feeder sandblasted-coating-350x151

Sandblasted, wet coat finish

New sandblasted finish and improved paint system means your new Chainless X5000 will look smarter for longer.

Stringbox

The Chainless X5000 is equipped with a large capacity stringbox which is very handy for stowing that bale wrap, fencing standards, and other items while you’re out and about.

double bale feeder floatation wide wheels

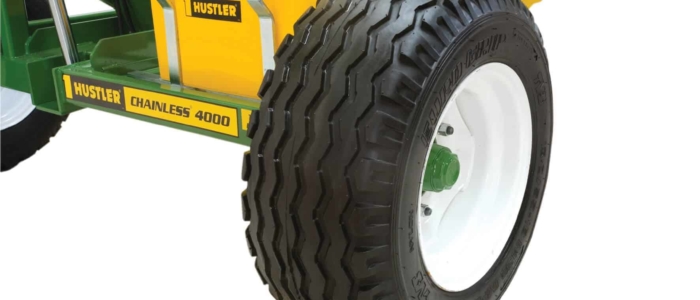

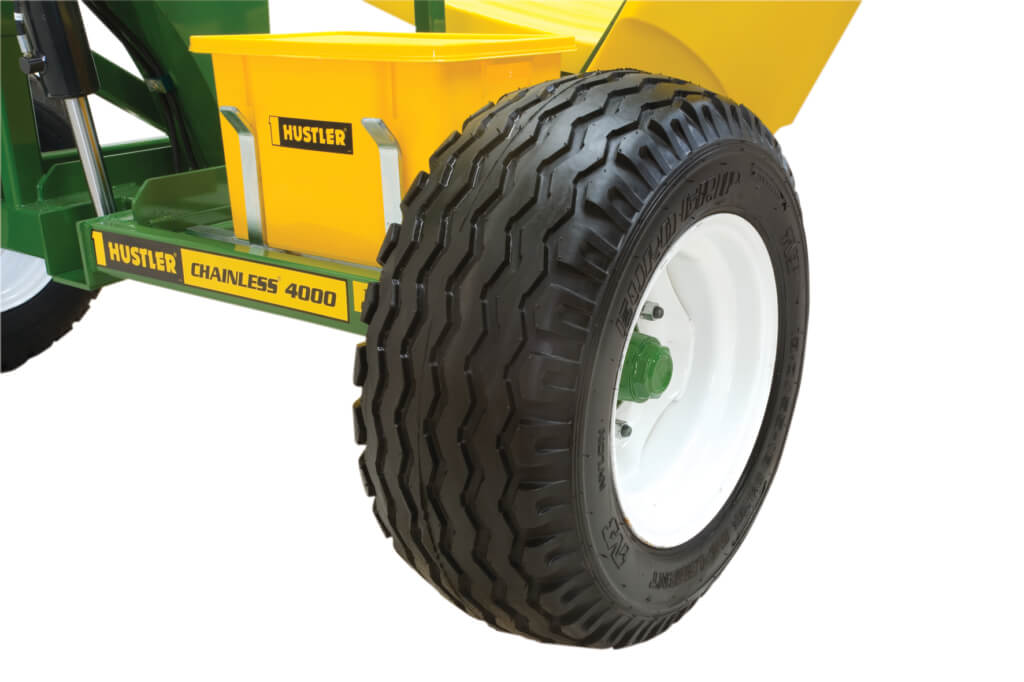

Flotation tyres

Extra wide 13/55-R16 flotation tyres are standard equipment for less compaction in wet conditions.

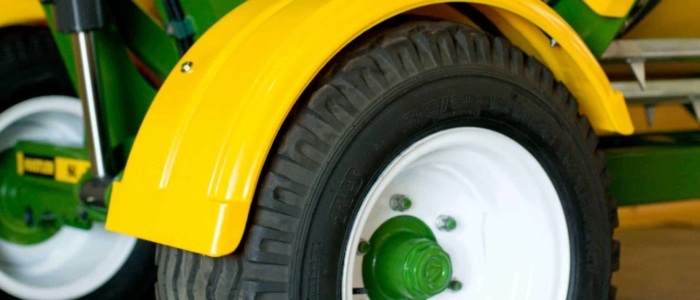

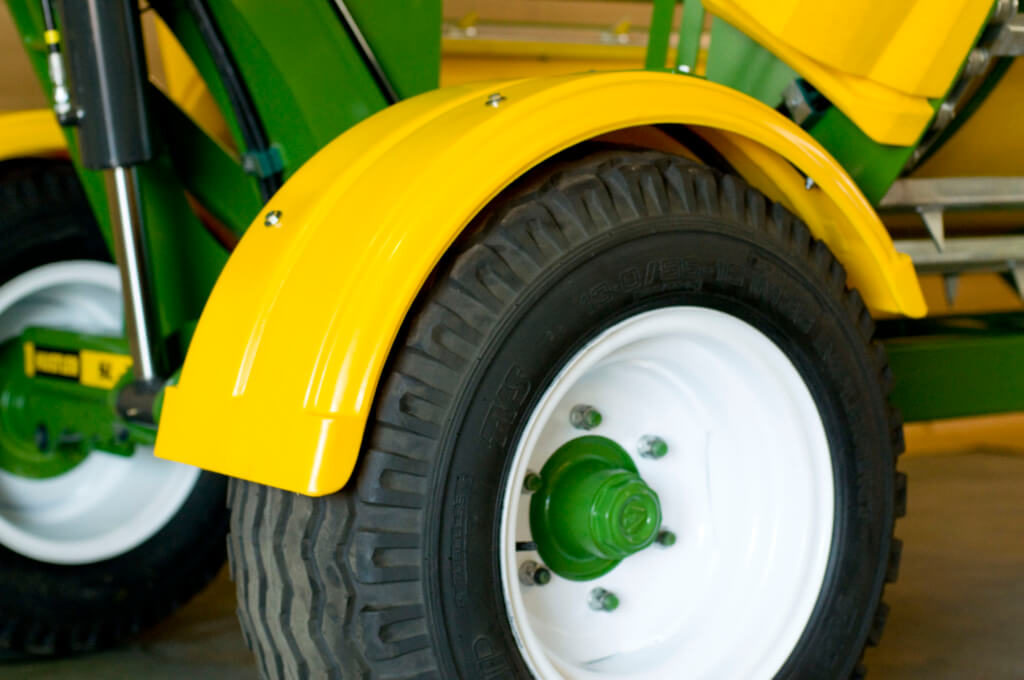

Mudguards

Mudguards standard keep your feed clean and dry when traveling between paddocks and reduces feed spoilage when operating in muddy conditions.

Total control loading

The single hydraulic ram of Hustler’s Total Control 2 loading system makes loading faster and prevents bales falling on the operator during unwrapping. A bigger tyne frame provides extra support for soft or square bales.

round bale feeder quick-release-wiper-latch1-350x151

Quick release wiper

A quick release latch releases the wiper panel for easy cleaning.

trailed bale feeder qrc-grips

QRC grips

Another industry first from Hustler! Quick coupling grips make connecting hoses easier and the colour coded for easy coordination.

round bale feeder rotors1-350x151

Rotor teeth

Many hours of research and development have gone into the shape of the teeth to makes them clean easier, and have more aggression on tight bales. The X5000 has 5 teeth per rotor to provide extra grip on soft bales.

Hose Holder

Hose holder

Requested by farmers and unique to Hustler balefeeders, the drawbar mounted hose holder keeps the hydraulic hoses out of harms way, reducing chances of downtime. The X5000’s hose holder has provision to hold the hoses when the bale feeder is not in use.
