Square & Round Bale FeederX2500

This model is now replaced by the Mounted Chainless LX105 Round & Square Bale Feeder.

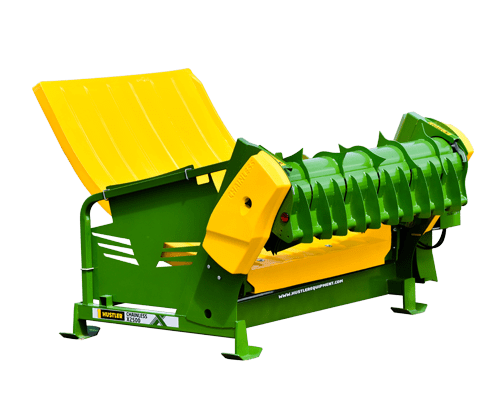

The top of the range Chainless X2500 square & round bale processor feeds every type of square or round bale and has been proven on more bale types than any other bale feeder and it minimises feed waste. It’s self-loading with a patented, hands free quick hitch system, that makes connecting the feeding cradle to the headstock quicker and easier.  A new tougher drive system eliminates downtime and is rated to handle 1250kg bales with ease.

See it in action


  • CHAINLESS No troublesome feed chains is a key advantage for – Reliability, lower maintenance and quieter operation, the teasing action of the rotors uses feed more economically, because it is easier for the cattle as they can eat it because it is fluffed up. The Chainless X2500 round bale feeder can effectively feed out any bale type in both round or square. Chainless is a virtually silent feeding operation which means stock are more comfortable.
  • SNAPLOX The patented, auto connect/disconnect self-loading system eliminates the twisting and strain on your back because there’s no need to tug on a rope to disconnect, and eliminates the chance of a smashed rear window, should an inexperienced operator forget to remove the rope when disconnecting. And it allows the feeder to be operated on a front loader, telescopic loader or skidsteer loader with ease.
  • FEED ANY BALE The new rotor shape and bale chamber design has better penetration on tight bales, frozen bales and square bales and the shape cleans sticky bales better. A patented new Axial rotor has more grip on sloppy, rotor cut bales which makes feeding them out easier and more efficient and centralizes the bale in the feeding chamber, reducing wastage. The larger bale chamber makes it possible to feed out a wider range of bales, and makes using the X2500 very simple for operators of all skill levels and reduces the need for platform adjustment.
  • EASY CLEANING The new Easy-Clean Hypaflo wiper panel – The newly developed wiper panel that clears the hay from the rotors better. It has a new quick release latching system for releasing the panel to clean out any hay.
  • NO BUSHES Bushes in the drive system are one of the highest causes of frustration in maintaining a bale feeder. We are pleased to announce that the entire drive system on the new Chainless X2500 square and round bale feeder runs on bearings, for lowest possible maintenance, less downtime and longer service life.


  • Bale sizes round: 4’ X 4’ – 6’ X 5’
  • Bale sizes square: requires optional side bars
  • Bale weight: up to 1250kg
  • Unit weight: 800kg
  • Capacity: 1 bale
  • Tractor size: 120hp +
  • Hydraulics required: 2 X double-acting, 30-60 litres/min, 2250-3000 psi
  • Loading: Self-loading
  • Size (LxWxH):


square bale feeder axial-rotors

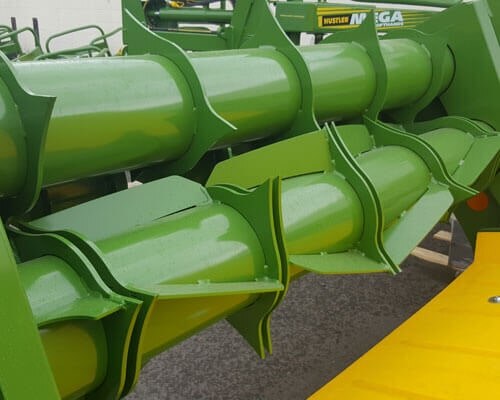

Axial Rotor

The addition of a new Axial Rotor with centralising paddles keeps the bale positioned in the centre of the feeding chamber to minimise wastage and provide better grip on soft bales.

round bale feeder IMG_1320_edit-350x151

Feed out any bale

The Chainless X2500 bale processor is the most versatile bale feeder, it will feed out any bale, round & square.

round bale feeder axial rotor

Feed control

Infinite variation in feed control, allows you to feed thick for cattle, thin for sheep to increase the palatability for your stock.

square bale feeder platform1-350x151

Polyethylene floor

Hustler’s proven polyethylene platforms with ribbed design keeps bales tracking straight and with 30% less friction than steel it reduces drag on the bale which makes feeding out sticky bales easier and it will never corrode. The X2500’s platform is wider to reduce waste with sloppy bales.

square bale feeder wiper-panel1-350x151

Hypaflow Wiper

The Easy Clean Hypaflo Wiper Panel minimises blockages and ensures that hay drops outside the wheel tracks to avoid being flattened into the mud. A quick release latch releases the wiper panel for easy cleaning.

round bale feeder sandblasted-coating-350x151

Sandblasted, wet coat finish

New sandblasted finish and improved paint system means your new Chainless X2500 round bale feeder will look smarter for longer.

square bale feeder quick-release-wiper-latch1-350x151

Quick release wiper

A quick release latch releases the wiper panel for easy cleaning.

square bale feeder qrc-grips

QRC grips

Another industry first from Hustler! Quick coupling grips make connecting hoses easier and the colour coded for easy coordination.

round bale feeder rotors1-350x151

Rotor teeth

Many hours of research and development have gone into the shape of the teeth to make them easier to clean, and have more aggression on tight bales. The X2500 round and square bale feeder has 5 teeth per rotor to provide extra grip on soft bales.

square bale feeder front-hitch

Loader mounts

The headstock design allows for optional loader mounts to be bolted direct to the frame, allowing the feeder to be operated on a loader or telehandler. This provides hay and fuel savings when using the Chainless X2500 bale processor for feeding into bunks, TMR mixers, and hay rings.

square bale feeder tynes--featured-image

Tynes that pierce the bale

We’ve used specifically designed forged bale spears which pierce the bale rather than pushing it and are longer which reduces bale sag even with the wettest of bales, another innovation from Hustler.

square bale feeder dual-latches

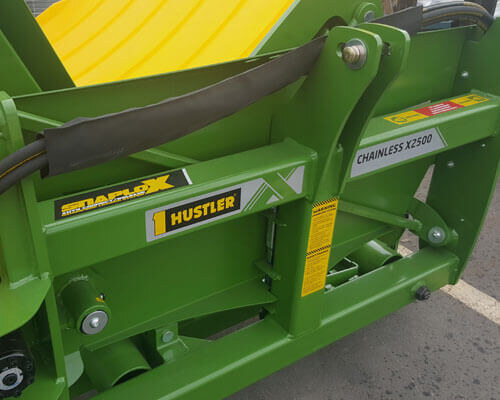

Dual latches

High mounted connection latches on both sides of the feeder take the load off the cradle, which removes any load from the bale spears. This provides a more reliable, positive connection to handle the heavier bales it has been tested to handle.

square bale feeder DSC_6488

Unequal length tynes

We’ve made one tyne longer than the other for quick and easy alignment when reconnecting the cradle. You’ll only need to line up one tyne, then back straight in.

square bale feeder protected-motor

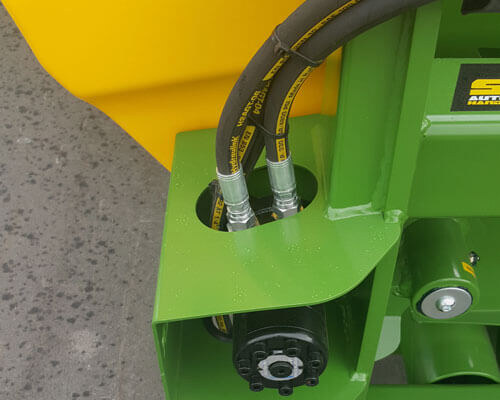

Protected motor

We’ve protected the motor from coming into contact with the tractor tyre, which can save you costly downtime and repairs when your tractor has short linkage arms.

square bale feeder rope-tie-points

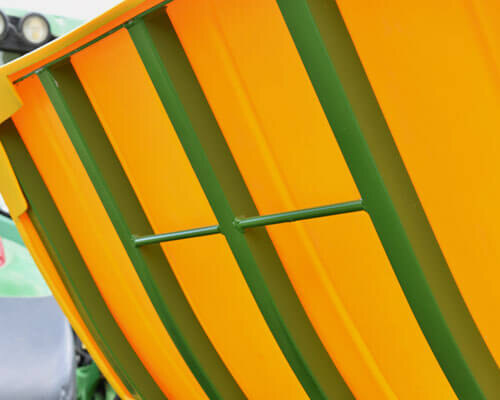

Tie point for strings

We’ve included two grab bars, so you can tie the square bale strings to the platform. This saves the operator having to remove the strings before feeding out.

square bale feeder adjustable-platform

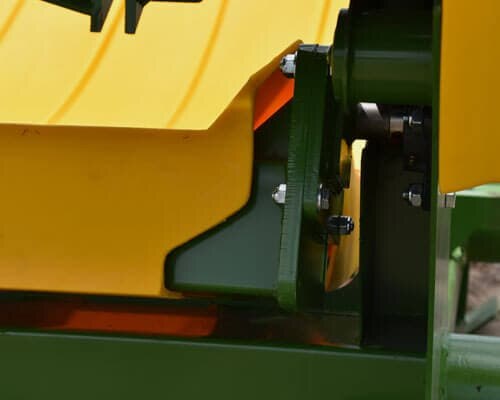

Adjustable platform

The position of the new platform design is adjustable to suit any bale type you may need to feed out, from the worst of miss-shapen bales to the tightest packed square bales, the X2500 handles them with ease.

round bale feeder bushless-drive

Bushless drive

We’ve eliminated troublesome bushes from the drive system of the new X2500, this reduces maintenance, increases service life, reduces the need for frequent greasing and saves you a whole lot of frustration.

round bale feeder heavy-duty-latches

Heavy duty latches

Built to take the heaviest of bales, and last longer with less wear.

square bale feeder bushless-drive-system

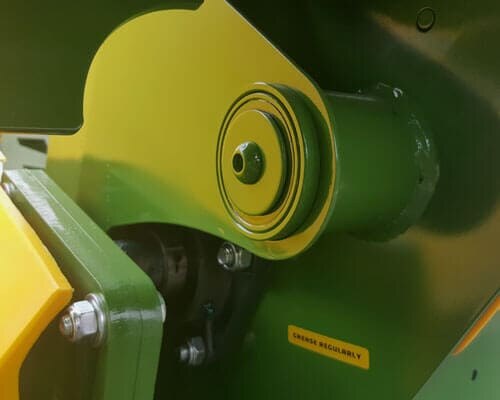

Larger drives

Increases bearing, sprocket and chain drives all designed to handle heavier bales, with less to maintain.

square bale feeder huge-monoque-chassis

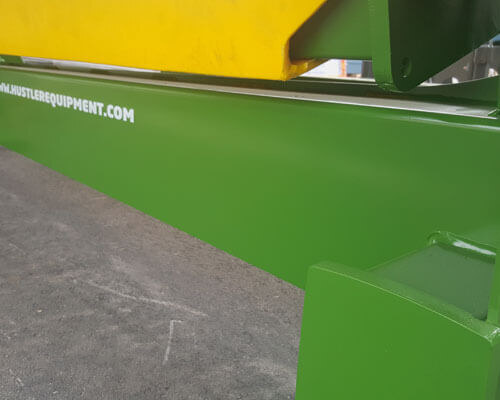

Monocoque chassis design

The new X2500 square bale feeder with its huge new monocoque chassis is the toughest on the market and is now rated to handle 1250kg bales.
