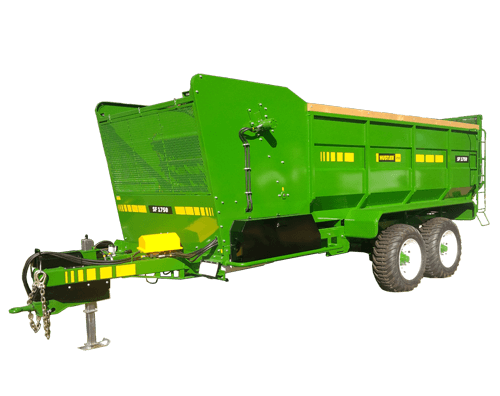

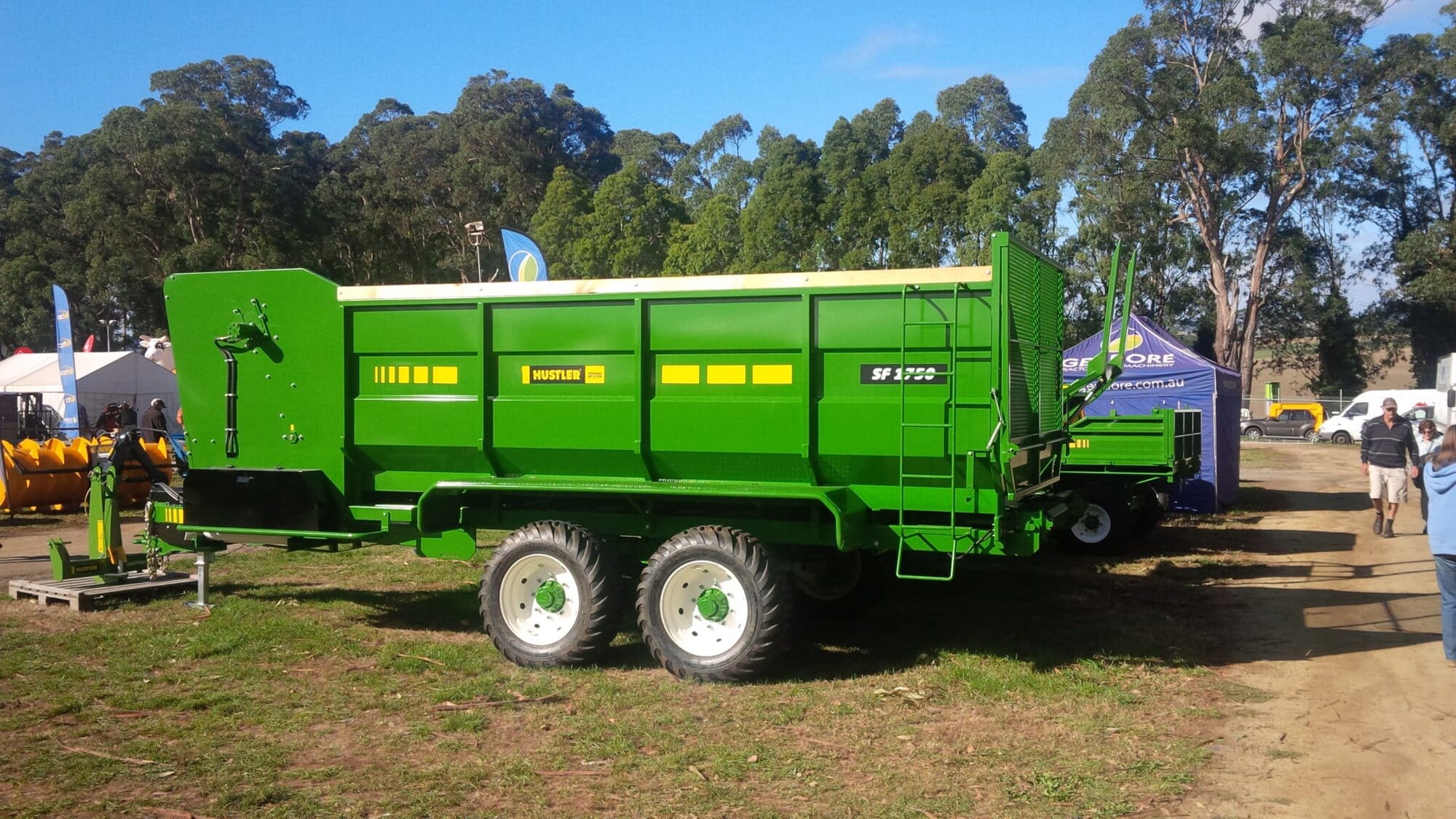

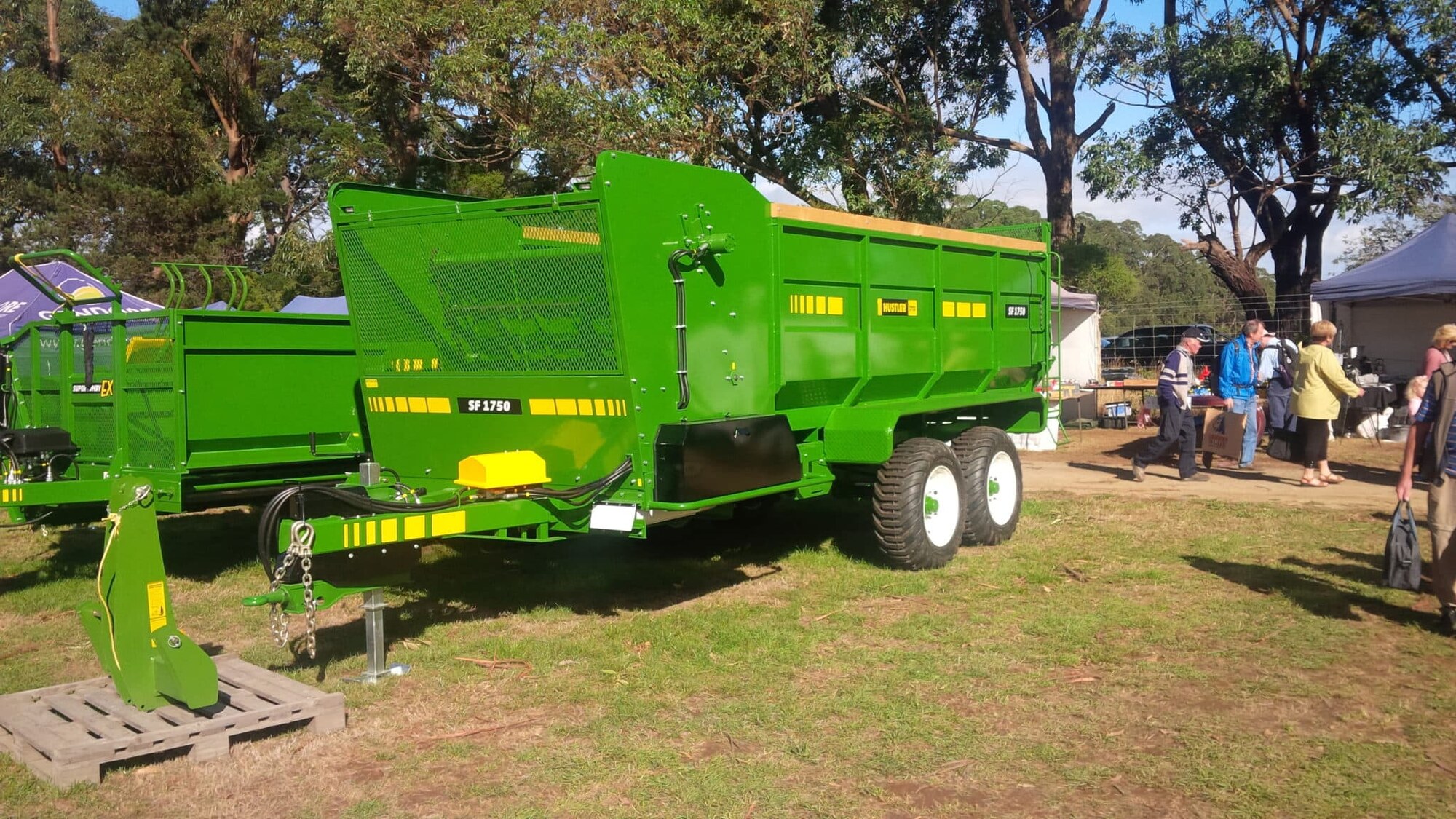

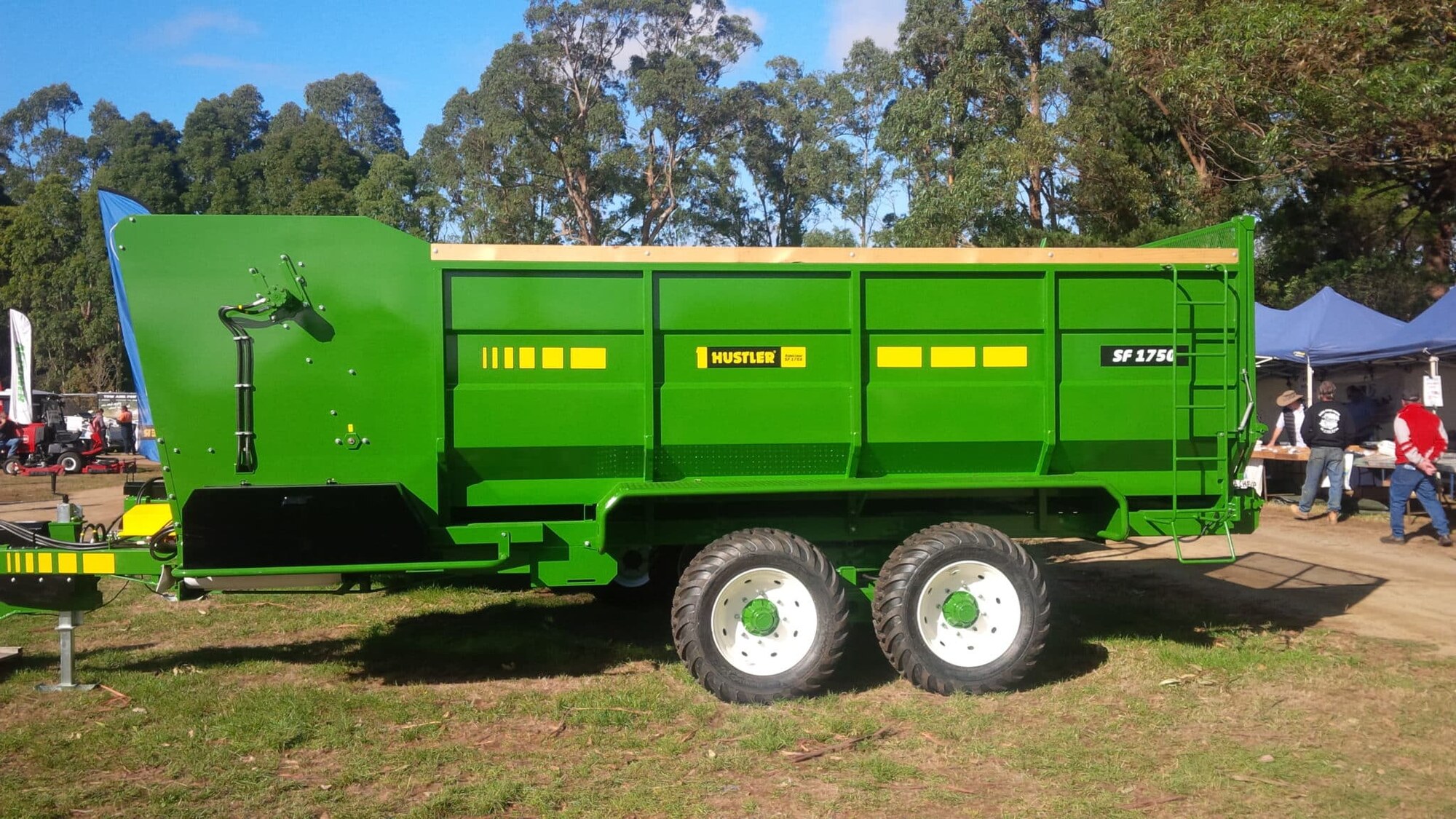

Silage WagonSF2000
The colours on the SF2000 Silage Wagon have been replaced.
The Toughest 20m3 silage wagon on the market! For farmers who rely solely on silage as the supplementary feed of choice. Hustler’s silage wagons are built for large farmers and syndicates who simply cannot afford downtime and want to get the most production from their silage.
Benefits
- RELIABILITY – Built with an exceptionally strong chassis and frame design, all steel cross members and a strong heavy duty top rail. The main body and feeder section is fabricated of tough 3mm steel plate producing the strongest body. The heavy duty steel floor is fully welded to withstand any punishment eliminating the need to replace broken floor boards. The steel floor gives less resistance, reducing the power required to shift the load. The combination of a tough, well-proven design with the design smarts of such as the large delivery belt rollers that track straight eliminating belt derailing all developed to save you costly downtime, maintenance and extend the working life.
- EASY TO USE – Simple single lever control is all it takes to operate the machine. Elevator, conveyor and main floor with load-sensing hydraulics that takes the guesswork out of feeding silage.

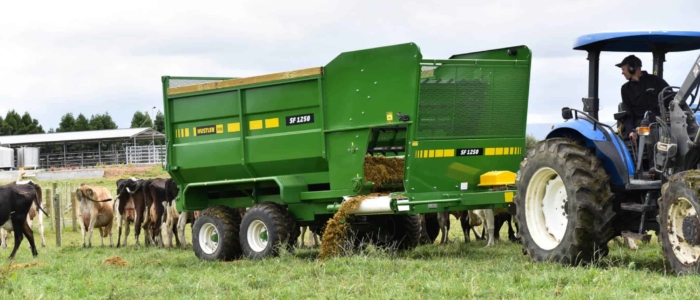

- VERSATILITY – Choose centre feed for general pasture feeding with adjustable flaps which allows economical use with Sheep and Deer. The Side Feed model is ideal for trough feeding, feeding under a wire, feeding along a fence line to avoid trampling and general pasture feeding providing more versatility of use. The wide delivery belt to ensures an even unobstructed flow of material to best suit the variety of your silage feeding needs. You can also utilise this silage wagon to transport feed from the field to the stack when harvesting your crop.
- ACCURATE FEED DELIVERY – All Silage wagons now come load cell ready as standard, which allows you to add the weighing option when it suits your operation so you can accurately measure the correct amount your herd needs, reducing waste and increasing the performance of your farm. The unique loadcell design means the wagon can be a one-piece structure, rather than a separate chassis and body. This adds a large amount of strength to the machine.
Specifications
CAPACITY
Overall length: 8895mm
Overall width: 2780mm
Overall height: 2680mm
Loading height: 2440mm
Tare weight: 4460kg
Capacity: 19.6m3
SPECIFICATIONS
- Elevator/Conveyer: 900
- No. Floor chains: 4
- Jack type: 80 screw
- Axles size: 80 x 8
- Wheels: 405/70R18
- Floor type: Steel
Features
Single Hydraulic Control
The silage wagon only requires one hydraulic remote. Pull the lever to feed, our clever load-sensing hydraulics do the rest for you.
Load Cell Ready
All new comby wagons come weigh-scale ready from the factory, providing you with a future-proofed feeding solution and easy entry into the world’s best silage feeders. The unique design weighs the entire feeder, whether parked or on the tractor.

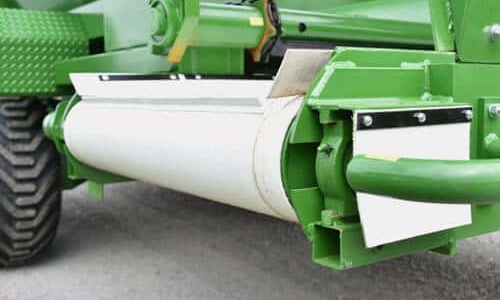

Largest Drive Roller On The Market
Extends the life of the conveyor belt, reduces drive slippage and downtime, and eliminate tricking adjustments to get the belt tracking straight.

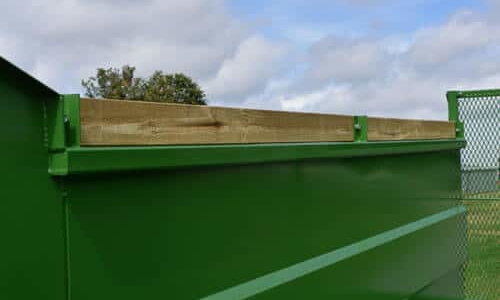

Bumper Boards
Replaceable wooden hunger boards eliminate and damage from operator error when loading.

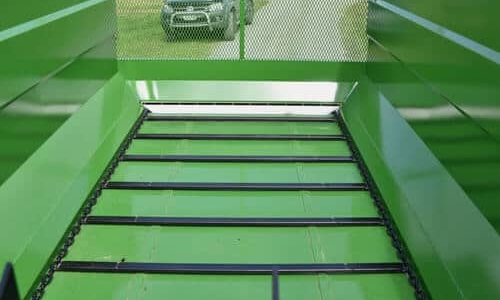

Steel Floor
With the all steel floor and sides, that lasts the lifetime of the feeder, you’ll never need to worry about a broken board breaking a chain, or rotting out from the exposure to silage juices. And the cleaner design of the single pressed sides reduce friction and load on the drives.
Covered Shafts
Heavy duty drives shafts that are covered, so you never need to worry about wrapping.

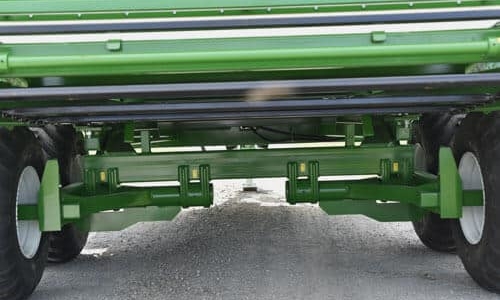

HD Axles
The toughest axle design on the market by a country mile, giving total peace of mind, and eliminating any possibility of downtime.
Large Suspension Travel
The oscillation of the tandem axle allows for travelling over the most rugged terrain with ease.

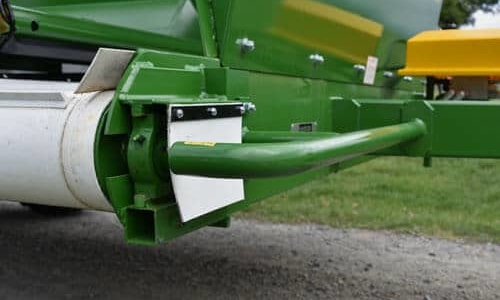

Bumper Bars
Replacable bumpers are positioned at the conveyor, mudguards and drive system the wagon to protect the vital parts of a wagon from interruption your feeding season.

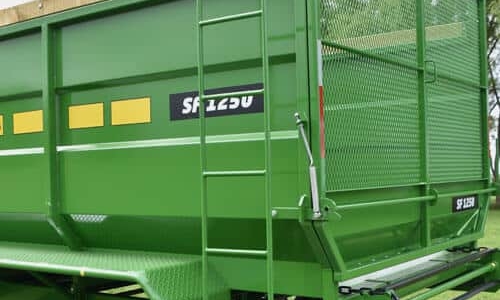

Access Ladder
Rear mounted for health & safety reasons, the rear mounted ladder provides easy access to the main bin.

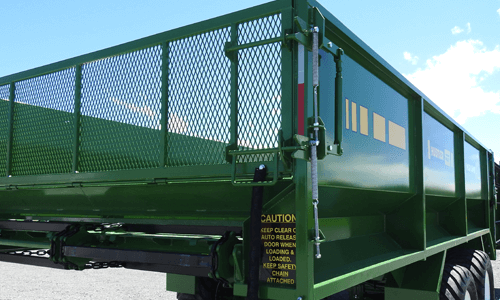

Auto Releasing Tailgate
The safety release of the tailgate design eliminates damage from operator error.

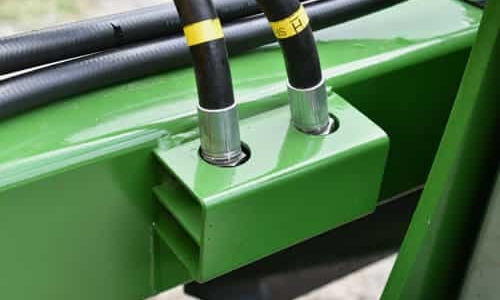

Hose Holder
The built-in hose holder, keeps hoses neatly stored out of the dirt when unplugged from the tractor.

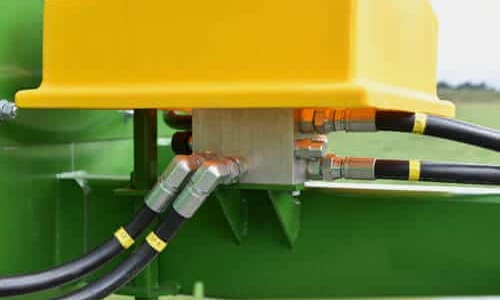

Load Sensing Hydraulics
Makes controlling the SF1250 ultra-simple, and are nicely protected from the weather, mud and other contaminants. Another built-in downtime saver.
Safety Chains
Standard the Silage Wagon comes with safety chains, for added operator safety both on and off the road.

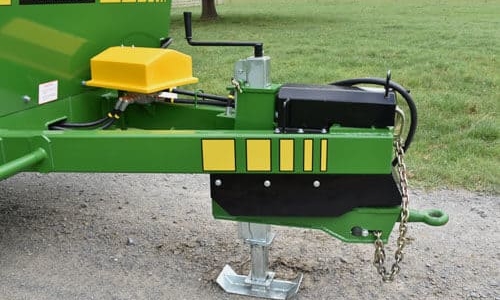

Heavy Duty Jack
The tough 80mm screw jack with the largest support area, means the jack supports the machine better whilst loading. The jack is designed strong enough to be used as a quick hitch foot.
Welded Body
The fully welded body eliminates the need for bolts or rivets which, when subject to vibration or flex, can loosen.
Forged Towing Eye
The approved towing eye offers 360 degree rotation to protect your tractor and can be locked to simplify hooking up with a quick-hitch.

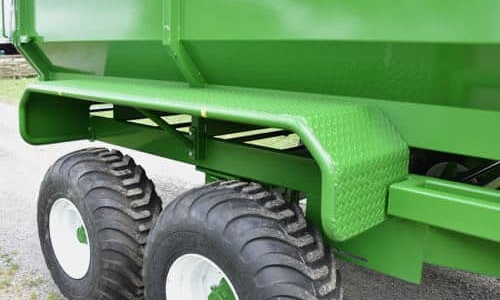

Mudguards
Standard the SF2000 is fitted with heavy duty mudguards with bumper bars to eliminate damage should the operator hit a gate post.
Protected Hoses
The hoses on the silage wagons are protected from chaffing, another downtime eliminator.

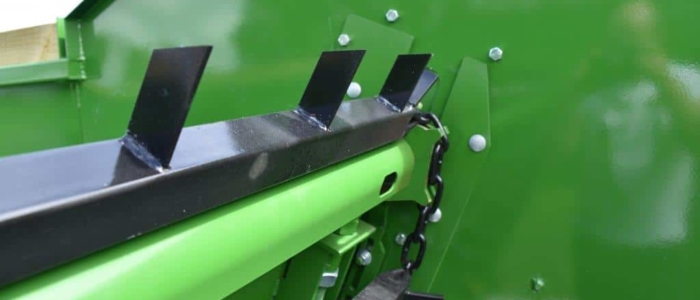

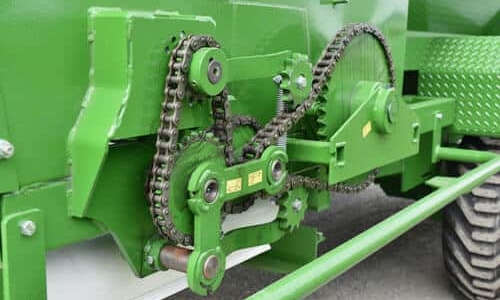

HD Drives
The simple but heavy duty drives require very minimal maintenance and handle the heaviest of loads. Our chain drive gives the reliability of a gearbox, without the additional cost and parts delay should it get damaged. We’ve also protected the drives with bumper bars.
