Combi CX208

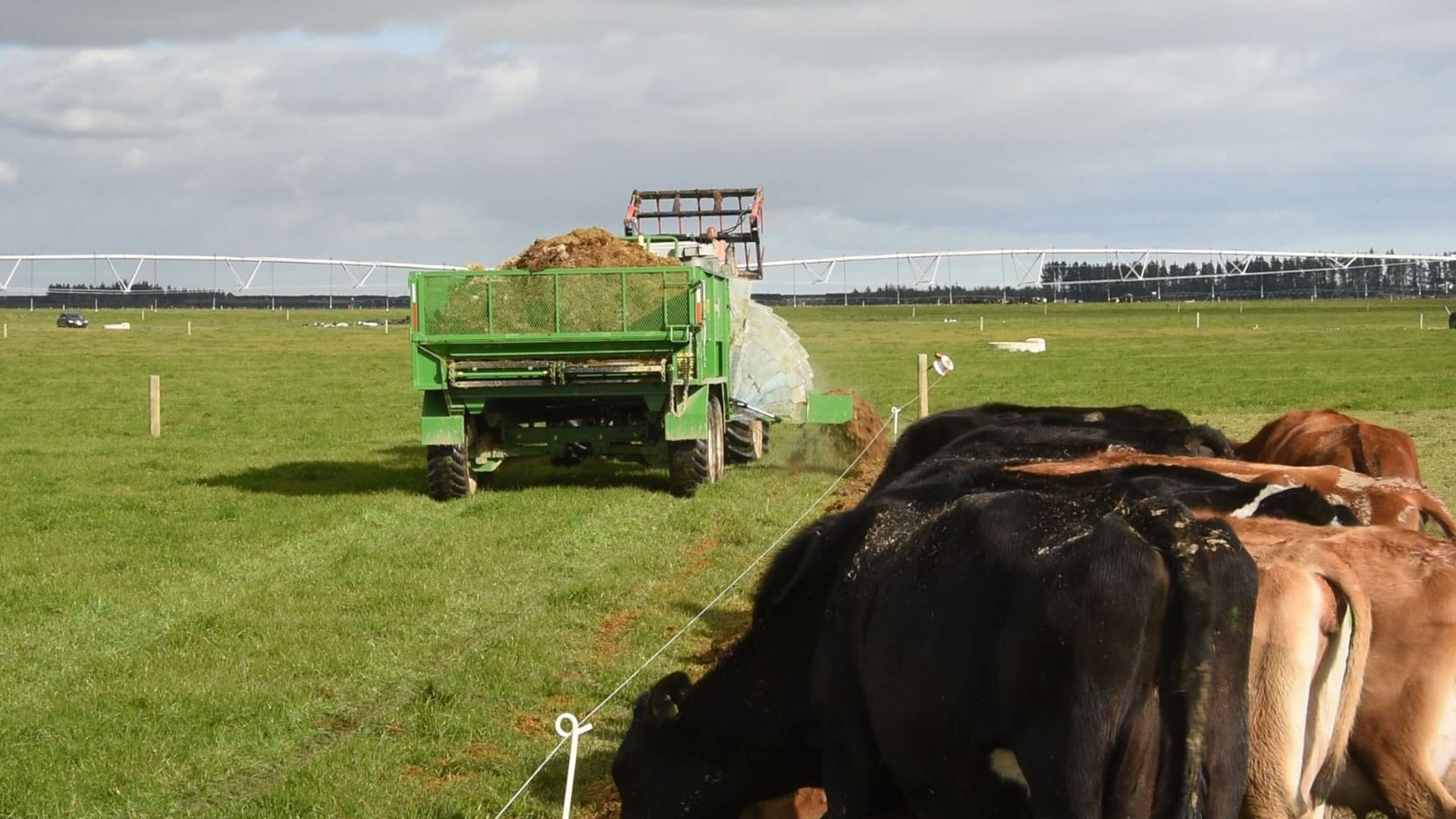

The Mega Comby XL is the largest multi feeder in the range, boasting a whopping 20m3 load level capacity, which can be increased to 24.5m3 heaped capacity using the optional bin/forks assembly. It feeds out every type of supplementary feed including all bale types, shapes and sizes. And any type of loose feed including fine chop silage, maize silage, root-crops, vegetables and is available with the new optional Beet Chopper.
Benefits
- VERSATILITY – If you’re feeding a combination of bales, silage, root-crops or any other supplementary feed, then the Mega Comby XL is the only multi-feeder you’ll need. Mega Comby XL is able to feed all types, shapes and sizes bales including straw, hay and baled silage, fine chop silage, maize silage, root crops and literally any type of feed you can lay your hands on. The unique elevator design delivers feed out of the side of the machine allowing you to feed into troughs, feed-pads, bunks or open pasture
- CONTROL – The unique design of the Mega Comby XL provides the operator with more control and visibility of the task at hand. More control over the feed-row lets you maximise your feed by varying from light for sheep and deer to the heavier row for feeding cattle and anything in between with no big clumps left in the pasture. The ability to see the entire load from the comfort of your seat puts you in control of feeding
- RELIABILITY – The combination of a tough, well-proven design with the design smarts of the unique load dividing system reduces loads and stresses on drives, motors, shafts and the floor extending the working life, reducing maintenance and less to wear out which lets you spend more time feeding out, less time in the workshop.
- EASY TO USE – With a simple Joystick Control Feeding System only 2 double acting hydraulic outlets are required to operate the entire machine. Elevator, main floor and cross floor giving you more control, from your fingertips. You have full control of the feed material, being able to forward and reverse all floor movements. The low loading height simplifies loading and the wide design makes it the most stable unit on the market.
- ACCURATE FEED DELIVERY – All Comby feeders now come load cell ready as standard, which allows you to add the weighing option when it suits your operation so you can accurately measure the correct amount your herd needs, reducing waste and increasing the performance of your farm.
Specifications
CAPACITY
4′ dia. round bales: 10
Square bales: 8-12
Bulk silage: 20m3
Maximum load: 12000kg
SPECIFICATIONS
- Overall width: 2900mm
- Overall width with elevator fully down: 4000mm
- Overall height loading: 2350mm
- Overall length: 9750mm
- Tare weight: 5180kg
- Tyres (standard): 400/60 x 22.5
- Tandem axle: 8 tonne per pair – 8 stud
- Hydraulics required for standard: 2 pair double acting
- Tyre option – UPGRADE: 500/45 x 22.5
Features
Tilting Elevator
Allows the operator to easily feed into troughs bunks or pasture, and to vary the thickness of the feed-line. The generous overhang eliminates feed being driven over by the wheels, whilst maintaining stability.
Finger Tip Control
Standard in-cab electric joystick gives fingertip control over the entire feeder, letting you control the feed row of any feed type and density.

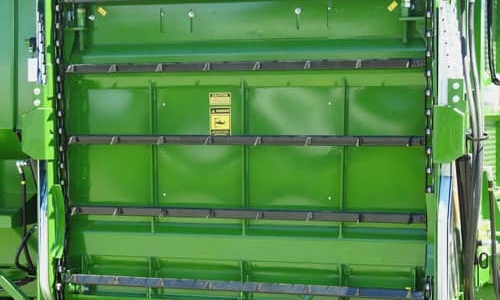

1635mm wide elevator
The widest elevator on the market, handle any shape or size of supplementary feeds, even the largest of 5’ bales. And the chain/slat design never slips or stretches like that of a conveyor belt. The new design has a 500mm longer elevator.

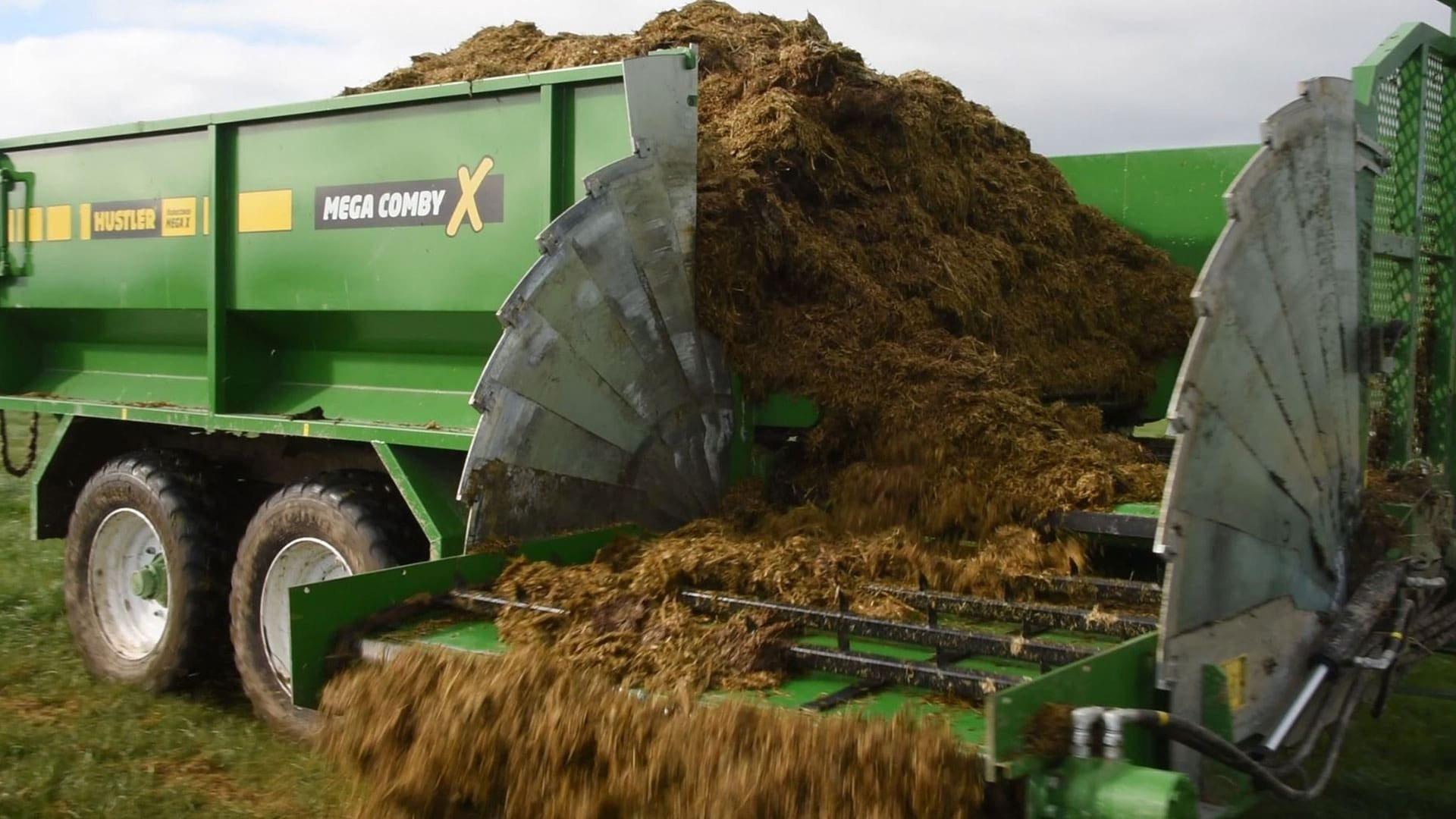

Positive Drive Cross Conveyor
Minimal maintenance, ultra-high breaking strain and a positive drive. Never worry about a derailed or stretched conveyor belt again.
Strong RHS Bars
RHS bars are substantially stronger torsionally than angle type bars of same size. We’ve used RHS bar on all floors for strength and reliability.

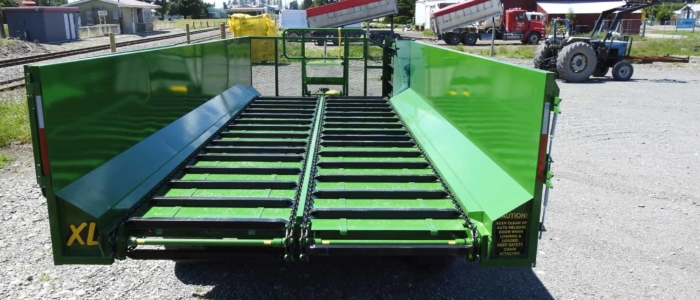

Load Dividing
Load Cell Ready

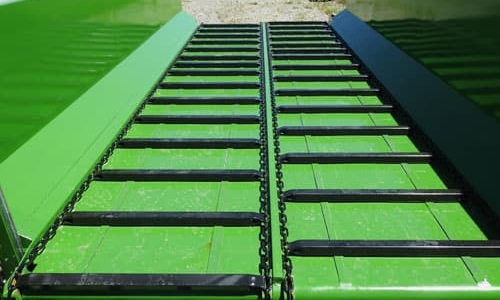

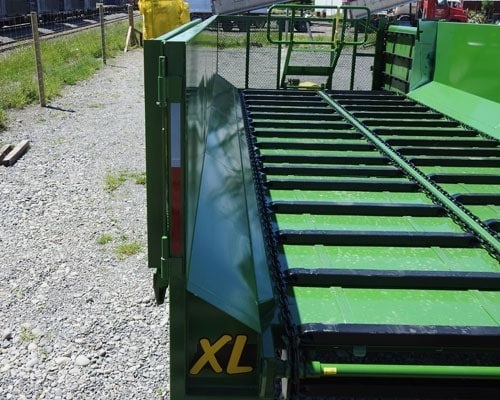

Steel Floor
With the all steel floor design that lasts the lifetime of the feeder, you’ll never need to worry about broken board breaking a chain, or rotting out from the exposure to silage juices.

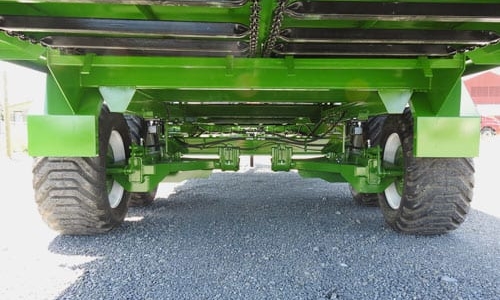

HD Axles
The toughest axle design on the market by a country mile, giving total peace of mind.

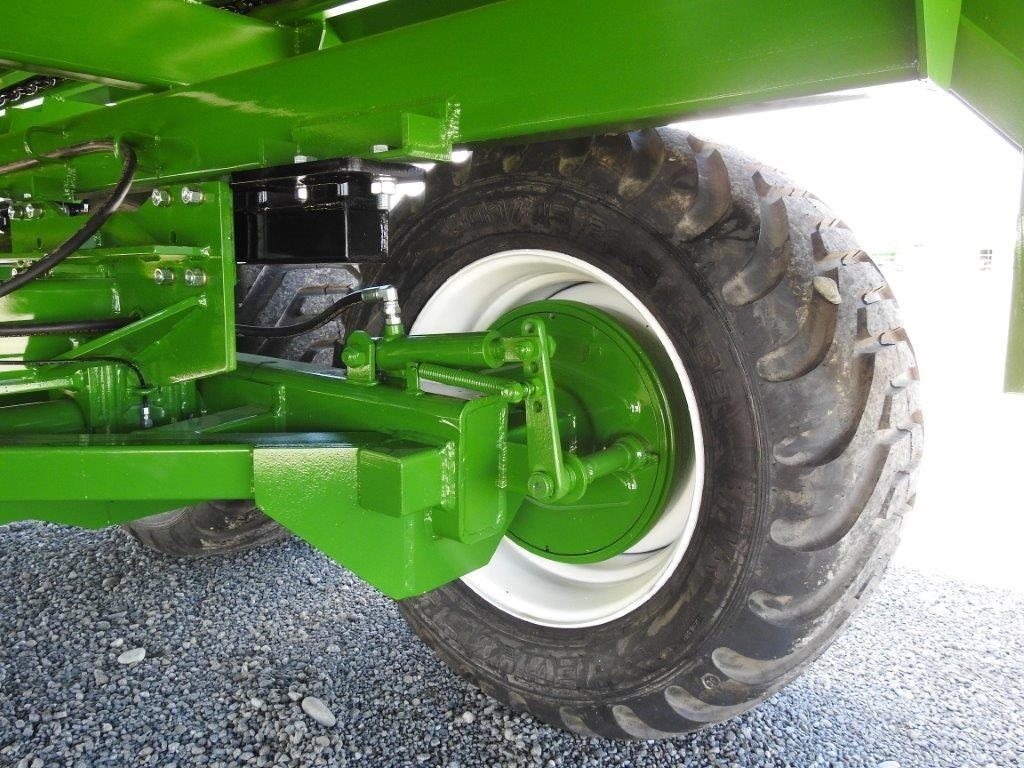

Large Suspension Travel
Folding Tailgate
The new tailgate design makes for quicker and easier operation and stores neatly along the side of the feeder.

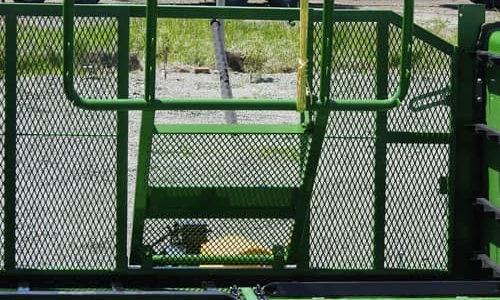

Bale manipulator
The patented bale manipulator aids the loading of large round bales and can be operated from the operators seat on the tractor.
Hose Holder
The built in hose holder, keeps hoses neatly stored out of the dirt when unplugged from the tractor.

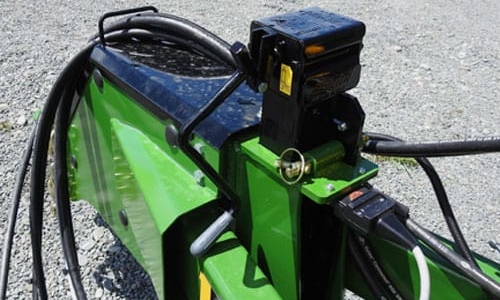

Protected Hydraulics
The hydraulic valves are nicely protected from the weather, mud and other contaminants. Another built-in downtime saver.
Safety Chains
Standard the Mega Comby XL comes with safety chains, for added operator safety both on and off the road.
Forged Towing Eye
The approved towing eye offers 360 degree rotation to protect your tractor and can be locked to simplify hooking up with a quick-hitch.
Heavy Duty Jack
Designed tough enough to be used for a quick hitch stand, withstanding the spike loads when loading the wagon.

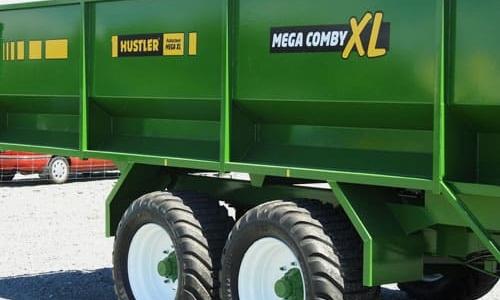

Mudguards
Standard the Mega Comby XL is fitted with full length mudguards to protect your feed from contamination and keep the feeder clean.
Welded Body
The fully welded body eliminates the need for bolt or rivets which when subject to vibration or flex can loosen.
Protected Hoses
The hoses on the Mega Comby XL are protected from chaffing, another downtime eliminator.

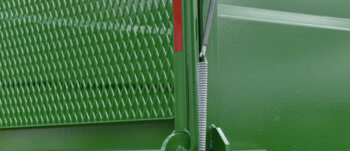

Tail Door
A tail door with breakaway catch system.
Slanted Drawbar Design
Strong Heavy Duty Drawbar unit with slanted front for clearance from 3 point linkage arms. Compatible with most tractor Euro Hitches.
