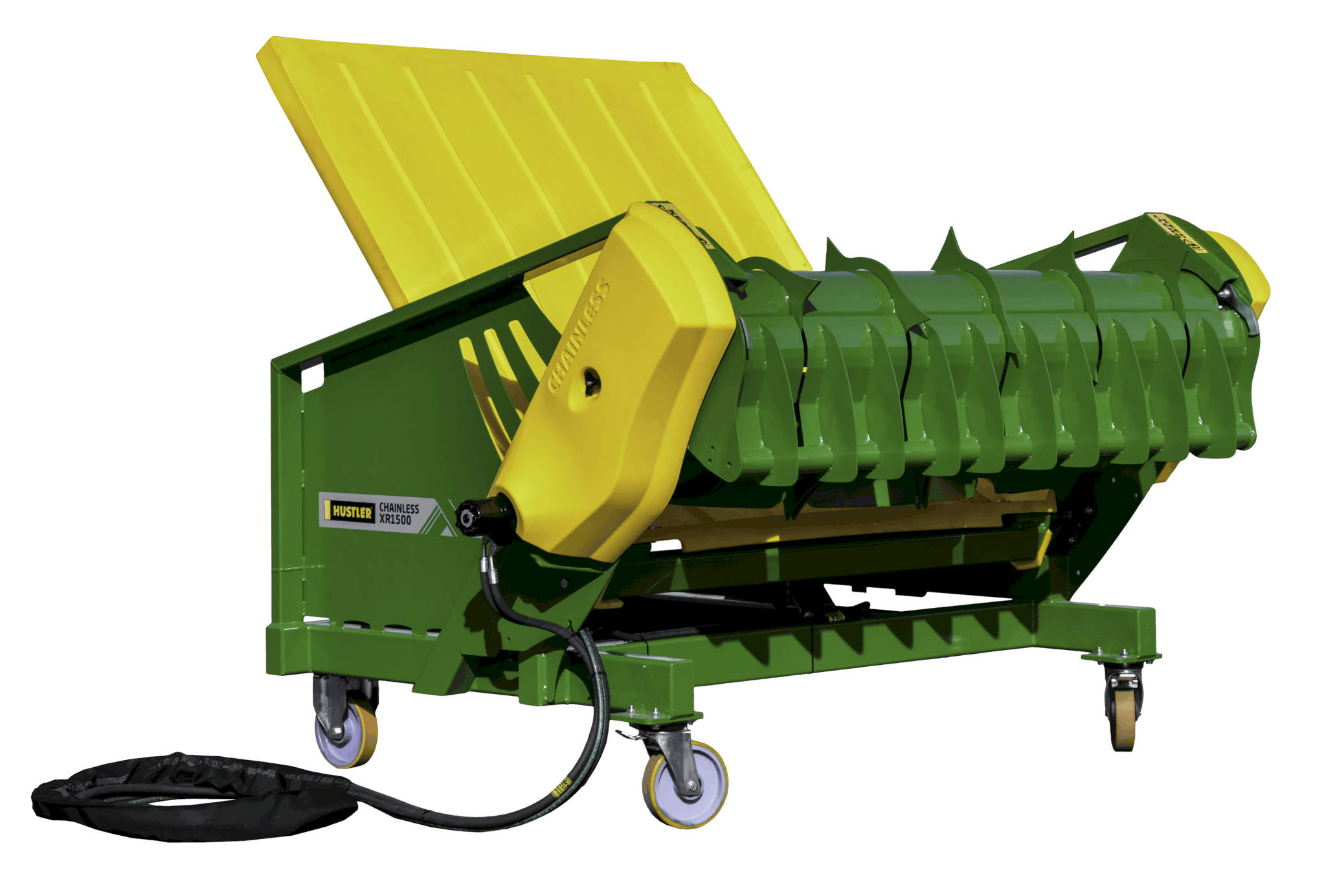

Round Bale RebalerChainless SX105

The Chainless XR1500 round bale feeder is a stationery balefeeder, developed specifically for the use of re-baling and breaking down bales for TMR’s. The Chainless XR1500 efficiently teases apart large round bales in less than 2 minutes which provides huge time, cost and diesel savings.

See it in action

Benefits

  • No feed chains, no PTO = extremely low maintenance. Less wear, longer life and low power requirement due to superior Hustler engineering.
  • Will easily de-bale round bales, any size. The Chainless can handle any type of bale that you have on hand – balage, hay, straw, lucerne, alfalfa, etc.
  • Bales are teased apart by variable rotors. The Chainless lays down a fluffed-up windrow which makes rebaling easier and TMR mixing quicker .
  • Simple to operate hydraulic control
  • 2 year warranty. Hustler’s stamp of quality, backed up by Hustler’s accredited dealers

Specifications

  • Bale sizes round: 4’ X 5’ – 5′ X 5′ – 6’ X 5’
  • Bale weight: up to 1500kg ea
  • Unit weight: 680kg
  • Hydraulics required: 2 X double-acting, 30-60 litres/min, 2250-3000 psi
  • Capacity: 1x bale

Features

round bale feeder rotors1-350x151

Rotor teeth

Many hours of research and development have gone into the shape of the teeth to makes them clean easier, and have more aggression on tight bales. The XR15000 rebaler has 5 teeth per rotor to provide extra grip on soft bales.

round bale feeder quick-release-wiper-latch1-350x151

Quick release wiper

A quick release latch releases the wiper panel for easy cleaning.

round bale feeder axial-rotor1-350x151

Axial rotor

The addition of a new Axial Rotor with centralising paddles keeps the bale positioned in the centre of the feeding chamber to minimise wastage and provide better grip on soft bales.

round bale feeder sandblasted-coating-350x151

Sandblasted, wet coat finish

New sandblasted finish and improved paint system means your new Chainless XR1500 round bale feeder will look smarter for longer.

round bale feeder chain-covers1-350x151

Protective covers

Transmission covers protect against mud and debris getting at the heavy duty drive system which reduces maintenance.

round bale feeder feedguide1-350x151

FeedGuide

The clear, easy to read platform height guide shows starting positions for various bale types making it easier to use for all operators.

round bale feeder axial-rotor1-350x151

Feed control

Infinite variation in feed control, allows you to feed thick for cattle, thin for sheep to increase the palatability for your stock.

round bale feeder paddles2-350x151

Paddles

Paddles on lower drum help when feeding out sloppy bales.

round bale feeder rotors

Rotors

Top rotor turns 3 times faster than bottom rotor – excellent teasing action provides fluffed up windrow reducing wastage > No troublesome feed chains to jamb, stretch or break > Fully enclosed drive transmission protected from damage > Paddles for handling even the sloppiest of bales > Spiral timed teeth makes for smooth running.

round bale feeder teeth

Teeth

Rotor teeth release the feed off the taper at the correct point. They’re also self cleaning so hay doesn’t get jammed between the timed rotors.

round bale feeder Heavy-duty-drive-chains5-350x151

Low maintenance drive

400cc hydraulic motor. Outboard bearing blocks are in a good position to keep clean and greased. Automatic drive chain tensioners mean no adjustment are necessary. Self aligining bearings are free running and protected behind drive covers.

round bale feeder wiper-panel1-350x151

Hypaflow wiper

The Easy Clean Hypaflo Wiper Panel minimises blockages and ensures that hay drops outside the wheel tracks to avoid being flattened into the mud. A quick release latch releases the wiper panel for easy cleaning.

round bale feeder PLATFORM-POSTION-DECAL1-350x151

Adjustable platform height

Infinitely variable bale pressure control from inside the cab allows you to feed out the tightest bale cores or the sloppiest of bales > Built in height guides for easy feeding > Safety latch so operators can’t drive out while platform is up > For different bale types blank bars or bars with more aggressive teeth are available.

round bale feeder platform1-350x151

Polyethylene floor

Hustler’s proven polyethylene platforms with ribbed design keeps bales tracking straight and with 30% less friction than steel it reduces drag on the bale which makes feeding out sticky bales easier and it will never corrode. Polyethylene is impervious to UV, non corrosive, and slippery to reduce drag and drive power, it is easily repairable and very shock resistant. Built-in bale guides help keep bales tracking straight.
