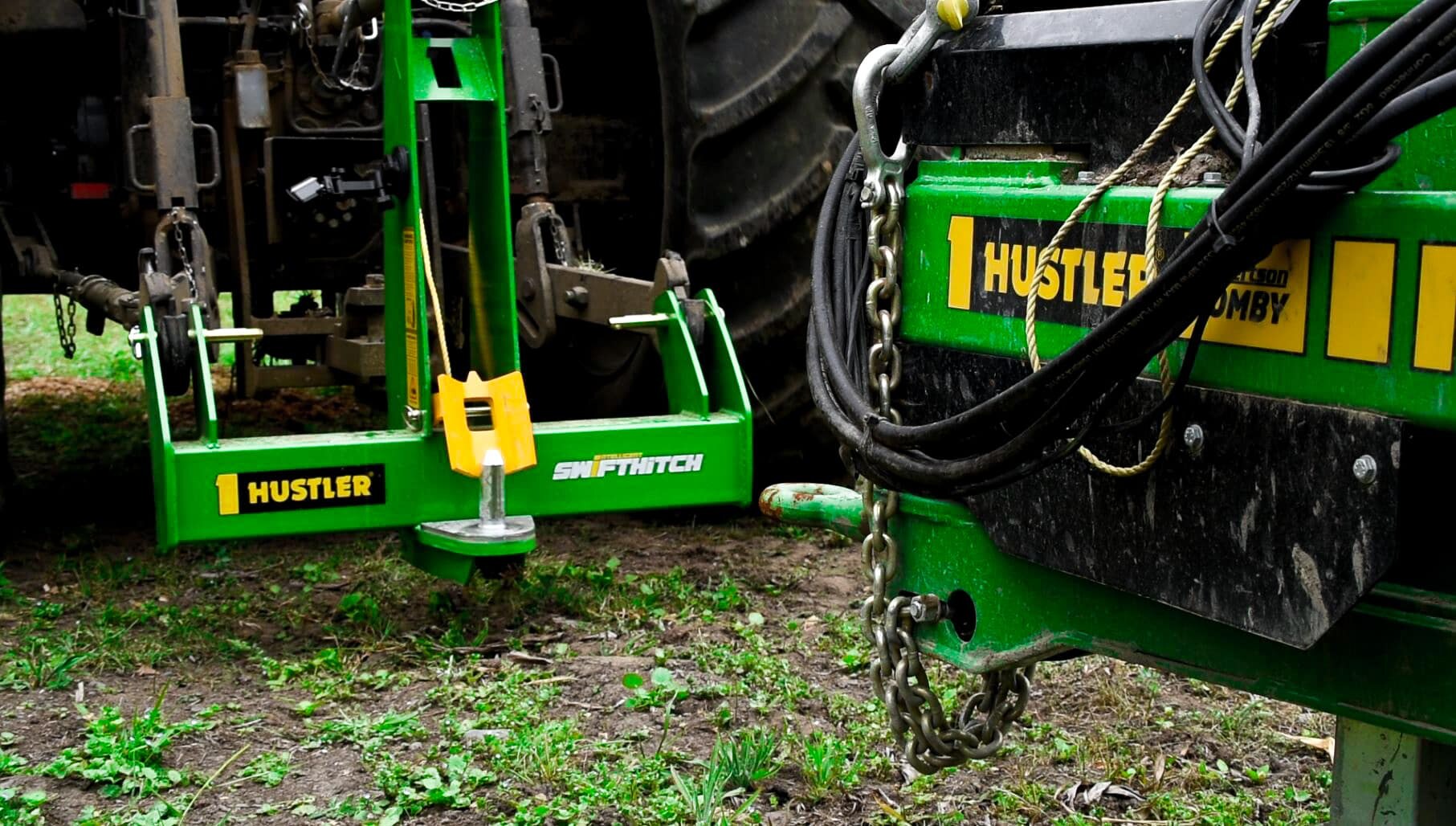

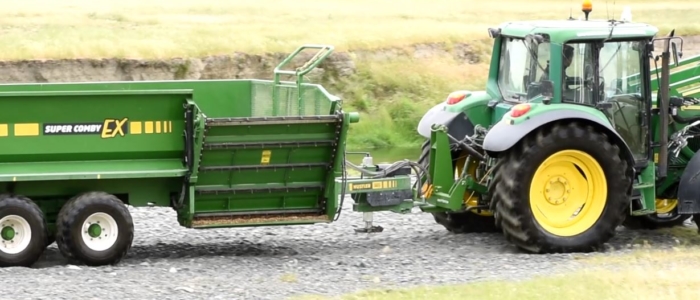

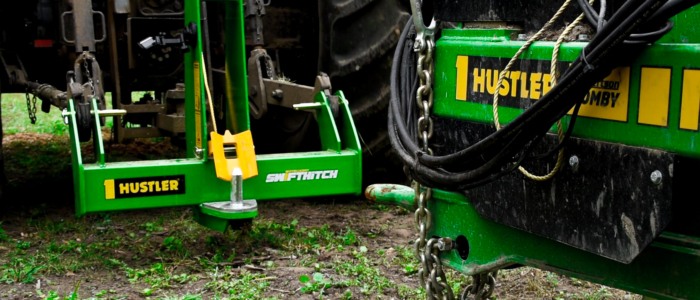

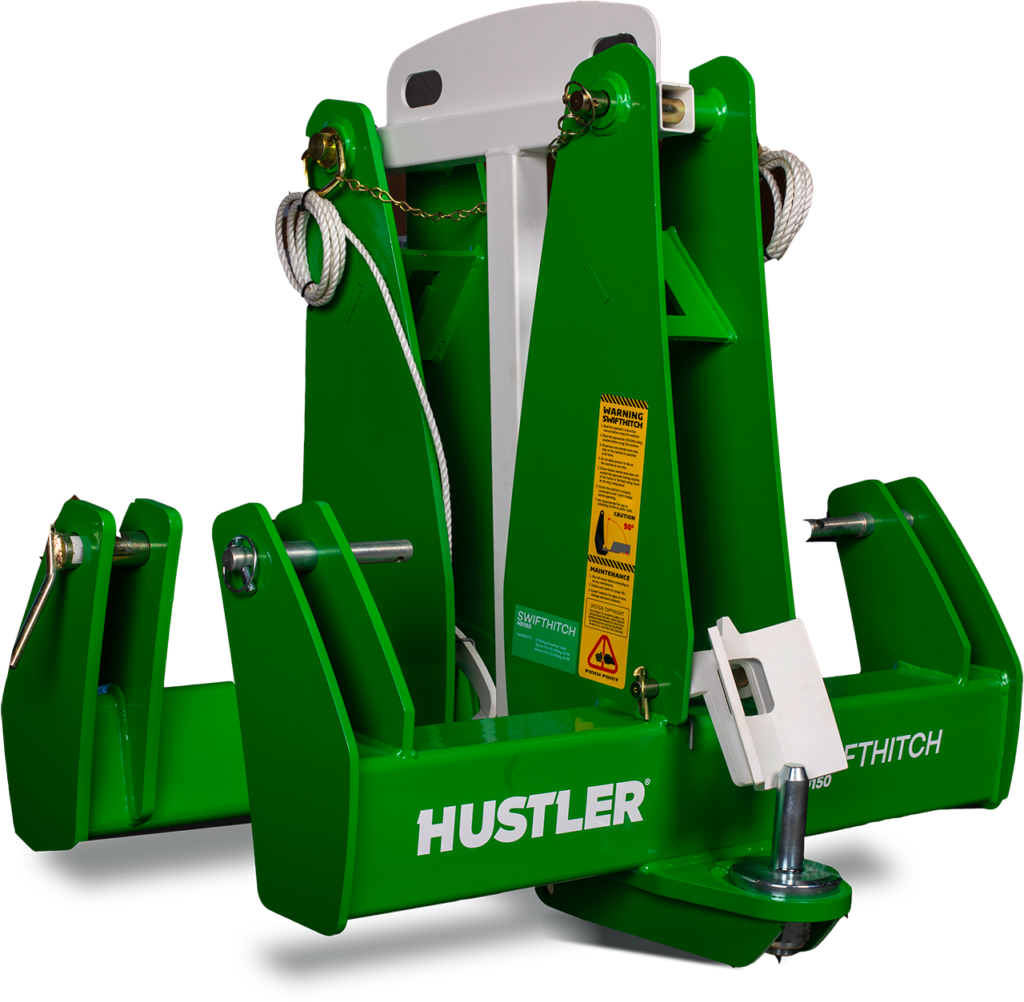

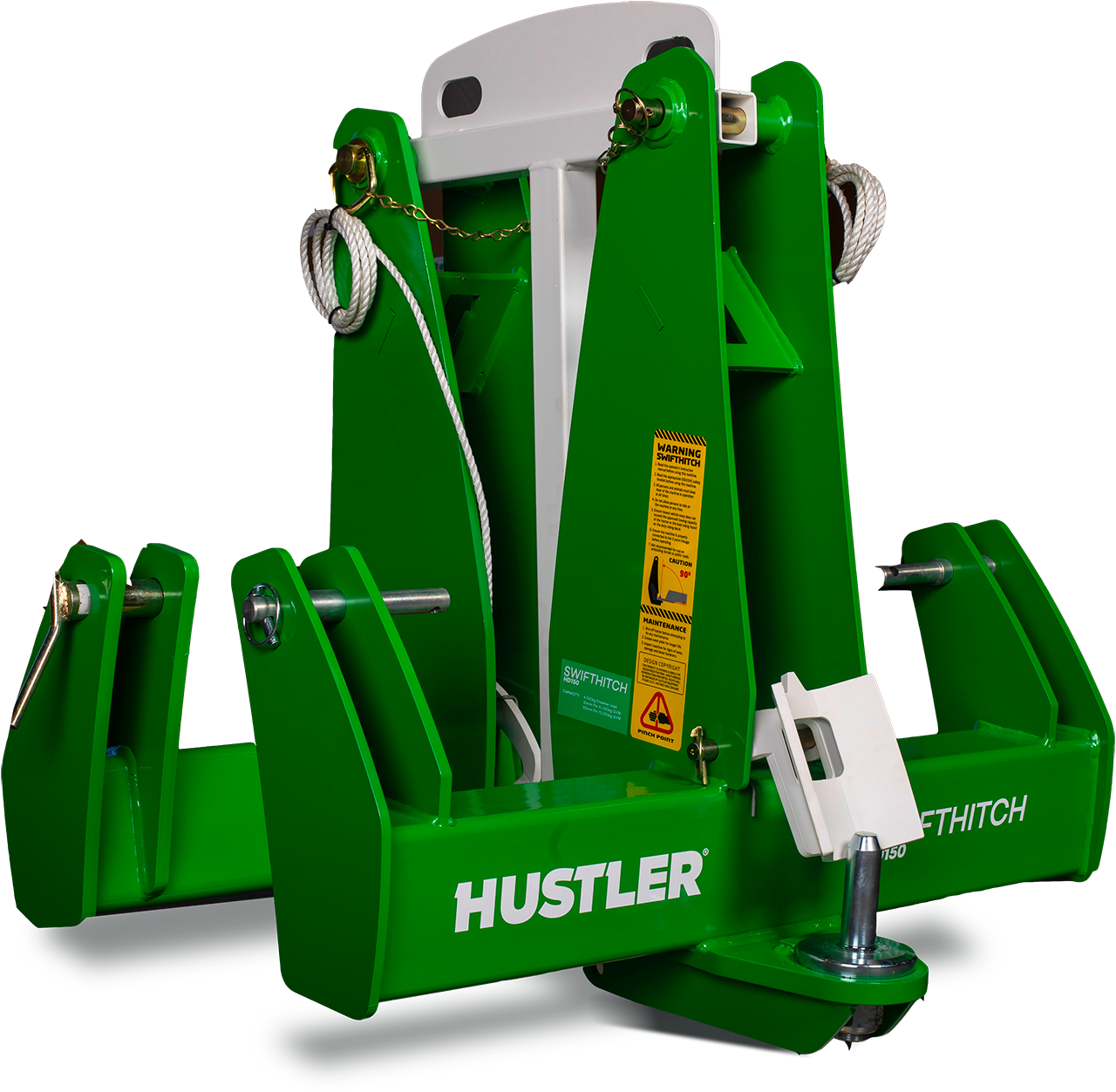

SWIFTHITCH HEAVY DUTY / SUPER DUTY

Swiftly connect to trailed implements at unbeatable speed.

More manoeuvrability and easier connecting than any tow bar quick hitch on the market which makes it easier to use and saves your precious time.   And it doesn’t stop there… this 3 point linkage quick hitch also has the strongest latching system providing more safety and you’ll never need to get the grinder and welder out to replace a wear pad again!

See it in Action

Swifthitch - The world's best trailer quick hitch

Matt Fryer Tests Hustler's new SwiftHitch

Hustler Danny Devine Swift Hitch

Benefits

Swifthitch Unique V shape

Unique ‘V’ shape

Unique ‘V’ shape latch that guides the pin under the tow eye making it easier to connect when slightly off centre.

Versatility

Best visibility on the market, with a clear view to the top of the pin and a high-visibility safety latch.

Swifthitch versatility
Swifthitch 90 degree turning

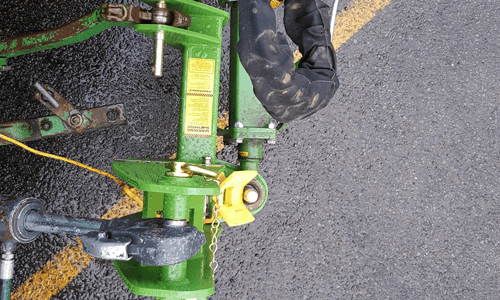

90 degree turning

Full 90 degree turning provides more manoeuvrability than other hitches on the market.

Wear Pad

Replaceable wear pad doesn’t require an engineering job to replace it.

Swifthitch Wear Pad
Swifthitch Strongest Latching System

Strongest Latching System

Strongest latching system of any trailer quick hitch gives more safety.

Product Customiser

Select the product, then options and accessories to create your enquiry.

32 Pin

32 Pin

40 Pin

40 Pin

32 Pin

32 Pin

40 Pin

40 Pin

50 Pin

50 Pin

Specifications

Up to 15 tonne rating
4140 tow pin – 32mm standard (optional 40mm pin available)
CAT 2, 3PTL clevis mounts
Replacable Bisalloy wearpad
3/4″ Latching pin
Drawbar load 4,000kg
32mm pin = 10 ton
40mm pin = 15 ton
Up to 20 tonne rating
4140 tow pin – 50mm standard (optional 40mm pin available)
CAT 3, 3PTL clevis mounts
Replacable Bisalloy wearpad
3/4″ Latching pin
Drawbar load 5,000kg
50mm pin = 20 ton
40mm pin = 15 ton

Features

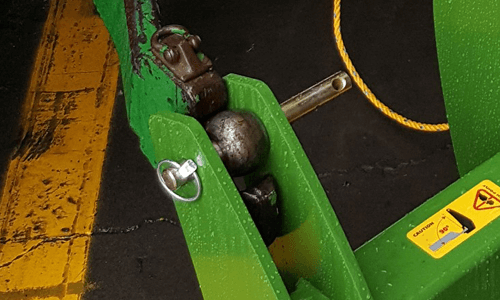

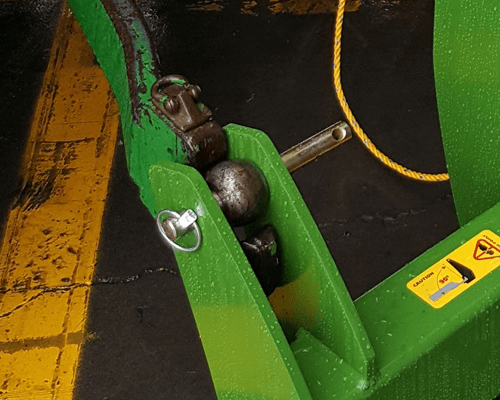

Huge Lower Hitch Arm Clearance

Huge Lower Hitch Arm Clearance

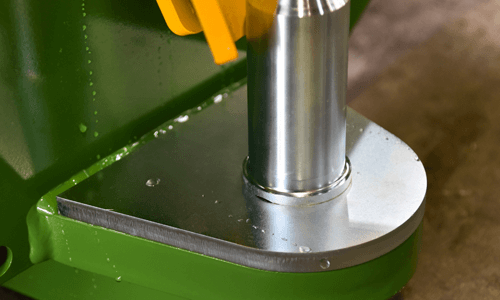

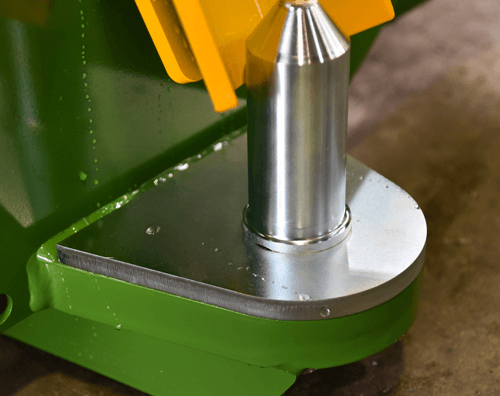

Replaceable Bolt-in Wear Pad

Most other Quick Hitches on the market have wear pads that need to be cut off and re-welded on once worn out – this can be as frequent as once a year. Our replaceable bolt-in wear pad is simple to replace and saves you time and hassle.

Swifthitch Wear Pad

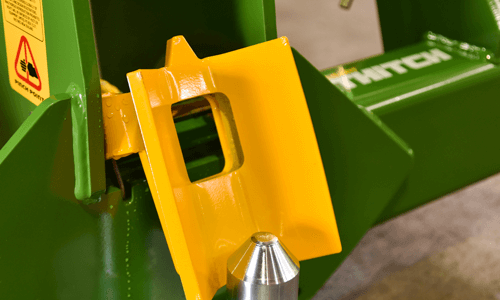

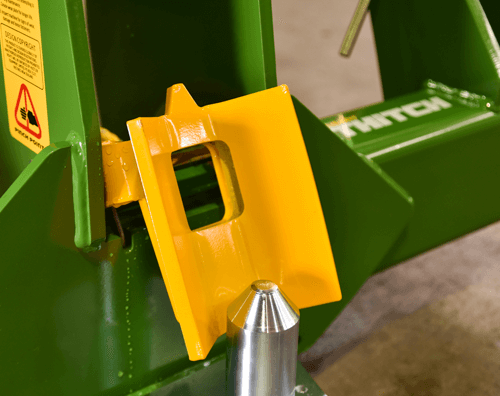

High Visibility Latch

High visibility see-through latch with pointer – contrasted in yellow for better visibility/safety and a built-in pointer which helps with lining up the towing eye.

High Visibility Latch

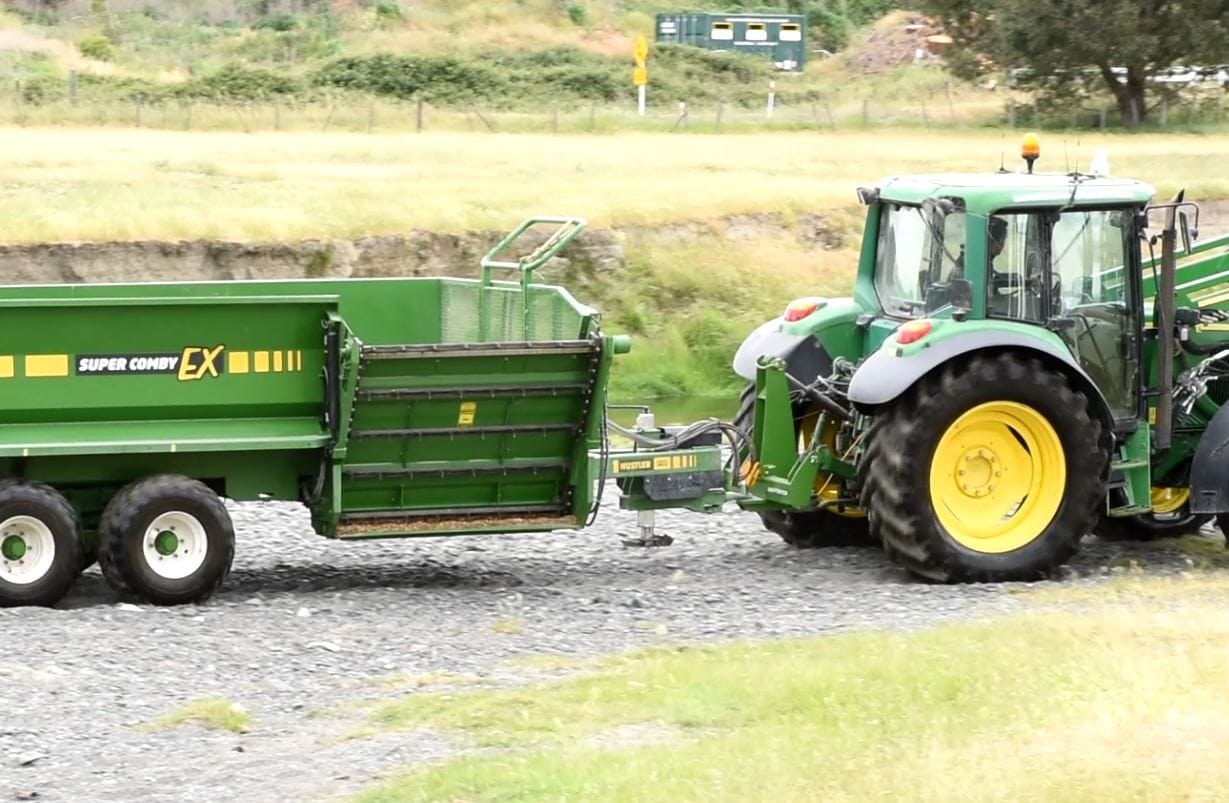

Better Maneuverability

Better Maneuverability

Allows full 90 degree turning when used with single post drawbar trailers – tightest turning angle of any hitch on the market, providing better manoeuvrability.

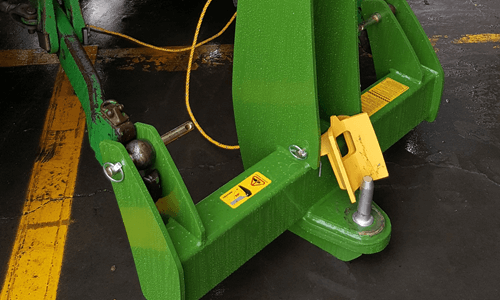

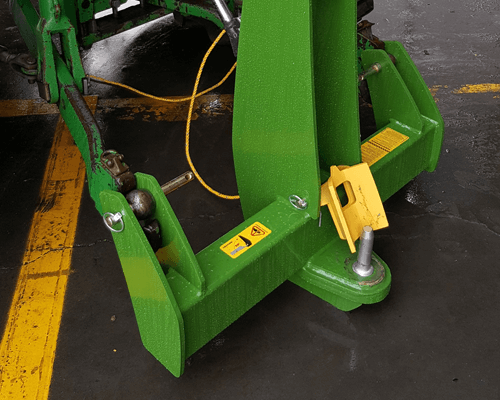

Easy to Store

Stands up on its own, making it easy to store, and connect to the tractor.

Built to ISO Standard

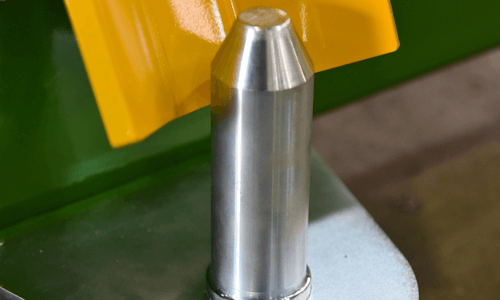

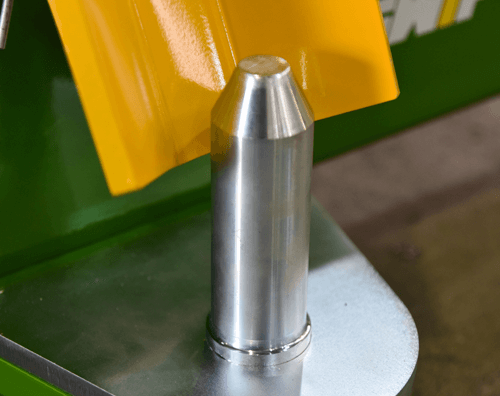

High Tensile Tow Pin

High Tensile Tow Pin

4140 tow pin for longer life – 50mm standard (Optional 40mm pin available)

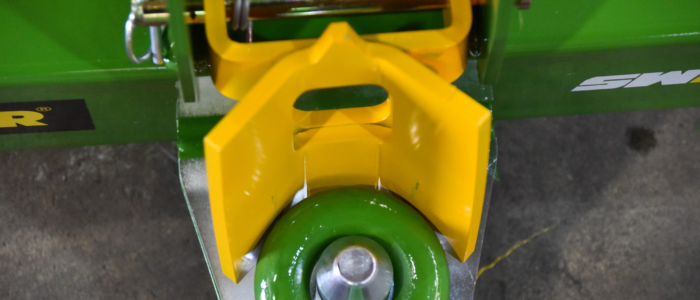

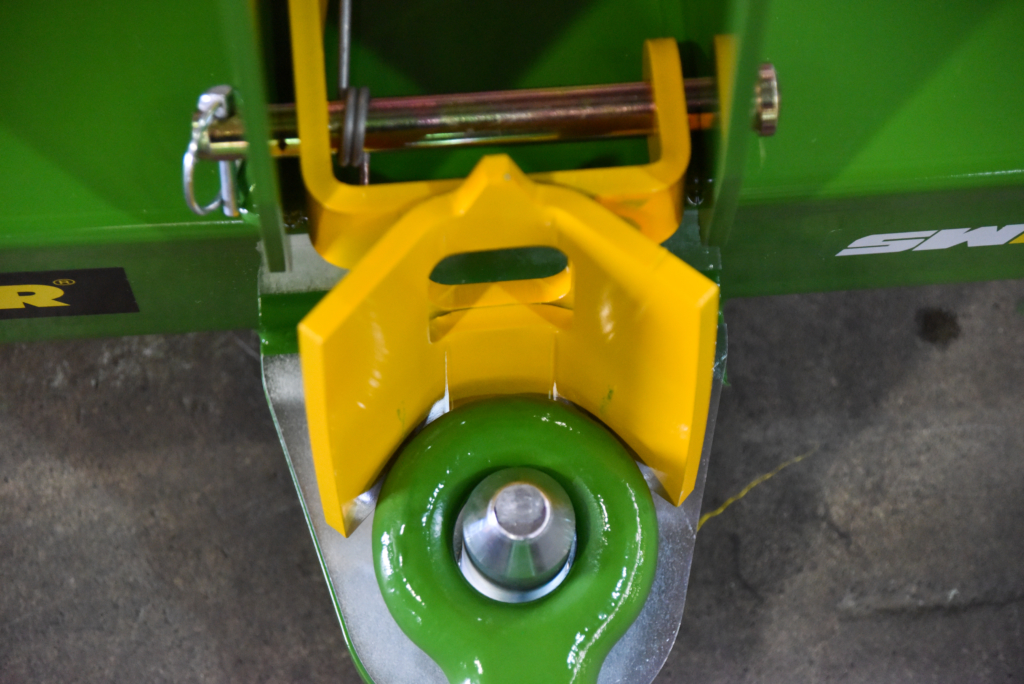

Easy to Connect

Unique ‘V’ shape latch design that guides the pin under the towing eye making it easier to connect when slightly off centre.

Swifthitch Unique V shape
Swifthitch Strongest Latching System

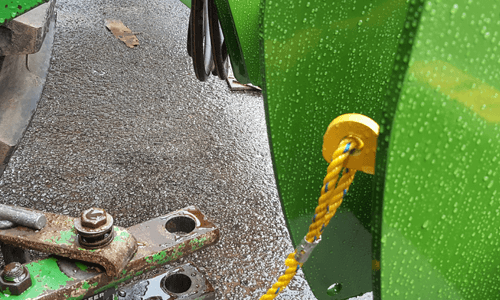

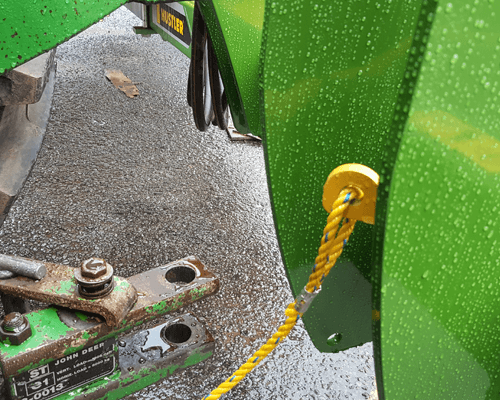

Strongest/Safest Latching Mechanism on the Market

Latching mechanism/lever is protected inside the main uprights for protection from damage and to eliminate accidental disconnection.

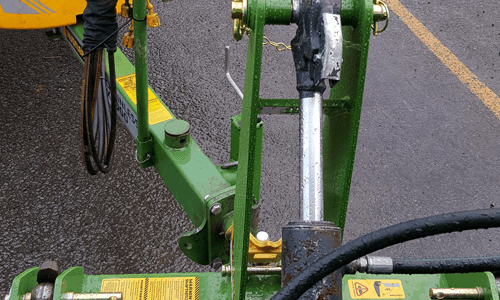

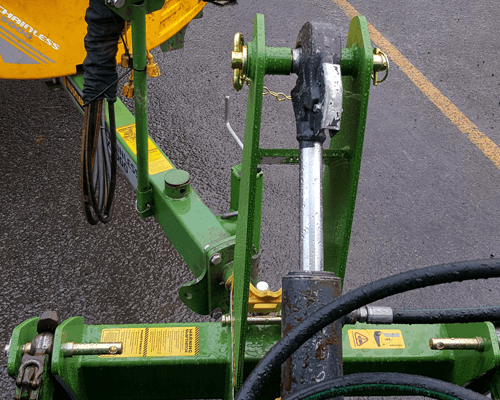

Best Visibility on the Market

Cleanest and widest see-through tower on the market, and a clear view to the top of the pin.

Best Visibility on the Market

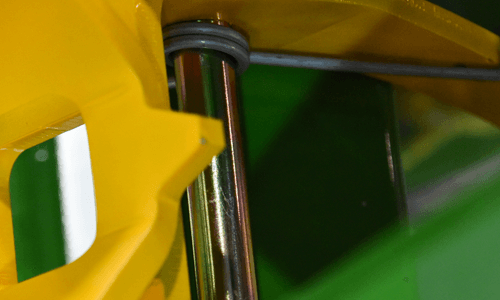

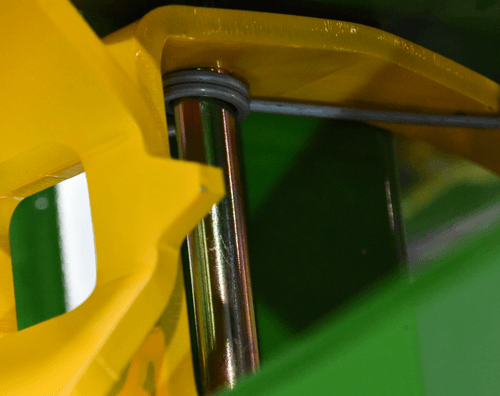

Large Latch Pin

Large Latch Pin

Largest latching pin 3/4” to provide more reliability and loading.

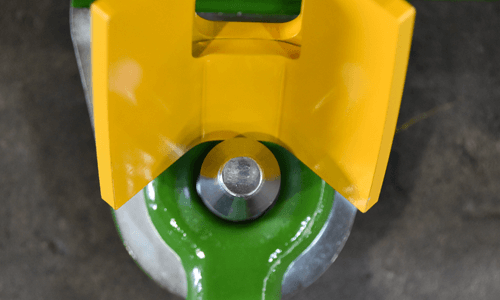

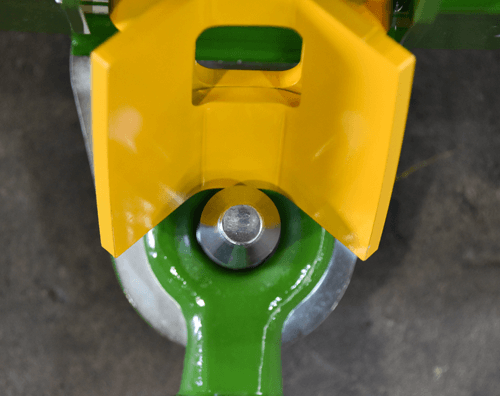

More Pin Cover

More Pin Cover

Latch covers more of the eye than others. Latch locks against the pin, making it impossible to accidentally disconnect, or a forced disconnection.
