Super Comby EX

What others are saying

"We look at total cost of ownership when purchasing any machinery. We take into account the storage capacity, the products required to be fed out, the efficiency of feeding out, potential downtime and maintenance costs. In the case of feed out machinery the Mega Comby XL is in a class of its own."

- Tim - Rakaia Island, New Zealand

"The Super Comby was the best purchase we have ever made, with the capacity and performance it can feed out everything and has saved me time and labour costs"

- Martin - Ashburton, New Zealand

7 Key Benefits

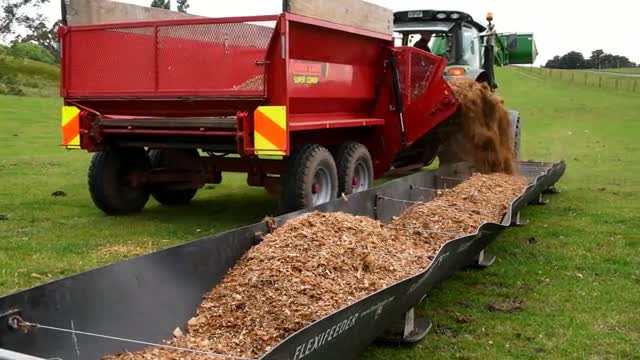

VERSATILITY – If you’re feeding a combination of bales, silage, root-crops or any other supplementary feed, then the Super Comby EX is the only feeder you’ll need. Super Comby EX is able to feed all types, shapes and sizes bales including straw, hay and baled silage, fine chop silage, maize silage, root crops and literally any type of feed you can lay your hands on. The unique elevator design delivers feed out of the side of the machine allowing you to feed into troughs, feed-pads, bunks or open pasture

CONTROL – The unique design of the Super Comby EX provides the operator with more control and visibility of the task at hand. More control over the feed-row lets you maximise your feed by varying from light for sheep and deer to the heavier row for feeding cattle and anything in between with no big clumps left in the pasture. The ability to see the entire load from the comfort of your seat puts you in control of feeding

RELIABILITY – The combination of a tough, well-proven design with the design smarts of the unique load dividing system reduces loads and stresses on drives, motors, shafts and the floor extending the working life, reducing maintenance and less to wear out which lets you spend more time feeding out, less time in the workshop.

EASY TO USE – With a simple Joystick Control Feeding System only 2 double acting hydraulic outlets are required to operate the entire machine. Elevator, loading forks, main floor and cross floor giving you more control, from your fingertips. You have full control of the feed material, being able to forward and reverse all floor movements.

SCALABILITY – With the Super Comby EX you have the ability to up-size your multi-feeder as your farm grows, without the need to upgrade to a new wagon. Add the rear bin at any time to the standard 13 cbm Super Comby EX to increase capacity to 15 cbm.

COMPACT – The Super Comby EX is the most compact and manoeuvrable silage feeder and/or bale feeder in the 460ft3 class than to the ability to load the entire feeder, including the cross floor.

ACCURATE FEED DELIVERY – All Comby feeders now come load cell ready as standard, which allows you to add the weighing option when it suits your operation so you can accurately measure the correct amount your herd needs, reducing waste and increasing the performance of your farm.

Features

Tilting Elevator

Allows the operator to easily feed into troughs bunks or pasture, and to vary the thickness of the feed-line. The generous overhang eliminates feed being driven over by the wheels, whilst maintaining stability.

Finger Tip Control

Standard in-cab electric joystick gives fingertip control over the entire feeder, letting you control the feed row of any feed type and density.

1635mm wide elevator

The widest elevator on the market, handle any shape or size of supplementary feeds, even the largest of 5’ bales. And the chain/slat design never slips or stretches like that of a conveyor belt. The new design has a 500mm longer elevator.

Positive Drive Cross Conveyor

Minimal maintenance, ultra-high breaking strain and a positive drive. Never worry about a derailed or stretched conveyor belt again.

Strong RHS Bars

RHS bars are substantially stronger torsionally than angle type bars of same size. We’ve used RHS bar on all floors for strength and reliability.

Load Dividing

The unique load dividing design utilises the entire body for storage capacity, making for a more compact and manoeuvrable feeder with better visibility of the load and more weight transferred to the tractor, especially important when operating in the field.

Lower Maintenance

with only one floor runs continuously and the remaining 2 floors move on demand, this substantially reduces maintenance compared to that of a traditional silage wagon.

Load Cell Ready

All new comby wagons come weigh-scale ready from the factory, providing you with a future-proofed feeding solution and easy entry into the world’s best silage feeders. The unique design weighs the entire feeder, whether parked or on the tractor.

Steel Floor

With the all steel floor design, that lasts the lifetime of the feeder, you’ll never need to worry about broken board breaking a chain, or rotting out from the exposure to silage juices.

Covered Shafts

New Thermoform floor covers the driveshaft’s which eliminates any possibility of feed wrapping around the shafts or jamming.

HD Axles

The toughest axle design on the market by a country mile, giving total peace of mind, and eliminating any possibility of downtime.

Large Suspension Travel

The oscillation of the tandem axle allows for traveling over the most rugged terrain with ease.

Folding tailgate

The new tailgate design makes for quicker and easier operation and stores neatly along the side of the feeder.

Bale manipulator

The patented bale manipulator aids the loading of large round bales and can be operated from the operators seat on the tractor.

Hose Holder

The built in hose holder, keeps hoses neatly stored out of the dirt when unplugged from the tractor.

Protected Hydraulics

The hydraulic valves are nicely protected from the weather, mud and other contaminants. Another built-in downtime saver.

Easy Connection

only 2 pair of double acting hydraulic remotes and a trailer plug connection are required to power the Super Comby EX, and the close off tap makes connecting and dis-connecting to the tractor very quick and easy.

Safety Chains

Standard the Super Comby EX comes with safety chains, for added operator safety both on and off the road.

Forged Towing Eye

The approved towing eye offers 360 degree rotation to protect your tractor and can be locked to simplify hooking up with a quick-hitch.

Heavy Duty Jack

The tough 3" screw jack with the largest support area, means the jack supports the machine better whilst loading.

Mudguards

Standard the Super Comby EX is fitted with full length mudguards to protect your feed from contamination and keep the feeder clean.

Welded Body

The fully welded body eliminates the need for bolt or rivets which when subject to vibration or flex can loosen.

Protected Hoses

The hoses on the Super Comby EX are protected from chaffing, another downtime eliminator.

HD Drives

The simple but heavy duty drives require very minimal maintenance and handle the heaviest of loads.

Specifications

CAPACITY

Round Bales: 4-5 (5-6 with optional forks)
Medium Square Bales: 6-8 (8-10 with optional forks)
Large Square Bales (8ft): 5 (6 with optional forks)
Loose silage (load level): 460ft3 (530ft3 with optional bin extension)
Loose silage (heaped load): 550ft3 (600ft3 with optional bin extension)
Optional Grain Feeding System: 1760lb
Optional Causmag spreader: 165lb

SPECIFICATIONS

Overall width: 114″
Overall length: 283″ (377″ with optional forks)
Overall height/loading height: 77″
Tare weight: 6525lb (7650lb with forks and bin)
Tare weight optional grain feeding system: 441 lb
Standard tyres: 400/60 x 15.5AW
Axle: 6 stud x 70mm sq, tandem oscillating
Brakes: Optional 2 or 4 wheel braking
Weigh Scales: Optional 6 cell
Floor: Welded steel floor
Joystick: In-cab electric fingertip control
Hydraulics required: 2 pair double acting (additional 1 pair double acting required for forks)
Elevator: 64″ wide chain/slat
Jack: 3″ screw, with quick adjustment

Optional Extras

Tyre Options

400/60 R15.5 Tractor grip floatation

Weigh Scales

Accurately feed your livestock with the optional 4 cell weighing scale which weigh the entire load when the machine is both on and off the tractor. Choose...

Grain Feeding System

Feed grain on top of the silage or hay for more efficient grain feeding, saving you an extra trip to the field and reducing waste. Connects to existing...

Comby Spread

Spread Causmag, Magnesium, lime flour and other minerals directly on top of the feed row, saving you another trip to the field and reducing waste. Connects...

Feed Pad Kit

An optional extra for the Comby Range that eliminates leakage.

Self Loading Forks

Boost the capacity of your Super Comby EX, and reduce loading time when feeding bales with these self-loading forks. Requires 1 pair of double acting remotes.

Silage Extending Bin

Increase the capacity of your Super Comby by 92ft3 (load-level) at time of purchase or at a later date as your farm grows without the need to replace the...

Brakes

For added operator safety both on and off the road. Choose 2 wheel braking or maximum braking on all 4 wheels.

Road Light Kit

With road regulations increasing, we make it easy for you to comply with a factory installed road light kit which includes and hazard panels, and the safety...

Why Hustler

Hustler has been designing and building farm equipment since 1961. We combine a love for machines with creativity, an understanding of farming, and a passion for discovering better ways to do everyday tasks.

Our head office location in one of New Zealand’s key agricultural regions keeps us in touch with the requirements of some of the world’s best farmers. We listen, we observe, and we challenge the status quo to develop products that meet the evolving needs of agriculture. Industry-leading technology ensures meticulous manufacturing standards.

All new Hustler products undergo a grueling test programme, When they survive we stand behind them with our two-year warranty and our global dealer network.

Founded in 1961
Exporting for over 45 years
Created more than 15 industry first
More farmers choose Hustler bale feeders than any other brand*
